Most buyers can find an equipment list anywhere. What they actually struggle to evaluate is whether a production line can deliver pipes that behave consistently under verification—especially across diameter changes and long production runs.
That is why the most reliable way to understand a DWC production line is to start from the standards that define structured-wall conformity. EN 13476 frames the application context (non-pressure underground drainage and sewerage) and the structured-wall construction logic. In that framework, DWC corresponds to Type B construction: a smooth inner wall paired with a profiled outer wall.
The smooth inner wall serves hydraulic stability; the profiled wall serves structural efficiency. The production implication is simple: the line must repeatedly manufacture the same structural cross-section, not merely “a pipe that looks acceptable.”
Repeatability is the core theme that connects standards to machine engineering.
ISO 9969 measures ring stiffness by compressing a pipe specimen between parallel plates at a controlled rate. Although the output is a single stiffness value, the physical meaning is not “strong resin” versus “weak resin.” It is largely a geometry outcome interacting with elastic behavior.
A useful conceptual relation is:
S ≈ (E × I) / D³
Where E is elastic modulus, I is the second moment of area, and D is mean diameter. The D³ term matters because diameter scaling is unforgiving: the same cross-section strategy cannot be carried to larger diameters without geometric efficiency.
The second moment of area can be expressed as:
I = ∫ y² dA
Here, material positioned farther from the neutral axis contributes disproportionately. Corrugation leverages this by moving a portion of material outward into crests, increasing structural efficiency without a proportional increase in mass.
A practical takeaway for production is that stiffness variation often traces back to geometric variation—such as crest height drift, valley definition instability, or circumferential thickness bias—rather than to resin grade alone.
ISO 13968 evaluates deformation behavior at larger deflections and checks for damage such as cracking, delamination, and permanent instability. In practice, this is where lines that look “stable” can still fail, because appearance does not prove interface continuity.
DWC pipes are not a single wall. They are a bonded structural system. Under large deformation, two broad failure directions tend to appear:
Geometry-driven instability (for example, local buckling concentrated at valleys or pitch transition zones)
Interface-driven weakness (for example, layer separation that becomes visible only after deformation)
This is why fusion stability and thermal balance must be treated as structural variables. If cooling freezes the outer profile too early, or if melt temperatures are mismatched, interdiffusion across the interface may be insufficient. The pipe may still meet dimensional checks yet show integrity issues under deformation.
Table 1 — Standards to Manufacturing Control Map
| Standard | What It Validates | What the Line Must Control |
| EN 13476 | Structured-wall type and conformity | Geometry repeatability, dimensional stability, surface integrity |
| ISO 9969 | Ring stiffness behavior | Crest height stability, thickness distribution, ovality control |
| ISO 13968 | Deformation integrity | Interface continuity, valley stability, residual-stress-sensitive defects |
If extrusion defines material state, the corrugator defines structural reality.
Inside the forming tunnel, mold blocks close around the outer melt stream while vacuum channels pull the polymer into cavity profiles. At the same time, internal support maintains the roundness of the smooth inner wall. Geometry is imposed first, then progressively stabilized through cooling.
This sequence matters. Geometry is not “cut” into the pipe—it is drawn, shaped, and frozen under moving mechanical confinement. Small fluctuations in mold alignment, vacuum level, or synchronization can translate into measurable differences in crest height, valley depth, or pitch uniformity.
Because stiffness scales with geometric distribution rather than mass alone, a corrugator that drifts slightly can produce pipes that visually pass inspection yet show wider dispersion in ISO 9969 results—especially at larger diameters where D³ scaling amplifies minor deviations.
For this reason, the corrugator should be understood not as a forming accessory but as the structural core of the line. The extrusion system supplies material; the corrugator determines how that material is positioned in space.
Geometric repeatability is the corrugator’s primary engineering obligation.
In structured-wall pipes, wall thickness is not uniform. It varies between crest and valley regions, and it can also vary circumferentially if melt distribution is imperfect.
It is tempting to monitor only average wall thickness. However, stiffness behavior depends on how material is distributed relative to the neutral axis. Returning to the relation:
I = ∫ y² dA
material located farther from the neutral axis has amplified influence. That is why crest geometry contributes disproportionately to stiffness efficiency, while valley regions often become the critical zones for local instability.
Under compression, valleys are more vulnerable to localized buckling. If valley thickness is insufficient, instability may initiate there even if the overall stiffness classification remains nominal.
Circumferential imbalance adds another layer of sensitivity. If thickness is biased to one side due to melt flow asymmetry, stress distribution under load becomes uneven. This can manifest as asymmetric deformation patterns or variability in test results across samples.
Table 2 — Structural Sensitivity of Cross-Section Regions
| Region | Primary Structural Role | Sensitivity if Unstable |
| Inner wall | Maintains roundness and hydraulic surface | Ovality under load |
| Crest | Amplifies bending stiffness | Reduced stiffness class if height drifts |
| Valley | Resists local compression | Local buckling initiation |
| Interface | Transfers load between layers | Delamination under deformation |
The implication for production control is clear: monitoring only total mass per meter is insufficient. Thickness distribution and geometric fidelity must be observed as structural variables.
Average thickness does not equal structural security.
Cooling in DWC production is more complex than in solid-wall extrusion because two structural layers and a periodic outer surface cool at different rates.
Thermal contraction can be approximated by:
ΔL = α × ΔT × L
where α is the thermal expansion coefficient, ΔT the temperature change, and L the original dimension.
Outer crest regions, exposed to mold cooling channels, may solidify faster than deeper valley regions. Meanwhile, the inner wall experiences its own cooling path, partially insulated by surrounding material. These differences create thermal gradients across the wall thickness.
When geometry is frozen under non-uniform temperature fields, residual stresses are locked into the structure. Residual stress does not necessarily cause immediate failure, but it may influence long-term durability or deformation behavior under sustained load.
If cooling is too aggressive, outer layers may solidify before adequate interlayer diffusion occurs. If cooling is too slow, geometry relaxation may occur before stabilization.
This makes thermal balance not merely an efficiency issue but a structural control parameter. Cooling must stabilize geometry while preserving fusion continuity.
Mechanical verification results are not just pass–fail indicators; they are diagnostic signals. When a DWC pipe fails or shows abnormal deformation patterns under ISO 13968 or stiffness testing, the visible damage often points back to a specific production instability.
In practice, failure modes tend to cluster around two structural directions.
The first is geometry-dominated instability. Local buckling often initiates at valley regions where curvature, thickness, and cooling history intersect. If valley thickness drifts downward or if crest-to-valley transitions become inconsistent, compressive stresses concentrate and instability may appear earlier than expected.
The second direction is interface-dominated failure. In these cases, the pipe may maintain shape under limited deformation but reveal separation between layers once strain exceeds a threshold. This typically traces back to insufficient melt interdiffusion or to premature surface freezing during cooling.
What matters is not memorizing failure types but recognizing that each one corresponds to a controllable production variable. When failure is observed, the relevant questions are:
Was fusion temperature stable within the bonding window?
Was corrugator alignment consistent across the forming length?
Did cooling introduce asymmetric shrinkage?
Failure patterns are process fingerprints.
| Observed Behavior | Likely Structural Driver | Production Variable to Check |
| Local buckling at valleys | Insufficient valley stability | Thickness distribution, cooling gradient |
| Delamination between layers | Weak interface continuity | Melt temperature balance, fusion window |
| Asymmetric deformation | Circumferential imbalance | Melt flow distribution, die alignment |
| Early ovalization | Inner wall instability | Internal support, haul-off synchronization |
It is tempting to optimize production lines for peak output or lowest energy consumption. However, DWC manufacturing behaves more like a coupled stability system than a collection of independent maxima.
The line operates within what can be described as a stability window—a bounded region in which melt temperature, vacuum level, cooling intensity, and haul-off speed remain mutually compatible.
If melt temperature drops slightly below optimal bonding range, geometry may appear intact while interface strength weakens. If vacuum fluctuates, crest height may vary subtly without immediate visual detection. If cooling shifts, residual stresses may accumulate unevenly.
The key insight is that no single parameter defines stability. Instead, performance depends on coordinated balance.
A stable window has three characteristics:
Limited dispersion in mechanical test results
Minimal startup scrap once equilibrium is reached
Repeatable geometry across diameter changes
Structural consistency depends on balance, not extremes.
Monitoring structured-wall pipes presents unique measurement challenges. Corrugated outer profiles disrupt conventional ultrasonic reflection paths, and temperature-dependent material properties complicate signal interpretation during hot production.
Thickness measurement systems can provide valuable trend data, but they must be interpreted cautiously. A corrugated surface does not offer a uniform reference plane, and crest-to-valley transitions create angular variability in signal return.
Startup phases further complicate stability. During the first production meters, melt pressure and temperature equilibrium may still be converging. Slight imbalances can temporarily create eccentricity between inner and outer walls before the system settles into steady-state behavior.
Because of these realities, online measurement should be understood as a feedback mechanism rather than a guarantee of absolute geometric truth. It helps detect drift and narrow the stability window, but mechanical verification remains the final structural arbiter.
Measurement supports stability; it does not replace structural testing.
Laboratory standards define mechanical thresholds, but field conditions introduce additional constraints that production engineers cannot ignore.
In underground drainage systems, pipes interact continuously with soil, groundwater, and installation practices. Joint integrity, socket geometry, and bedding conditions all influence long-term behavior. A pipe that meets stiffness classification but shows dimensional inconsistency at the socket may compromise sealing reliability.
Inline socket formation introduces localized geometry thickening and modified cooling dynamics. These transitions must remain dimensionally stable under external load and temperature variation. If cooling at the socket region differs significantly from the pipe body, residual stress concentration may arise.
Material selection also intersects with application demands. Infrastructure specifications frequently reference resin classification standards such as ASTM D3350. While resin grade defines baseline mechanical properties, structured-wall performance ultimately depends on how consistently that material is shaped and stabilized during production.
The production line must therefore serve two masters: laboratory conformity and field durability.
Mechanical verification captures short-term structural performance. Long-term durability depends on how the pipe behaves under sustained load and environmental exposure.
Residual stress, introduced during non-uniform cooling, can influence slow crack growth over time. Even when deformation remains within acceptable limits, micro-level stress concentrations may propagate under cyclic or sustained loads.
Environmental factors add another layer of interaction. Although DWC pipes are typically buried, storage prior to installation may expose them to ultraviolet radiation. Surface oxidation, while often minimal in duration, can affect impact resistance if exposure is prolonged.
In sewer applications, chemical exposure may involve acidic or oxidative compounds. The polymer matrix generally provides strong chemical resistance, but manufacturing defects—such as incomplete fusion zones or surface inclusions—can create localized vulnerabilities.
Durability, therefore, is not an independent property. It reflects the cumulative effect of structural design, thermal balance, and manufacturing precision.
The structural equations introduced earlier are not merely theoretical. They shape economic decisions.
Because stiffness scales inversely with D³, increasing diameter dramatically raises structural demand. Attempting to compensate by uniformly increasing wall thickness leads to rapid material consumption growth.
By contrast, optimizing corrugation geometry improves stiffness efficiency without proportional mass increase. Increasing crest height within controlled limits redistributes material outward, enhancing the second moment of area while maintaining overall weight discipline.
This geometric strategy allows manufacturers to achieve higher stiffness classes without excessive resin usage.
Table 4 — Structural Strategy and Cost Implications
| Structural Strategy | Material Impact | Structural Effect | Economic Outcome |
| Uniform wall thickening | High material increase | Moderate stiffness gain | Rising cost per meter |
| Corrugation height optimization | Controlled material usage | High stiffness efficiency | Improved cost-performance ratio |
| Fusion window stabilization | Neutral mass | Higher deformation reliability | Reduced scrap and claims |
The economic consequence is clear: geometry stability and fusion consistency often deliver more value than marginal increases in material grade.

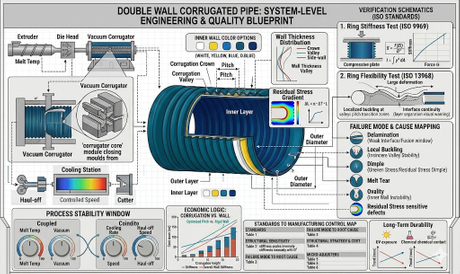

When viewed holistically, a DWC production line is neither an extrusion system nor a forming machine alone. It is a coupled platform where material state, geometric definition, and thermal stabilization converge.
Melt preparation establishes rheological stability. The die head distributes mass. The corrugator positions material in space. Cooling freezes that position. Measurement systems observe deviations. Mechanical tests validate the result.
Each subsystem interacts. A minor shift in melt temperature influences fusion behavior. Fusion behavior influences deformation integrity. Cooling balance influences residual stress, which influences long-term durability.
Treating these elements independently creates blind spots. Understanding them as a coordinated system reduces variability and improves repeatability.
A high-quality DWC production line is not defined by maximum throughput, motor size, or isolated technical features. It is defined by its ability to repeatedly produce a stable structured cross-section that performs predictably under verification and in service.
The true indicators of line maturity include:
Narrow dispersion in ISO 9969 stiffness results
Consistent behavior under ISO 13968 deformation
Minimal geometric drift across long runs
Stable startup convergence
Controlled residual stress patterns
When these conditions are met, the line has achieved alignment between standards, geometry, and process control.
