Efficient PVC Pipe Production Extruder

PVC pipe making machinery production line mainly used for the production of PVC UPVC CPVC tube with various pipe diameter,wall thickness for plastic agricultural water supply and drainage, construction water supply and drainage,electrical wire protection and other aspects etc.The production line consists of conical (parallel) twin-screw extruder, mould,vacuum sizing tank, tractor machine, cutter machine, stacker and so on. Twin-screw extruder and tractor machine adopt imported AC frequency conversion speed regulating device to ensure the stability of production.

Availability:

Quantity:



Inquire Add to Basket

PVC pipe production line UPVC pipe production line PVC turnkey production line High-Efficiency PVC Pipe Extruder PVC pipe making factory PVC pipe machine manufacturer PVC Pipe Extrusion Line PVC Pipe Extrusion Line Manufacturer PVC Pipe Extrusion Line Manufacturer in China NEW PVC Pipe Extruder Machine

Main Technical Parameter

PVC pipe production extruder

Advantages:

Motor: Siemens brand
Inverter: ABB
Temperature controller: OMRON/RKC
Other electric elements: international famous brands
Screw and barrel: Bimetallic which is best material

Specifications:

Main extruder	45/90	51/105	55/110	65/132				80/165			92/188
Pipe diameter	16-63		16-40	16-63	16-32	20-110	63-200	63-200	75-250	110-315	315-630	500-800
Die head	Single cavity		Two cavity		Four cavity	Single cavity		Two cavity	Single cavity		Single cavity
Total power	47	60	70	91	85		96.5	136	114	145	270	295

PVC pipe production extruder process flow:

loader--> extruder-->mould-->vacuum cooling tank-->hauling off-->cutting machine-->stacker

Final products PVC pipes photos:

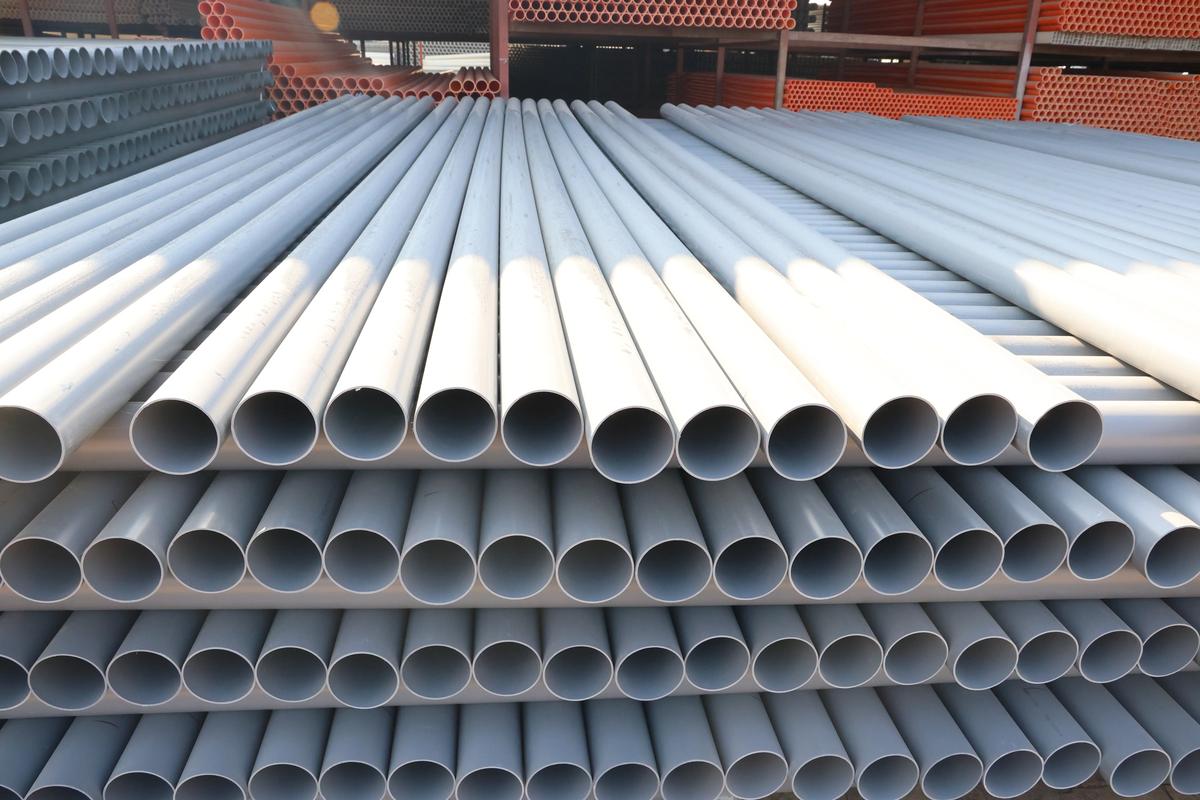

final product PVC pipe

The Characteristics of the PVC Pipe Extruder Machine

Mixer: The main function is to mix two or more substances evenly before production. Vaulted cover, no distortion. National patent for principal axis airproof device. Self-friction or electric heating and steam heating function of the hot mixing.

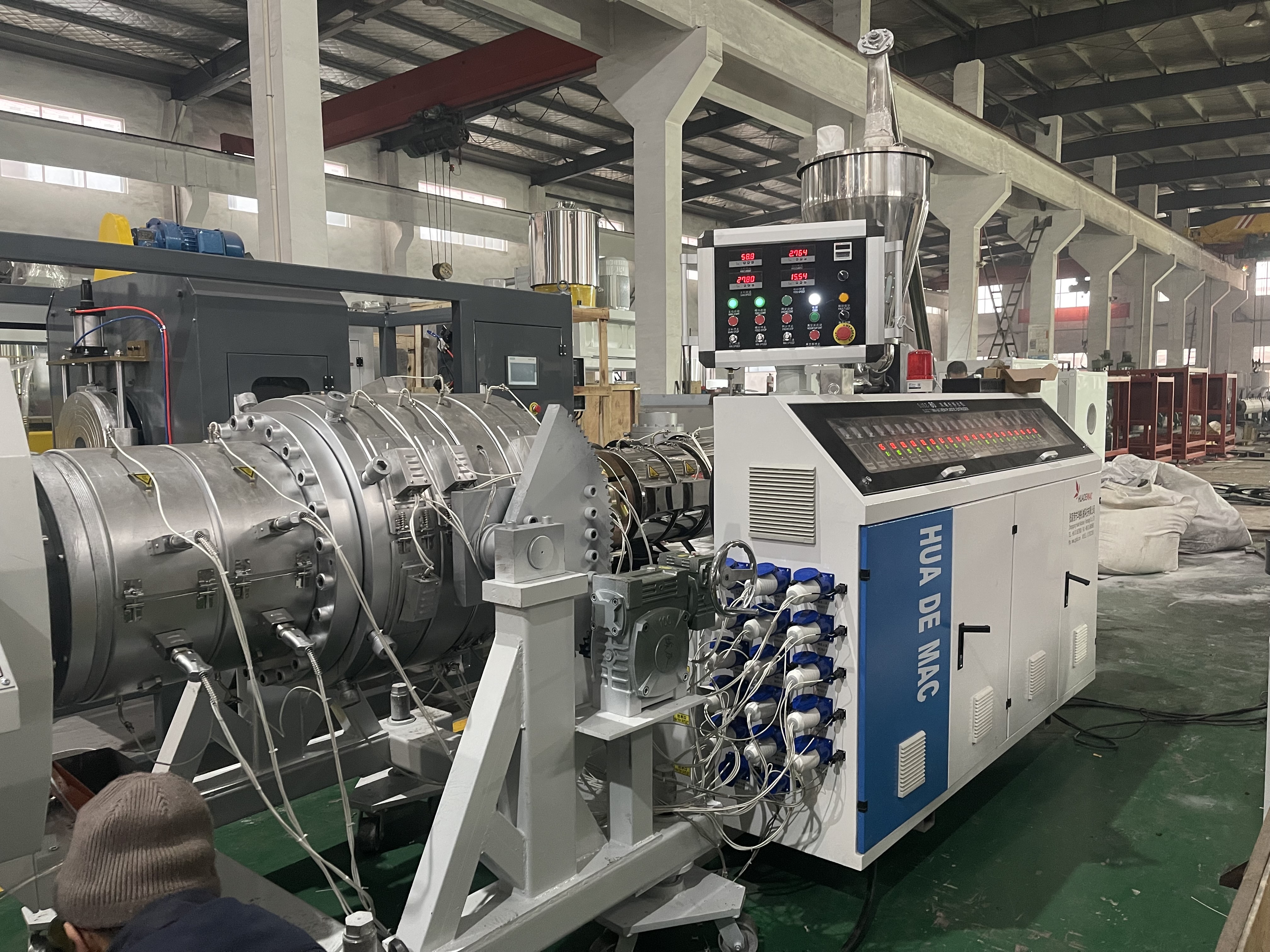

Extruder: The screw of our PVC pipe extruder uses conical twin screw, which is mainly characterized by the ability to enhance the shear force between the screws, so as to achieve the mixing of raw materials inside the extruder, making the mixing of materials and additions more uniform.

Mold: The 40Cr material used in the mold of our PVC extruder ensures long life and smooth surface of the pipe.

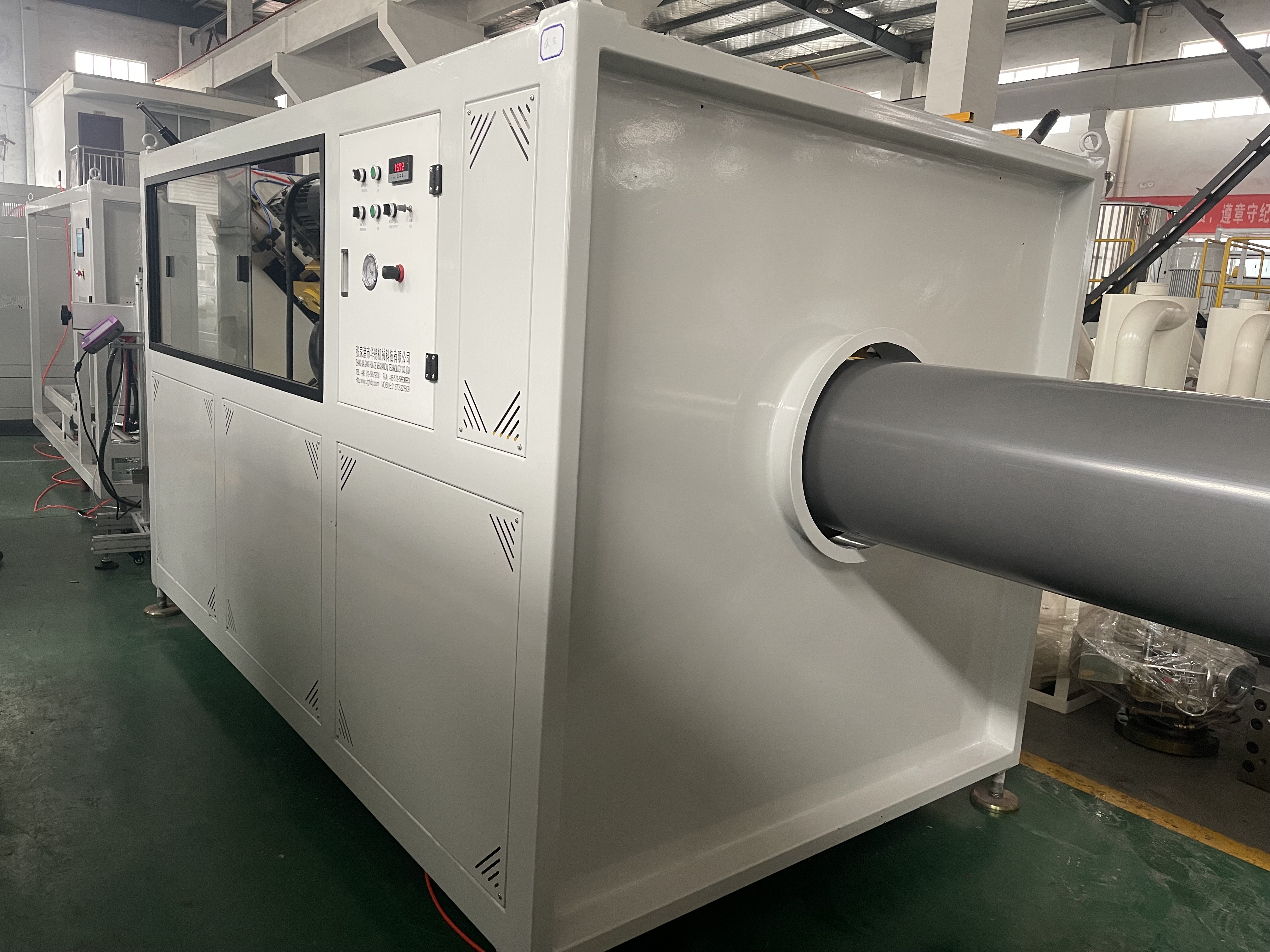

Vacuum tank：In the PVC pipe extrusion production line, the vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. Its shape is advanced foreign multilateral anti-deformation structure. The cover is made of high quality casting aluminum alloy. The pipeline adopts the design of double loop pipeline, realizing non-stop pipeline clean and function of temperature control.

Haul off machine: In order to fit the production needs of a variety of pipe diameters that our factory has designed a variety of tractor machine, such as: 2 claw, 3 claw, 4 claw, 6 claw, 8 claw. Thus in the production can be more suitable for different pipe diameter production speed, and ensure the shape of the pipe.

Cutting machine: In view of the different pipe diameters, our factory uses cutter and planetary cutter, which can effectively cut PVC pipes of different pipe diameters. At the same time, our machine can maintain the synchronous operation of the pipe under the horizontal push of the cylinder, so that the pipe cut out is more uniform.

Belling machine: The main function is to expand the diameter of PVC pipes for connection. The machine is PLC controlled with digital display of temperature.

Company Description

Zhangjiagang Ivima Technology Co., Ltd. specializes in developing, producing, and selling plastic extrusion and recycling machinery. The company aims to become a world-class plastic machinery manufacturer, guided by professional manufacturing, customer-focused demand, and dedicated service.

For inquiries or orders about our PVC pipe extruder machines, feel free to contact us. We offer top-notch products and services, looking forward to our cooperation.

FAQ

Q: How long your factor delivery time?

The delivery time of our PVC pipe extrusion line is 60 working days.

Q: How long is your warranty?
Yes.Our guarantee time is 12 months.

Q: If you will send engineer coming to our factory to install and make training for worker?
Yes, every set of machine, we will send professional engineer to your factory and help installation and making training for you.

Q: Does your machine support customization?
Yes, our machines support customization.

Q: If we buy your machines, can you offer us wear-out spare parts?
We provide a 1-year warranty on our high-quality machines and provide free replacement of worn-out spare parts for 1 year. If your machine breaks down or stops working within this period and you can't resolve it, we'll first assist you over the phone or through other communication methods. If that doesn't solve the issue, our engineers will visit your factory to fix it and share relevant troubleshooting tips with you.
