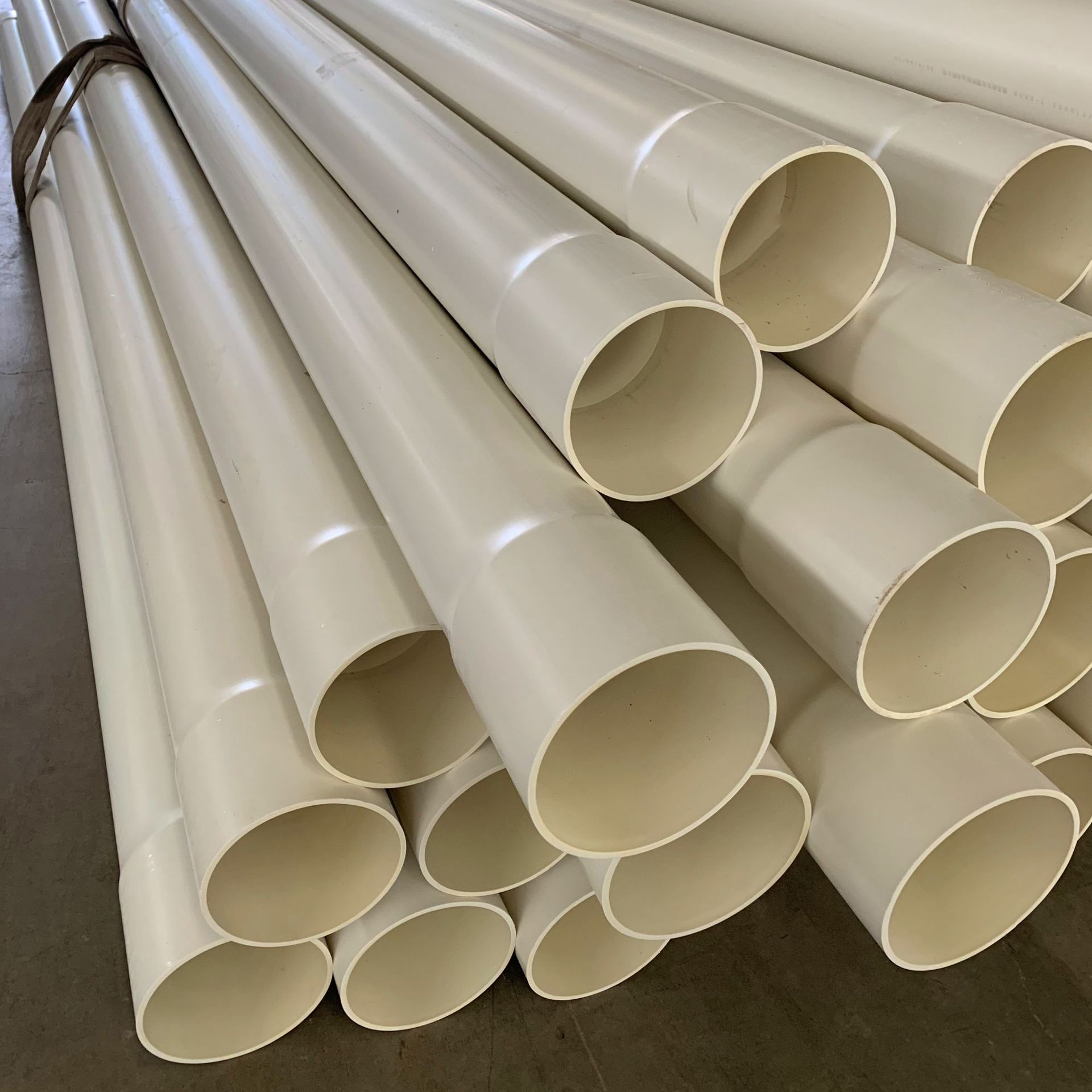

The Physical Properties of PVC Water Supply Pipes

Polyvinyl Chloride (PVC) has emerged as one of the most prevalent and trusted materials for water supply systems across the globe. Its dominance in this critical application is not a matter of chance but a direct result of its superior and well-engineered physical properties. From municipal water mains to residential plumbing, PVC pipes offer a unique combination of characteristics that ensure efficiency, durability, and safety. This article provides a comprehensive analysis of the key physical properties that make PVC an ideal choice for conveying water.

1. Mechanical Strength and Stiffness

PVC pipes are renowned for their high “tensile strength” and “stiffness” (or modulus of elasticity). This means they can withstand significant internal water pressure without bursting or deforming.

Pressure Rating: PVC water pipes are classified by their pressure capacity, commonly seen as Schedule 40, Schedule 80, or Class series (e.g., Class 200, 315). This rating is a direct measure of their mechanical strength. Their high hoop stress resistance makes them perfect for high-pressure main lines.

Ring Stiffness:This property allows PVC pipes to resist external loads, such as the weight of soil backfill and traffic loads when buried underground, without collapsing. This eliminates the need for excessive bedding materials, simplifying installation.

2. Lightweight Nature

Despite their impressive strength, PVC pipes are remarkably “lightweight”. Their density is around 1.3-1.45 g/cm³, approximately one-fifth that of cast iron or steel. This property yields significant advantages:

Ease of Handling and Installation: Manual handling is feasible without heavy machinery for smaller diameters, drastically reducing labor costs and installation time.

Lower Transportation Costs: More pipes can be transported per truckload, reducing fuel consumption and logistical expenses.

3. Exceptional Hydraulic Characteristics

The internal bore of a PVC pipe is hydraulically efficient.

Smooth Inner Surface: PVC has a very low surface roughness (Hazen-Williams Coefficient of 150+). This smoothness minimizes frictional losses as water flows through the pipe. Compared to metal pipes, which can corrode and become rough over time, PVC maintains its smooth interior throughout its lifespan.

Consistent Flow Rate: This low friction factor ensures higher flow rates for a given pipe diameter or allows for the use of smaller diameter pipes to achieve the same flow rate, leading to material and cost savings. It also reduces pumping costs over the system's lifetime.

4. Corrosion and Chemical Resistance

This is arguably one of PVC's most celebrated properties. Unlike metallic pipes, PVC is inert to the electrochemical reactions that cause corrosion.

Immunity to Galvanic and Electrolytic Corrosion: PVC does not rust, oxidize, or suffer from pitting corrosion. This makes it ideal for underground installation where soil chemistry can be aggressive towards metals.

Resistance to Chemicals: It is highly resistant to a wide range of chemicals, including those commonly found in soil and water. This ensures that the pipe itself does not degrade from exposure, and more importantly, it prevents the pipe from adding any metallic taste or corrosion by-products (like lead or iron) to the drinking water, preserving water quality.

5. Durability and Long Service Life

The combination of corrosion resistance and mechanical strength translates into an exceptionally long service life. PVC pipes for water supply are designed to last for decades, often with conservative estimates of 50-100 years of service under normal operating conditions. They do not become brittle with age in the same way some plastics can; when properly formulated for pressure applications, they exhibit excellent long-term stability.

6. Thermal Properties

Low Thermal Conductivity: PVC is a poor conductor of heat (thermal conductivity of ~0.14 W/m·K). This property minimizes heat transfer through the pipe wall. In cold climates, it helps protect the water from freezing slightly longer than metallic pipes, and in hot climates, it helps keep cold water cooler.

Thermal Expansion: PVC has a relatively high coefficient of thermal expansion (approximately 5-6 x 10⁻⁵ /°C), about five times that of steel. This means it will expand and contract more with temperature changes. This must be accounted for in long, above-ground runs by using expansion loops or joints. However, for buried pipes, the surrounding soil largely restrains this movement.

7. Material Non-Toxicity and Water Quality Preservation

PVC pipes used for potable water are manufactured to strict international standards (e.g., NSF/ANSI 61). They are non-toxic and lead-free. The material is impermeable, meaning it will not allow contaminants from the outside soil to leach into the water supply. Furthermore, its smooth surface inhibits biofilm formation and scale buildup, which are common in corroded metal pipes and can harbor bacteria.

8. Jointing Integrity: The Solvent Cement Welding Advantage

The physical property of being thermoplastic allows for a unique and supremely effective joining method: solvent cement welding. The solvent chemically fuses the pipe and fitting surfaces together, creating a monolithic, leak-free joint that is often as strong as or even stronger than the pipe itself. This eliminates the potential leak points common with mechanical joints in other materials.

9. Flame Retardancy

PVC is inherently flame resistant (it is classified as self-extinguishing). Its high chlorine content causes it to char when exposed to flame, which inhibits the spread of fire. This is a critical safety feature, especially in building interiors where a fire could compromise the plumbing system.

Considerations and Limitations

While its properties are overwhelmingly positive, a complete understanding requires acknowledging its limitations:

Temperature Limitation: PVC softens at elevated temperatures. Its maximum continuous service temperature for pressure applications is typically around 60°C (140°F). Therefore, it is not suitable for hot water supply systems or high-temperature industrial applications, where CPVC (Chlorinated Polyvinyl Chloride) is often used instead.

UV Sensitivity:Unmodified PVC can be degraded by prolonged exposure to ultraviolet radiation from sunlight, which can cause surface embrittlement. For above-ground, exterior applications, UV-stabilized formulations or protective paint coatings are required.

Impact Strength: While strong, standard PVC can be brittle at very low temperatures and can be damaged by a sharp, high-impact blow. This is typically only a concern during handling and installation in cold weather.

Conclusion

The widespread adoption of PVC for water supply infrastructure is a testament to its superior and well-balanced portfolio of physical properties. Its unique synergy of **high strength-to-weight ratio, exceptional corrosion resistance, superb hydraulic efficiency, and long-term durability** makes it an economically and technically superior choice. By providing a reliable, clean, and cost-effective means of transporting water, the physical properties of PVC pipes have directly contributed to public health and the efficient development of communities worldwide, solidifying their role as the backbone of modern water distribution systems.
