SJSZ Series PVC Pipe Extrusion Line

The unit consists of a Conical Twin-Screw Extruder, Vacuum Calibration Tank, Haul-off Machine, Cutter, and Stacker. This line is engineered for high-efficiency production of UPVC, CPVC, and PVC-UH pipes ranging from 16mm to 800mm, offering reliable performance and superior pipe quality.

Key Highlights:

Versatile Configuration: Capable of producing spiral inner wall pipes and core layer foaming pipes by replacing the extruder configuration.
High Efficiency: Optimized screw design ensures stable plasticization and reduces energy consumption by 30%.
Fast Delivery: We guarantee a standardized production cycle of 2 months.
Worry-Free Service: Includes a 1-year warranty, free spare parts, remote diagnosis, and on-site engineer commissioning worldwide.

Availability:

Quantity:



Inquire Add to Basket

PVC Pipe Extrusion Line SJSZ Conical Twin Screw Extruder UPVC Pipe Making Machine Large Diameter PVC Pipe Machine Plastic pipe production line

Overview

High Performance SJSZ Series PVC Pipe Solution

SJSZ Series PVC Pipe Extrusion Line 16mm-800mm for UPVC CPVC Pipe Production

Designed for professional pipe manufacturers, the IVIMA SJSZ Series PVC Pipe Extrusion Line offers a complete solution for producing UPVC, CPVC, and PVC-UH pipes. With a wide production range from 16mm up to 800mm, this line is ideal for agricultural water supply, architectural drainage, and electrical conduit applications.

The core of the system is the SJSZ Conical Twin Screw Extruder, featuring high-torque gearboxes and optimized screw geometry. This ensures superior plasticization and energy efficiency, even when processing high-calcium formulations.

Key Features

Wide Diameter Range: Capable of producing from small conduits (16mm) to massive industrial pipes (800mm).
High Efficiency: The specialized screw design improves output capacity and reduces energy consumption by approximately 30%.
Precision Control: The vacuum calibration system ensures precise pipe dimensions and excellent roundness.
Robust Stability: Heavy-duty gearbox and branded electrical parts guarantee 24/7 continuous operation.

Technical Parameters

Advantages:

Motor: Siemens brand
Inverter: ABB
Temperature controller: OMRON/RKC
Other electric elements: international famous brands
Screw and barrel: Bimetallic which is best material

Specifications:

Main extruder	45/90	51/105	55/110	65/132				80/165			92/188
Pipe diameter	16-63		16-40	16-63	16-32	20-110	63-200	63-200	75-250	110-315	315-630	500-800
Die head	Single cavity		Two cavity		Four cavity	Single cavity		Two cavity	Single cavity		Single cavity
Total power	47	60	70	91	85		96.5	136	114	145	270	295

PVC pipe production extruder process flow:

loader--> extruder-->mould-->vacuum cooling tank-->hauling off-->cutting machine-->stacker

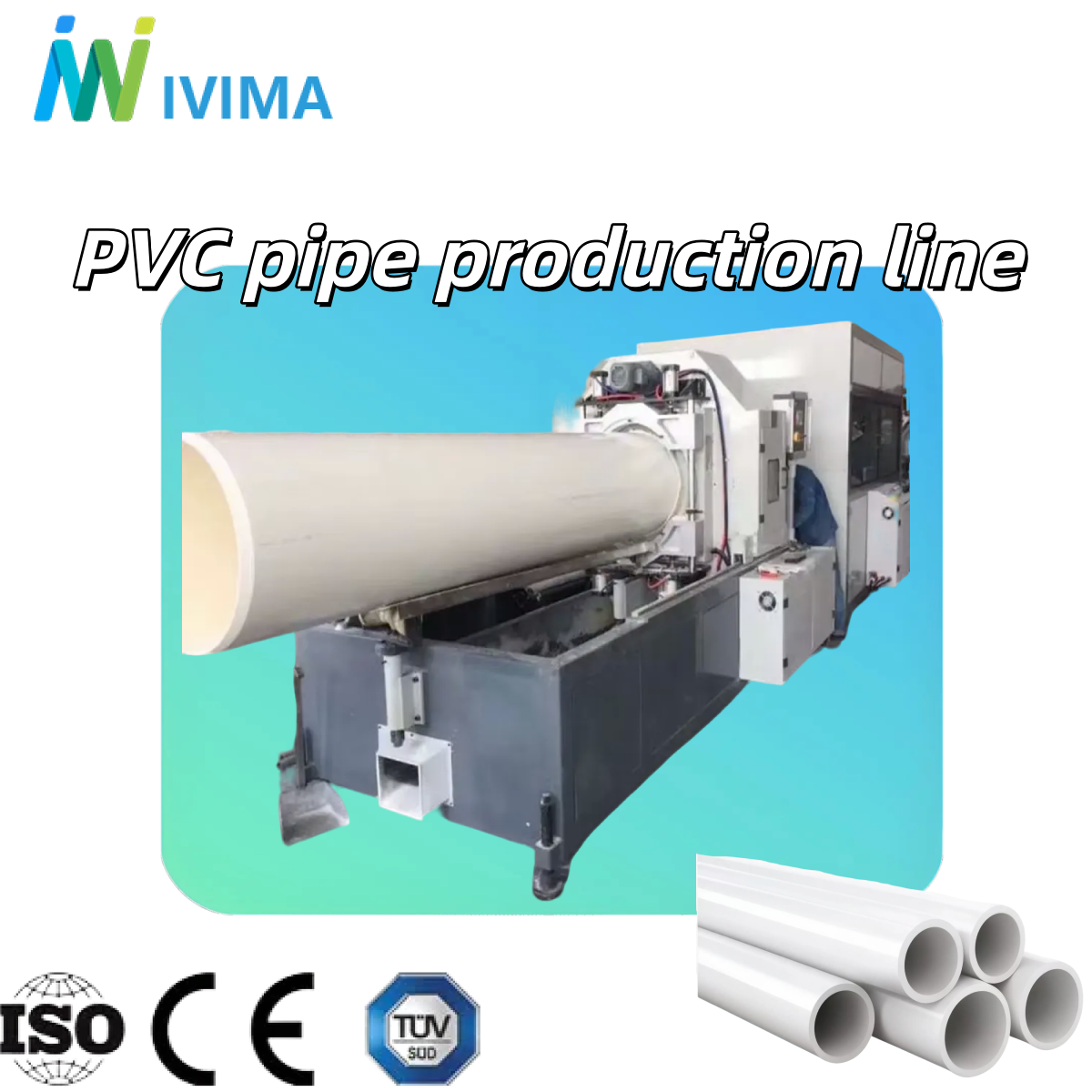

Final products PVC pipes photos:

final product PVC pipe

Configuration

Machine Configuration

We use top-tier components to ensure the longevity of the machine:

Extruder: SJSZ Conical Twin Screw (Bimetallic Screw & Barrel).
Motor: Siemens / WEG.
Inverter: ABB / Schneider.
Electrical Parts: Schneider Contactor, Omron Temperature Controller.

Production Process

SJSZ Conical Twin Screw Extruder → Die Head & Mould → Vacuum Calibration Tank → Haul-off Unit → Cutter → Belling Machine → Stacker.

Component Details

Introduction

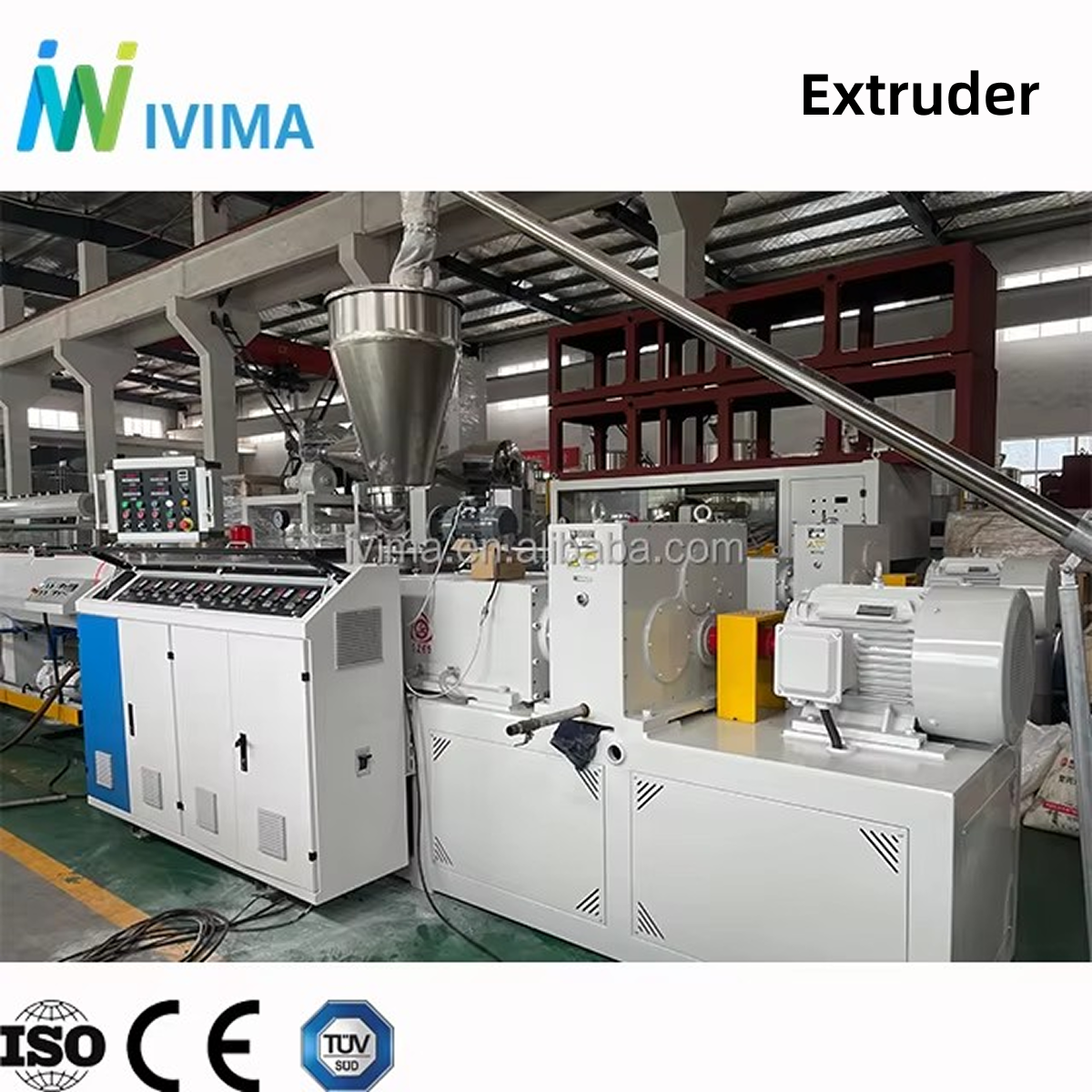

Extruder

Designed for stable output and precise melt control.
Suitable for continuous single cavity PVC pipe extrusion.

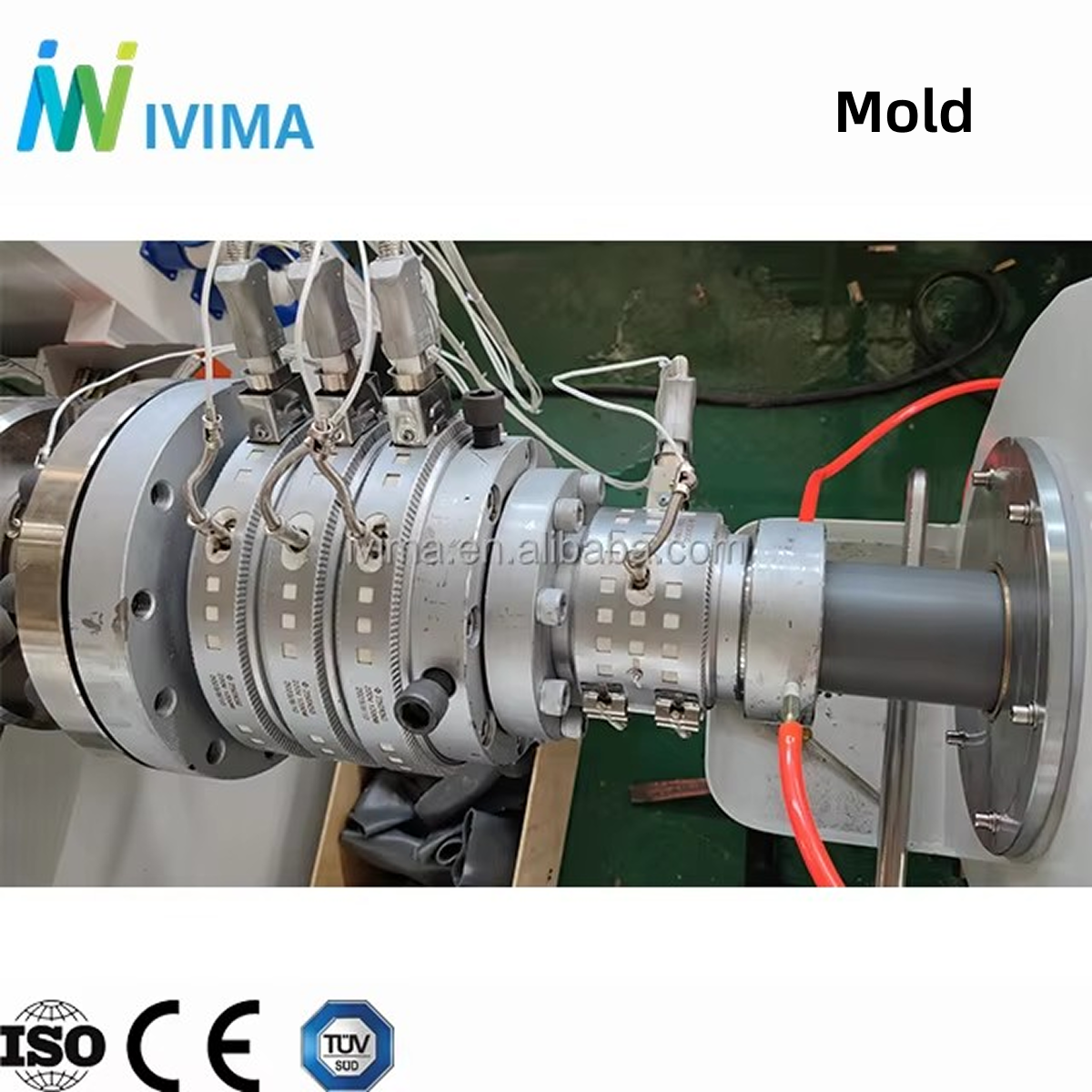

Mold

Designed for stable output and precise melt control.
Suitable for continuous single cavity PVC pipe extrusion.

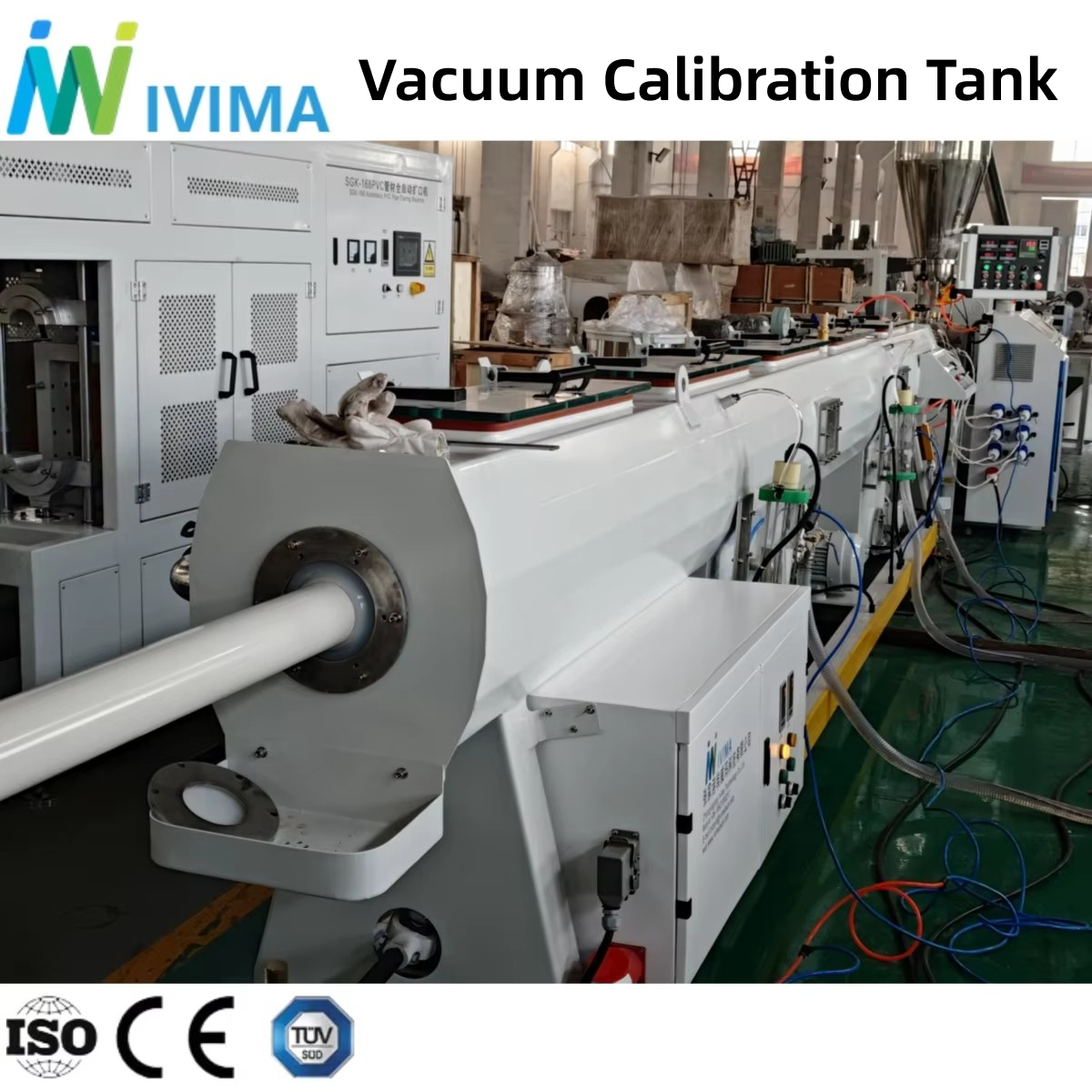

Vacuum Calibration Tank

Provides accurate pipe sizing and smooth surface finish.
Ensures dimensional consistency during continuous production.

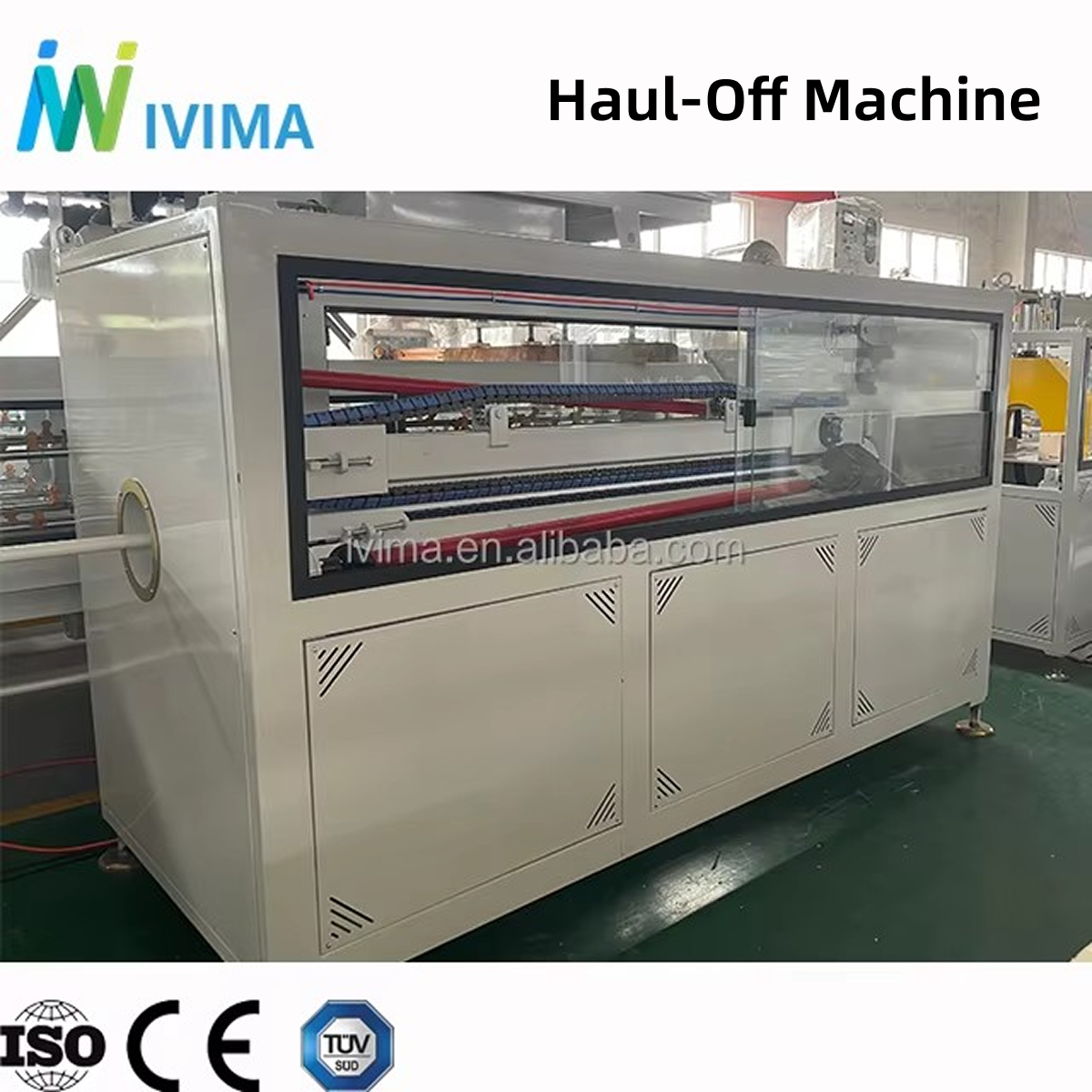

Haul-Off Machine

Provides stable pulling force for smooth pipe movement.
Supports reliable and continuous line operation.

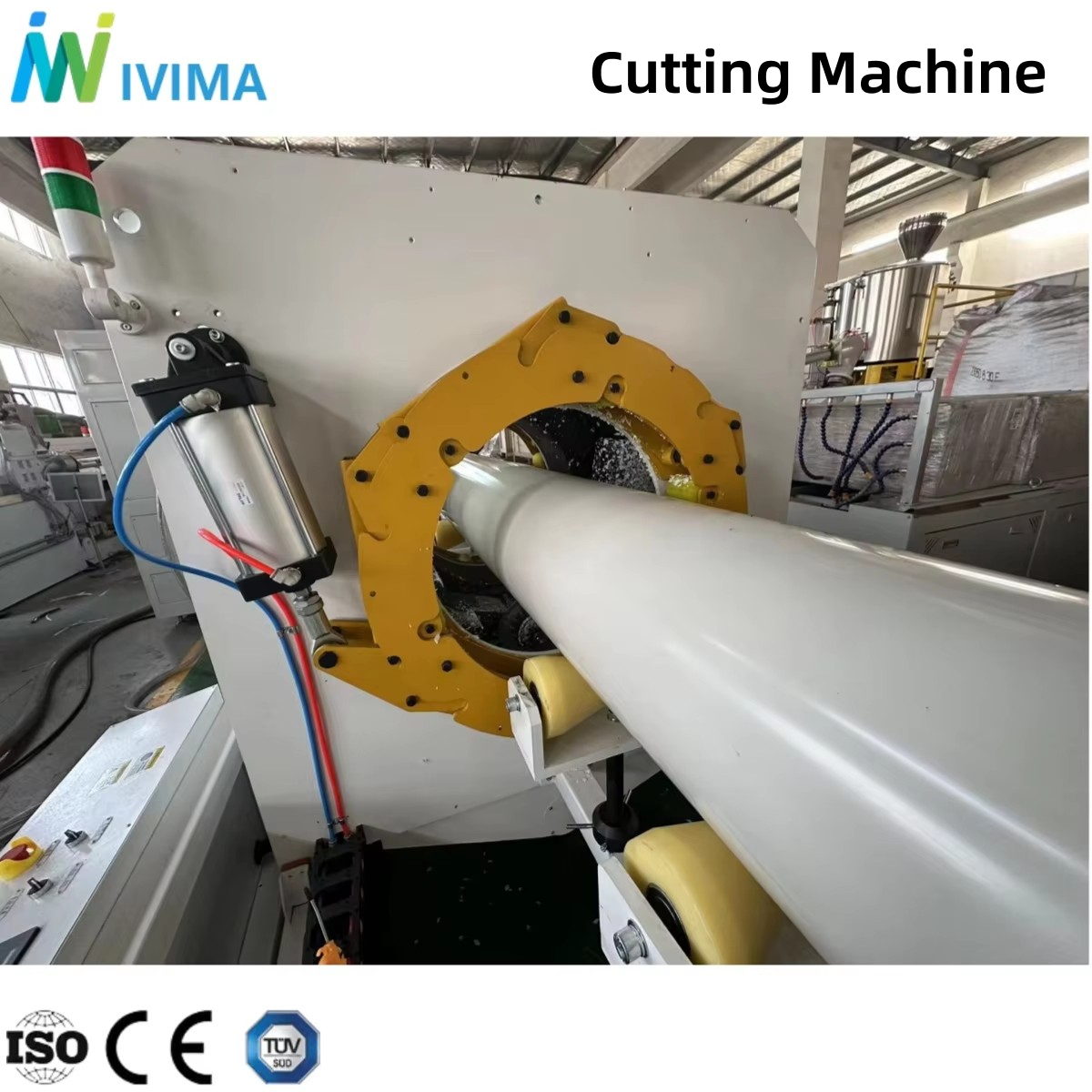

Cutting Machine

Ensures precise pipe length cutting.
Delivers clean and consistent pipe ends.

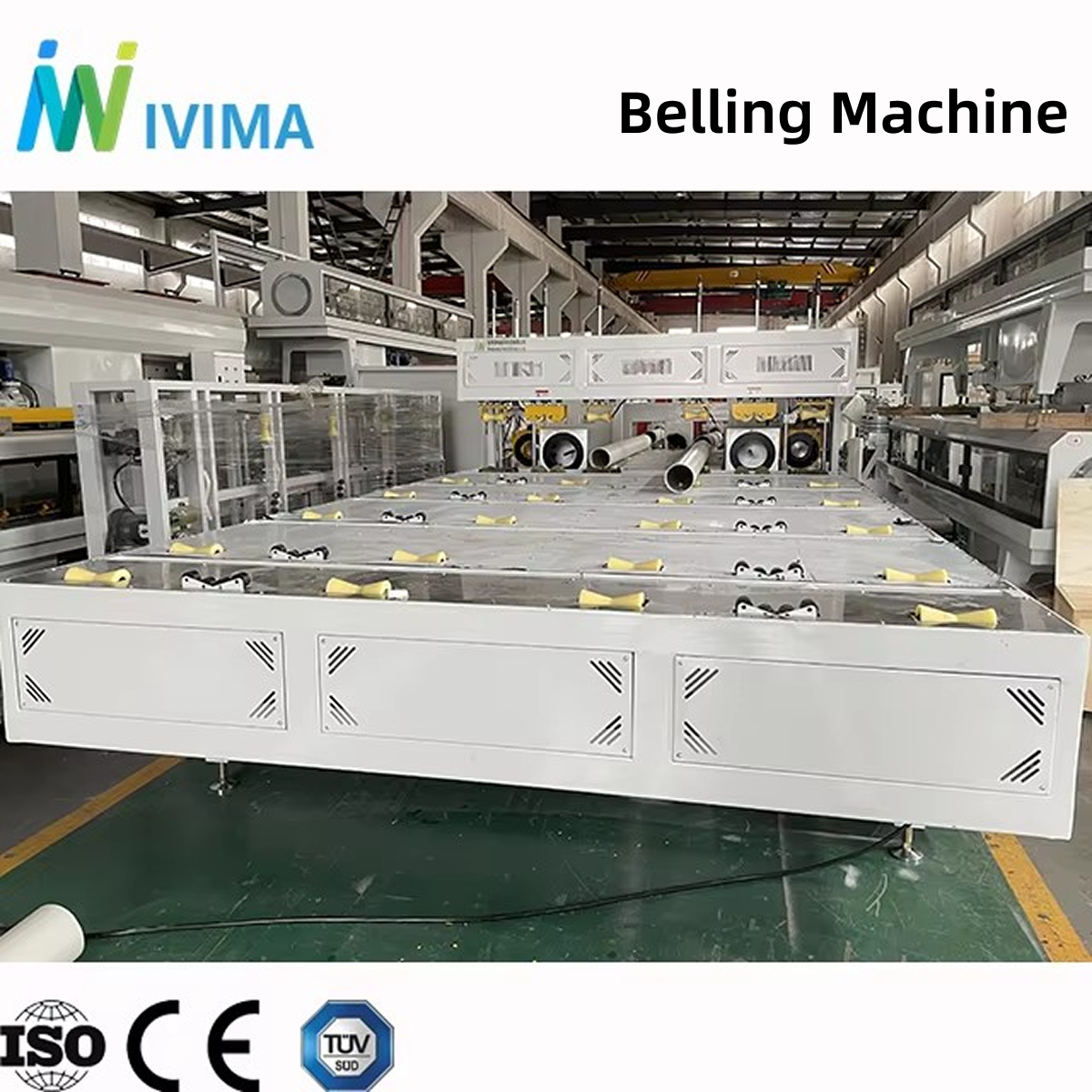

Belling Machine

Produces smooth and consistent socket ends.
Suitable for different PVC pipe diameters.

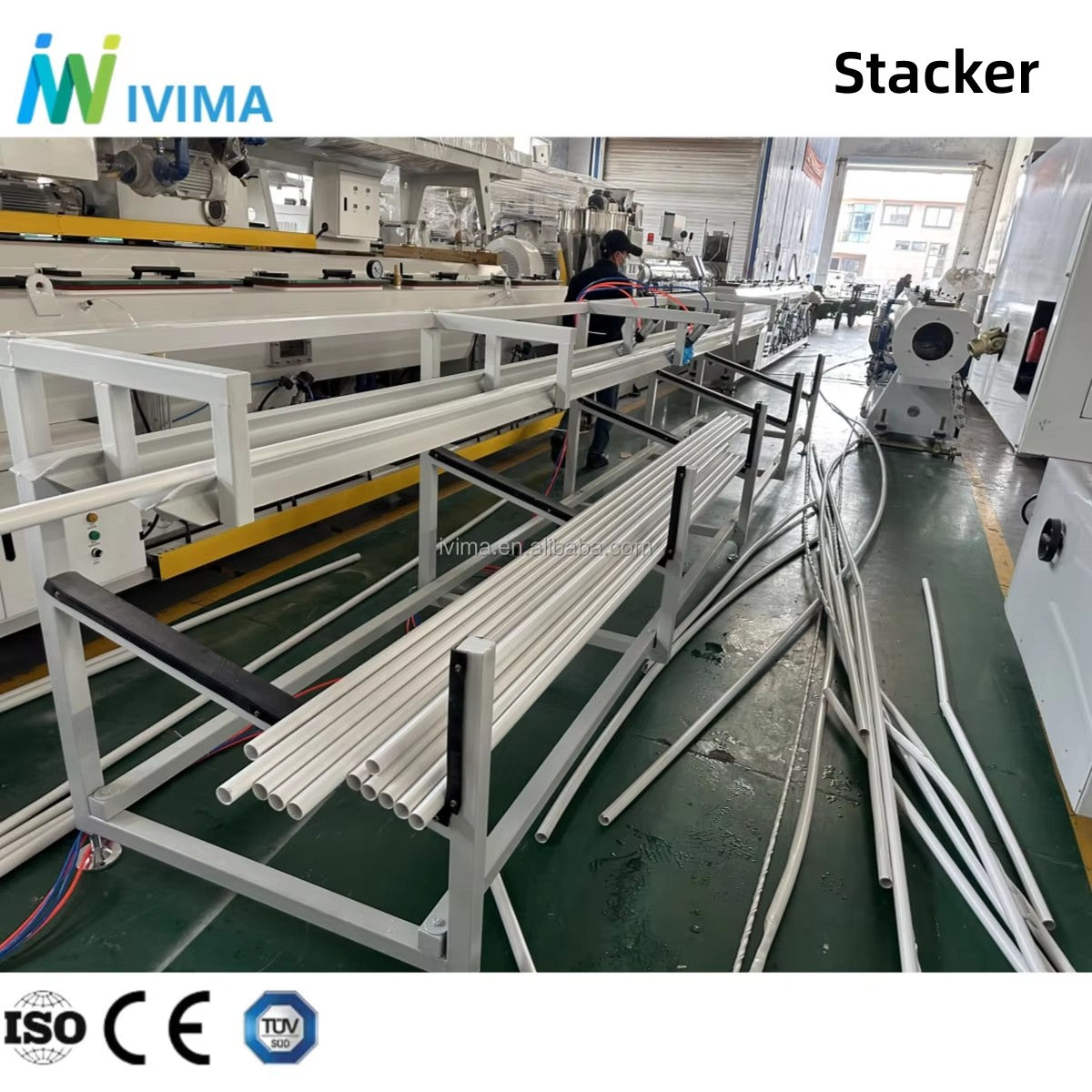

Stacker

Automatically stacks finished pipes in order.
Improves handling efficiency after cutting and belling.

Applications, Service & Packaging

Industry Applications

Water Supply: High-pressure UPVC/PVC-UH pipes for residential and municipal water transport.
Drainage Systems: Large diameter pipes (up to 800mm) for sewage and wastewater discharge.
Electrical Conduit: Small diameter pipes (16-63mm) for wire protection.

Service Commitment

We are committed to supporting your business with a 1-Year Warranty and lifetime service:

Fast Delivery: Standard production cycle is 2 months.
Remote Support: We offer free spare parts delivery, fault diagnosis, and online video guidance to resolve issues instantly.
On-Site Service: Professional engineers are available for on-site installation, commissioning, and staff training anywhere in the world.

How We Support Your Business

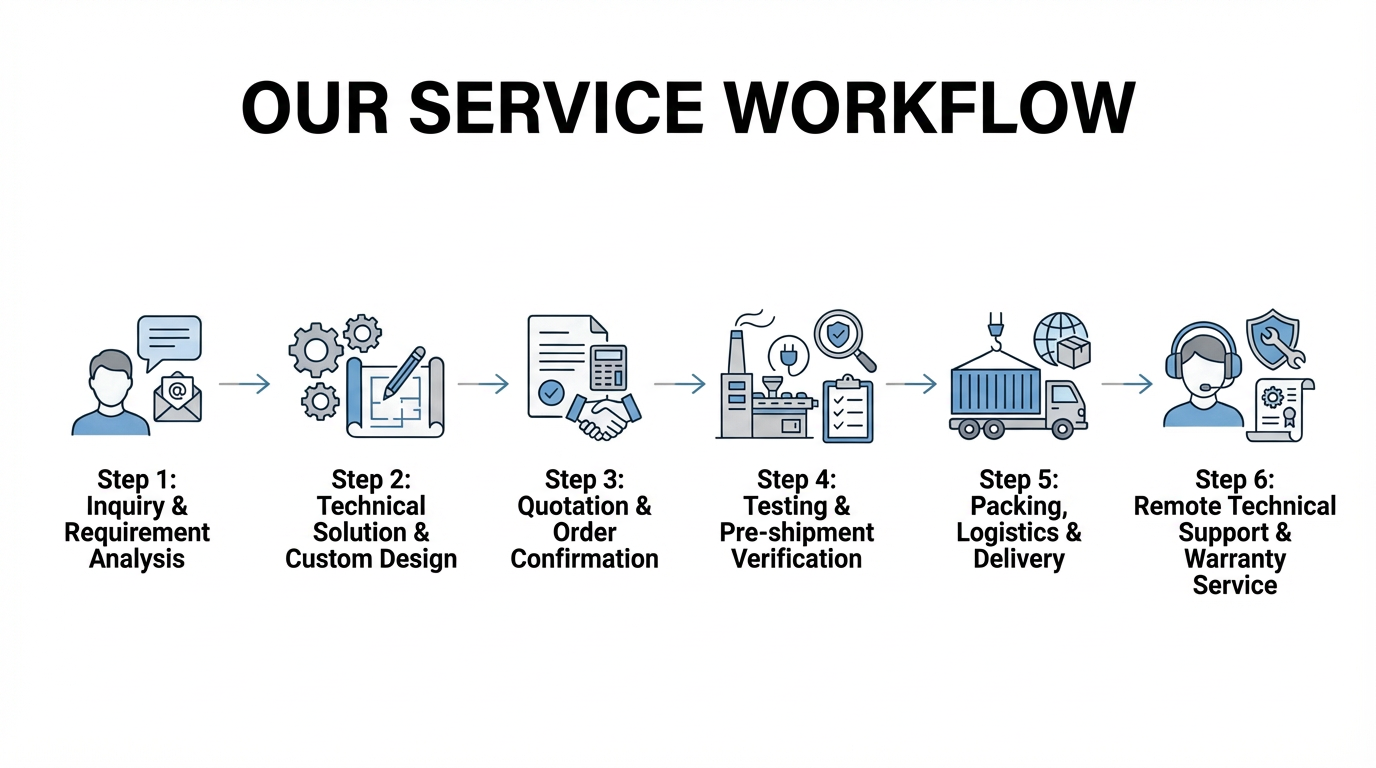

Standardized service process for SJSZ PVC pipe extrusion line including consultation, manufacturing, delivery, and global installation

Packaging & Shipping Specifications

Sea-worthy fumigation-free wooden case packaging and secure container loading for SJSZ series extruder
