Soft Rigid PVC Compounding Pelletizing Line

This pelletizing line consist of conical twin screw, die head, cutter, vibrator and three step air blower system.
it is mainly used for hot cutting granulation of soft and rigid pvc plastic etc.

Availability:

Quantity:



Inquire Add to Basket

soft material PVC pelletizing line rigid material PVC pelletizing line plastic PVC pelletizing line PVC compounding pelletizing line PVC pelletizer PVC compounding pelletizier PVC powder pelletizer PVC compounding machine

Main Technical Parameter

Model	Screw Dia (mm)	Main motor(kw)	Cutting motor(kw)	Granules size	Output(kg/h)
SJSZ51/105	Φ51/105	18.5	1.1	3mm	80-100
SJSZ55/110	Φ55/110	22	1.1	3mm	100-150
SJSZ65/132	Φ65/132	37	1.5	3mm	150-250
SJSZ80/156	Φ80/156	55	1.5	3mm	250-380
SJSZ92/188	Φ92/188	90	2.2	3mm	380-700

The Characteristics Of Soft/Rigid Pvc Compounding Pelletizing Line

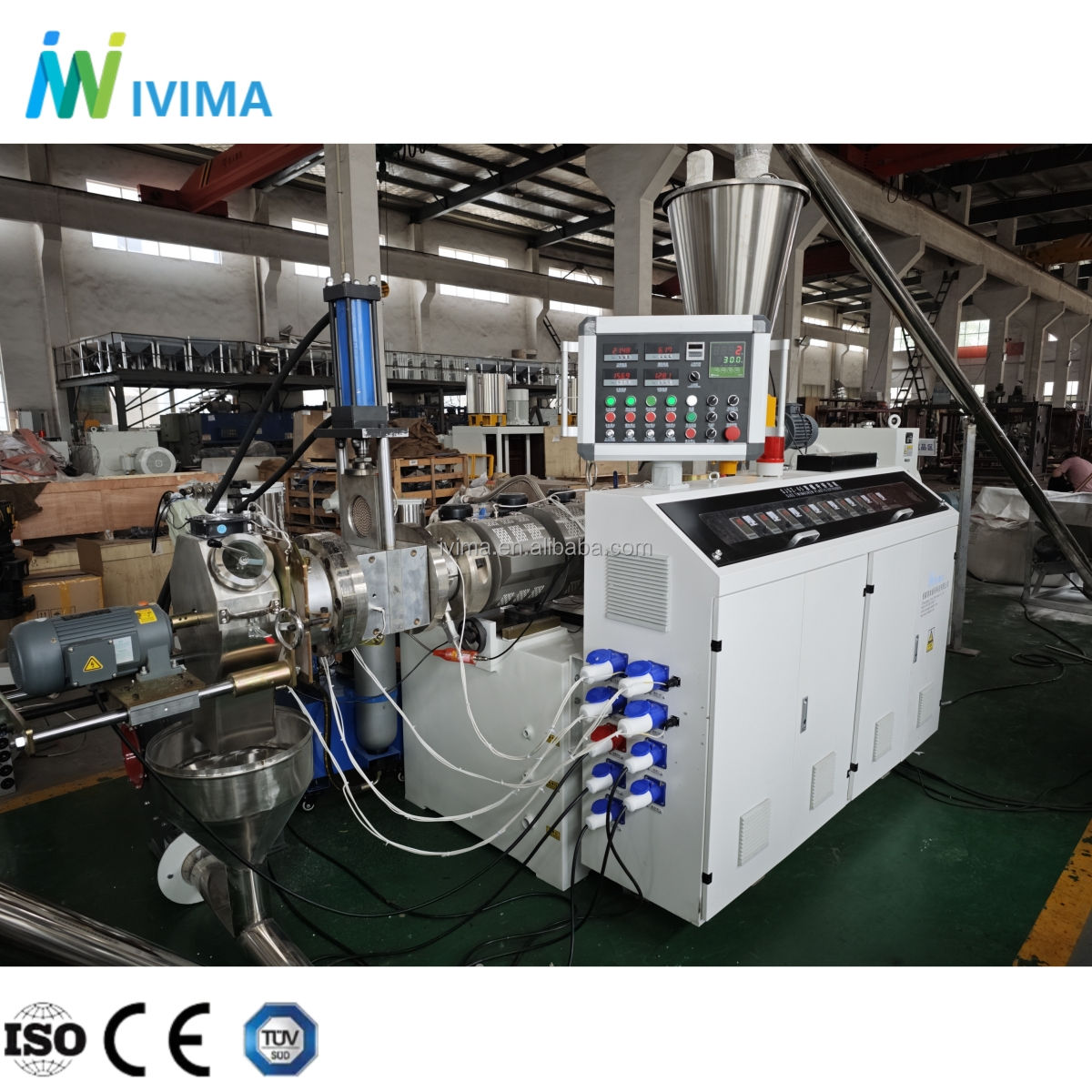

Extruder: According to the physical characteristics of PVC plastic, we designed a conical twin-screw plastic extruder, which can better mix PVC raw materials, shear operation, which can make PVC raw materials and other additives more evenly mixed. Get better quality PVC material.

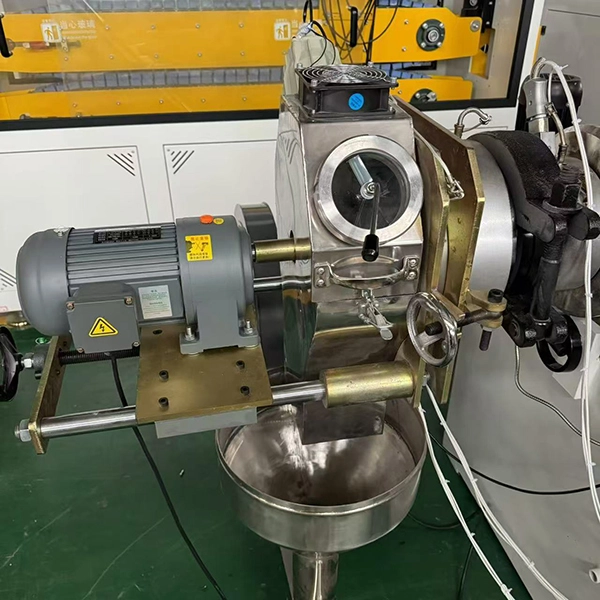

Die surface heat mold: PVC particles can be made from molten PVC raw materials by extruder heating, mixing, cutting. The mold is made of 40Cr material with good wear resistance and hardness.

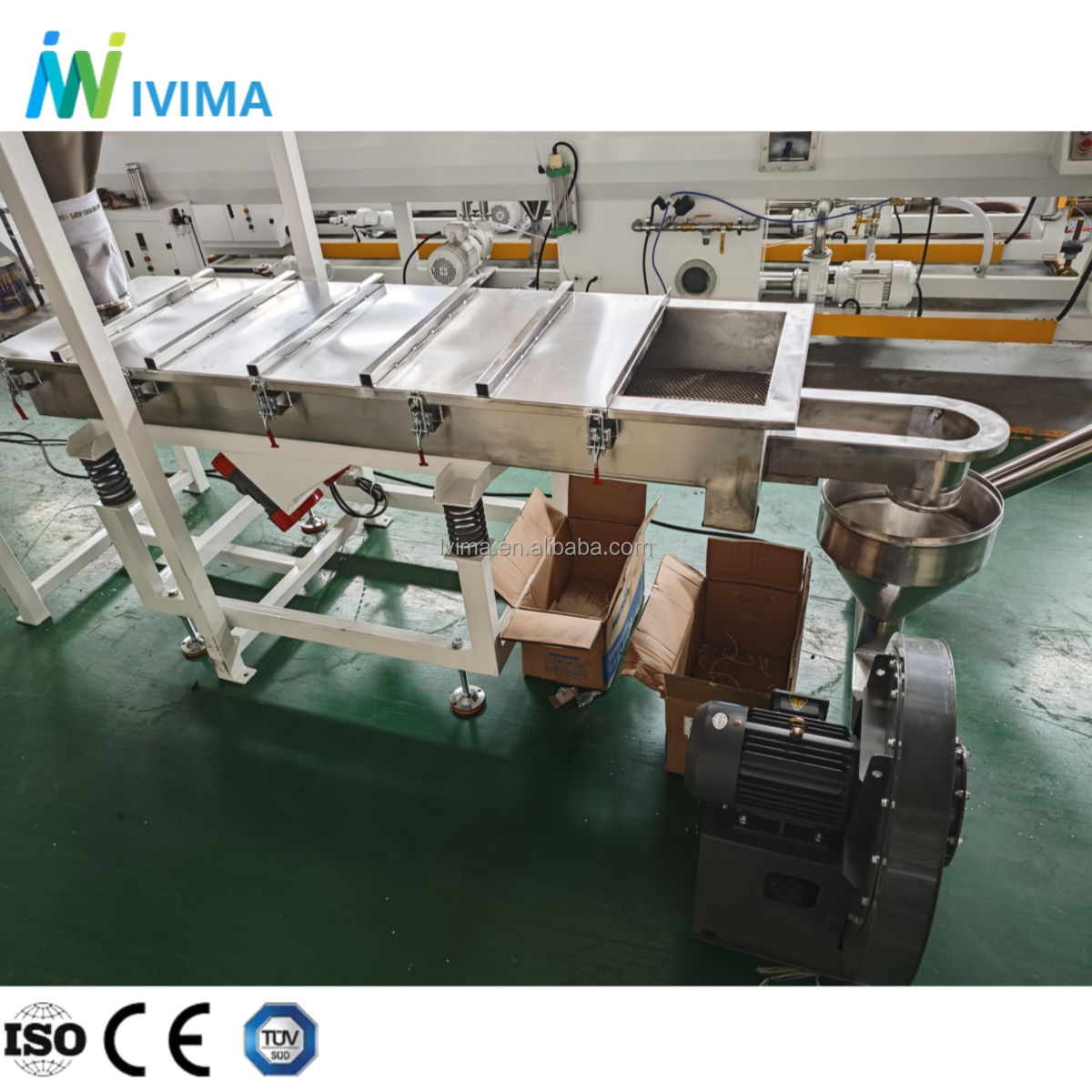

Vibrating screen: We are made of 304 stainless steel material, while designing a 3-layer structural screen, the bottom layer can screen out small particles, the top layer can screen out large particles, the middle layer is our target product. Ensure the production quality of the product.

Blower: Transfer the produced particles.

Silo: Our silo design serves as a storage facility for the final recycled pellets, considering particle moisture, dust, and other factors to maintain quality stability, ensuring convenience for packaging and transportation.

FAQ

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customer' needs.
