Side Force Feeding Type PP PE Pelletizing Machine

Core Advantages of the Pelletizing Machine

Our Side Force Feeding Type PP PE Pelletizing Machine is engineered for high-efficiency plastic recycling, ensuring stable operation and extended service life. By integrating top-tier international components, we help buyers reduce downtime and maintenance costs.

• Broad Material Compatibility: Highly suitable for processing both PP/PE rigid regrind materials and PP/PE soft materials (such as crushed films and woven bags), offering great flexibility for diverse recycling projects.

• Main Motor: Siemens. Provides reliable power output, ensuring continuous and stable extrusion even under heavy production loads.

• Inverter: ABB. Delivers precise speed control, optimizing energy consumption and adapting smoothly to different material feeding rates.

• Temperature Controller: RKC/OMRON. Ensures highly accurate heating zones, preventing material degradation and guaranteeing uniform melt quality.

Available Machine Configurations for Your Choice

To meet specific project requirements, material conditions, and output demands, we offer flexible configurations for this plastic pelletizing line:

• Single Stage Extruder: Ideal for relatively clean PP/PE materials, offering a compact footprint and efficient processing.

• Double Stage (Mother-Baby) Extruder: Recommended for materials with higher moisture content or impurities. The dual-filtration system significantly improves the purity and density of the final pellets.

• Water Ring Die Face Cutting: Suitable for most PE and PP materials, producing uniform, round pellets with automated cooling.

• Strand Pelletizing (Noodle Cutting): A classic and stable cutting method, often preferred for materials with high melt flow index or specific rigid plastics.

Technical Specifications

Review the detailed parameters below to select the right model for your production capacity requirements. The SF-SJ series covers a wide range of outputs from 100 kg/h to 1000 kg/h.

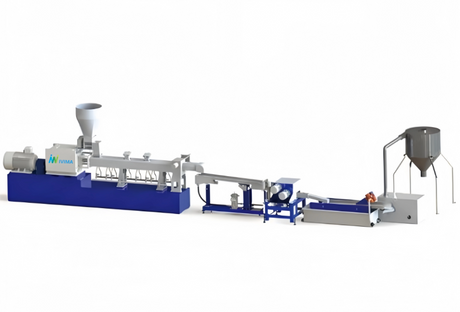

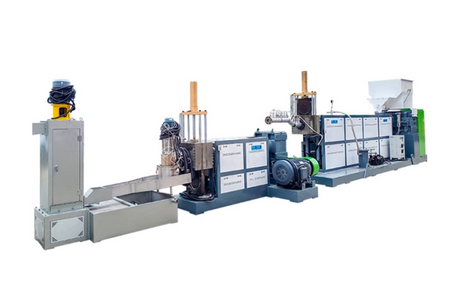

Standard Process Flow of the Pelletizing Line

The side force feeding system ensures continuous and dense material input, maximizing the extruder's efficiency. A typical double-stage water ring pelletizing process follows these sequential steps:

1. Side Force Feeder: Forcibly feeds crushed or soft plastic scraps into the screw.

2. Mother Pelletizing Extruder: Melts, mixes, and exhausts the raw material.

3. Baby Pelletizing Extruder: Further homogenizes the melt for secondary extrusion.

4. Net Exchanger (Screen Changer): Filters out impurities to ensure clean plastic melt.

5. Water Ring Cutting: Cuts the melt into uniform pellets directly at the die face.

6. Water Tank: Rapidly cools and solidifies the freshly cut pellets.

7. Dewatering Machine: Removes excess surface moisture from the pellets.

8. Air Blower and Silo: Conveys the dried final pellets into the storage silo for packing.

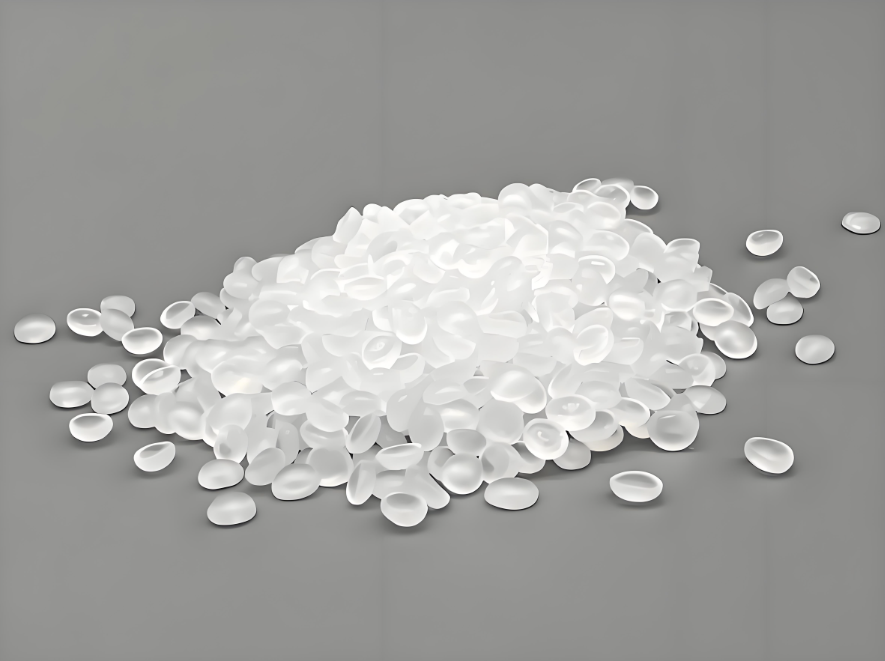

Final Product Presentation

The pellets produced by our Side Force Feeding Type PP PE Pelletizing Machine feature high density, uniform size, and excellent smooth appearance. These premium recycled granules are ready for direct use in injection molding, blow molding, or film blowing, maximizing the commercial value of your recycled plastics.

Q: What payment methods do you support for purchasing the pelletizing machine?
A: We offer flexible and secure payment options to facilitate your procurement process. We accept T/T (Telegraphic Transfer), L/C (Letter of Credit) at sight, and transactions through Alibaba Trade Assurance for added buyer protection.

Q: Do you provide a warranty for the production line, and can it be extended?
A: Yes, we provide a standard 12-month guarantee for our equipment. We are committed to the long-term stability of your production, and extended warranty terms can be discussed based on your specific project requirements.

Q: Will you send engineers to our factory for installation and worker training?
A: Absolutely. To ensure your production line operates smoothly, we will dispatch professional engineers to your facility. They will guide the complete installation process, commission the machinery, and provide comprehensive training for your operators to ensure they can handle daily operations and basic maintenance efficiently.

Q: Does your equipment hold CE, SGS, or ISO certifications?
A: Yes, our manufacturing processes and machines are fully certified with CE, SGS, and ISO standards, ensuring high quality and safety compliance. If your local market requires any additional specific certifications, we can also assist in applying for them to meet your regulatory needs.

Q: Do you offer wear-out spare parts and troubleshooting support if the machine breaks down?
A: Yes, alongside our 12-month guarantee, we provide a 1-year supply of essential wear-out spare parts for free. We also have a multi-level troubleshooting process to minimize downtime. If an issue arises, our technical team will first assist you remotely via phone or online communication tools to diagnose and resolve the problem quickly. If remote solutions are insufficient, we will arrange for our engineers to visit your factory to fix the issue on-site, while also teaching your team the necessary maintenance skills to prevent future occurrences.

Q: Can the machine's electrical voltage be customized to match our local power supply?
A: Yes, we fully understand that industrial power standards vary by region. We can customize the voltage and electrical configurations of the pelletizing machine to perfectly match your specific local requirements, ensuring safe and seamless integration into your facility.
