Dose-Feeding Plastic Pelletizing Machine

Dose Feeding Plastic Pelletizing Machine Line is designed for continuous reprocessing of plastic flakes and regrind materials into uniform pellets. The system integrates controlled dose feeding, plasticizing, filtration and pellet cutting to ensure stable extrusion and consistent granule quality.
Delivery time: around 60 days
One-year remote warranty support
Warranty coverage: spare parts supply, remote fault diagnosis and online technical guidance
Engineer service: on-site installation and commissioning available
Customization: capacity, screw configuration and layout supported

Availability:

Quantity:



Inquire Add to Basket

dose feeding pelletizer dose feeder pelletizing extruder pelletizing extruder pelletizing machine Plastic pelletizing line plastic dose feeder pelletizer plastic rigid material pelletizer plastic pelletizer

Product Overview

The dose feeding pelletizing line is designed for stable and accurate feeding of irregular rigid flakes/lumps and densified soft materials, supporting continuous pellet production for recycling plants and compounders.
It is widely used for HDPE / LDPE / PP recycling pellets, and can also handle densified film, woven bags, raffia, foam and other pre-treated materials with a dose feeder on the feeding inlet.

Key Advantages

Adjustable feeding speed helps maintain stable output for different material shapes and bulk density.
Integrated process design supports lower material loss (target: ≤2%) and consistent pellet quality through synchronized control.
Cutting options available: die-face / water-ring cutting or strand cutting (model-dependent).

Suitable Materials

HDPE bottles & rigid scraps, PP rigid regrind, pre-crushed pipes/containers/lumps; densified PE film, PP raffia, PE/PP woven, PE foam and similar pre-agglomerated feedstock.

Technical Data

Model	Screw diameter(mm)	Main motor power(kw)	Capacity(kg/h)	Cutting method
SF-SJ100/100	Φ100	55/22	100-150	Die face cutting or strand cutting
SF-SJ120/120	Φ120	75/30	150-200
SF-SJ130/120	Φ130	90/37	200-300
SF-SJ150/150	Φ150	110-132/45	350-500
SF-SJ160/160	Φ160	160/55	450-550
SF-SJ180/180	Φ180	185/75	600-800
SF-SJ200/200	Φ200	250/90	800-1000
Note	The capacity is based on the raw material. The output are different for various density material. We offer solution based on the actual requirements of client.

Key Technical Data (for customer decision-making)

Feeding accuracy: ±0.5% metering accuracy (twin-screw dose feeder)
Extruder: L/D 33:1, 5 temperature zones, melt pressure 15–25 MPa
Barrel material: 38CrMoAlA (nitrided), service life 8000+ working hours
Pelletizing: rotating knife, max speed 3000 rpm, pellet diameter 2–6 mm, burr rate target ≤1%
Drying: moisture content target ≤0.1%, hot air 60–80°C, energy saving target ~15% vs conventional dryers

Core Components & Configuration

Introduction

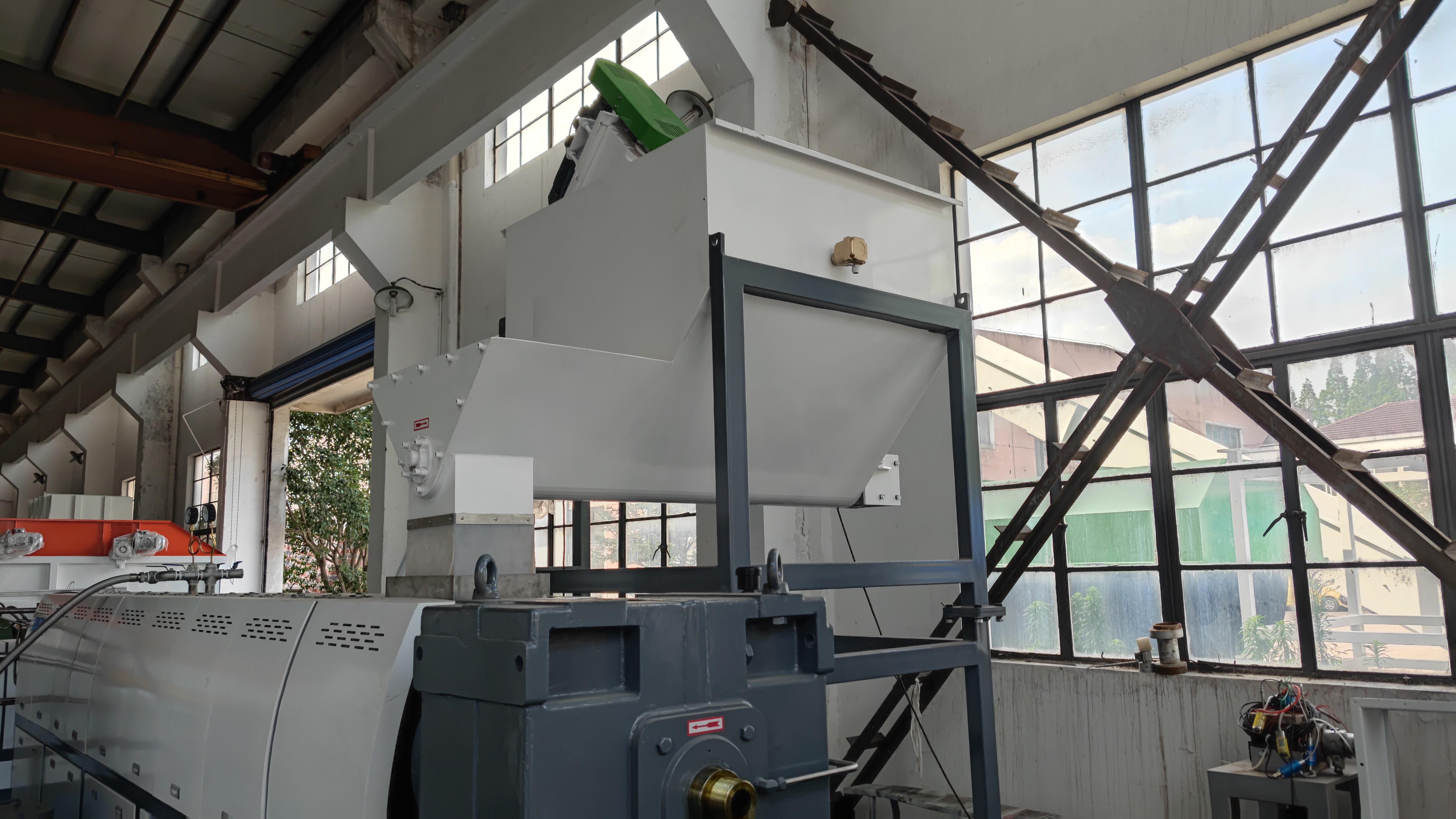

Dosing System

Feeds raw material into the extruder under controlled conditions.
Ensures consistent and stable material supply.

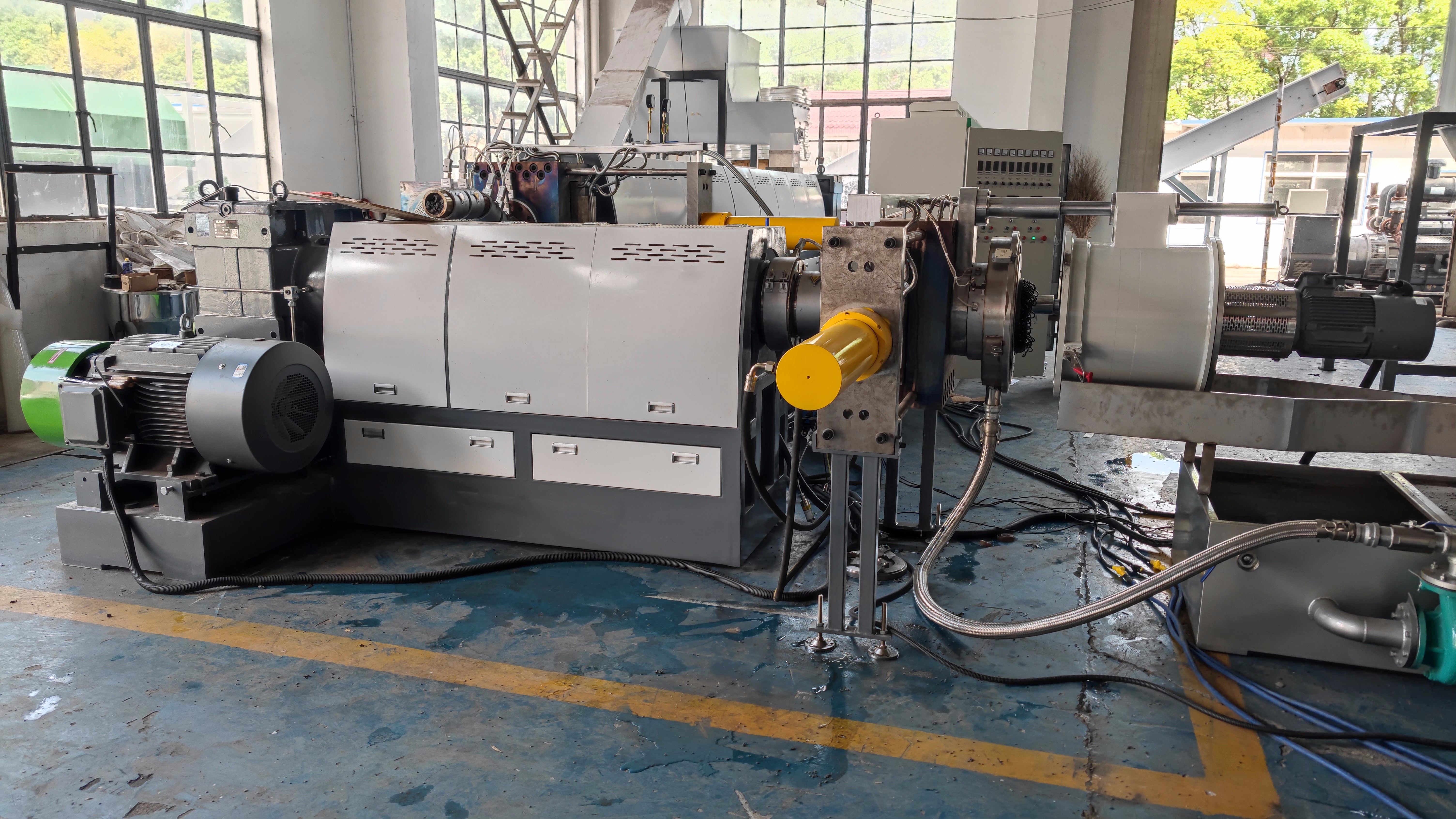

Extruder

Melts and plasticizes material through controlled heat and shear force.
Provides stable melt flow for pelletizing.

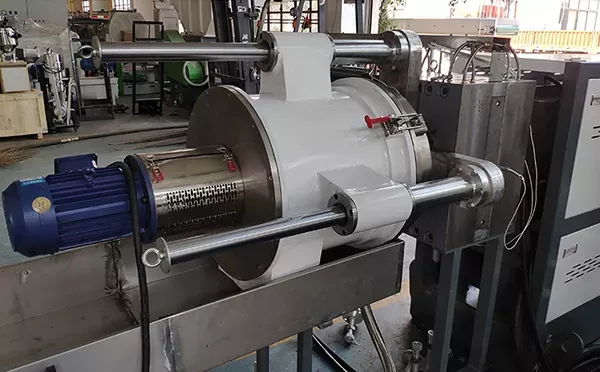

Water Ring Cutting Machine

Cuts molten strands into pellets at the die face.
Water ring stabilizes cutting and removes heat.

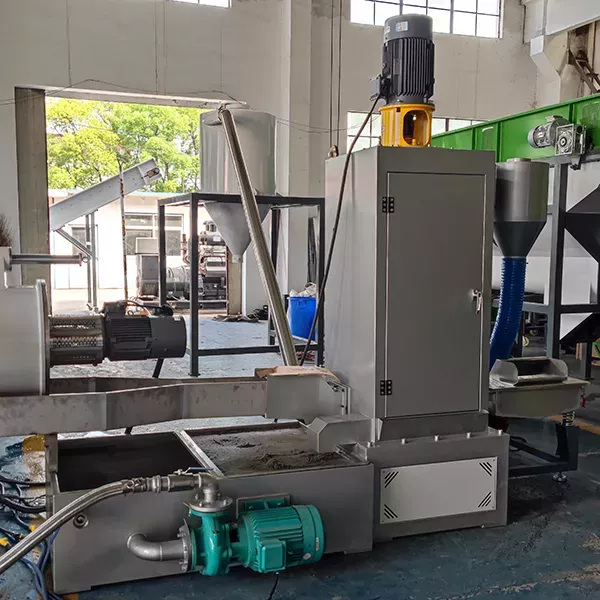

Dewater Machine

Removes excess water from pellets through mechanical dewatering.
Reduces moisture before final drying.

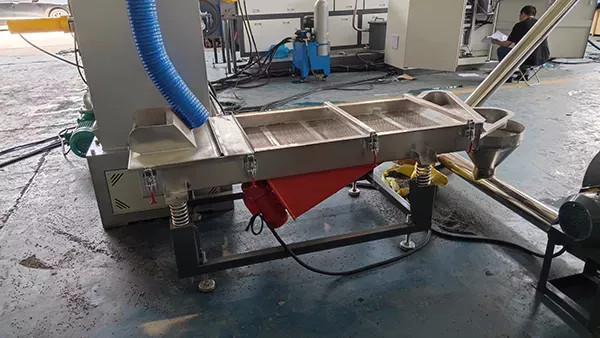

Vibrating Screen

Separates oversized and fine particles from finished pellets.
Improves pellet size uniformity.

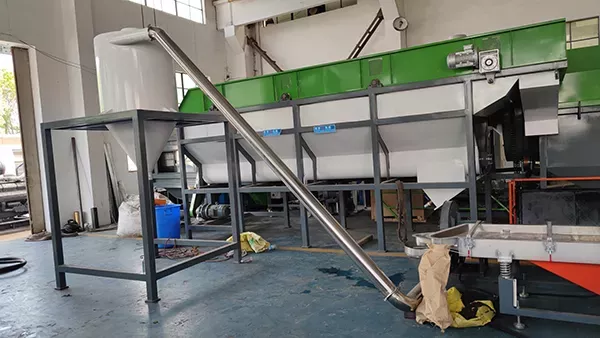

Silo

Stores finished pellets in a stable condition.
Supports continuous transfer to packaging.

Applications & Production Scenarios

Applications

Plastic Raw Material Production: Produces PP/PE/PVC pellets (reference: ISO 1873-1) for injection molding, extrusion and blow molding, helping downstream processes keep stable pellet size and density.
Recycled Plastic Processing: Turns film/pipes/bottles scraps into pellets with recycling efficiency up to 98%; melt filtration with 120-mesh filter helps remove impurities (dust/metal particles) and improve pellet purity.
Masterbatch Production: Supports color masterbatch (pigment content 10–50%) and functional masterbatch; additive dispersion degree target ≥95% to reduce color streaks and performance inconsistency.

Output Pellet Use

Pellets can be used for granulation compounding, injection molding feedstock, extrusion-grade materials, and recycled pellet supply chains, depending on formulation and filtration configuration.

Manufacturing Strength & Global Service

Manufacturing Strength

IVIMA maintains stable in-house production capacity with standardized machining, assembly and testing procedures. Annual output exceeds 300 production lines, ensuring scalable delivery capability for global projects.

Industrial plastic machinery manufacturer with over 300 production lines per year and ISO certified factory for global supply

Plastic machinery production workshop with multiple assembly lines for extrusion and recycling equipment manufacturing

Global Installation Projects

Our production lines have been delivered to industrial facilities worldwide, covering both extrusion and recycling applications across different markets.

International installation projects of plastic production lines across industrial facilities and customer factories worldwide

Certifications

Compliance documentation and machinery directive certifications are available to support international project requirements and audits.

Machinery directive attestation of conformity certificate for plastic production equipment and industrial machinery

Service Workflow

We provide a clear service process from inquiry to delivery and long-term technical support, enabling efficient project execution and faster production start-up.

After-Sales Warranty

We provide one year remote warranty support, including spare parts supply, remote fault diagnosis and online technical guidance. Engineer on-site commissioning service is available when required.

One year remote warranty support for plastic production equipment including spare parts supply and technical assistance

Packing & Transportation

Export-standard packing is applied to protect key components during sea/land transportation. Packaging methods can be optimized according to route, container loading, and destination requirements.

Export packing and container transportation for plastic production line equipment ensuring safe global shipment
