Agglomerate Type Pelletizing Line

The agglomerate type plastic pelletizing line is designed for recycling film, woven bags and soft plastic materials. The integrated agglomerator pre-compacts lightweight materials to ensure stable extrusion feeding and consistent pellet output.

Delivery time: around 60 days
Warranty: one-year remote warranty support
Service includes: spare parts supply, remote fault diagnosis and online technical guidance
Installation: engineer on-site installation & commissioning available
Customization: customized capacity and configuration supported

Availability:

Quantity:



Inquire Add to Basket

Plastic pelletizing line plastic film pelletizing line agglomerator type pelletizing line agglomerator pelletizing line plastic pe film pelletizing line PP PE film pelletizing extruder Plastic film pelletizing extruder plastic film pelletizer Plastic film pelletizing extrusion line PP PE film pelletizer

Product Overview & Advantages

This pelletizing line combines an agglomerator and single-screw extruder into one compact recycling system. It is suitable for pre-crushed film scraps, woven bags, raffia materials and other lightweight plastics that require densification before extrusion.

Key Advantages

Agglomerator improves feeding stability for low-density materials
Integrated structure reduces material loss and improves processing efficiency
Supports water-ring cutting or strand cutting systems
Stable extrusion with optimized screw configuration

Suitable Materials

LDPE film, HDPE film, PP woven bags, raffia scraps, soft plastic packaging materials and densified recycling materials.

Technical Specifications & Performance Data

Main Technical Parameters

Model	Screw diameter(mm)	Agglomerator	Main motor power(kw)	Capacity(kg/h)	Cutting method
A-SJ85/100	Φ85	37	55/30	150-200	Die face cutting or strand cutting
A-SJ100/120	Φ100/200	55	90/37	250-300
A-SJ120/140	Φ120/140	75	110/45	350-400
A-SJ130/160	Φ130/160	90	160/55	450--500
A-SJ160/180	Φ160/180	110	185/75	600-800
A-SJ180/200	Φ180/200	160	250/90	800-1000
Note	The capacity is based on the raw material. The output are different for various density material. We offer solution based on the actual requirements of client.

Performance Data

Agglomerator improves material density before extrusion
Stable melt pressure during extrusion process
Uniform pellet size with low burr rate
Designed for continuous industrial recycling production

Core Components & Configuration

Introduction

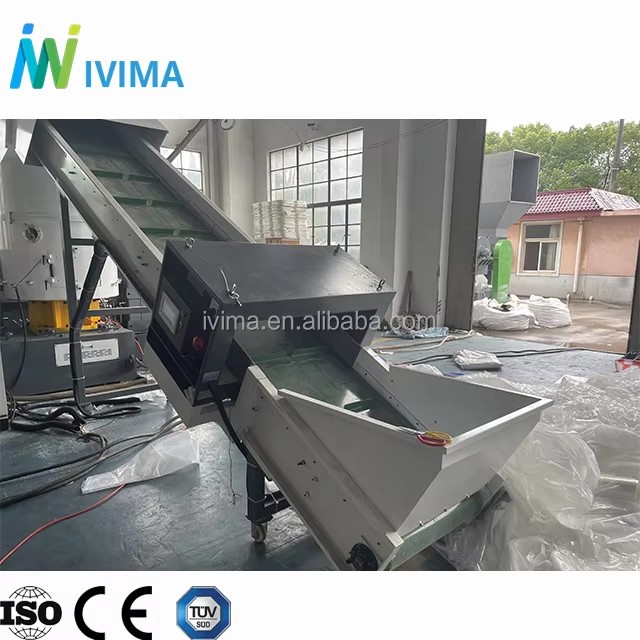

Conveyor

Feeds raw material to the processing system.
Integrated metal detector removes ferrous contamination.

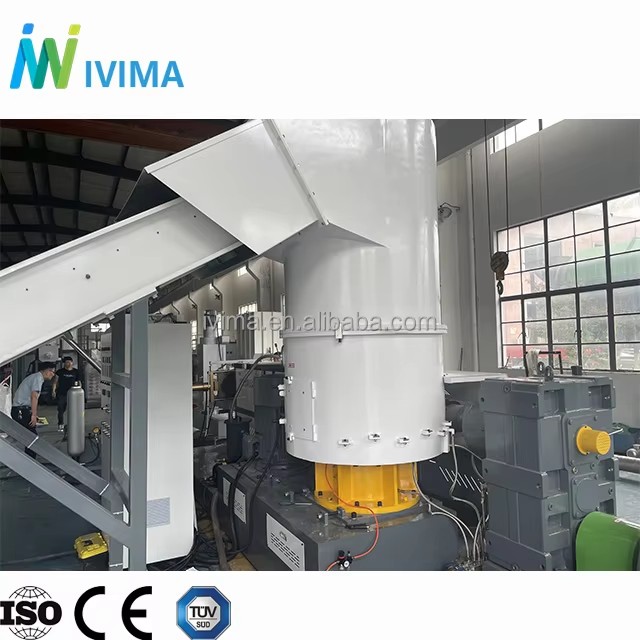

Agglomerator

Densifies and preheats PP/PE through high-speed friction.
Improves bulk density and feeding stability for extrusion.

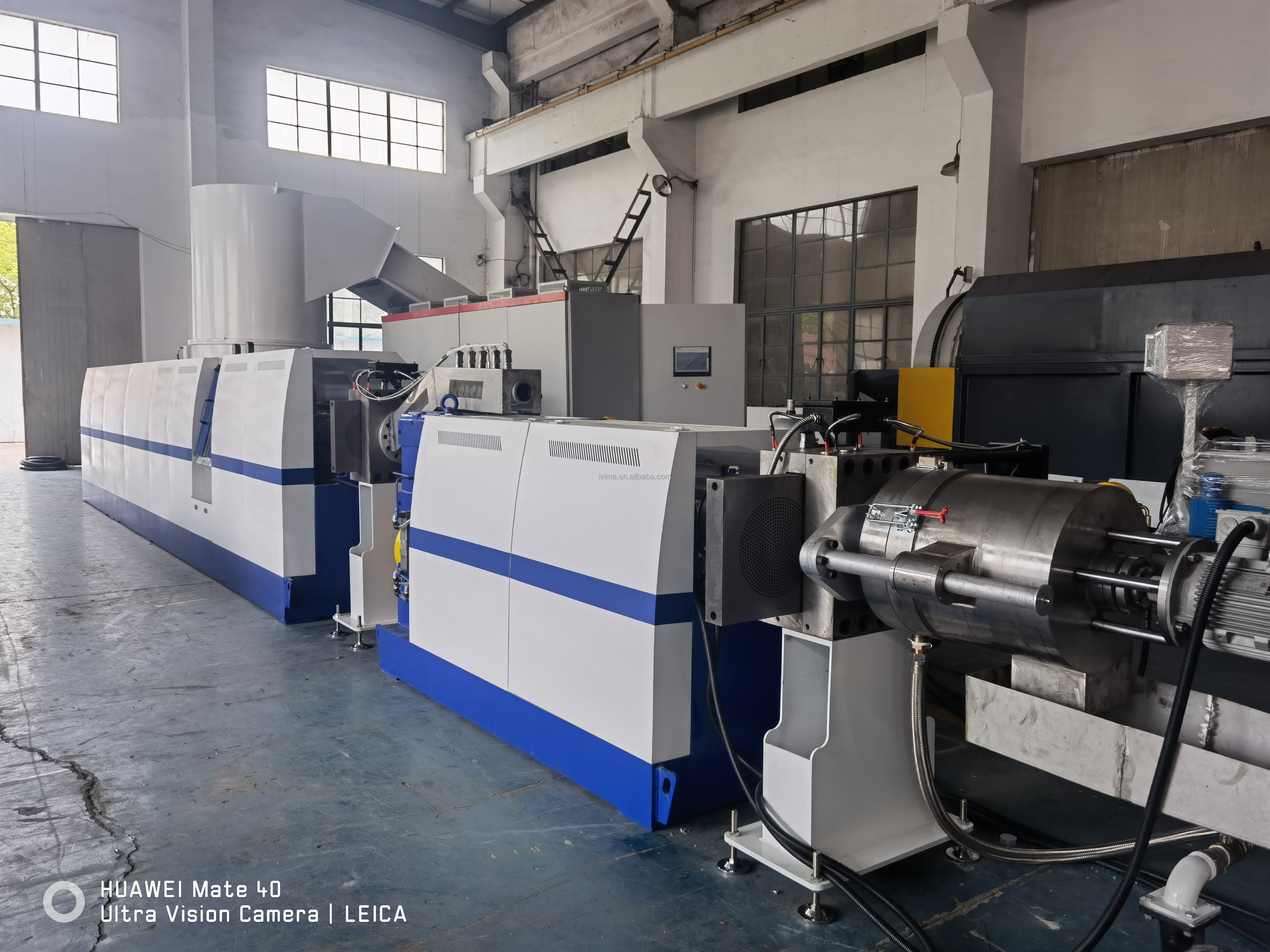

Extruder

Melts and plasticizes material through controlled heat and shear.
Optional secondary extrusion can improve melt uniformity.

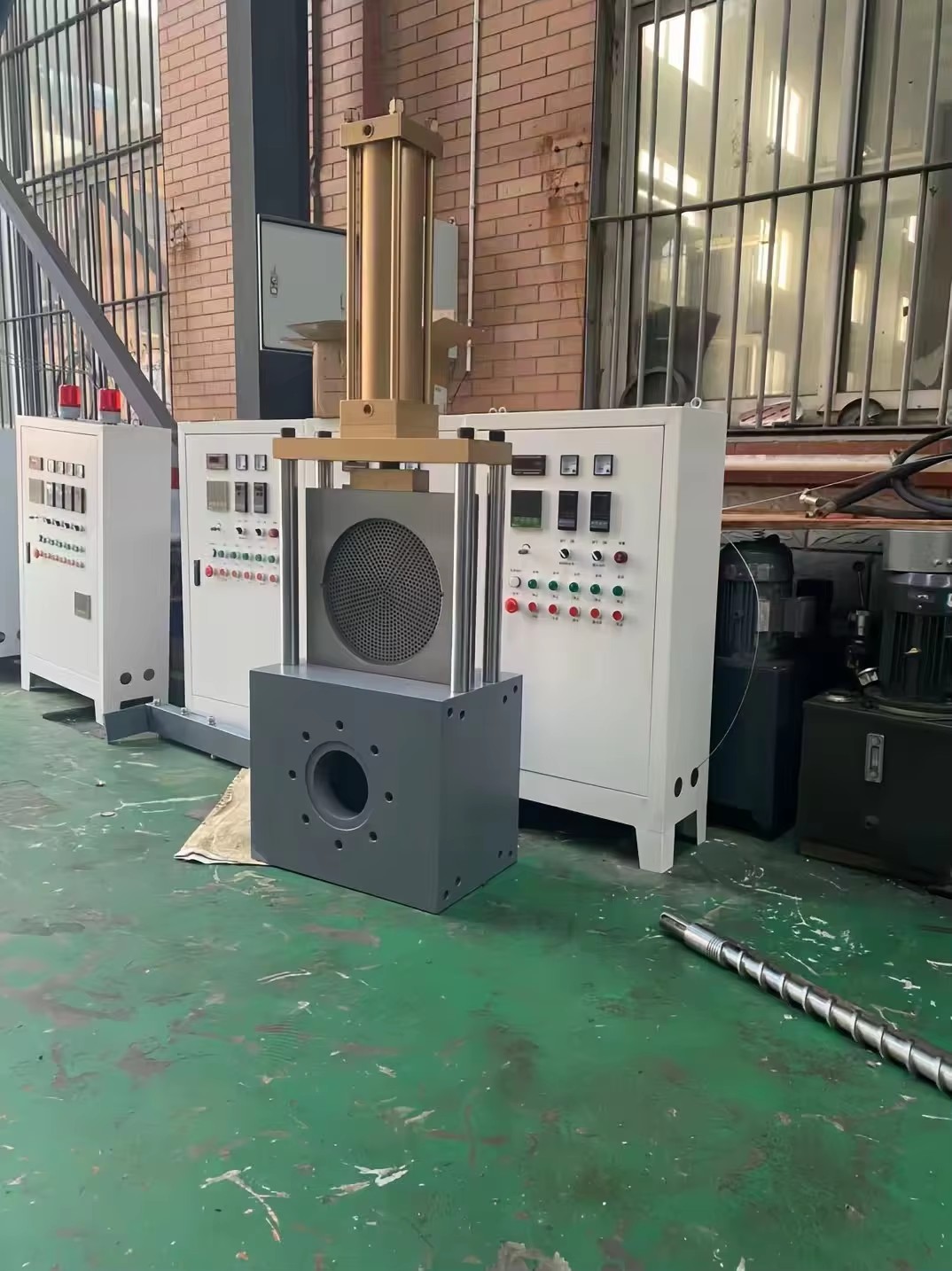

Filter Screen

Filters solid contaminants from molten material.
Double-station design enables screen change without stopping.

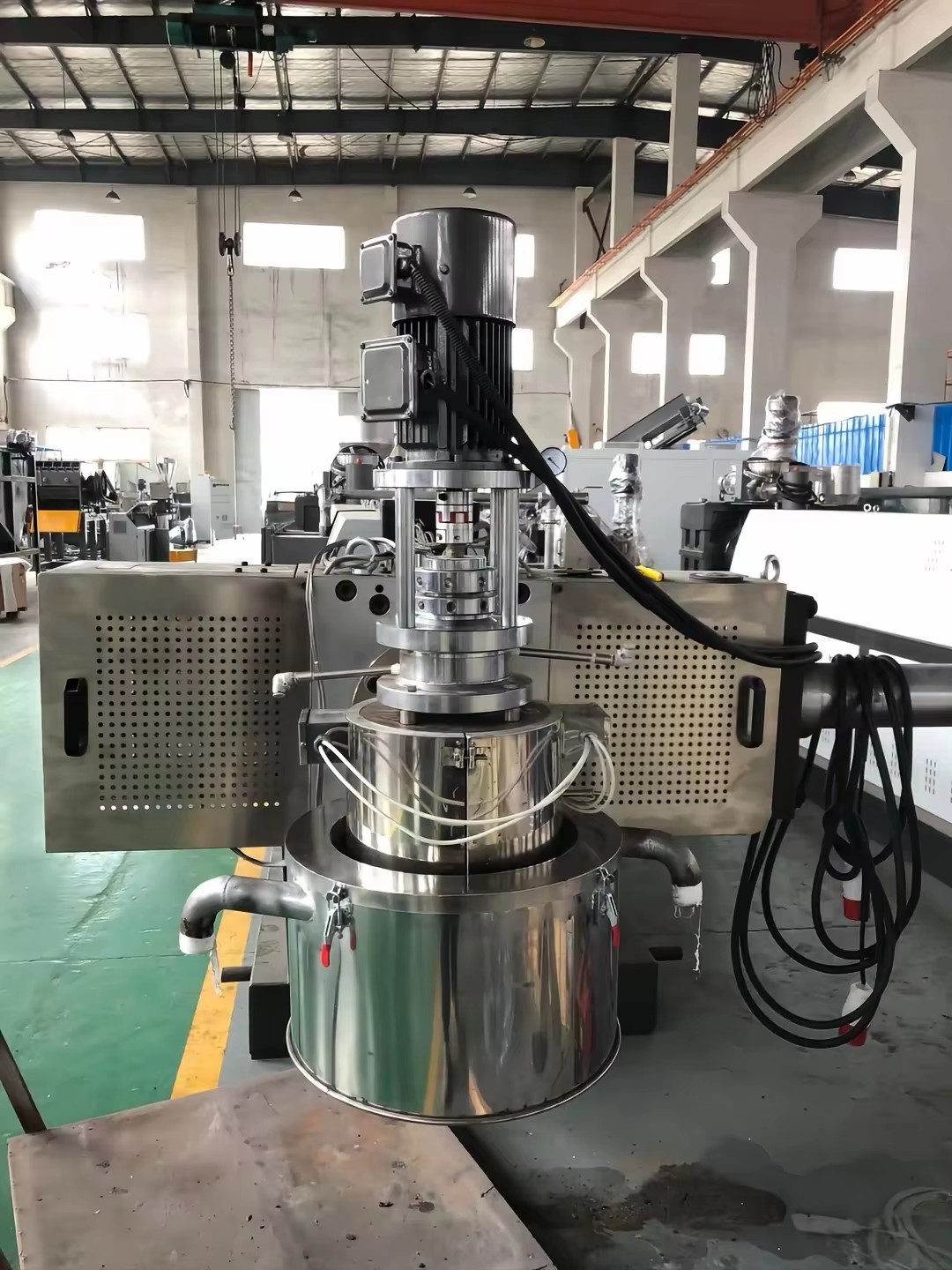

Water Ring Cutting Machine

Cuts molten material into pellets at the die face.
Water ring stabilizes cutting and removes heat.

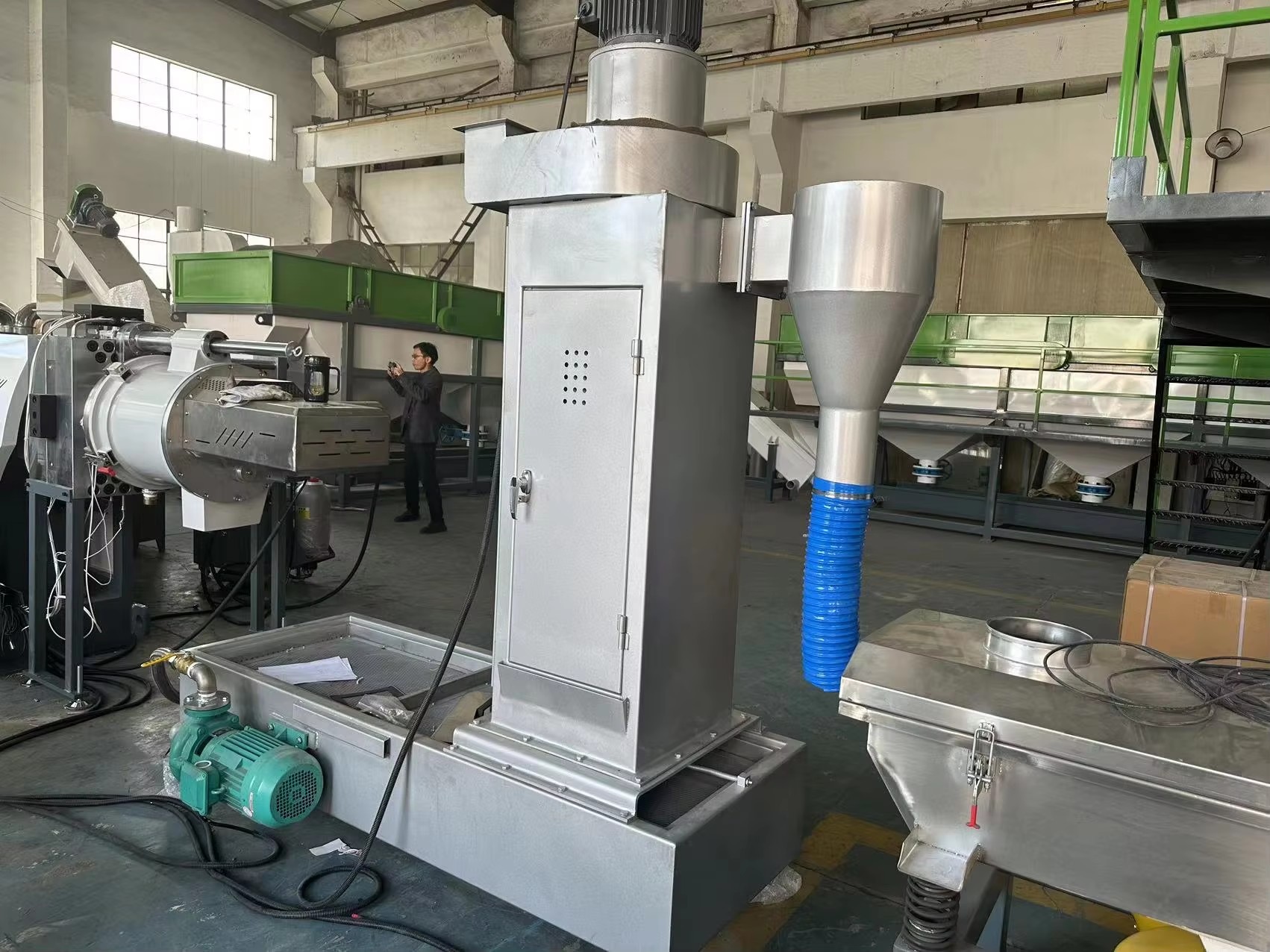

Dewater Machine

Removes excess water from pellets through centrifugal force.
Reduces moisture before final drying.

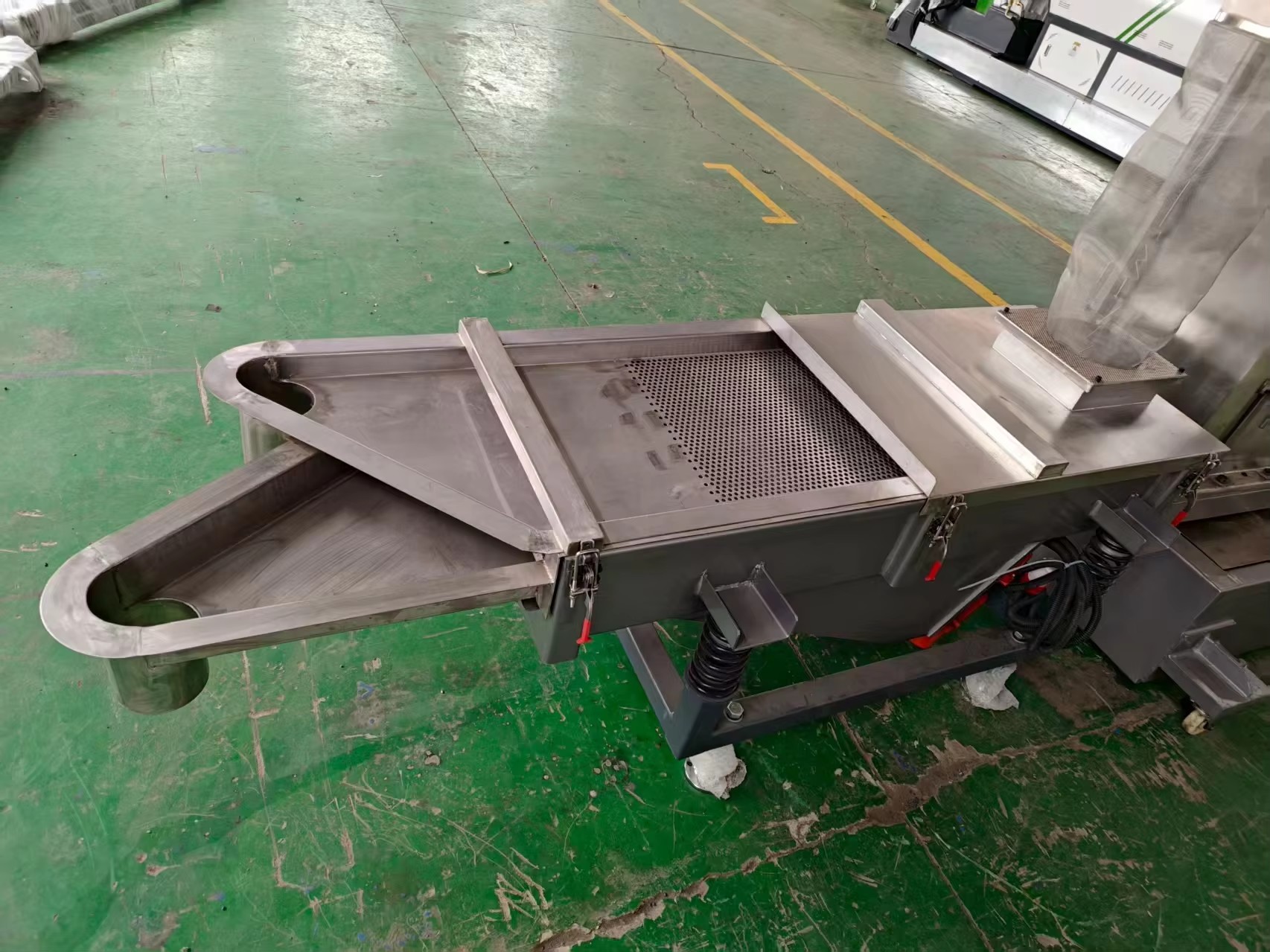

Vibrating Screen

Separates oversized and fine particles from finished pellets.
Improves pellet size uniformity.

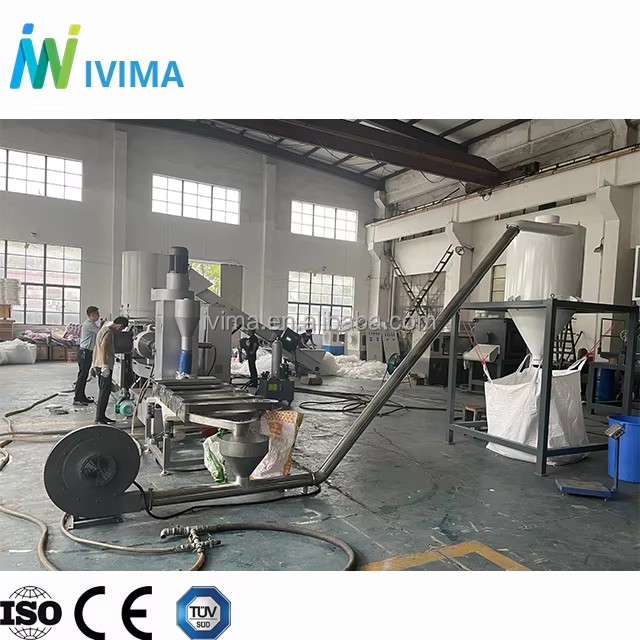

Silo

Stores finished pellets in a stable condition.
Supports continuous transfer to packaging.

Applications & Production Scenarios

Film Recycling Applications

Suitable for recycling post-industrial and post-consumer film waste into reusable plastic pellets.

Woven Bag & Raffia Processing

Processes woven bags, raffia scraps and similar PP materials into granules for secondary production.

Soft Plastic Production Scenarios

Designed for lightweight, low-density materials that require agglomeration before extrusion.

Manufacturing Strength & Global Service

Manufacturing Strength

IVIMA maintains stable in-house production capacity with standardized machining, assembly and testing procedures. Annual output exceeds 300 production lines, ensuring scalable delivery capability for global projects.

Industrial plastic machinery manufacturer with over 300 production lines per year and ISO certified factory for global supply

Plastic machinery production workshop with multiple assembly lines for extrusion and recycling equipment manufacturing

Global Installation Projects

Our production lines have been delivered to industrial facilities worldwide, covering both extrusion and recycling applications across different markets.

International installation projects of plastic production lines across industrial facilities and customer factories worldwide

Certifications

Compliance documentation and machinery directive certifications are available to support international project requirements and audits.

Machinery directive attestation of conformity certificate for plastic production equipment and industrial machinery

Service Workflow

We provide a clear service process from inquiry to delivery and long-term technical support, enabling efficient project execution and faster production start-up.

After-Sales Warranty

We provide one year remote warranty support, including spare parts supply, remote fault diagnosis and online technical guidance. Engineer on-site commissioning service is available when required.

One year remote warranty support for plastic production equipment including spare parts supply and technical assistance

Packing & Transportation

Export-standard packing is applied to protect key components during sea/land transportation. Packaging methods can be optimized according to route, container loading, and destination requirements.

Export packing and container transportation for plastic production line equipment ensuring safe global shipment
