Engineering Guide To Selecting PP/PE Film Pelletizing Systems

The mechanical recycling of post-consumer and post-industrial polypropylene (PP) and polyethylene (PE) films presents complex rheological, thermodynamic, and mechanical engineering challenges. Due to the highly variable physical state, moisture content, and contamination levels of film scrap, the extrusion and cutting processes face severe operational barriers compared to processing rigid plastics.

This guide provides a comprehensive engineering analysis of core process architectures and pelletizing systems. By evaluating physical material behaviors, flow dynamics, and strict equipment boundaries, engineers can align machinery specifications with actual material realities to ensure continuous production, maximize equipment lifespan, and guarantee consistent polymer quality.

Material Characteristics and Underlying Extrusion Challenges

The physical and chemical states of PP/PE film scrap directly dictate material flow and thermal dynamics within the extruder. Understanding these fundamental properties is critical, as they act as the root causes of capacity fluctuations, mechanical wear, and substandard final pellet geometry.

• Extreme Bulk Density Disparity: Standard PP and PE films possess a bulk density between 0.02 and 0.05 g/cm³, starkly contrasting the target final pellet density of approximately 0.9 g/cm³. In conventional gravity-fed hoppers, the large surface area, lightweight nature, and static electricity of films cause particles to mutually support each other, forming a structural arch known as bridging. When bridging interrupts continuous material flow, the extruder screw instantly enters a starvation state, triggering violent fluctuations in melt pressure and output instability.

• High Moisture and Volumetric Expansion: Following upstream friction washing, film scrap retains residual moisture levels fluctuating widely between 5% and 15%. Inside the extruder barrel, which operates at temperatures exceeding 200°C, this liquid water undergoes a rapid phase change. Water converting to steam expands its volume by approximately 1,700 times. This aggressive volumetric expansion generates intense localized pressure within the closed barrel, severely disrupting the mechanical shearing and melting process. Unvented high-pressure steam eventually forces un-melted polymer chains through the filtration screen, creating porous pellets or surface fractures.

• Contaminant Loads and Corrosive Byproducts: Modern packaging films are heavily burdened with inks, paper labels, and adhesives. Under high-temperature extrusion, inks and adhesives thermally degrade to release Volatile Organic Compounds (VOCs). Furthermore, fully printed films containing large amounts of ink solvents release highly corrosive acidic gases during thermal degradation. Processing such materials not only demands superior degassing capabilities but also mandates the use of bimetallic screws and barrels to prevent premature metallurgical wear and chemical corrosion.

Comparative Evaluation of Pelletizing Architectures

Selecting the optimal cutting system requires aligning the machinery with the material's specific rheological behavior, cooling rate requirements, and extreme melt flow index variations.

Water-Ring Pelletizing

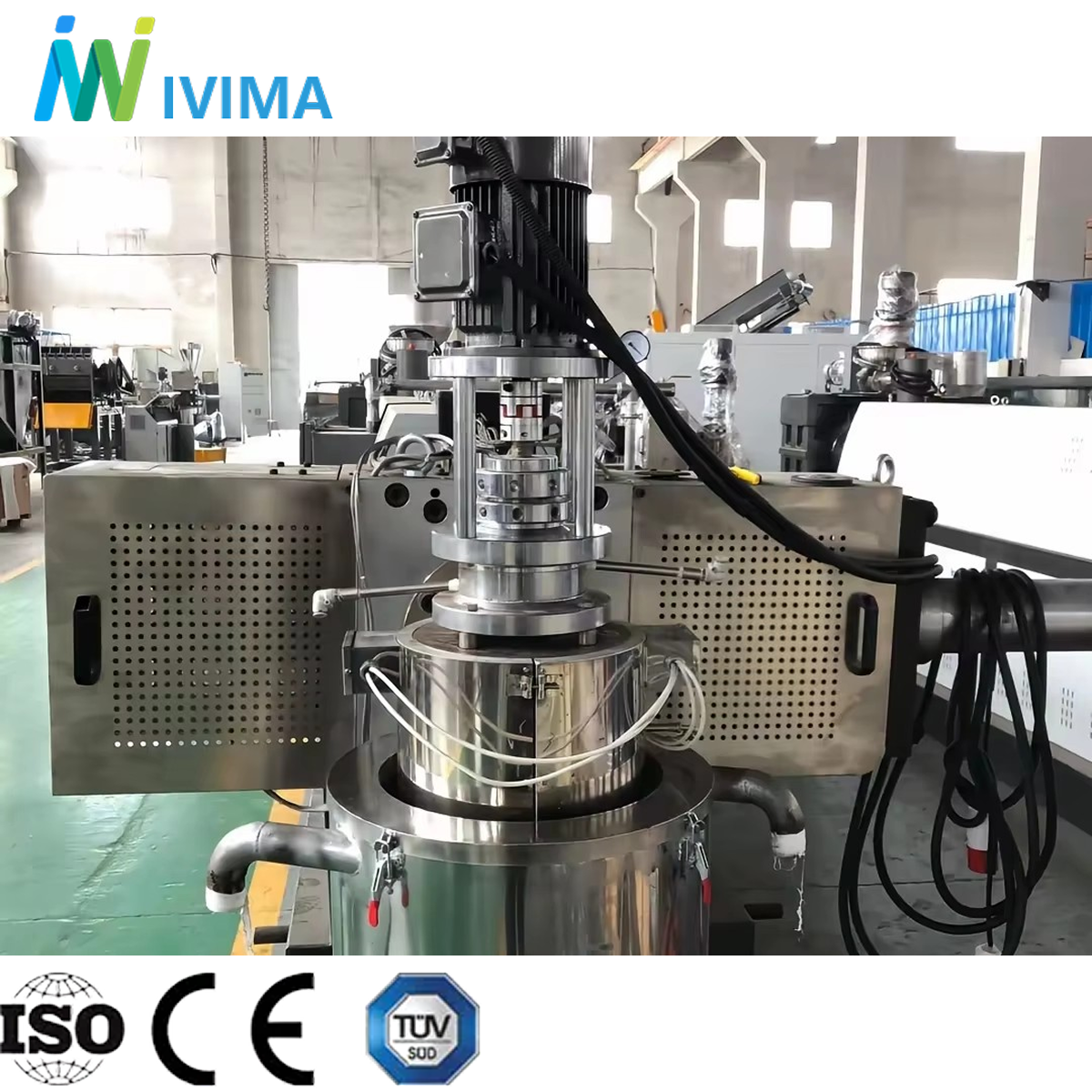

Water-ring systems represent the mainstream approach for processing PP/PE film due to their robust engineering tolerance and optimal cost-to-performance ratio. The system cuts the high-temperature polymer melt with rotating blades immediately upon exiting the circular die face. The resulting pellets are thrown outward by centrifugal force into a circulating water ring for instant cooling.

From a rheological perspective, this brief air-gap cutting mechanism excels at processing materials with a standard Melt Flow Index (MFI) (typically 0.5 to 5.0 g/10min). It inherently avoids the continuous physical tension required in strand pelletizing, making it highly resilient to minor melt pressure fluctuations or temporary vapor disruptions. However, when processing extremely high-MFI materials (>100), such as PP non-woven scrap or injection-molding regrind blended into the stream, the melt strength is too low. The short cooling duration in the air gap causes highly fluid, adhesive pellets to agglomerate or "tail" before fully solidifying in the water casing.

Strand Pelletizing

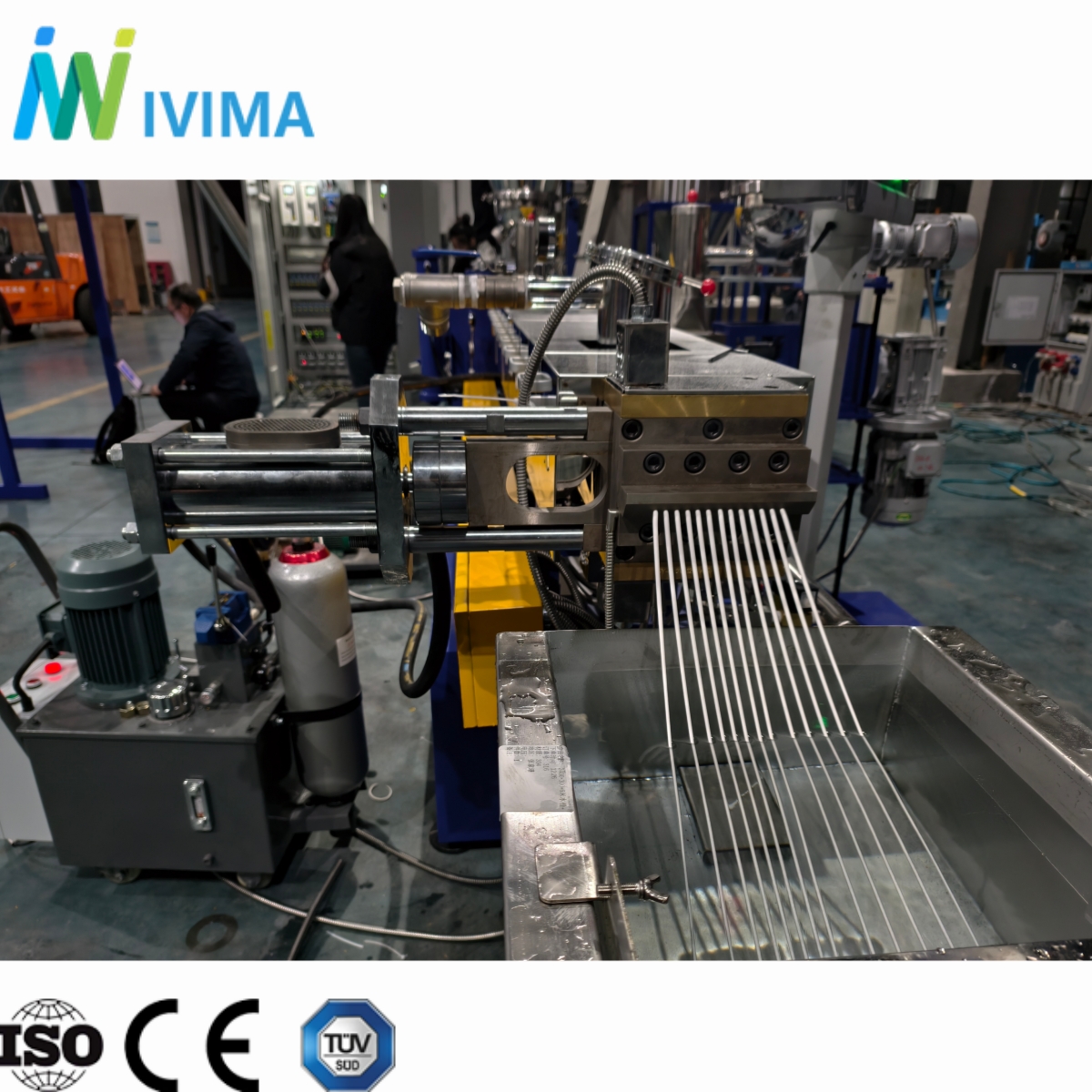

In strand pelletizing, the polymer melt is extruded through a die into parallel continuous strands, drawn through a long water cooling bath, and subsequently sheared into cylindrical pellets by a rotary cutter.

While mechanically simple and economically accessible, this method faces critical operational limits in the film recycling sector. The continuous strands must be maintained under constant tensile stress. Unfiltered micro-impurities, carbonized paper particles, or unvented gas bubbles create weak points within the polymer matrix. Any minor fluctuation in extrusion pressure severs the weakened strands instantly. Frequent strand breakages require constant manual operator intervention for re-threading, drastically lowering line automation and severely impacting stable output. However, for extremely high-MFI materials, the extended cooling bath of a strand system is often necessary to ensure proper solidification.

Underwater Pelletizing (UWP)

Underwater pelletizing achieves the highest level of automation by cutting the melt directly within a pressurized, temperature-controlled water chamber, yielding perfectly uniform spherical pellets.

Despite its superior output geometry, UWP operates under extremely strict engineering boundaries. It requires absolute die plate thermal equilibrium. When processing heavily contaminated film scrap, frequent filtration screen changes cause momentary melt pressure drops. The resulting downstream flow reduction removes vital heat from the die holes, leading to a catastrophic die freeze where the polymer solidifies entirely within the die plate. Additionally, to withstand the high-speed water flow and intense blade friction, UWP die plates require highly expensive titanium carbide or diamond coatings, making maintenance costs prohibitively high if hard impurities bypass the filtration system.

Multi-Dimensional Engineering Comparison

Critical Process Configurations for Film Recycling

Beyond the cutting mechanism, the overall system architecture relies on specific front-end and mid-stream configurations to stabilize the melt and neutralize physical material barriers. Standard extrusion layouts are universally insufficient without the following integrated technologies.

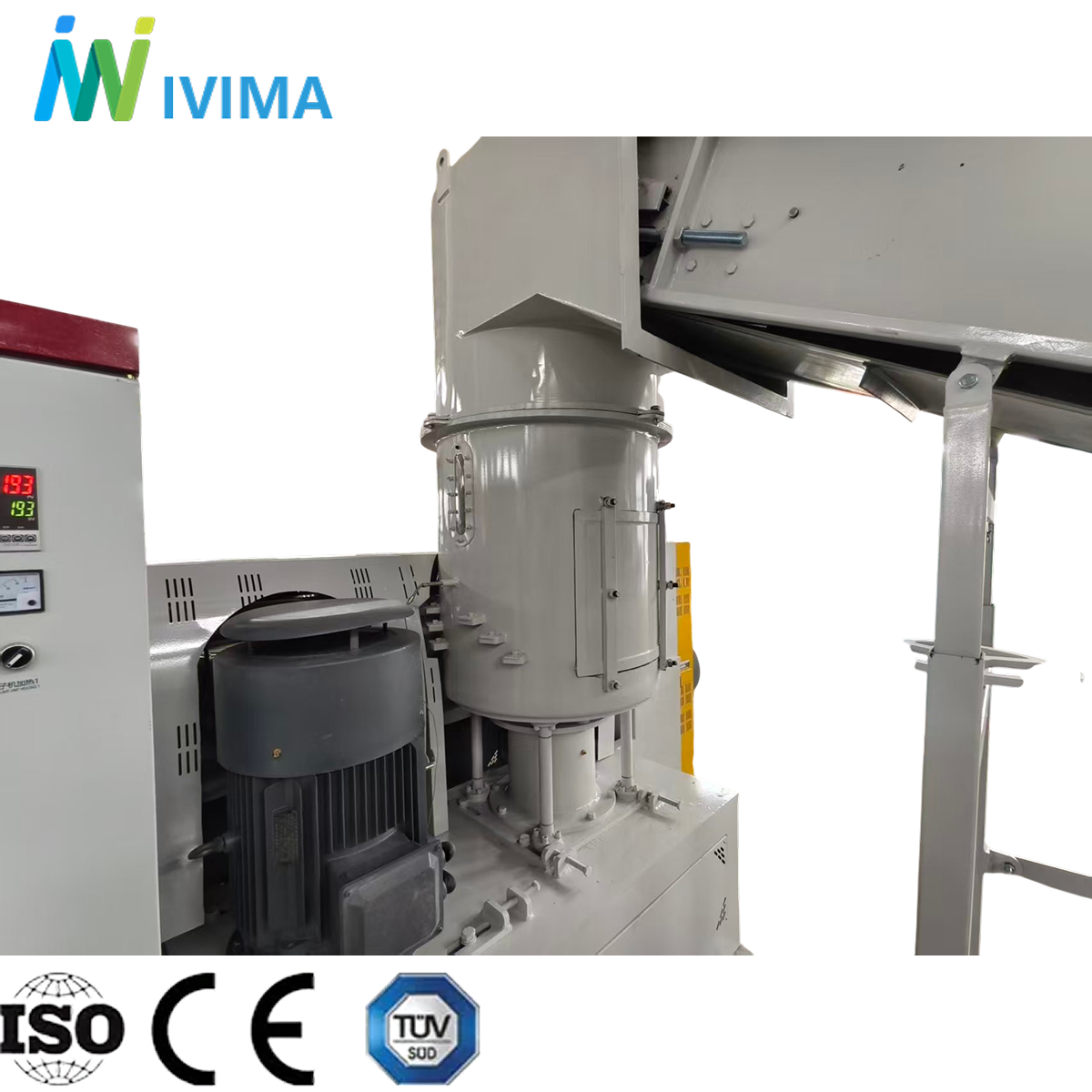

Cutter-Compactor Integration: To resolve the extreme low bulk density barrier, a cutter-compactor (or agglomerator) must be integrated directly onto the extruder feed throat. Standard shredders cannot adequately prepare lightweight film. Rotating blades within the compactor generate intense frictional heat, physically cutting and densifying the film while raising its temperature to just below the melting point (e.g., 100°C - 120°C for PE). This transforms the 0.02 g/cm³ flakes into a uniform feed with a density up to 0.3 g/cm³. Actively forcing pre-heated material into the screw eliminates bridging, vaporizes surface moisture, and reduces the primary extruder's specific energy consumption.

• Extended L/D Ratio for Moisture Control: High moisture content fundamentally dictates the physical dimensions of the extrusion architecture. To manage the massive volumetric expansion of steam without disrupting the polymer melting phase, the system demands an extruder screw with a sufficiently high Length-to-Diameter (L/D) ratio. This extended length provides the necessary physical space to incorporate multiple deep-channel decompression zones where trapped gases can be aggressively extracted.

• Multi-Zone Vacuum Degassing: High-moisture and heavily printed films necessitate double or triple vacuum zones. At these specific extraction points, high-performance liquid ring pumps extract expanded steam and degraded VOCs. Maintaining deep vacuum pressures (typically 20 to 30 mbar) is crucial. If the vacuum is insufficient, gases remain trapped, resulting in severe foaming at the die head and porous final pellets.

• Continuous Laser Filtration: Melt filtration manages the physical separation of impurities like paper and aluminum foil residues. While standard hydraulic screen changers serve clean industrial scrap, post-consumer films rapidly blind woven wire meshes, causing intolerable pressure spikes. Continuous laser filters utilize rotating scrapers that constantly clear accumulated contaminants from a hardened steel screen, discharging waste automatically. By ensuring an unobstructed flow path, these filters stabilize upstream melt pressure, directly preventing the flow variations that cause strand breakage or UWP die freeze.

Engineering Boundaries and System Selection Criteria

Procurement decisions driven solely by nameplate capacity or a subjective preference for high-end technology frequently result in severe operational mismatches. System selection must be grounded in strict multidimensional boundary assessments.

• Material State Limitations: The cleanliness of the raw material fundamentally dictates the filtration requirement, which subsequently limits the viable cutting mechanism. Processing highly contaminated films guarantees constant pressure fluctuations during filter clearing cycles. Water-ring systems absorb these momentary fluctuations efficiently due to their spring-loaded blade mechanisms. Conversely, deploying an underwater pelletizer for paper-contaminated film guarantees chronic downtime due to die freeze, rendering the investment counterproductive.

• Capacity Demand Matching: The economic viability of a system is non-linear relative to its output. Operations processing under 300 kg/h of relatively clean scrap can leverage strand pelletizing due to its low capital expenditure. The 300 to 1,000 kg/h tier represents the engineering sweet spot for water-ring systems, effectively balancing equipment cost, stability, and a power consumption rate of 100 to 150 kWh per ton. Underwater systems only achieve scale efficiency when single-line capacity exceeds 1,000 kg/h and the feedstock is meticulously washed and homogenized.

• Theoretical vs. Actual Yield Constraints: A critical engineering misconception involves capacity ratings. Equipment manufacturers frequently test theoretical output capacities using heavy, rigid plastic regrind. However, in live production environments, film recycling is physically bottlenecked by the volumetric feeding capacity of the cutter-compactor and the available surface area of the melt filter. Consequently, the actual yield of a film recycling line is typically 20% to 30% lower than standard nameplate ratings derived from rigid plastics. Facility planning must account for this inherent physical limitation.

Common Production Troubleshooting Protocol

Maintaining continuous extrusion and cutting operations requires precise control over thermal, mechanical, and rheological variables. The following matrix outlines common system failures and corresponding engineering interventions for PP/PE film lines.

The successful deployment of a continuous PP/PE film pelletizing line depends entirely on acknowledging the physical realities of the feedstock. Designing an effective architecture requires accurately matching the capabilities of the cutter-compactor, degassing zones, filtration technology, and pelletizing mechanism to the exact contamination levels and rheological profile of the incoming material.
