An ordinary PPR pipe line and a multilayer composite PPR pipe line may share familiar downstream units such as vacuum sizing, cooling, haul-off, and cutting, but they are not built around the same manufacturing task. Ordinary PPR production is designed to process one PP-R material system into a pipe with stable plastification, controlled dimensions, and reliable performance. Multilayer composite production must still achieve those basics, but it must also control how different layers are formed, positioned, bonded, and stabilized inside one pipe wall.
That is why the real distinction is not simply “single layer versus multiple layers.” The deeper shift is that the line moves from controlling one continuous polymer wall to controlling a layered structure. Once that happens, extrusion architecture, die design, metering, cooling, inspection, and quality evaluation all follow a different logic.
Ordinary PPR pipe production starts from a direct condition. One PP-R pipe-grade material system is plastified, shaped through the die, sized, cooled, and pulled into a finished pipe. In this route, melt stability and dimensional control dominate the process. If output, die condition, vacuum sizing, and cooling are well matched, the production target remains clear.
Multilayer composite PPR pipe production starts from a different product definition. In practical manufacturing, this category commonly includes fiber-reinforced structures, oxygen-barrier structures, and aluminum-plastic composite structures. Even when the inner and outer layers remain PP-R, the wall no longer behaves as one homogeneous body. Different layers may carry different functions, which changes line control.
Instead of forming only one wall, the line is now forming a wall system. The main structural layer, the functional layer, and the interface condition may all matter at the same time. A pipe can therefore look dimensionally acceptable from the outside while still contain hidden instability in layer proportion, interfacial bonding, or functional-layer continuity.
Comparison Item | Ordinary PPR Pipe Line | Multilayer Composite PPR Pipe Line | Production Implication |
|---|---|---|---|
Product basis | Single PP-R material system | Multiple layers with structural or functional roles | Control expands from one wall to a layered system |
Main target | Stable plastification and dimensional repeatability | Stable layer formation, layer proportion, and interface reliability | Acceptance logic becomes broader |
Thickness focus | Total wall thickness and outer geometry | Total wall thickness plus effective structural-layer control | Total thickness alone may be misleading |
Main risk | Melt instability, dimensional drift, surface defects | Layer deviation, poor bonding, functional-layer fluctuation, stress imbalance | Defects become more structural |

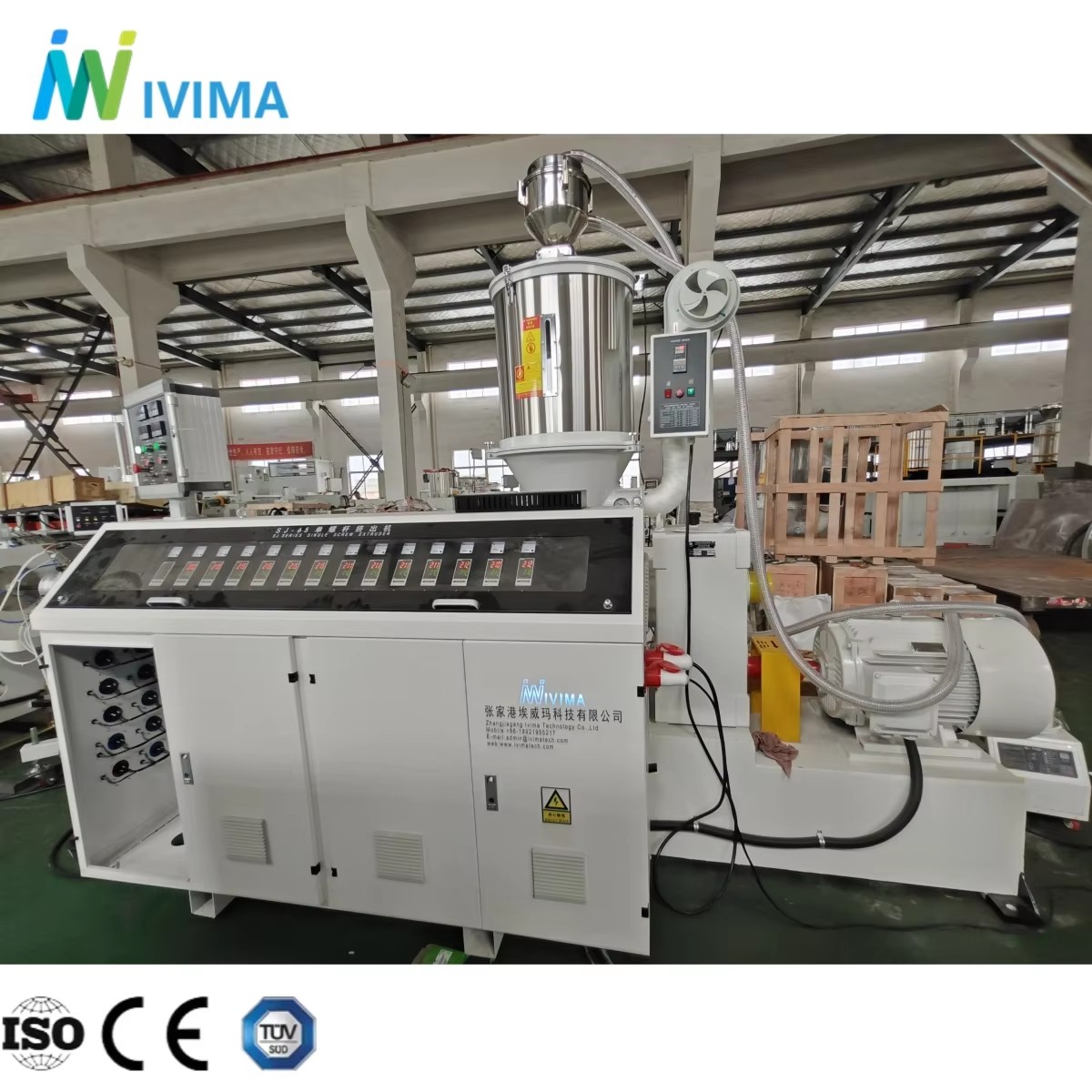

In ordinary PPR pipe production, the extrusion route is relatively straightforward. One material system is fed, plastified, and delivered through the die, after which the pipe is sized, cooled, and pulled downstream.
In that context, the die mainly needs to provide stable flow distribution so that the finished pipe has repeatable geometry and a uniform wall.

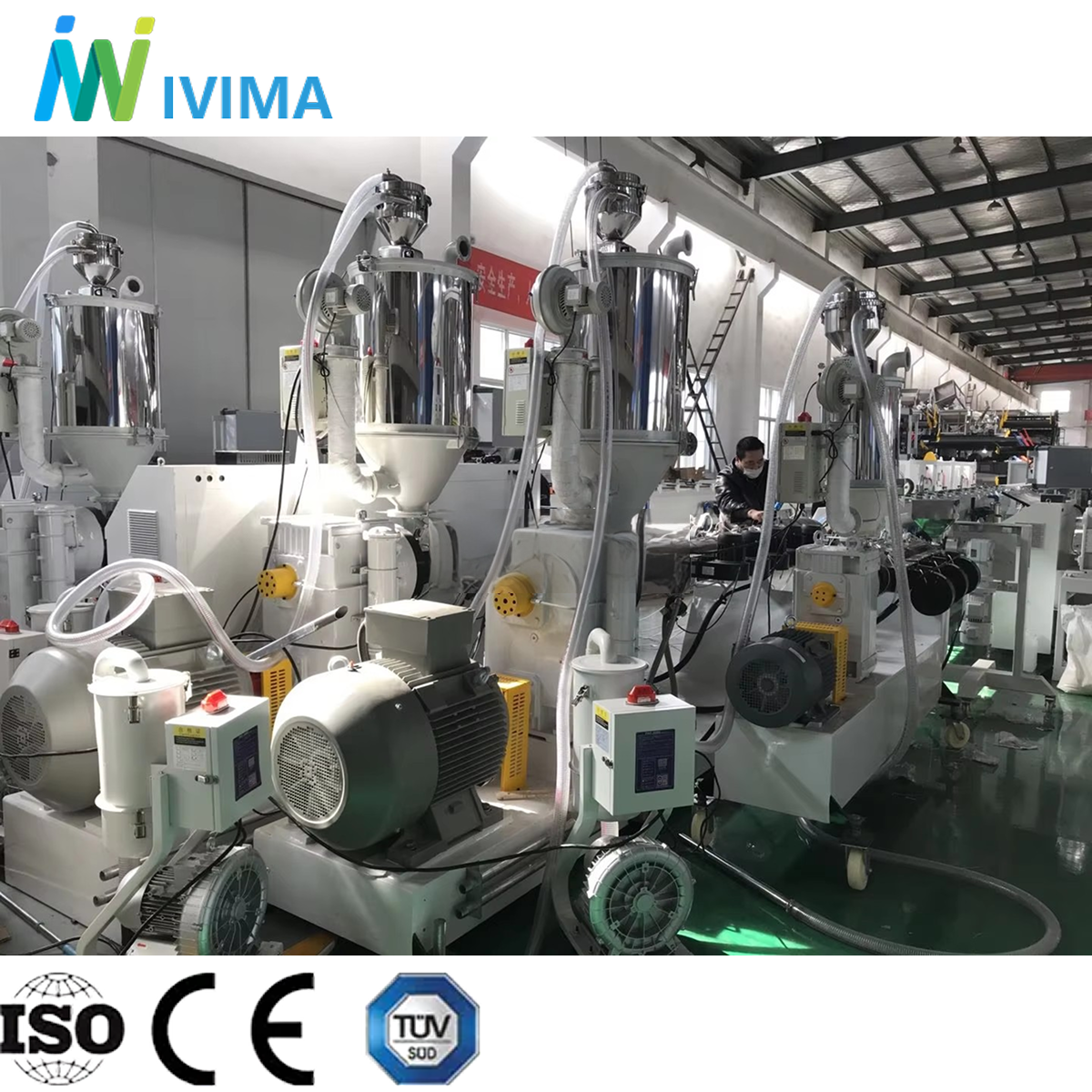

In multilayer composite production, that single-stream logic is often no longer sufficient. Different layers may require separate melt preparation and separate metering before they are brought together.
This does more than add equipment. It changes the die from shaping one melt body to distributing multiple material streams through the wall.

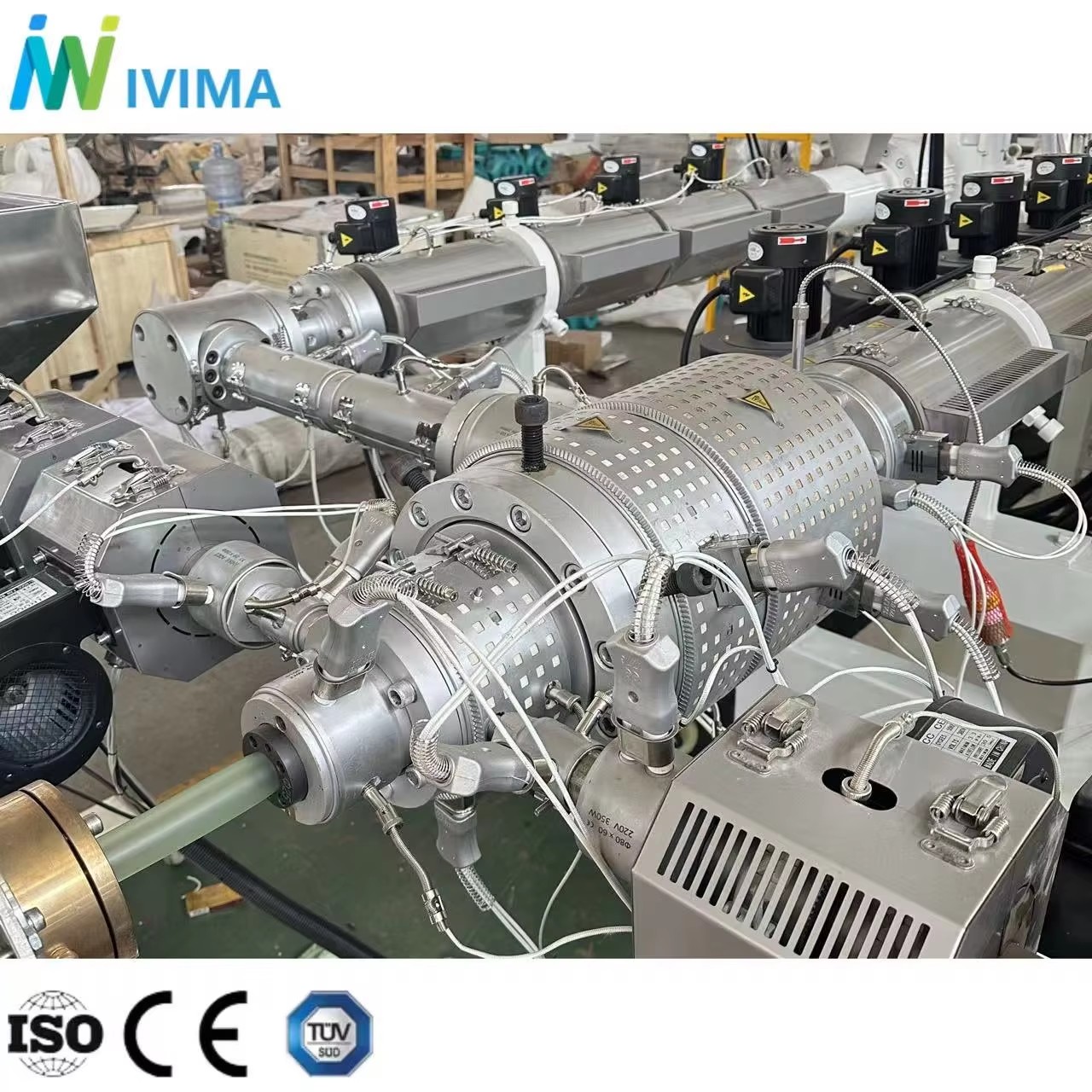

For ordinary PPR pipe, die stability is closely linked to outer-diameter control and wall-thickness uniformity. For multilayer composite pipe, die stability must also protect layer position, layer-thickness distribution, and concentricity.
If the relationship between streams becomes unstable, the first sign may not be obvious deformation. It may instead appear as local thinning of a functional layer, a reduced share of the structural wall, eccentricity, or an interface that becomes unreliable later.
Where dissimilar materials are involved, the process becomes harder. Same-material interfaces may depend mainly on melt fusion, but dissimilar-material structures often require a tie layer. In aluminum-plastic structures, aluminum strip forming, welding, and bonding stability add another level of control.

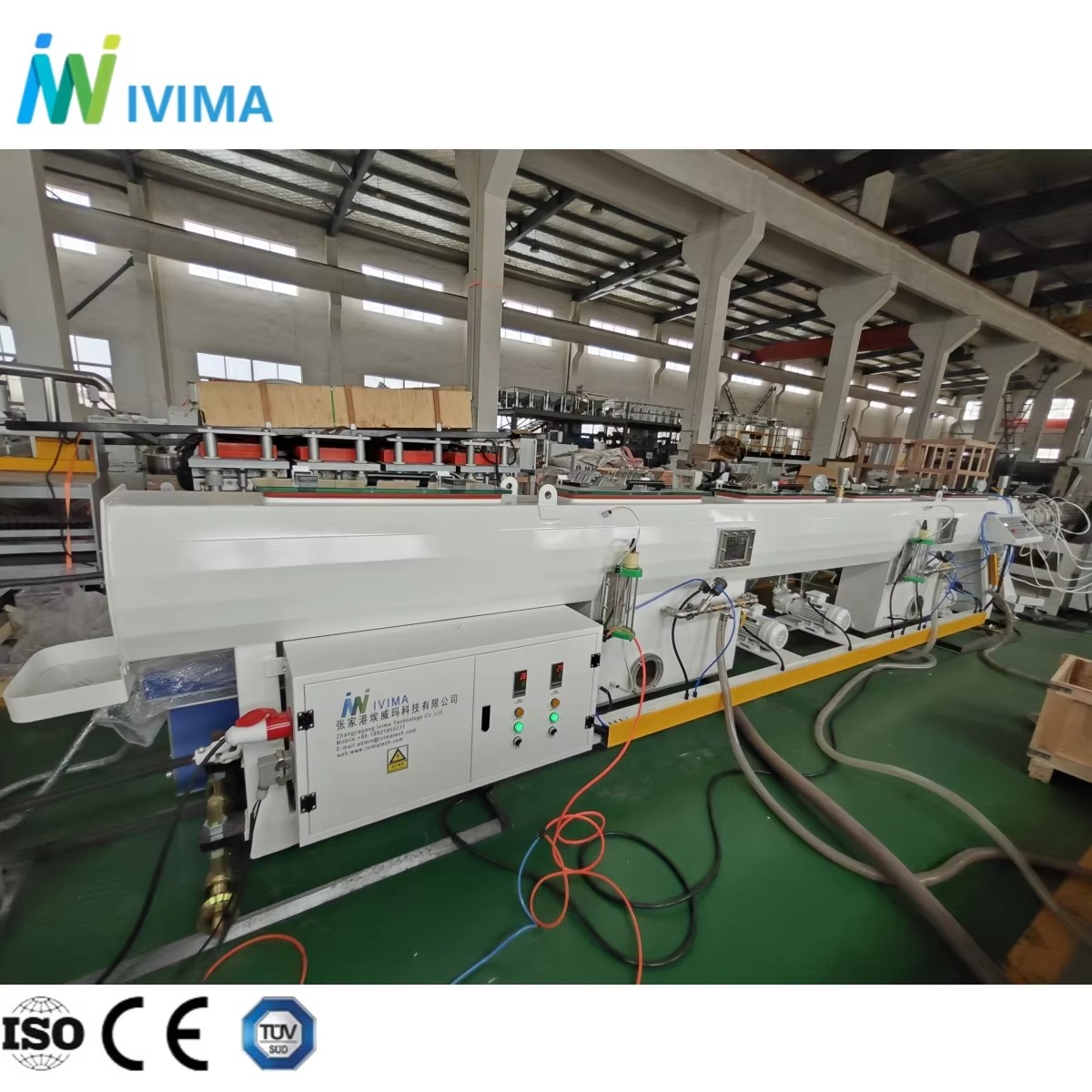

Ordinary PPR production requires coordination between extrusion output, vacuum sizing, cooling, and haul-off speed. The target remains direct: keep the melt stable and the pipe within limits.
Multilayer composite production adds another control level. Each layer-related stream must remain stable on its own, and the relationship between those streams must also remain stable over time. A deviation in one stream does not only change local thickness. It can reduce the share of the main structural wall, disturb barrier-layer continuity, weaken bonding conditions, or create a pipe whose total wall thickness looks acceptable while its internal structure has already shifted.
Multilayer production cannot be judged by total output stability alone. It must also be judged by whether the line can hold layer ratio, layer position, and interface condition in a repeatable way. In practical terms, the line must control structure formation, not just polymer output.
Ordinary PPR pipe presents a known thermal issue: the outer wall cools faster than the inner wall, so temperature gradients can remain through the thickness. If cooling is poorly matched to the extrusion state, residual stress may remain in the pipe and later appear as deformation or dimensional instability.
Multilayer composite PPR makes this issue more difficult because the wall is no longer thermally uniform. Different layers may respond differently to heat transfer, shrinkage, and solidification. Stress is therefore shaped not only by outer-to-inner cooling differences, but also by how adjacent layers constrain one another during cooling.
For that reason, the downstream section should not be seen only as a sizing and cooling stage. It is also the stage where the layered structure is being fixed into place.
If cooling is too aggressive, the line may achieve acceptable external dimensions while increasing internal stress, interfacial tension, or rebound risk. A staged or gradient cooling approach is therefore more suitable for multilayer structures.
Typical Issue | More Common in Which Structure | Production Interpretation | Control Focus |
|---|---|---|---|
Interlayer separation or peeling | Barrier-layer and aluminum-plastic structures | Bonding condition is unstable or interface quality is poor | Stabilize bonding control and interface consistency |
Oxygen-barrier performance fluctuation | Barrier-layer structures | Functional layer is too thin, discontinuous, or unstable in position | Tighten layer-ratio and continuity control |
Qualified outer diameter but insufficient effective main wall | Multilayer structures with functional layers | Total wall thickness masks a reduced structural wall | Control the structural layer, not total wall alone |
Weld-related local defects or local separation | Aluminum-plastic structures | Metal-layer forming and bonding do not remain stable together | Link weld control with interface control |
Warpage or dimensional rebound | Both types, but more critical in multilayer pipes | Residual stress remains after cooling | Improve thermal matching and staged cooling |
In ordinary PPR production, quality control is mainly built around dimensions and basic physical-performance indicators. Within the ordinary PPR framework, size stability, thermal stability, and pressure-related behavior remain central to product evaluation.
In multilayer composite production, those checks remain necessary, but they are no longer sufficient. Once the pipe contains a barrier layer, a reinforcement layer, or an aluminum-related layer, inspection must also consider whether the functional layer is continuous, whether the interface remains reliable, and whether the wall structure still performs as intended after processing. A pipe can satisfy outer-diameter requirements while still hide structural risk inside the wall.
This broader evaluation logic is reflected in the standards associated with multilayer products. Alongside GB/T 18742.2-2017 as a baseline reference for PPR dimensions and performance, multilayer structures may also involve ISO 17454 for interlayer bonding, ISO 17455 for oxygen permeability, and ISO 21003 for multilayer piping systems. These standards matter because layered products must be judged by more than geometry.
A manufacturer moving from ordinary PPR pipe production to multilayer composite PPR pipe production is not simply adding more equipment. The line is being asked to control a different type of product. If the upgrade is treated only as an equipment-layout problem, the line may still be run with a single-wall mindset, and that is where hidden structural defects become more likely.
A better upgrade path redefines the process target. The line must control three things at the same time: the main structural layer, the functional layers, and the interface relationship between them. Once those targets are built into production control, equipment decisions become more rational. Metering precision, stream synchronization, and die distribution all matter more, and cooling must be treated as a structural-stability function rather than a downstream utility.
That is where the real boundary between the two production lines becomes clear. Ordinary PPR pipe production is mainly a manufacturing problem of stable melt processing and dimensional control. Multilayer composite PPR pipe production is a broader engineering problem of multi-material coordination, structural-layer control, interface reliability, and residual-stress management. The difference begins there, not with layer count alone.
