A Comprehensive Technical Guide to the Plastic Extrusion Process

Plastic extrusion is a continuous, high-volume manufacturing process engineered to create parts with a constant cross-section. Unlike injection molding techniques that produce discrete, individual items in closed cavities, extrusion operates as a highly efficient steady-state fluid dynamic system. It transforms solid thermoplastic compounds into a uniform melt, which is then continuously forced through a specialized shaping tool under strictly controlled pressure.

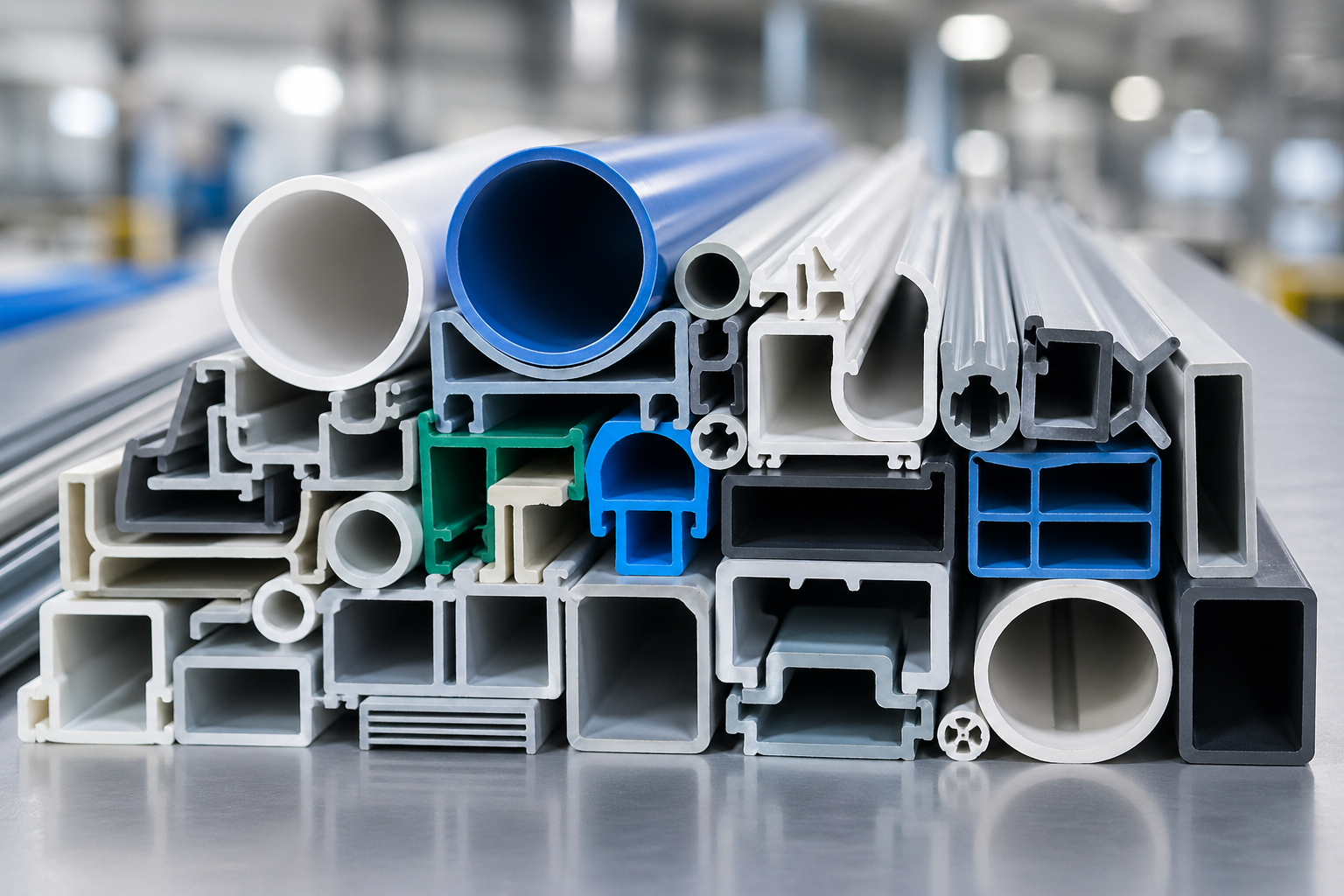

This processing method serves as the fundamental backbone for producing essential industrial and consumer goods. Its applications range from rigid structural pipes and architectural window profiles to flexible packaging films and medical-grade tubing. For manufacturing professionals, understanding the core mechanical principles, equipment architecture, and material behaviors is critical for optimizing production efficiency, minimizing scrap rates, and maintaining strict dimensional tolerances across long production runs.

What Is the Working Principle of Plastic Extrusion?

The fundamental nature of plastic extrusion relies on thermo-mechanical action. It combines external conductive heating with internal mechanical shear to establish a continuous flow of a polymer melt. Maintaining equilibrium throughout this continuous sequence is critical for ensuring product consistency.

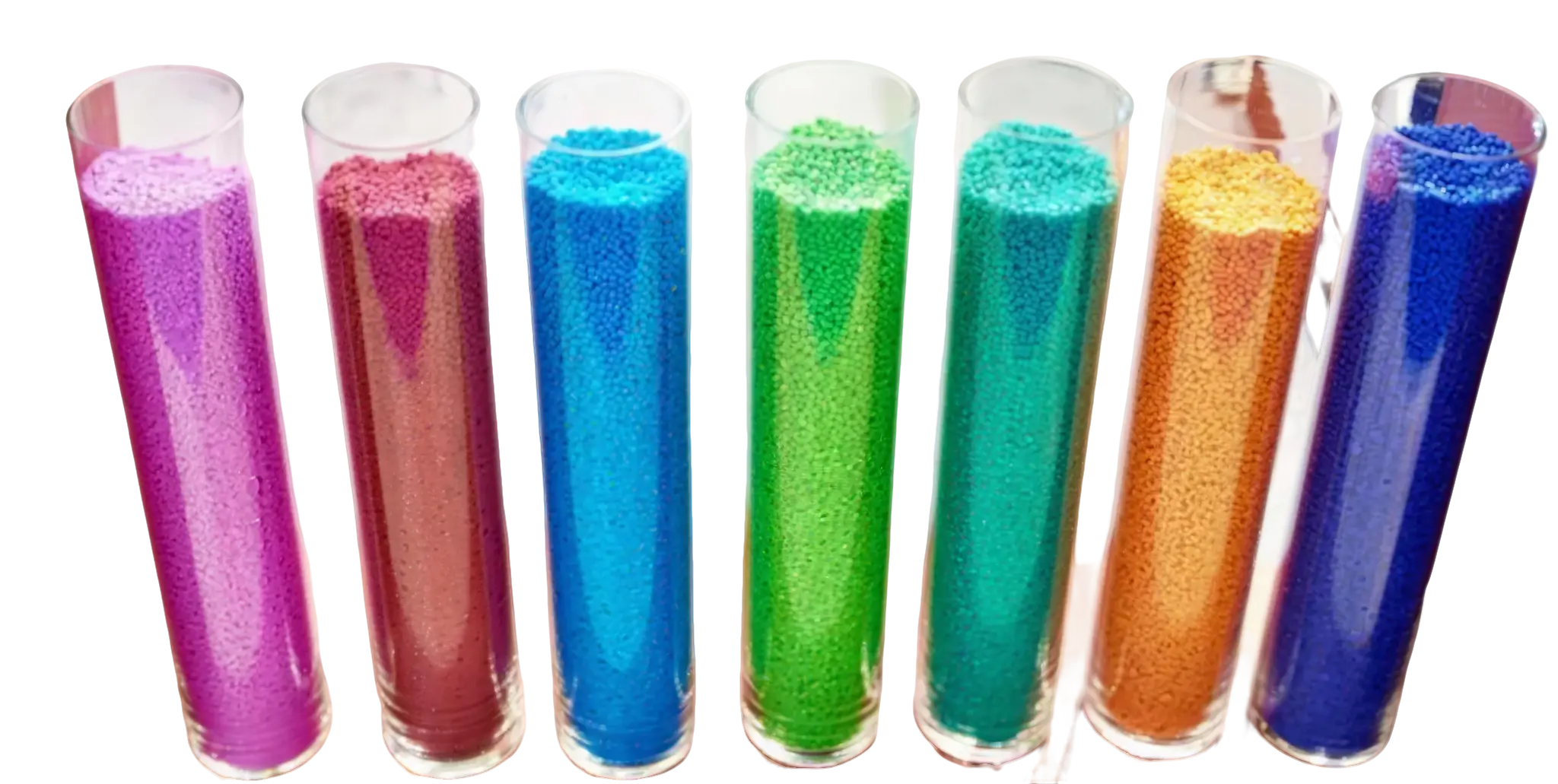

• Raw Material Feeding: The process begins in the upstream section where thermoplastic pellets, granules, or powders are loaded into a gravity-fed hopper. These raw materials, often precisely blended with color masterbatches or chemical fillers, feed directly into the throat of the extruder barrel.

• Melting and Plasticizing: As the material enters the rotating screw within the heated barrel, the transformation from a solid state to a highly viscous melt occurs. The primary source of thermal energy is not the external heater bands, but rather the internal shear heat generated by the mechanical friction of the polymer being aggressively compressed by the screw flights.

• Homogenization and Pressurizing: The standard extruder screw is divided into three distinct functional zones: the feed zone, the compression zone, and the metering zone. As the melt reaches the metering zone, the mechanical design ensures the polymer becomes thoroughly homogenized while building the stable, high pressure required to push the fluid forward without pulsation.

• Die Forming: The pressurized polymer melt is forced through a restrictive engineered opening called a die. The die dictates the fluid rheology, forcing the amorphous melt to adopt the target constant cross-sectional shape, whether that is a hollow pipe, a flat sheet, or a complex geometric profile.

• Cooling and Solidification: Once the plastic exits the die, it is hot, highly malleable, and susceptible to gravity. It must immediately enter a downstream cooling stage to lock in its dimensions. This is achieved using vacuum sizing tanks, water baths, and air cooling systems that prevent the profile from sagging as it transitions back to a solid state.

• Haul-off and Cutting: A mechanical haul-off unit continuously grips the solidified profile and pulls it down the production line. Controlling the exact speed of this traction relative to the extrusion rate is a critical control point, as it directly influences the final wall thickness. The continuous length is then processed by an automated cutter or wound onto large spools.

What Are the Essential Equipment Components?

A reliable extrusion operation relies on the seamless integration of various mechanical systems. An industrial production line is systematically divided into distinct upstream, core, and downstream functional groups.

Upstream Handling Systems

Before the raw material reaches the processing screw, it requires careful preparation. This subsystem involves storage silos, automated pneumatic conveying systems, and drying units. For hygroscopic materials, utilizing a desiccant dryer is vital to prevent trapped moisture from creating structural voids within the extruded product. Industrial blending machines are also deployed here to precisely mix virgin resins with modified additives before feeding.

The Core Extruder and Die Head

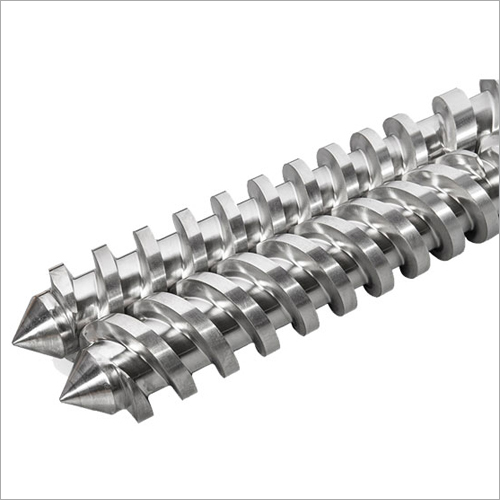

The extruder functions as the mechanical heart of the system. A standard single-screw extruder is the universal choice for melting and pumping general profiles. Conversely, a twin-screw extruder features interlocking screws and is selected specifically for its superior mixing capabilities, making it mandatory for compounding complex formulations. Attached directly to the end of the extruder is the die head, the precision-machined tool that determines the final product shape.

Downstream Processing Equipment

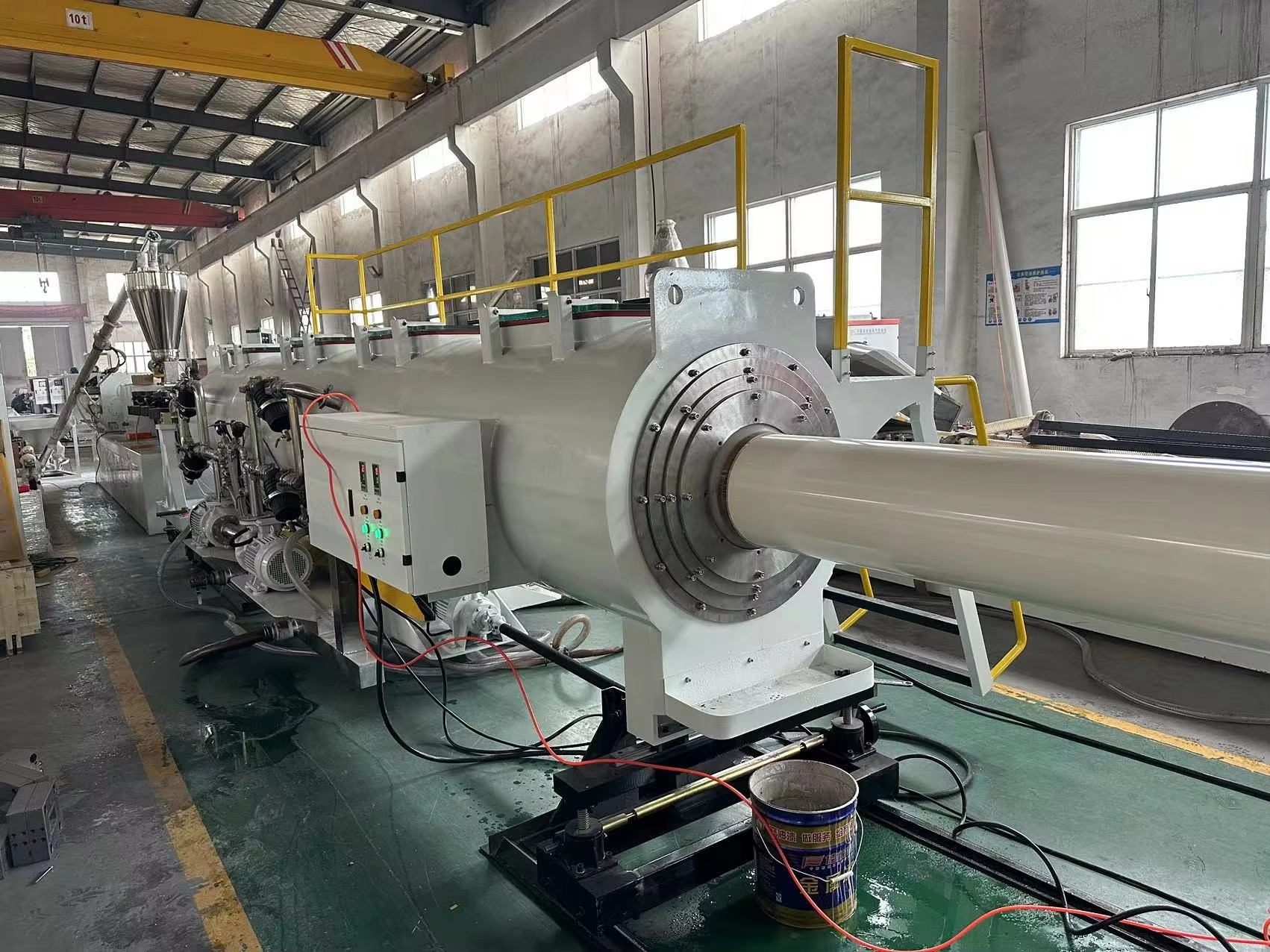

Downstream components are strictly responsible for fixing the product's dimensional tolerances after it leaves the die. Calibration tools utilize vacuum forces to hold the soft plastic against cold sizing surfaces, ensuring accurate outer dimensions. Heavy-duty traction machines maintain constant line tension, while precise mechanical cutting or coiling systems prepare the continuous profile for final packaging and shipping.

What Thermoplastic Materials Are Used in Extrusion?

The versatility of the process is largely due to the wide variety of thermoplastic polymers it can accommodate. The specific molecular structure of the selected material directly determines the necessary processing temperatures, the optimal screw geometry, and the design of the cooling system.

What Are the Primary Industrial Applications?

Because the extrusion method excels at manufacturing continuous items with a uniform cross-section, it serves as the foundational production technique across multiple global manufacturing sectors.

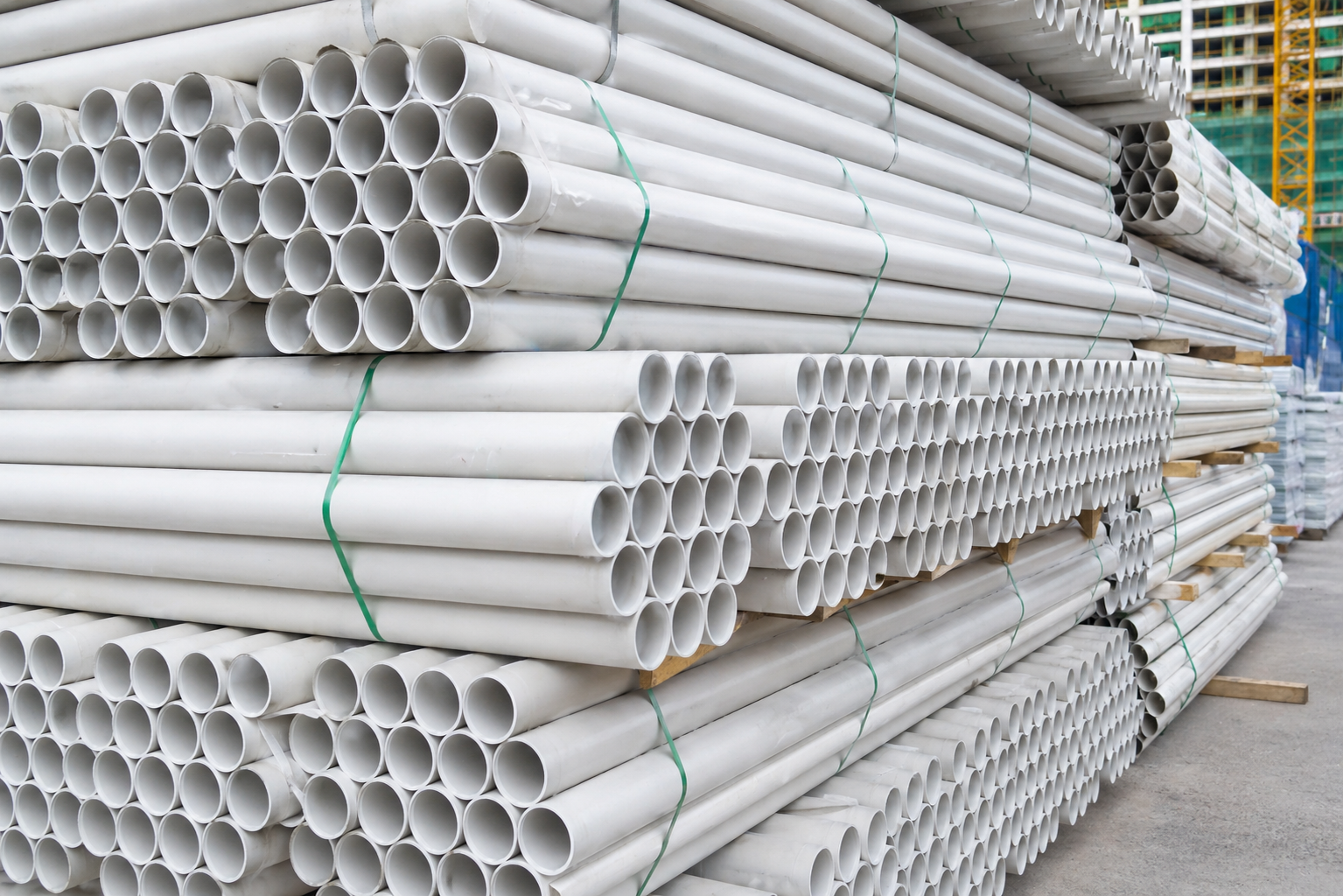

• Construction and Infrastructure: This sector relies heavily on extrusion for structural integrity and fluid transport. Heavy-duty PVC and high-density polyethylene (HDPE) pipes are continuously extruded for municipal water supply, underground drainage, and electrical conduit protection.

• Packaging Industry: Extrusion creates both flexible and rigid packaging formats. Blown film extrusion lines produce thin, flexible protective films, while sheet extrusion lines create thicker, rigid materials destined for thermoformed food containers and blister packs.

• Electrical and Electronics: Specialized crosshead extrusion machines continuously coat conductive copper or aluminum wires with precise layers of insulating plastics. This ensures safe electrical transmission and provides robust environmental protection for cables.

• Automotive Sector: Modern vehicles require extensive use of flexible polymer profiles. Extruded weatherstripping, rubber-like window seals, and specific interior trim pieces are manufactured to exact tolerances to block moisture and significantly reduce cabin noise.

• Emerging Technologies: The rapid growth of additive manufacturing relies on extruded materials. High-precision filaments made from PLA or ABS are continuously extruded, cooled, and spooled specifically to feed industrial and consumer 3D printers.

What Are the Process Advantages, Limitations, and Cost Factors?

When evaluating manufacturing methods for a new product, engineers must objectively weigh the technical benefits against the inherent physical limitations and the capital requirements of the extrusion process.

Process Advantages

The primary engineering advantage is unmatched efficiency for high-volume production. Because it operates as a continuous flow rather than a batch process, the unit cost per meter of product is exceptionally low. Modern automated systems require minimal manual intervention, drastically reducing labor overhead. Furthermore, the process is highly adaptable; by simply changing the steel die and downstream calibration tools, a single host machine can manufacture completely different cross-sectional designs.

Technical Limitations

Despite its high efficiency, extrusion is strictly limited to products that possess a constant cross-section. It cannot produce closed-end objects or complex parts with varying thicknesses along their length. Additionally, achieving extremely tight dimensional tolerances is inherently challenging. Because the hot polymer undergoes natural thermal shrinkage as it cools in the downstream phase, engineers must carefully oversize the die dimensions to mathematically compensate for this physical contraction.

Cost Dynamics

The economic model is defined by high initial capital expenditures offset by low long-term operational costs. Purchasing the core machinery, machining custom steel dies, and installing specialized downstream cooling equipment requires a substantial upfront investment. In ongoing production, raw material costs account for the vast majority of operating expenses. However, because production speeds are incredibly high, the amortized equipment cost per unit drops drastically over the lifecycle of the machinery.

Engineering Guidelines for Extruder Selection

Choosing the correct extrusion equipment is the most critical engineering decision, dictating long-term processing stability and product quality. A successful selection strategy relies on optimizing the specific combination of material properties, product geometry, and required output volume.

Match Equipment to Product and Material

The physical characteristics of the final product dictate the core machine technology. For manufacturing standard pipes or simple geometric profiles, a single-screw extruder is the most reliable and efficient choice. However, if the operation involves extensive compounding, modifying plastics, or blending heavy fillers, a twin-screw extruder is necessary to provide the required mechanical shear and mixing action.

The machinery must also be perfectly tailored to the thermal properties of the specific polymer. Processing a heat-sensitive material like PVC requires exceptional plasticizing capabilities and highly sensitive temperature controllers to prevent material degradation inside the barrel. Conversely, processing PE focuses primarily on maintaining a perfectly stable, surge-free motor output to ensure uniform wall thickness.

Evaluate Production Volume and Key Parameters

The physical scale of the equipment must align with the target business objectives. Small-batch, specialized profile production is best served by compact extrusion lines that allow for rapid tooling changes and minimal material waste during startup. For large-scale industrial projects, investing in high-speed, fully automated lines is an absolute requirement to achieve necessary economies of scale.

Engineers must evaluate critical technical specifications rather than focusing solely on the lowest price. The L/D ratio (Length to Diameter ratio of the screw) is a paramount parameter; a longer screw provides more residence time for the polymer, ensuring a more homogenous melt quality. Furthermore, precise multi-zone temperature control systems and highly consistent haul-off speeds are non-negotiable parameters for maintaining long-term product quality.

Avoid Common Selection Mistakes

The most frequent error in machinery procurement is prioritizing the lowest initial equipment cost while entirely ignoring long-term running stability. A cheaply manufactured extruder that suffers from constant pressure pulsations will produce immense amounts of scrap material, erasing any initial savings. Another common engineering pitfall is failing to ensure that the die design perfectly matches the rheological output capabilities of the host extruder. Finally, manufacturers often severely underinvest in the downstream cooling and calibration equipment, mistakenly believing that the main extruder alone dictates the final dimensional accuracy.

Ultimately, successful plastic extrusion relies on the precise synchronization of thermodynamics, mechanical engineering, and polymer science. By carefully evaluating material characteristics, understanding process variables, and investing in correctly specified equipment, manufacturers can ensure the highly efficient, continuous production of flawless plastic components.
