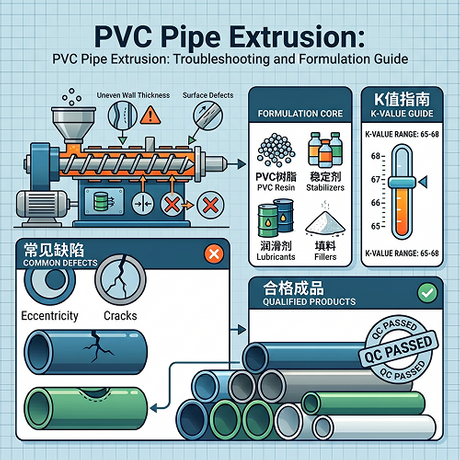

Troubleshooting PVC Pipe Extrusion: A Deep Dive into Formulation And Defect Resolution

Rigid Polyvinyl Chloride (PVC-U) extrusion is widely recognized as one of the most complex material processes in the polymer manufacturing industry. Unlike other standard thermoplastics that melt completely into a uniform liquid fluid, PVC exhibits highly unique rheological behaviors. It undergoes a progressive, three-dimensional physical transformation inside the barrel.

Success in this continuous continuous production process relies entirely on maintaining a delicate thermodynamic and chemical balance. Even microscopic fluctuations in the formulation matrix or mechanical processing parameters can trigger severe macroscopic defects in the final pipe. This technical guide explores the underlying mechanics of PVC compounding, analyzes the root causes of extrusion failures, and provides a structured troubleshooting protocol for manufacturing engineers.

The Core Rheology and Thermodynamics of PVC Extrusion

The fundamental engineering challenge of processing PVC lies in its rigid molecular structure and its extreme sensitivity to thermal energy. Under standard extrusion conditions, the primary resin particles do not achieve a true liquid phase. Instead, they undergo a complex physical state change known as gelation.

Achieving the optimal gelation degree is the single most critical metric for evaluating the structural integrity of the extruded pipe. For rigid pipe applications, the optimal gelation window typically falls between 65% and 70%. During this highly dynamic state, the core melt temperature generally ranges from 180°C to 190°C.

If this thermodynamic equilibrium is disrupted by excessive shear heat or prolonged residence time, the material is highly susceptible to dehydrochlorination. This is a rapid degradation reaction where the polymer chains break down, release hydrochloric acid (HCl), and form unstable conjugate double bonds. Therefore, maintaining steady flow dynamics through precise thermal control and an optimized lubrication balance is an absolute engineering necessity.

Essential PVC Formulation Components and Their Physical Roles

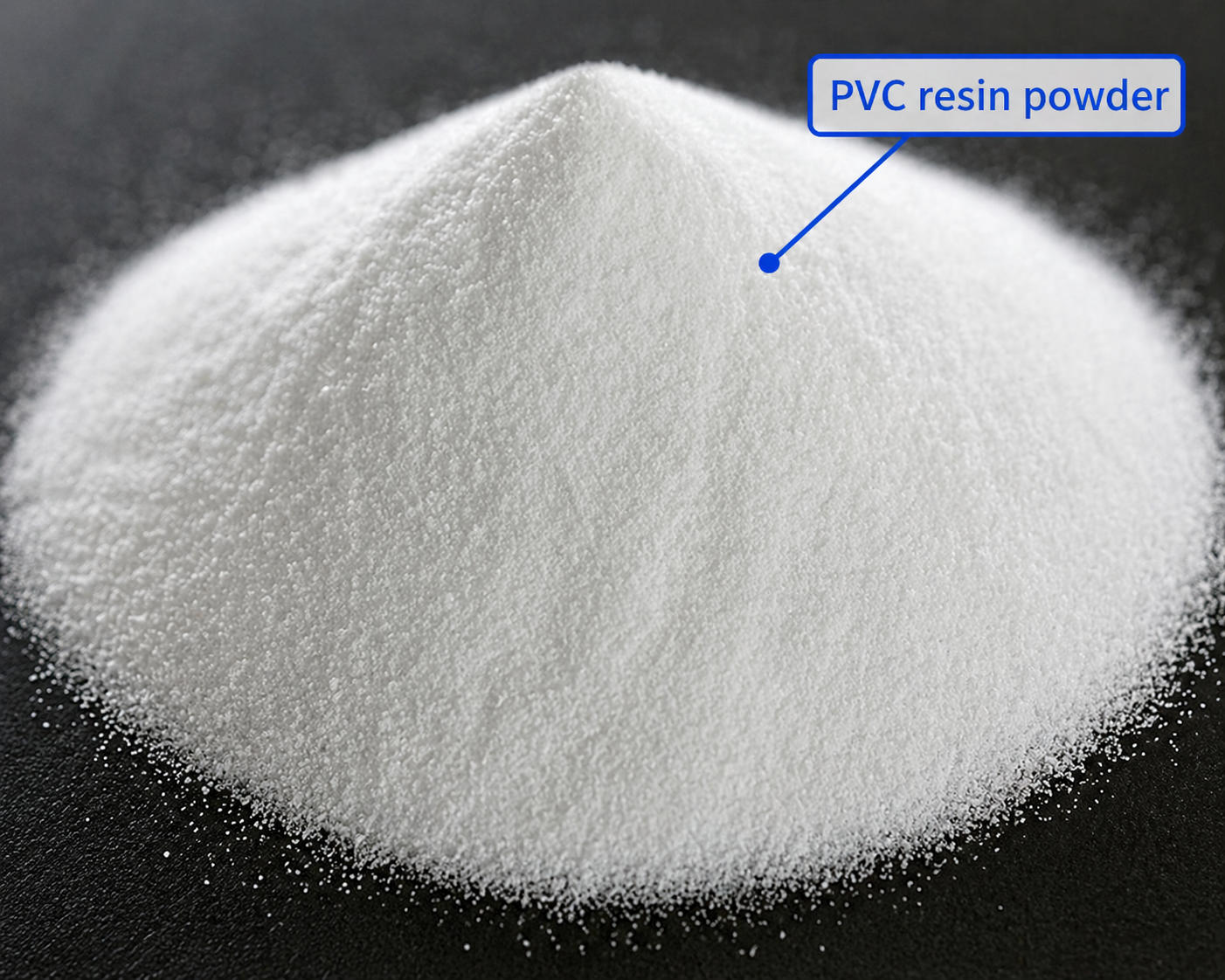

A rigid PVC pipe formulation is not a simple mixture; it is a highly interdependent, multi-component thermodynamic system. Each additive performs a targeted physical or chemical function.

To fully understand extrusion failures, engineers must grasp the micro-level interactions of these components. A failure in the field is rarely caused by a single additive, but rather the collapse of the system's balance.

• The Physics of Lubrication Balance: Internal lubricants feature polar molecular structures that slip between massive PVC polymer chains, reducing internal friction without delaying fusion. Conversely, external lubricants have extremely low compatibility with PVC. Upon heating, they migrate to the boundary layer, forming a microscopic isolation film between the polymer and the metal barrel. If this internal-external balance is broken, the extrusion process faces either catastrophic shear heat or severe plasticization failure.

• The Double-Edged Sword of Fillers: While adding calcium carbonate (CaCO3) improves pipe stiffness, excessive loading introduces immense risks. High inorganic filler content weakens the polymer matrix. Under impact, these excess particles act as microscopic stress concentration points, essentially cutting the polymer chains and causing brittle fractures.

• UV Protection and Pigmentation: For pipes exposed to outdoor environments, Titanium Dioxide (TiO2) is critical for reflecting ultraviolet rays and preventing surface chalking. Engineering data indicates that a dosage of 1.5 phr is generally sufficient for mature UV protection; adding more only increases costs without yielding linear performance gains.

• The Hidden Risks of Regrind: Utilizing recycled factory scrap (regrind) lowers material costs but introduces significant thermal history into the virgin matrix. Recycled particles have already partially degraded. If the regrind ratio exceeds safe limits (typically 15-20%), or if the particles are contaminated, they become the primary source of black spots and localized stress failures.

Diagnosing Common PVC Extrusion Defects and Root Causes

When the delicate balance between the stabilizer system, the lubrication matrix, and the applied temperature profile fails, specific defects manifest on the production line.

Appearance and Surface Anomalies

Melt fracture is the primary scientific cause behind dull, rough, or shark-skin pipe surfaces. It occurs when the polymer melt lacks sufficient strength and elasticity to withstand the massive shear forces present at the die exit. This phenomenon is typically driven by an inadequate ACR dosage or processing temperatures that are simply too low to promote complete resin fusion.

Discoloration, ranging from minor yellowing to severe dark brown scorch marks, is a direct visual indicator of thermal degradation. This happens when the heat stabilizer proportion is insufficient, or when a lack of external lubrication generates localized friction heat that completely overwhelms the chemical stabilization capacity.

Plate-out refers to the unwanted accumulation of a white, waxy residue on the calibration sleeve or die head. This is almost exclusively caused by an overdose of external lubricants or incompatible slip agents. Under high extrusion pressure, these excess materials precipitate out of the polymer matrix and aggressively adhere to the colder metal surfaces.

Mechanical and Dimensional Failures

Brittle pipes exhibiting poor drop-impact resistance usually point to a failure in the modification network. Either the CPE impact modifier dosage is too low to form a protective web, or the material has suffered from severe over-plasticization, which destroys the inherent mechanical properties of the PVC chains.

Dimensional instability, such as uneven wall thickness, severe ovality, or output surging, originates from inconsistent melt pressure. Output surging (fluctuating extrusion volume) often traces back to material bridging in the feed hopper or extreme lubrication failure. When the screw loses its grip on the material due to excessive external slip agents, the forward conveying force drops instantly, causing thickness variations.

Quick Reference: Defect Resolution Matrix

Effective troubleshooting requires isolating formulation imbalances from mechanical process variables. The following matrix outlines standard engineering adjustments for resolving common pipe extrusion defects directly on the factory floor.

The 3-Phase Field Troubleshooting Protocol

When a sudden quality failure occurs on a continuous extrusion line, blind adjustments to the chemical formulation often exacerbate the problem. Senior process engineers follow a strict, logical diagnostic sequence to identify the exact root cause without causing further system instability.

Phase 1: Process Verification

The critical first step is capturing real-time rheological and equipment data immediately before deciding to alter any chemical formulas.

• Inspect Vacuum and Cooling Systems: Verify that the vacuum calibration tank maintains steady negative pressure. Check if the cooling water spray nozzles are fully functional. A lack of vacuum power directly leads to dimensional collapse and ovality.

• Perform a Temperature Audit: Use an industrial infrared thermometer to compare the actual die and barrel surface temperatures against the control panel readings. This rapidly identifies localized friction heat or broken heater bands causing cold spots.

• Monitor Main Motor Torque: Sudden spikes in motor current strongly indicate a dangerous lack of internal lubrication. Conversely, unexpected drops in torque suggest severe external lubricant slipping, leading to under-plasticization and surging.

Phase 2: Mechanical Inspection

If all process parameters are proven stable, the downstream equipment and core extrusion components must be safely dismantled for physical inspection.

• Remove and Inspect the Die Head: Look for yellowed degradation build-up or heavy plate-out on the internal flow channels. These obstructions alter fluid rheology and require immediate deep cleaning with specialized copper tools to prevent surface scoring.

• Extract the Screw and Screen Pack: A clogged filter screen drastically increases backpressure and polymer residence time, directly accelerating thermal degradation and the formation of black spots.

• Verify Concentricity and Haul-off: Use precision calipers to map the wall thickness. Ensure the haul-off caterpillar tracks apply perfectly even pressure to prevent periodic slipping and subsequent dimensional variations.

Phase 3: Material Tracing in the Compound Room

If the mechanical components are flawless, the root cause invariably lies upstream in the compounding room or is due to sudden raw material variations.

• Test Moisture Content: The moisture level of the PVC resin and calcium carbonate must be strictly controlled below 0.3%. High moisture guarantees steam voids, internal pinholes, and surface blisters.

• Audit High-Speed Mixing Parameters: High-speed mixing is not merely simple blending; it relies on high-speed friction heating. If the blending temperature does not reach the required 115°C to 125°C, the additives will not disperse evenly into the complex micro-pores of the PVC resin, leading to localized extrusion failures and poor fusion.

• Control the Regrind Ratio: Using thermally degraded recycled materials fundamentally alters the thermodynamic balance of the virgin resin matrix. Regrind usage must be strictly capped, and coarse particles must be filtered out.

Mastering PVC pipe extrusion demands a rigorous, integrated understanding of polymer thermodynamics, chemical formulation, and mechanical engineering. By systematically balancing the complex additive matrix and adhering to strict field verification protocols, manufacturers can confidently eliminate extrusion defects and ensure the structural integrity of the final pipe products.
