Views: 0 Author: Site Editor Publish Time: 2026-05-12 Origin: Site
Choose a single-shaft shredder for controlled shredding of plastic film, woven bags, fibers, and medium-hard plastic scrap. Choose a double-shaft shredder for bulky, heavy, mixed, or contaminated plastic waste. Choose a granulator or plastic crusher for secondary fine grinding into uniform flakes or regrind.
For many industrial plastic recycling lines, the best solution is not one machine. It is often a two-stage size reduction system: shredder first, granulator second.
Material / Requirement | Recommended Machine |
LDPE film, LLDPE film, PP woven bags | Single-shaft shredder |
HDPE drums, thick-wall pipes, IBC tanks | Double-shaft shredder |
Clean injection molding scrap | Granulator / plastic crusher |
PET bottle flakes | Granulator, often wet granulation |
Mixed rigid plastic waste | Double-shaft shredder + granulator |
Contaminated post-consumer plastic waste | Double-shaft shredder first |
Uniform 8–12 mm flakes required | Granulator after pre-shredding |
Limited floor space and clean in-house scrap | Integrated shredder-crusher system |
Plastic recycling does not begin at the washing tank, extruder, or pelletizer. It begins with stable size reduction.
If the wrong plastic shredder or granulator is selected, the entire recycling line may face:
unstable feeding
high motor load
blade damage
excessive fines
poor washing efficiency
frequent downtime
higher operating cost
PET bottles, LDPE film, PP woven bags, HDPE drums, PVC pipes, purgings, IBC tanks, and mixed municipal plastic waste do not behave the same inside a cutting chamber.
Before choosing a machine, answer one key question:
What material are you processing, and what output size does the next process require?

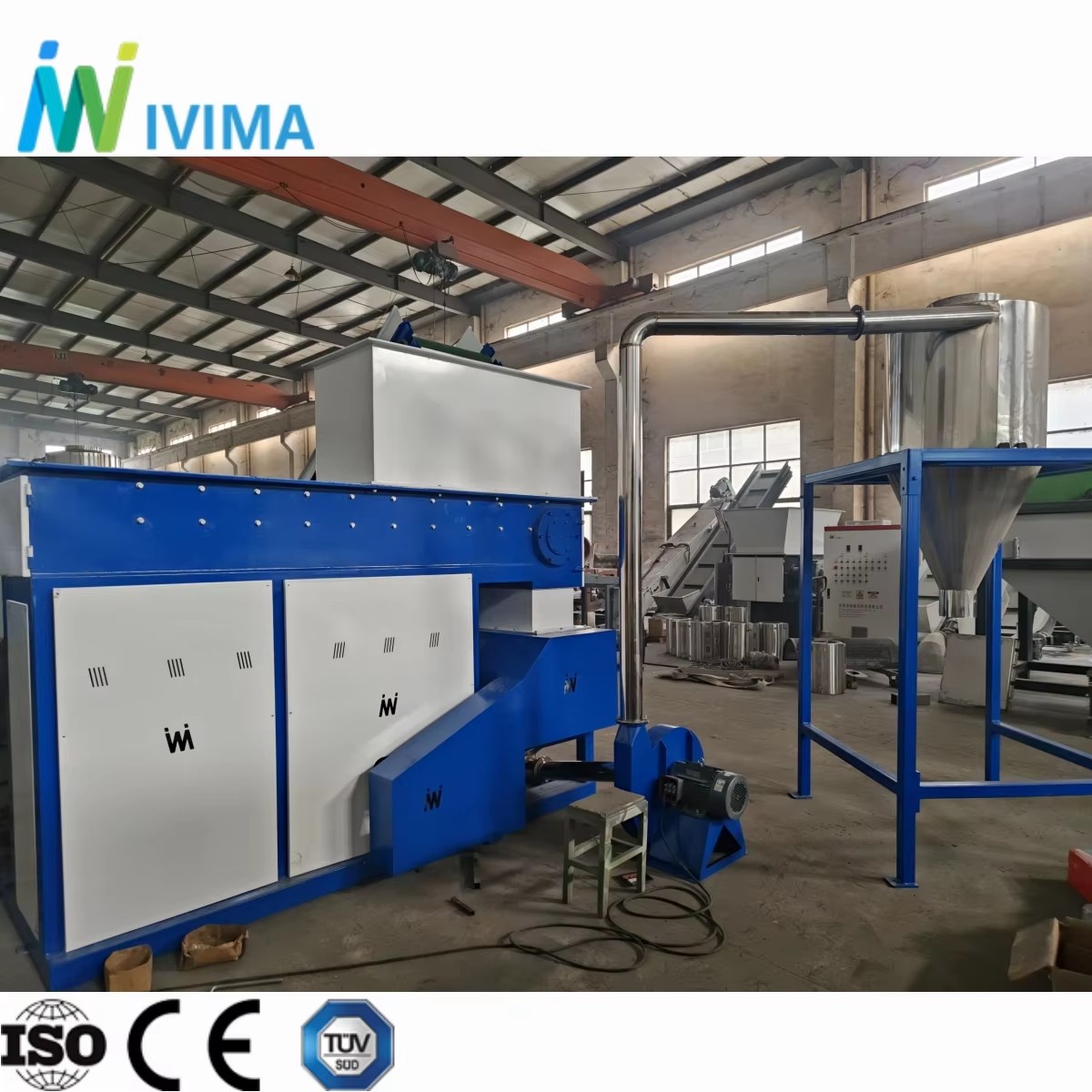

A single-shaft shredder uses one slow-speed rotor, fixed counter knives, a hydraulic pusher, and usually a screen under the cutting chamber. The hydraulic pusher moves material toward the rotor, while the screen helps control discharge size.
This machine is designed for controlled cutting, not aggressive tearing.
A single-shaft plastic shredder is commonly used for:
LDPE and LLDPE film
PP woven bags
agricultural film
raffia and fiber materials
in-house plastic scrap
plastic lumps with moderate hardness
medium-size hollow plastic products
blow molding waste
injection molding waste
Its main advantage is more controlled output size. Because material must pass through the screen before discharge, the particle size is more uniform than material from a double-shaft shredder.
Thin film often stretches, wraps, and overheats when fed directly into a high-speed crusher.
For baled, loose, or easily wrapping film, a single-shaft shredder is often preferred before washing, densifying, or pelletizing. It cuts the material gradually, reduces wrapping risk, and prepares the plastic for downstream processing.
A single-shaft shredder is not always the best first-stage machine for very bulky, heavy, or highly contaminated waste. Large drums, thick pipes, and IBC tanks may bridge above the rotor. Hidden metal can also damage blades.
For these materials, a double-shaft shredder is usually safer as the first reduction stage.

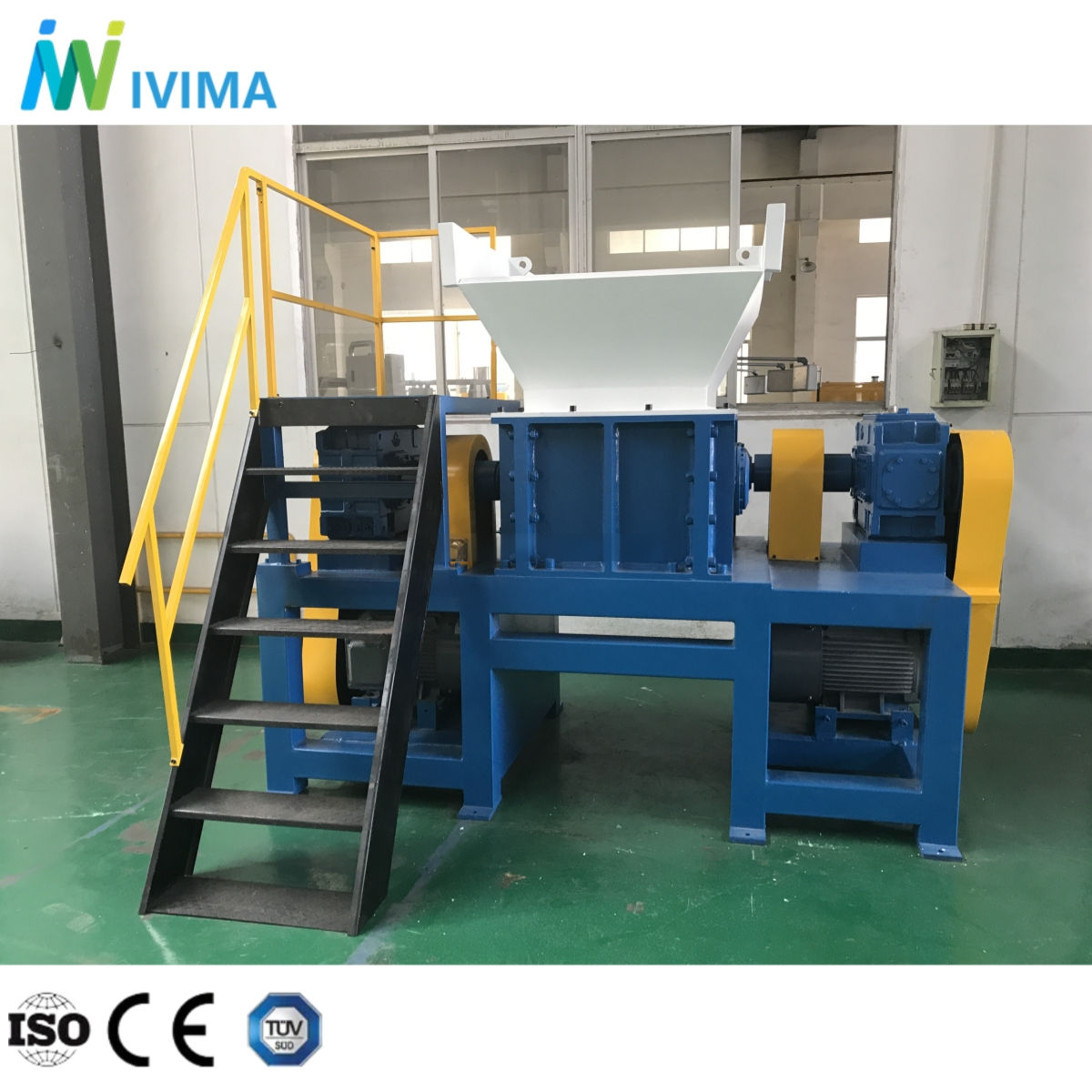

A double-shaft shredder uses two slow-speed shafts rotating against each other. The blades grab, tear, hook, and shear the material between the shafts.
Unlike a single-shaft shredder, a double-shaft shredder usually has no screen. The output is less uniform, but the machine can handle tougher feeding conditions.
A double-shaft plastic shredder is suitable for:
large HDPE drums
thick-wall plastic pipes
IBC tanks
plastic pallets
automotive plastic parts
large purgings
mixed rigid plastic waste
WEEE plastic housings
post-consumer plastic waste with limited contamination
Its main advantage is high torque and strong bite force. It can process bulky materials that may bounce, bridge, or jam inside a granulator.
Large hollow products do not always fall smoothly into a cutting chamber. Drums, pipes, and pallets can form a bridge above the rotor in some machines.
A double-shaft shredder pulls material from both sides and tears it into rough chips or strips. The final size depends on blade width, shaft design, material shape, and whether a secondary granulator is used.
A double-shaft shredder is not designed to make fine, uniform flakes.
If the next process requires 8–12 mm flakes, a plastic granulator should be installed after the shredder.

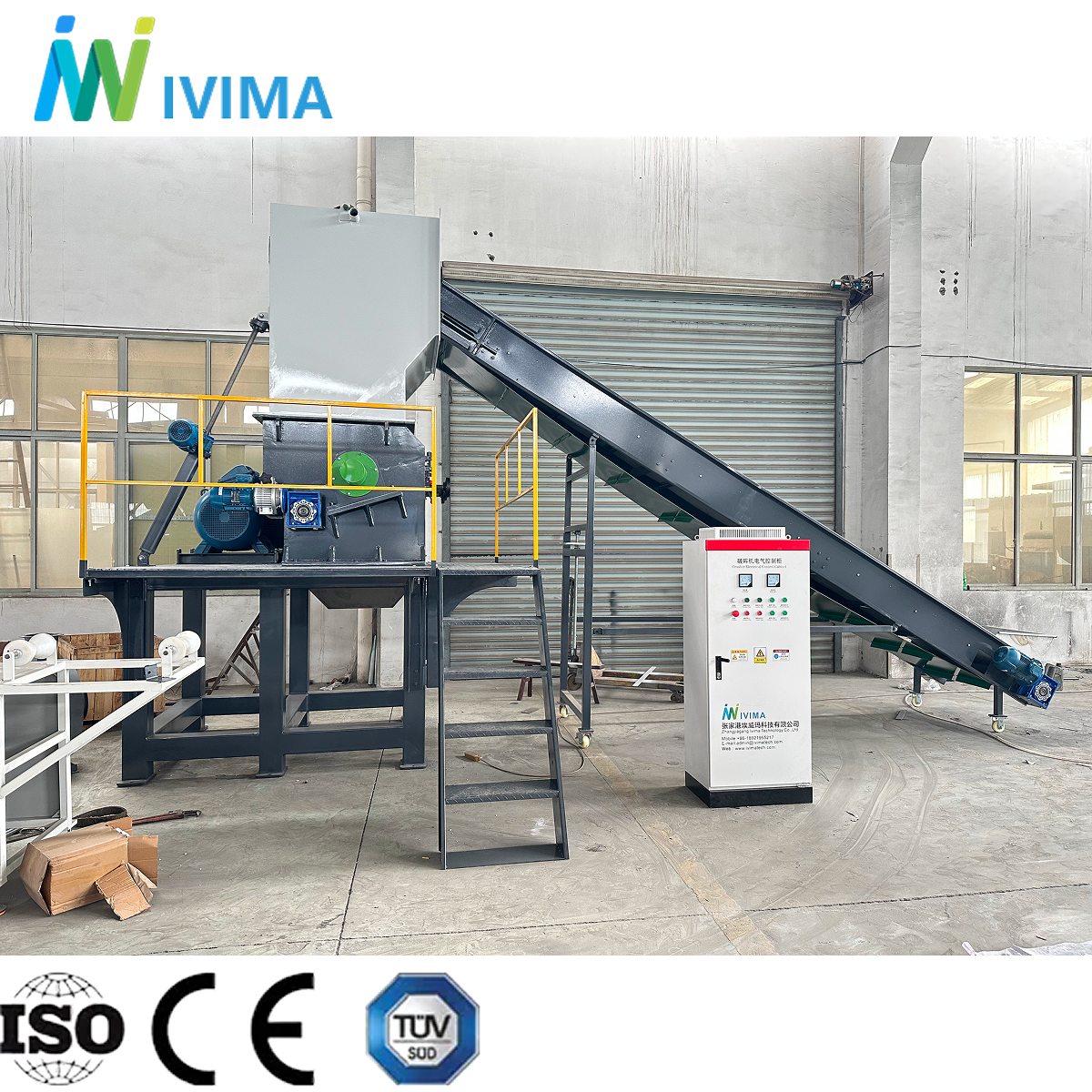

A granulator, also called a plastic crusher, is a high-speed cutting machine. It uses rotating knives and fixed knives to cut material into small, uniform flakes or regrind.
In plastic recycling, a granulator is usually a secondary size reduction machine, not the first machine for difficult waste.
A plastic granulator is suitable for:
pre-shredded plastic chips
clean injection molding scrap
PET bottle flakes
HDPE and PP rigid scrap
thin-walled clean plastic parts
sprues and runners
film after pre-cutting, squeezing, or densification
Typical output size is often around 3–18 mm, depending on screen size, knife design, material type, and downstream process requirements.
Many factories feed large or contaminated waste directly into a granulator to reduce initial investment. This often increases operating cost later.
Possible problems include:
high energy consumption
severe knife wear
rotor vibration
loud noise
screen blockage
material bouncing
motor overload
unplanned downtime
Use a shredder before the granulator when the material is bulky, thick-walled, contaminated, irregular, or difficult to feed.
Item | Single-Shaft Shredder | Double-Shaft Shredder | Granulator / Plastic Crusher |
Main function | Controlled size reduction | Rough primary shredding | Fine grinding |
Typical speed | Low-speed, high-torque | Low-speed, high-torque | High-speed, model-dependent |
Cutting method | Shearing with screen control | Tearing and high-torque shearing | High-speed cutting |
Typical output size | 20–120 mm, depending on screen and material | 30–300 mm, depending on blade and material | 3–18 mm, depending on screen |
Output uniformity | Good | Low to medium | Excellent |
Best for | Film, woven bags, medium-hard scrap | Bulky, heavy, mixed plastic waste | Clean pre-sized plastics |
Resistance to accidental small metal contamination | Medium | Better | Low |
Noise level | Medium | Medium | High |
Blade maintenance | Moderate | Moderate to low | Higher |
Main risk if misused | Bridging or blade damage | Irregular output size | Overload, fines, blade wear |
A practical guideline for many plastic recycling projects is:
If the material is larger than about 40–60 mm, thick-walled, bulky, contaminated, or difficult to feed, it is usually safer to use a shredder before the granulator.
This is not an absolute rule. The exact limit depends on the granulator inlet size, rotor design, knife configuration, screen size, material hardness, and contamination level.
A typical two-stage system works like this:
Primary shredding
A single-shaft or double-shaft shredder reduces bulky plastic waste into rough pieces.
Secondary granulation
A granulator cuts the pre-shredded material into uniform flakes or regrind.
This setup protects the granulator, reduces blade shock, improves feeding stability, and produces better material for washing, drying, extrusion, or pelletizing.
For LDPE film, LLDPE film, agricultural film, stretch film, and PP woven bags, a single-shaft shredder is often preferred when the material is baled, loose, or easy to wrap.
Film is light, flexible, and difficult to feed evenly. A single-shaft shredder helps produce more controlled pieces and improves downstream feeding stability.
A typical LDPE / PP film recycling line may include:
single-shaft shredding
friction washing
floating washing and sediment removal
squeezing or densifying
extrusion pelletizing
The goal is not only size reduction. Film recycling also requires stable feeding density, moisture reduction, and effective removal of sand, mud, labels, and organic residue.
For large HDPE drums, thick-wall pipes, IBC tanks, and plastic pallets, a double-shaft shredder is usually the better first-stage machine.
These materials need strong bite force and high torque. A double-shaft shredder can tear large hollow products into smaller pieces before washing, sorting, or fine granulation.
If the final process requires uniform flakes, the shredded material can be sent to a granulator for secondary sizing.
For post-consumer PET bottles, size reduction is only one part of the process. The line must also remove labels, caps, glue, sand, and floating PE/PP contaminants.
A typical PET bottle recycling process may include:
bale breaking
trommel screening
label removal
wet granulation into 10–15 mm flakes
hot washing
sink-float separation
centrifugal drying
air classification
In this process, a granulator is often used after bottles are debaled, screened, label-removed, and prepared for flake production. Wet granulation can reduce heat and help protect PET flake quality.
For clean injection molding scrap, sprues, runners, and thin-walled production waste, a plastic granulator may be enough.
If the scrap is bulky, thick, or difficult to feed, pre-shredding is still recommended. This protects the granulator knives, reduces motor load, and improves output stability.

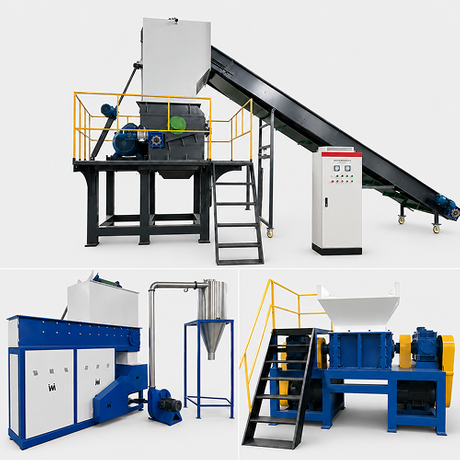

An integrated shredder and crusher system combines low-speed shredding and high-speed granulation in one compact machine.
It is suitable for:
in-house plastic scrap
clean production waste
blow molding waste
injection molding scrap
medium-size hollow plastic parts
factories with limited floor space
It is not ideal for highly contaminated municipal waste, dirty agricultural film, or heavy mixed plastics. Those applications usually need separate shredding, washing, separation, and maintenance access.
Purchase price is only one part of the cost. In plastic recycling, the real cost often appears during daily operation.
Shredders are low-speed, high-torque machines. They are usually more stable for bulky, irregular, or difficult plastic waste.
Granulators run at higher speed. They are efficient for clean, pre-sized material, but power consumption increases when they process large, tough, or contaminated waste.
Granulators are usually louder because of high-speed cutting and impact.
For factories with strict safety or noise requirements, consider soundproof covers, dust collection, and proper machine layout during project planning.
Granulator knives require regular sharpening and gap adjustment. If metal or oversized material enters the chamber, knife damage can happen quickly.
Shredder blades usually last longer when the machine is correctly matched to the material. Blade materials such as D2, SKD-11, DC53, or other tool steels may be selected according to hardness, toughness, and abrasion resistance requirements.
Before requesting a quotation, prepare the following information:
Material type
PET, HDPE, LDPE, PP, PVC, ABS, PC, PA, or mixed plastic.
Material form
Film, bottle, pipe, lump, drum, woven bag, sheet, pallet, or purging.
Contamination level
Sand, mud, water, metal, labels, glue, or organic waste.
Input size
Length, width, wall thickness, and bulk density.
Required output size
For washing, sorting, extrusion, pelletizing, or storage.
Capacity target
For example, 300 kg/h, 500 kg/h, 1,000 kg/h, or 2,000 kg/h.
Downstream process
Washing line, dryer, extruder, pelletizer, silo, or sorting system.
Factory conditions
Available floor space, power supply, labor level, and maintenance ability.
For accurate machine selection, send your material photos, input size, expected capacity, contamination level, and required final size. These details help engineers recommend the right shredder, granulator, or complete plastic recycling line.
A single machine cannot solve every plastic recycling problem.
The right choice depends on the material form, contamination level, input size, required output size, capacity target, and downstream process.
As a practical guideline:
Choose a single-shaft shredder for plastic film, woven bags, fibers, and controlled size reduction.
Choose a double-shaft shredder for bulky, heavy, mixed, or contaminated plastic waste.
Choose a granulator or plastic crusher for fine grinding into uniform flakes or regrind.
Choose a two-stage shredder and granulator system when you need both stable feeding and accurate final sizing.
For industrial recycling projects, machine selection should not be based only on the cutting machine. Feeding, shredding, crushing, washing, drying, extrusion, pelletizing, and material handling must work together as one complete process.
To select the right plastic size reduction system, prepare your material photos or videos, input size, contamination level, required output size, capacity target, and downstream process. These details help engineers recommend a suitable shredder, granulator, or complete plastic recycling line for your production needs.
