2-Cavity PVC Pipe Extruder Machine Production Line

High Efficiency PVC Dual Pipe Extrusion Solution

Introduction

The PVC dual pipe extrusion line is a high-efficiency solution developed by IVIMA for producing small diameter PVC pipes, such as electrical conduits and water supply pipes. Unlike traditional single-out lines, this machine adopts a unique double-outlet die head design, allowing simultaneous production of two pipe strands.

Core Value

Equipped with our advanced SJSZ series conical twin screw extruder, the line ensures excellent plasticization even with high calcium formulas. It is designed to maximize output while minimizing energy consumption and floor space occupation. For manufacturers of 16mm-63mm PVC pipes, this dual strand pipe machine offers the perfect balance of speed, precision, and cost-efficiency.

Key Features & Advantages

Double Output, Higher Efficiency

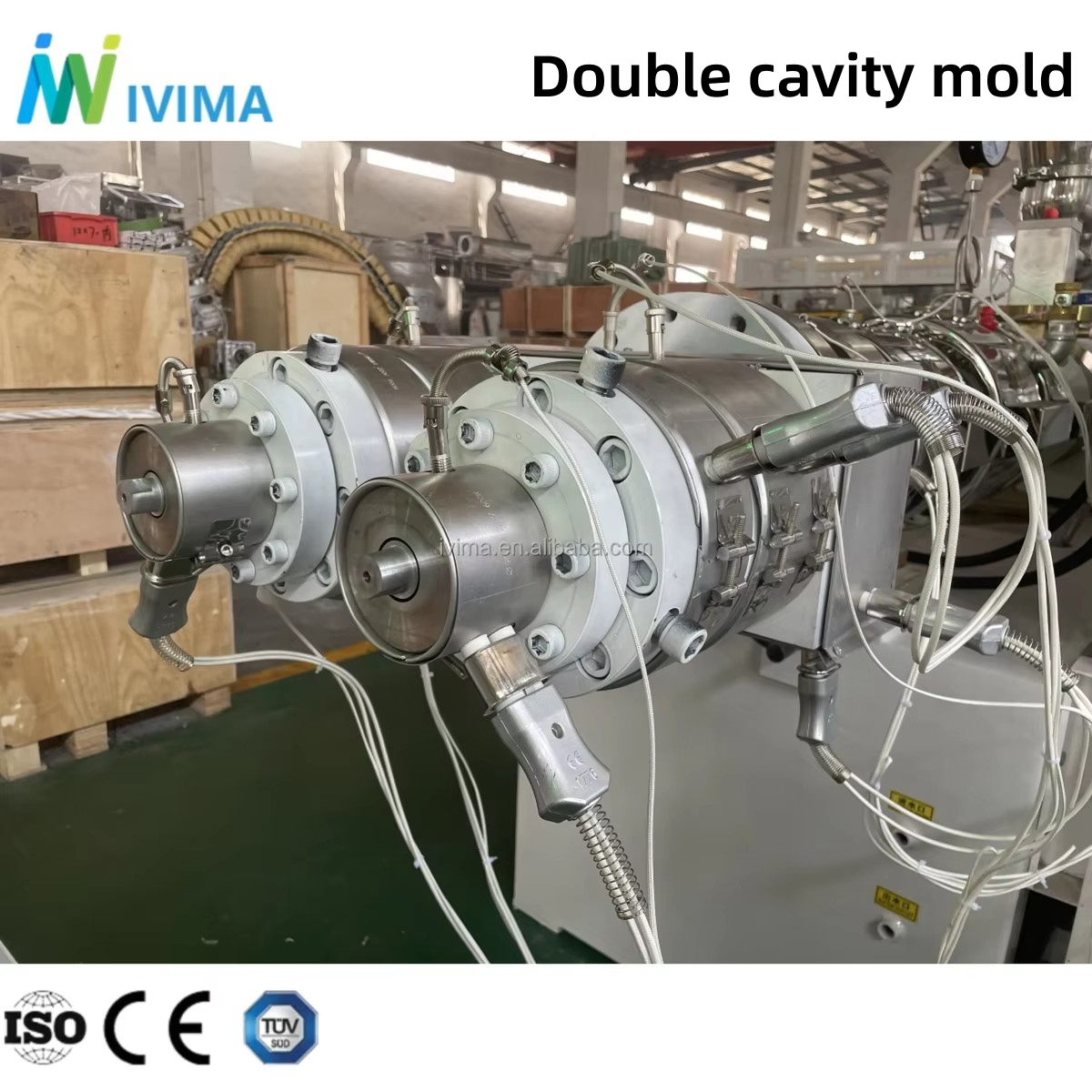

The machine features a high-precision double tube die head. By producing two pipes at once, it increases production capacity significantly compared to a single line, making it highly efficient for mass production of electrical threading pipes.

Independent Control System

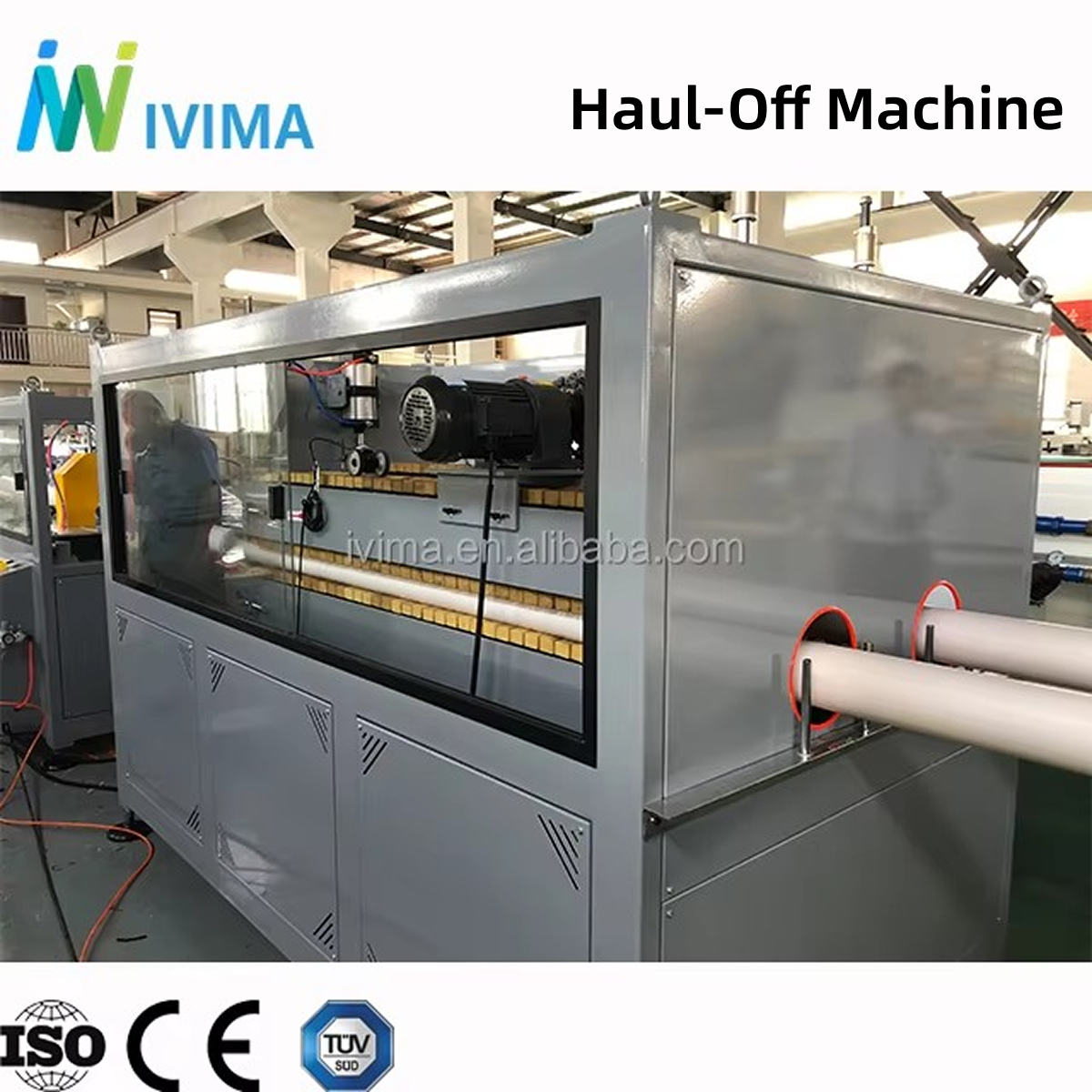

The downstream equipment is designed with independent operation in mind. The vacuum calibration tank and haul-off unit for each strand can be adjusted separately. If one pipe requires maintenance or adjustment, the other strand continues to run smoothly, reducing waste and downtime.

Energy & Space Saving

Powered by a single main motor but driving two lines, the energy consumption per meter of pipe is reduced by approximately 30%. Additionally, the compact layout saves valuable factory floor space compared to installing two separate machines.

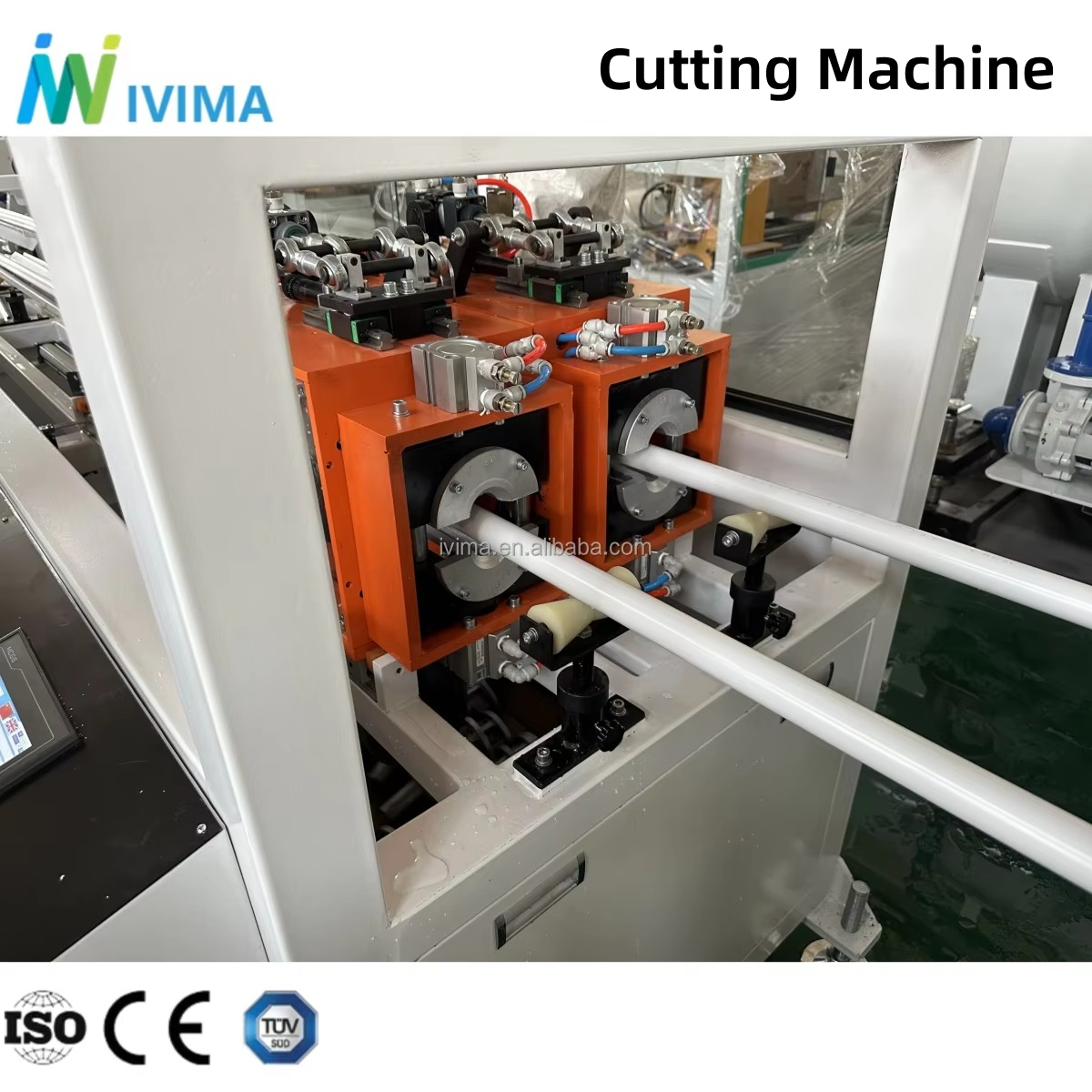

Advanced Cutting Technology

The line is equipped with a precise cutting system (chipless or planetary cutter), ensuring smooth pipe ends with no dust, which is essential for high-quality electrical conduit standards.

Applications

Electrical Conduit System

The primary application for this machine is producing PVC electrical conduits (threading pipes) used in residential and commercial building wiring protection.

Water Supply & Drainage

Suitable for manufacturing small-diameter UPVC water supply pipes and building drainage tubes requiring high pressure resistance.

FAQ (Frequently Asked Questions)

Q: What is your warranty and service support policy?

A: We provide a one-year warranty for the entire line. During this period, we offer comprehensive support including free spare parts delivery, remote fault diagnosis, and online technical guidance. If necessary, we can also arrange for engineers to go on-site for commissioning and debugging.

Q: How long is the delivery time after placing an order?

A: Our standard delivery period is 2 months. This allows us sufficient time for precise manufacturing, assembly, and strict testing to ensure the machine you receive matches the high quality shown in our photos.

Packing & Shipping

Packaging Details

• Protection: Main machine parts are covered with anti-corrosion oil and stretch film.

• Fixation: The extruder and downstream units are firmly fixed to the container floor using steel wires and wooden blocks.

• Spare Parts: Electric cabinet and small spares are packed in fumigation-free wooden boxes.
