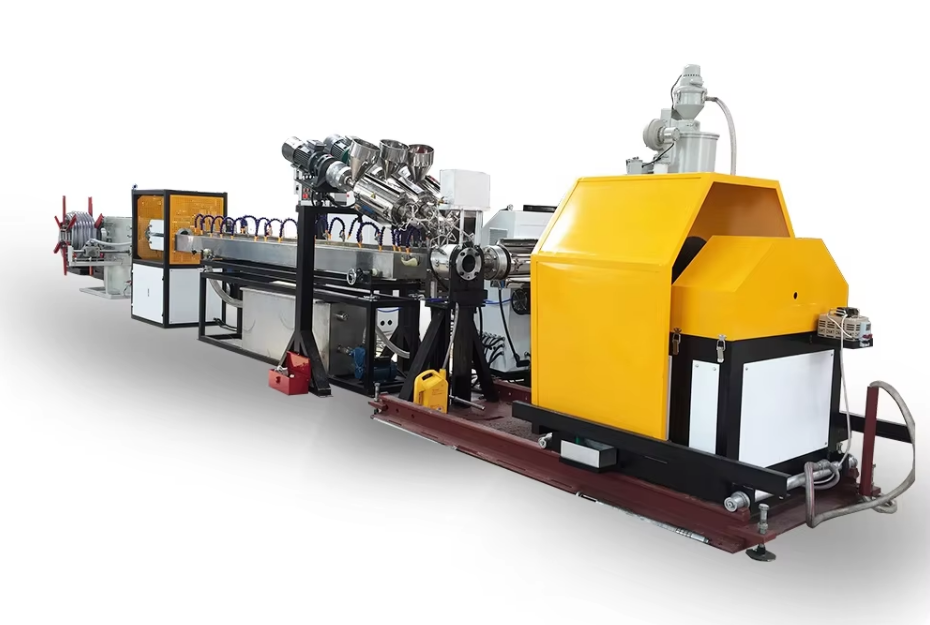

Custom PVC-Steel Wire Reinforced Pipe Extrusion Line

Model	Extruder	Diameter(mm)	Capacity(kG/h)
PE75	SJ75/30	75	120-150kg/h
PE90	SJ90/30	90	150-200kg/h

Equipped with automatic material feeding and tension feedback loops, this line ensures consistent production quality even during 24/7 continuous operation, making it widely recognized in fluid transportation industries for its stable production capacity, low defect rate (≤0.5%), and ability to adapt to diverse raw material formulas.

Product Features

Extrusion System: Equipped with a 38CrMoAlA alloy screw (undergoing nitriding treatment for enhanced wear resistance) and barrel, the extruder achieves a maximum extrusion capacity of 200kg/h with temperature control precision of ±1℃. The screw’s optimized groove design promotes uniform melting of PVC raw materials, reducing material waste by up to 8% compared to standard extruders.

Reinforcement Technology: The automatic steel wire tension control system—equipped with real-time tension sensors—maintains tension stability within 0.5-2.0N, ensuring the spiral pitch error is less than ±2mm for consistent pressure resistance across the entire hose length. The steel wire feeding unit also features a pre-straightening function to eliminate wire kinks that could affect product performance.

Control System: Adopts a 7-inch touchscreen PLC control (compatible with remote monitoring via mobile APP) with real-time monitoring of 12 key parameters (including temperature, pressure, and tension). It supports one-click recipe storage for 50+ hose specifications, enabling quick switch between production tasks (typically within 15 minutes for standard size changes).

Cooling Module: Three-stage water cooling system (with adjustable water flow and temperature) reduces hose temperature from 180℃ to 45℃ within 3 meters. The cooling tank’s internal guide rollers are coated with wear-resistant rubber to prevent hose surface scratches, further improving dimensional accuracy (outer diameter tolerance ≤±0.3mm).

Applications

Industrial Fluid Transportation: Ideal for conveying oil, emulsion, and chemical reagents (with pH ranges 4-9) in machinery factories, supporting working pressures up to 1.6MPa. The hoses’ inner wall smoothness (Ra ≤0.8μm) minimizes fluid resistance, ensuring stable flow rates for precision manufacturing processes.

Municipal Engineering: Suitable for drainage hoses in road construction and tunnel dewatering projects, as the reinforced structure resists soil pressure of 200kN/m² and prevents hose collapse in deep burial scenarios (up to 5 meters underground).

Agricultural Irrigation: Produces large-diameter hoses (φ50-300mm) for farmland sprinkler irrigation systems. The hoses are formulated with UV-resistant additives, enabling 5+ years of outdoor use without aging or cracking, even in regions with strong sunlight (e.g., desert or tropical areas).

FAQ

Q: What is the maximum hose diameter this line can produce?

A: It supports diameter ranges from φ25mm to φ150mm for standard models; customized molds are available for special sizes (up to φ600mm) with a 2-3 week lead time for mold fabrication.

Q: How often does the steel wire feeding mechanism need maintenance?

A: Routine lubrication of the feeding rollers is required every 200 working hours, and a full inspection (including tension sensor calibration and wire guide adjustment) is recommended every 1000 working hours to ensure tension stability. For high-dust environments, additional air filtration for the tension sensor is advised to prevent accuracy drift.

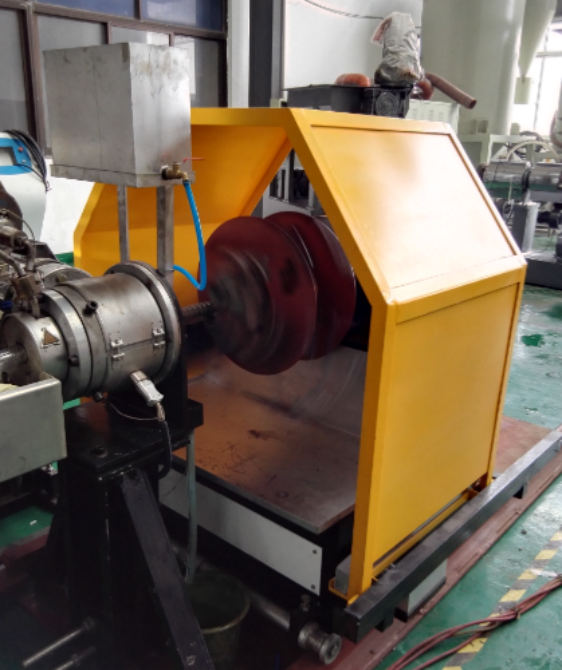

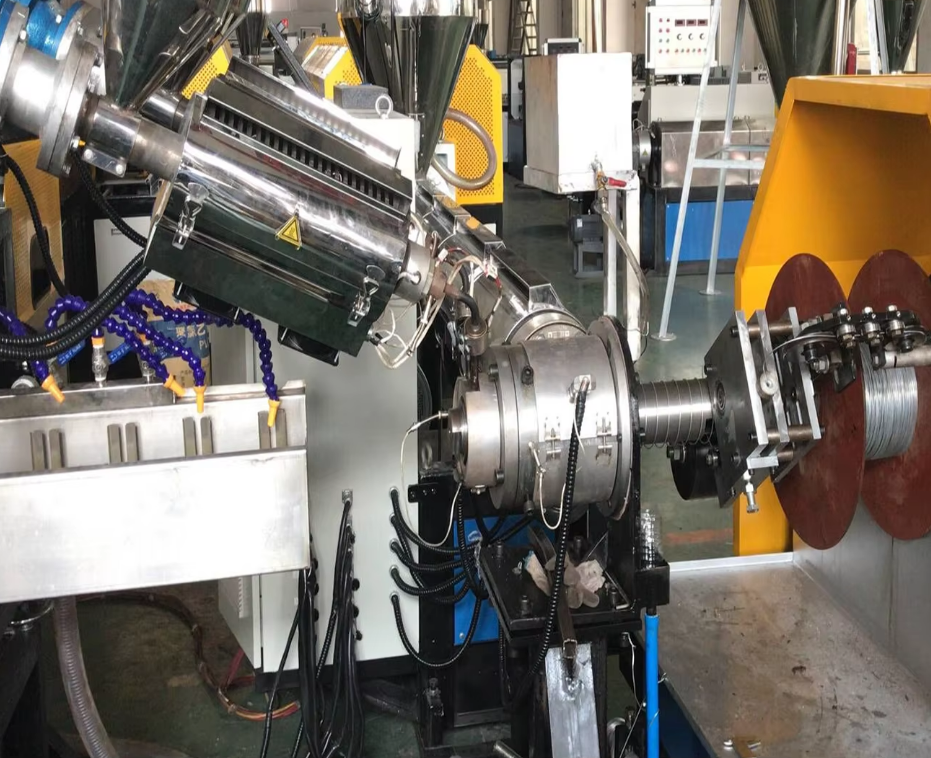

Sprial steel wire forming machine:

 This machine is used for winding the steel wire into spring shape, at the same time; convey the spring shaped steel wire into the mould for plastic coating.

Screw:

◊ Material of screw: 38CrMoAl

◊ Surface treatment: nitriding processing, thickness: 0.6 ~ 0.8mm, Polishing

◊ Max. rotating speed: 70rpm

Barrel:

◊ Material of Barrel: 38CrMoAlA

◊ inner processing: nitrided with thickness: 0.6 ~ 0.8mm

◊ Heating mode: Cast aluminum + stainless steel covering

◊ Method of cooling: air blower

Feeding system:

◊ Plastic dry Hopper 1set

◊ Vacuum loader 1set

Main electric part:

Button with relay control

◊ Inverter: ABB

◊ Contactor: Schneider

◊ Air Switch: Schneider

◊ Relay: Schneider

◊ Temperature controller: RKC, Japan

◊ indicator lamp and button: Schneider

Self protective system:

◊ Over current protective of motor

◊ Over pressure protective of screw.

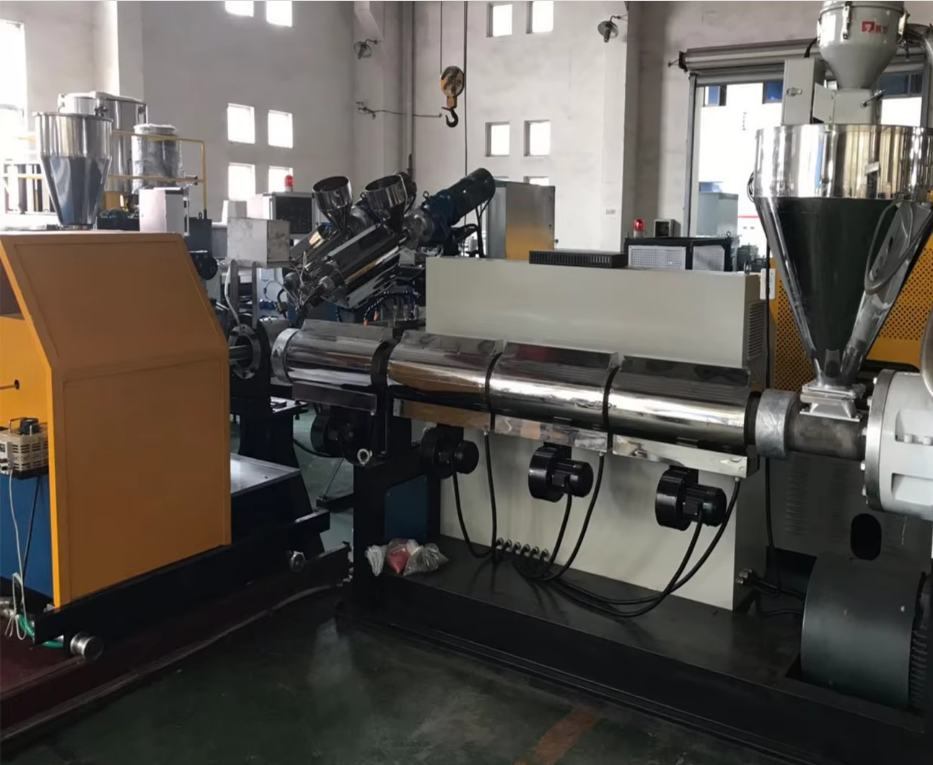

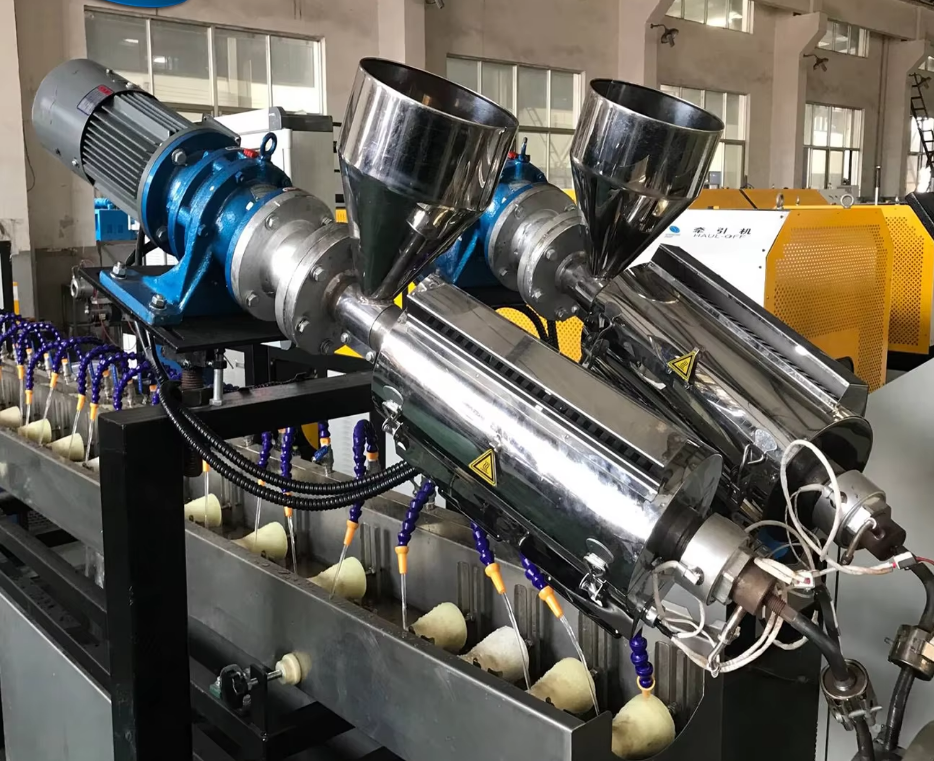

SJ25/25 single screw extruder:

Screw:

◊ Diameter of screw: 25mm

◊ L/D: 25/1

◊ Material of screw: 38CrMoAl

Barrel:

◊ Material of Barrel: 38CrMoAl

Main electric part:

Button with relay control

◊ Inverter: ABB

◊ Other electric elements: international famous brands

Self protective system:

◊ Over current protective of motor

◊ Over pressure protective of screw

Mould:

Inner diameter: (customized)

  Material: 40Cr

  Wall thickness: Depend on the buyer or according to china standard

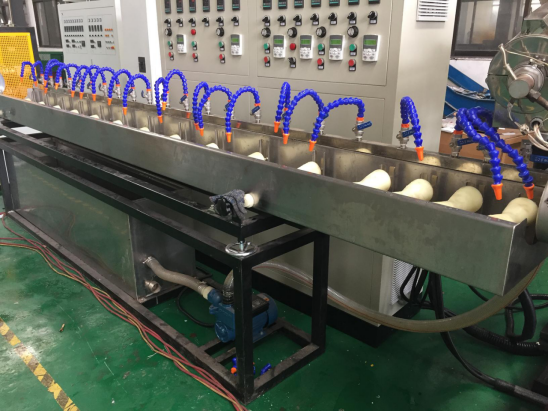

Water cooling tank:

1. Length: 4000mm

2. Water pump: 1.1kw

3 .Water tank: made of stainless steel 304.

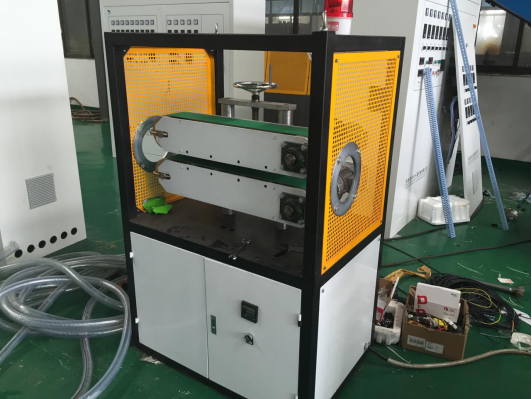

Haul off machine:

1. Motor power: 1.5kw*2sets, frequency control, ABB inverter

2. Two claws

3. Effective hauling length: 1000mm4. Hauling speed: 0-12m/min

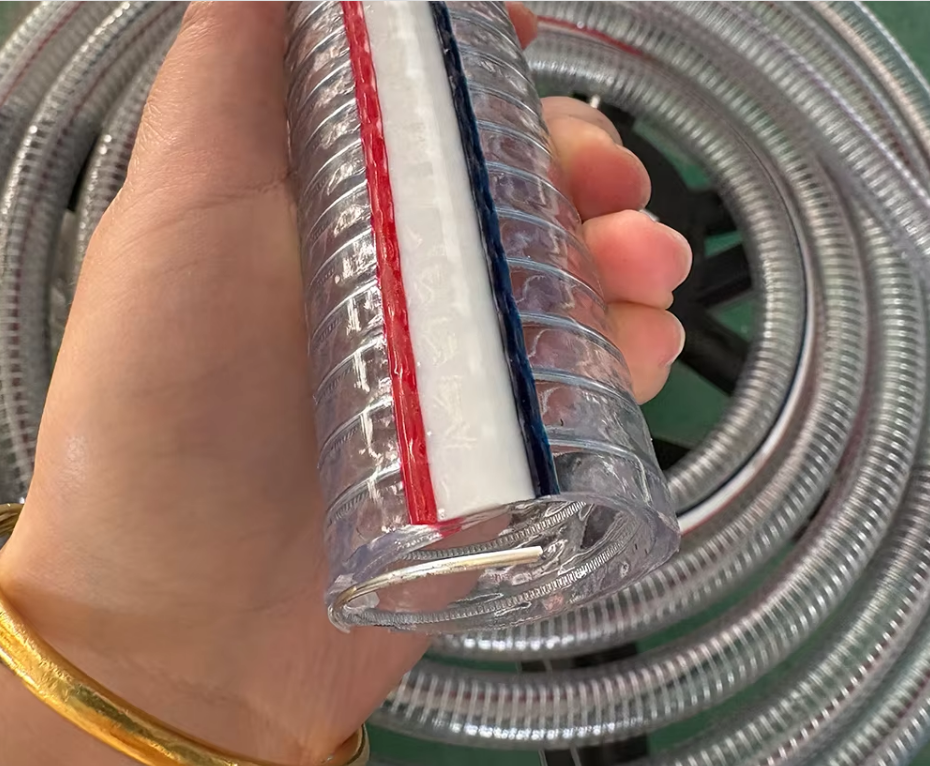

Final product: PVC steel wire reinforced pipe
