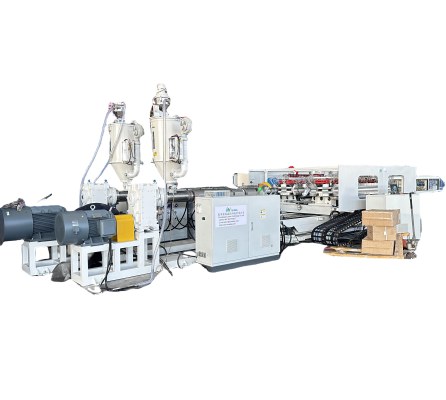

Double Wall Corrugated Pipe Production Line

The IVIMA Double-Wall Corrugated Pipe Line is your complete solution to efficiently manufacture high-stiffness pipes for modern drainage systems, available for both HDPE/PP and PVC materials.
Engineered for high-speed output, this line features a material-specific extruder and an advanced water-cooled corrugator to ensure rapid, stable production. It produces lightweight pipes with excellent ring stiffness, drastically saving your material costs.
Equipped with top-tier components like SIEMENS motors, this turnkey solution guarantees reliability and maximizes your profitability.

Availability:

Quantity:



Inquire Add to Basket

Double wall corrugated pipe machine HDPE double wall corrugated pipe production line PVC double wall corrugated pipe production line Big diameter double wall corrugated pipe production line Water cooling double wall corrugated pipe production line Double wall Corrugated Pipe Making Machine High speed double wall corrugated pipe extrusion machine 100-2000mm double wall corrugated pipe machine Plastic double wall corrugated pipe extrusion machine

Product Description

The IVIMA Double-Wall Corrugated Pipe Line is a state-of-the-art, turnkey solution engineered for manufacturers seeking to lead the market in modern drainage and cable ducting applications. This production platform provides you with the flexibility to produce pipes from a range of materials, including both HDPE/PP and PVC, allowing you to meet diverse market demands with a single trusted technology partner.

By leveraging an intelligent "I-beam" pipe design, our line allows you to produce pipes with exceptional ring stiffness (up to SN16) while using significantly less material than solid-wall pipes. This directly translates to lower production costs and a higher competitive advantage. From the material-specific extruder to the automated downstream equipment, every component is integrated to deliver unmatched performance, reliability, and a faster return on your investment.

Features

Material-Specific Extruder Solutions: We provide the optimal extruder for your chosen material: a high-efficiency single-screw extruder for HDPE/PP, or a powerful conical twin-screw extruder for PVC, ensuring the best possible plasticizing effect.
High-Performance Drive System: The extruder is powered by a world-class SIEMENS motor and controlled by an ABB inverter, delivering stable, high-torque output with excellent energy efficiency.
Advanced Water-Cooled Corrugator: Our corrugator utilizes a high-efficiency water-cooling system for the mold blocks. This technology enables significantly higher production speeds compared to traditional air-cooling and ensures a superior, glossy finish on the final pipe.
Lightweight & Durable Molds: The continuously moving mold blocks are crafted from a special aluminum alloy, providing high strength, excellent wear resistance, and low weight for smooth, high-speed operation.
Intelligent In-Line Belling: A fully automatic in-line socketing machine can be integrated to create perfect joints without any offline processing, dramatically boosting efficiency and reducing labor costs.
Precision Chipless Cutting: The cutter provides a smooth, clean, and dust-free cut, ensuring the pipe ends are perfect and ready for immediate installation.

Product Details

Introduction

Extruder

High-efficiency single screw extruder ensures sufficient melting and plasticization for both inner and outer layers of the pipe.

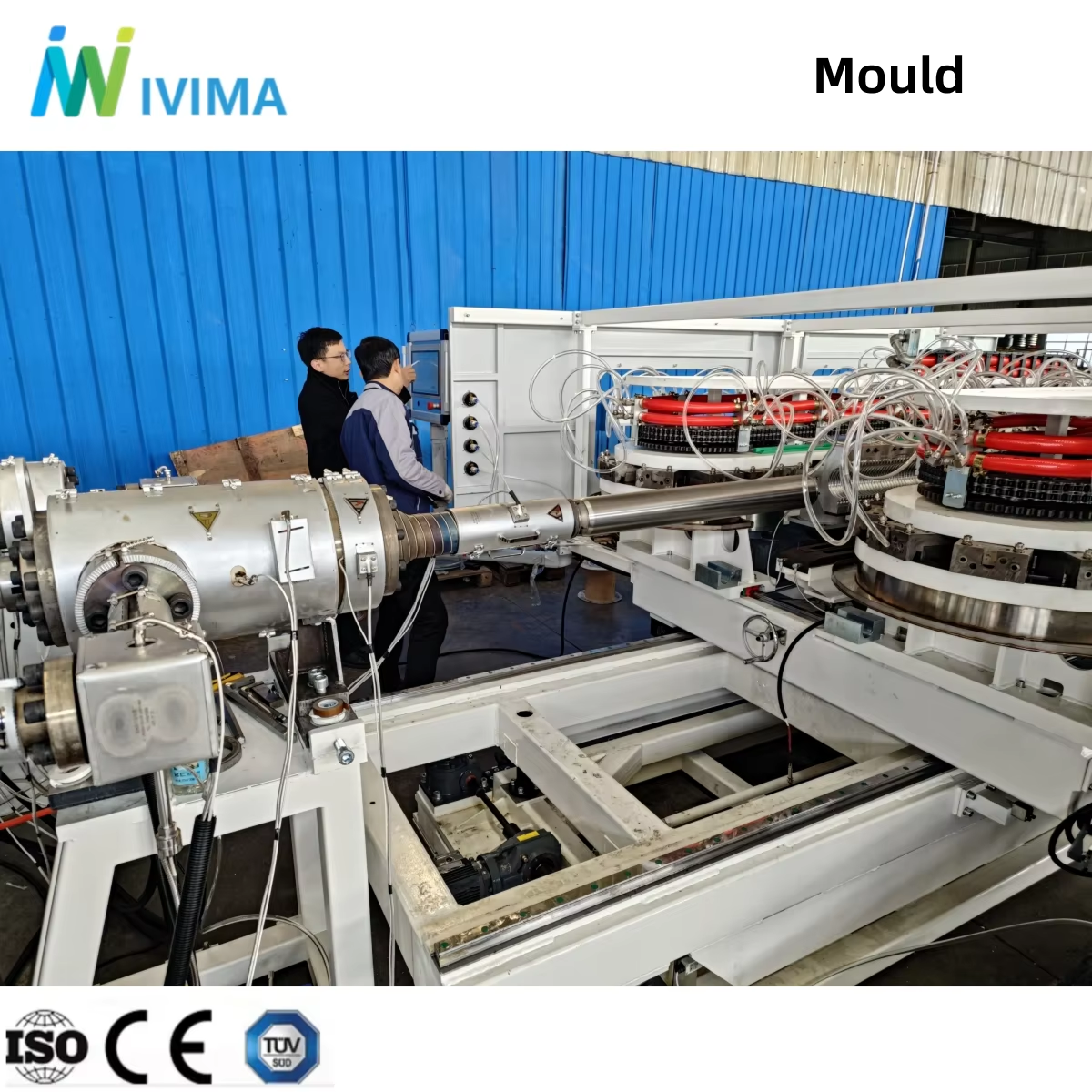

Mould

Co-extrusion die head forms the inner and outer walls simultaneously with precise layer thickness control, ensuring a smooth inner surface and a uniform corrugated outer profile.

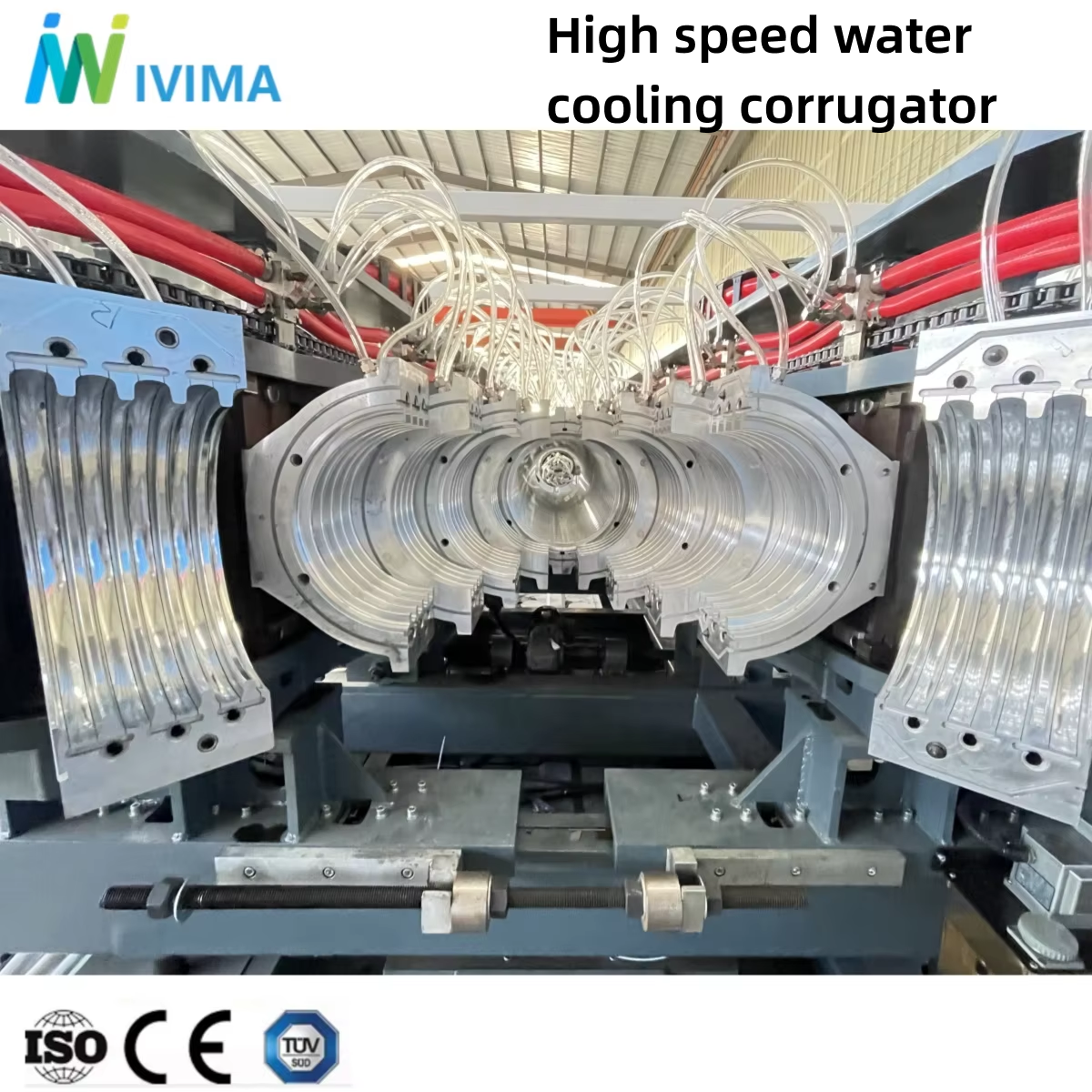

High Speed Water Cooling Corrugator

Molding blocks running on a sealed track form the corrugated profile under vacuum, while a closed-loop water cooling system provides rapid and efficient cooling for high-speed production.

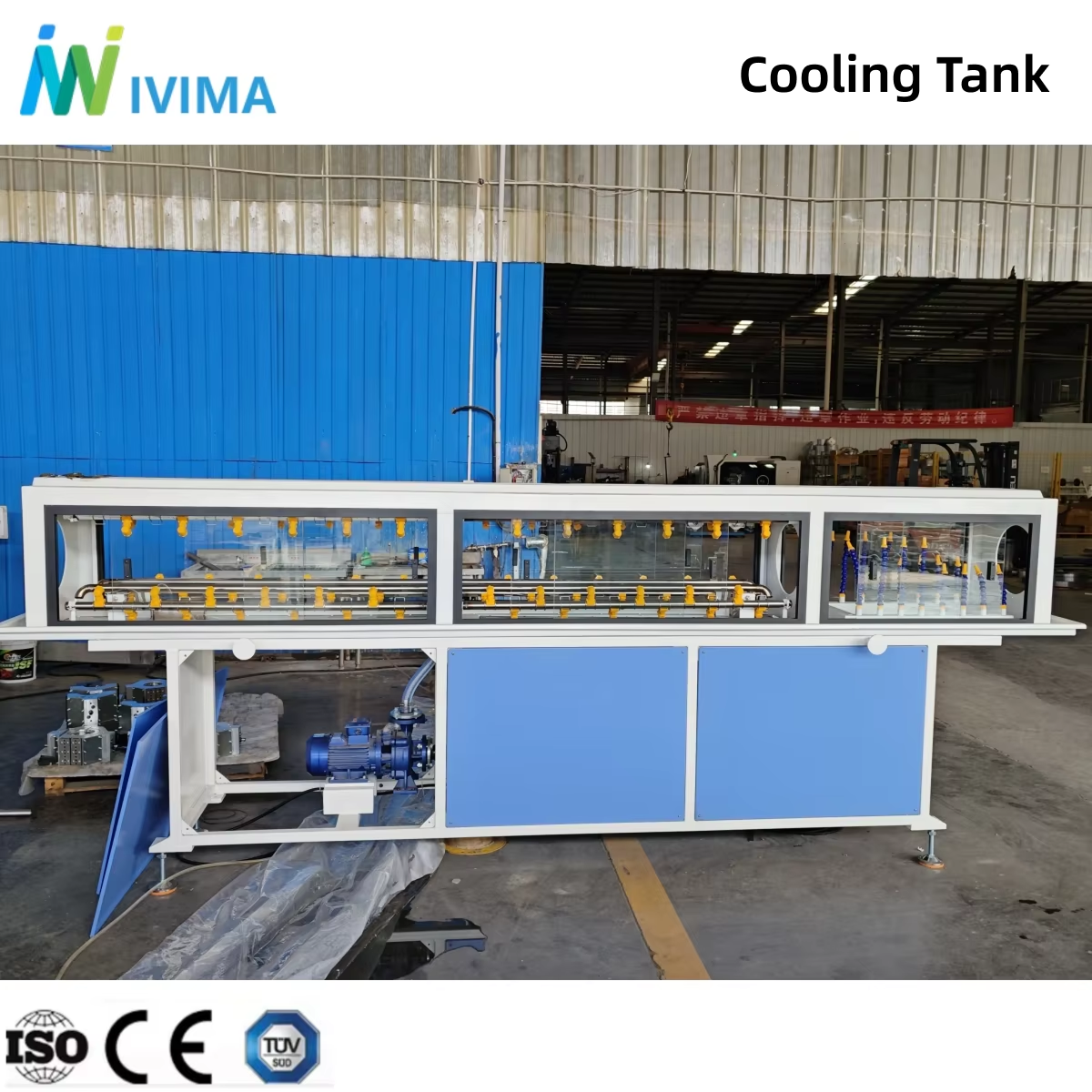

Cooling Tank

Spray cooling tank further cools the formed pipe to ensure complete solidification and dimensional stability.

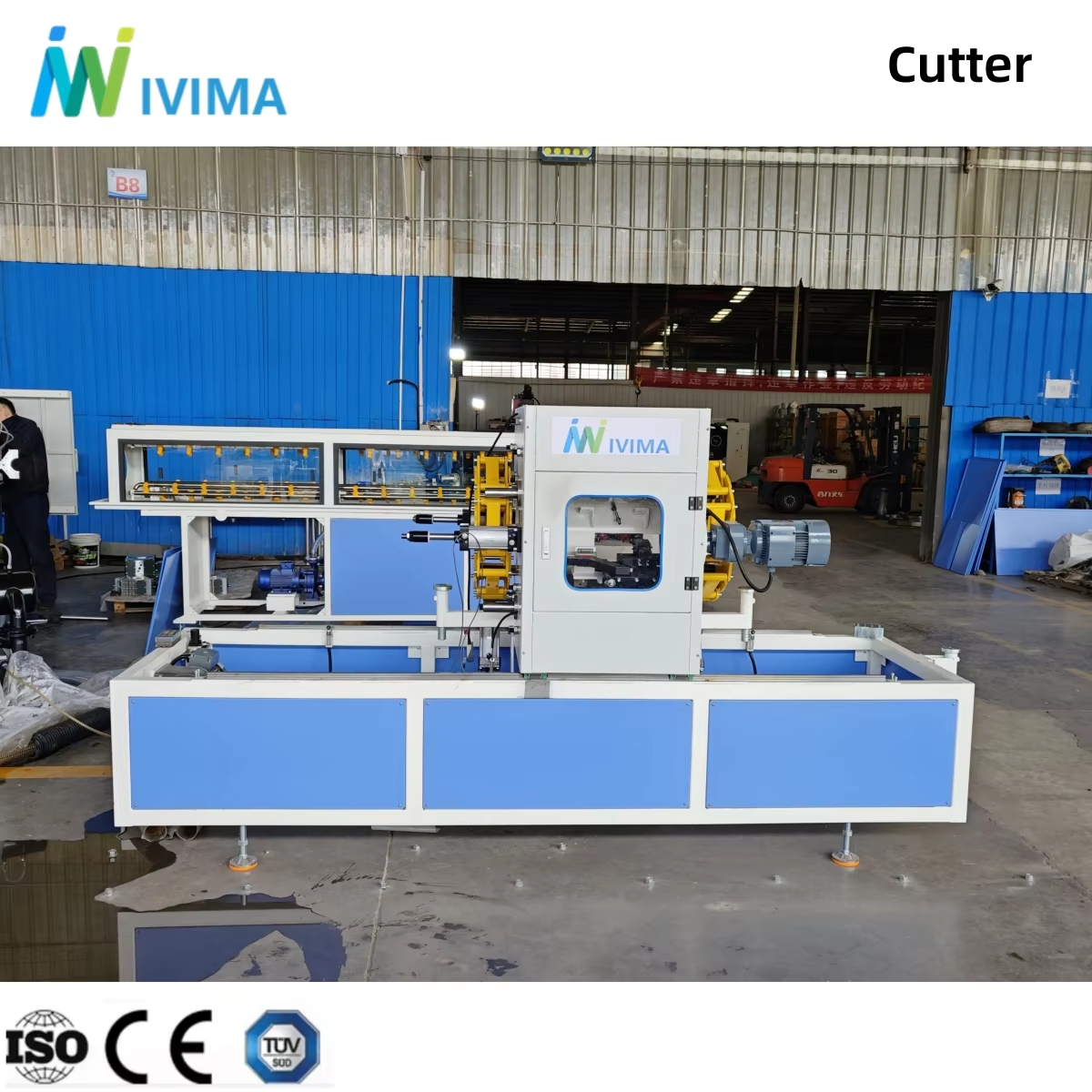

Cutter

Chipless cutting machine provides smooth and precise cuts to the desired length without generating dust or debris.
Stacker

Automatically collects and neatly stacks the cut pipes, reducing labor intensity and preventing scratches.

Technical Parameters

Model	Pipe Spec(mm)	Main Extruder	Mould Block Number(pairs)	Center Height	Energy Consumption(kW h/ton)	Max Output/Dayton)
IV-300H	ID100-ID300	SJ-90X33/SJ-75X33 (or) SJ-75X36/SJ-65X36	36	1100	270	18
IV-600H	ID175-600	SJ-120X33/SJ-90X33(or) S1-90X36/SJ-75X36	36	1250	320	25
IV-800H	ID200-800	SJ-120X33/SJ-150X33	36	1400	320	33
IV-1000H	ID200-1000	SJ-120X33/SJ-120X33/SJ-120X33	Customized	1850	340	40
IV-1200H	ID400-1200	SJ-120X33/SJ-120X33/SJ-120X33	Customized	2000	340	45

Application & Shipping

Applications

HDPE and PVC double-wall corrugated pipes are the preferred choice for a wide variety of non-pressurized applications:

Municipal Drainage & Sewage

Agricultural Irrigation & Water Conservancy

Underground Cable & Communication Protection

Industrial Wastewater Discharge

Highway & Railway Subgrade Drainage

Packing & Shipping

Packaging: The line is disassembled, wrapped in moisture-proof film, and major components are securely fastened for container loading. Small and electrical parts are packed in fumigation-free wooden cases.

Shipping: We provide global FCL (Full Container Load) shipping solutions to ensure your equipment arrives safely and on time. Our logistics team handles all aspects of the delivery process.
