In HDPE double-wall corrugated pipe production, surface defects are usually the visible result of instability somewhere in the extrusion and forming chain. The defect may appear on the finished pipe surface, but its origin may lie in melt behavior at the die exit, vacuum attachment inside the corrugator, cooling imbalance, tooling condition, or raw-material quality.
For that reason, surface inspection is more useful when it moves from description to mechanism. A rough outer wall, a longitudinal groove, a ring mark, or a local pit should not be treated as an isolated appearance fault. In DWC pipe, the crest-valley profile, the joining of inner and outer layers, and the dependence on vacuum forming make the surface highly sensitive to local changes in stress, temperature, pressure, and contact condition.
DWC pipe production combines co-extrusion, mold-guided forming, vacuum sizing, cooling, and downstream traction. A visible mark can therefore appear later than the process disturbance that created it. A groove may be left by a damaged contact surface, but it may also be made worse by uneven cooling. Roughness may begin at the die exit, then become more obvious when the pipe is not fixed uniformly against the mold profile.
A practical diagnosis is more reliable when it follows three connected layers:
Melt behavior, especially stress relaxation and flow stability near the die exit
Forming stability, including vacuum balance, mold contact, and cooling uniformity
Material condition, including filler loading, recycled content, moisture, and contamination
This system view matters because corrugated pipe does not have a simple flat wall. It contains crests, valleys, and an inner-outer interface. Similar-looking defects may therefore come from different mechanisms, while one unstable condition may produce several visible symptoms at the same time.
One major group of defects begins when the melt leaves the die. The most typical examples are shark skin and gross melt fracture. Both are linked to high tensile and shear stress near the die exit. When the surface layer cannot relax smoothly, the pipe may show fine cracking, a rough matte texture, or more severe surface distortion.
Flow lines belong to the same general group. They can appear when melt streams separate and then reunite with different molecular orientation states. In production terms, these defects become more likely when die-exit stress rises too high, when the local temperature profile does not support smooth relaxation, or when pressure distribution in the die region is unstable.
The reference material points to a clear risk in highly filled systems. Calcium carbonate, talc, and fly ash can improve ring stiffness, but they can also increase stress concentration and narrow the safe processing window. When filler dispersion is poor, the surface may show graininess, fish-eyes, or an orange-peel-like texture.
A common shop-floor response is to raise temperature in order to suppress roughness. That may improve short-term appearance, but it is not always the right first correction. If the gain in smoothness comes from excessive heating, thermal stability may decline. A better sequence is to restore balanced flow, reduce excessive local stress, and then adjust temperature carefully.

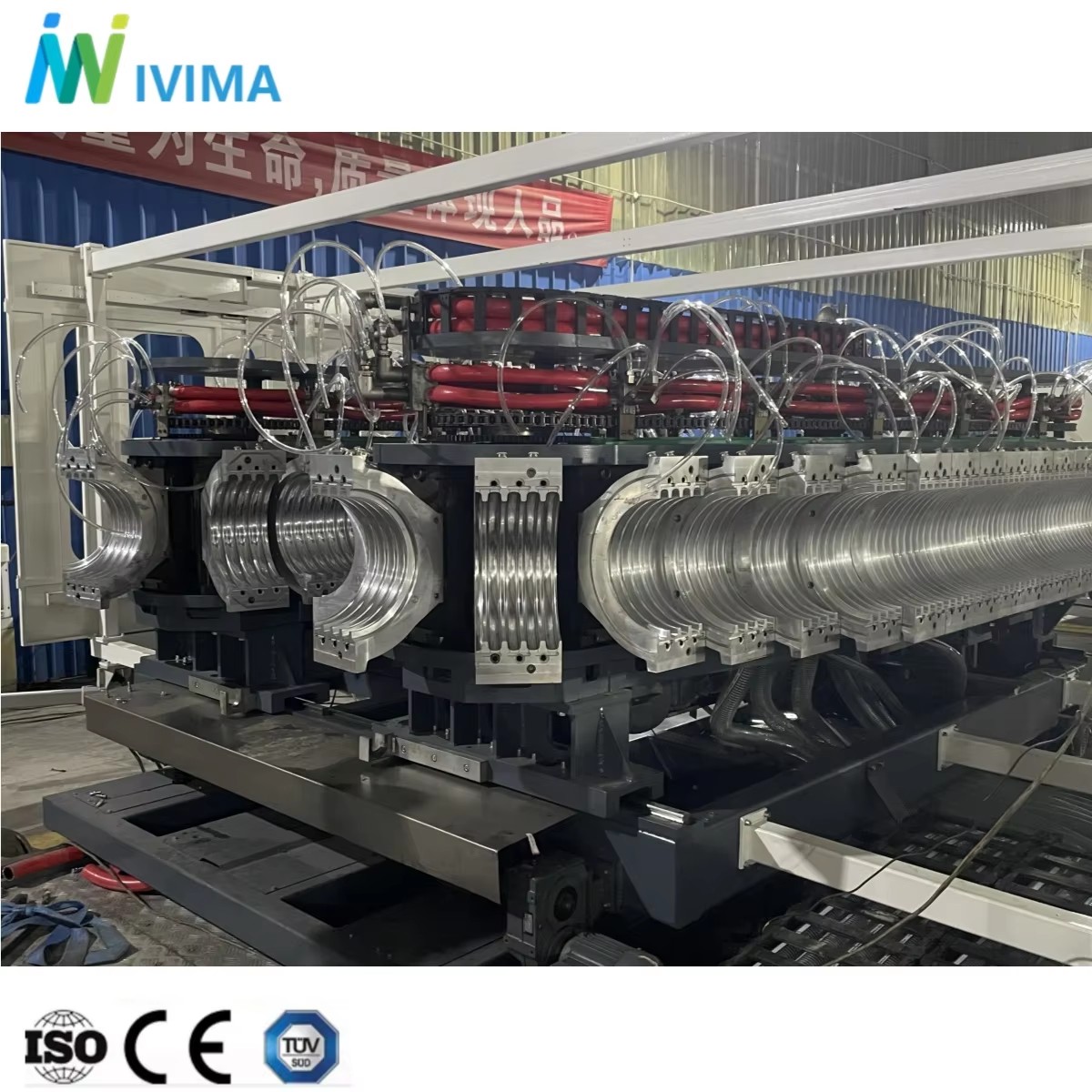

After the melt enters the corrugator, the dominant mechanisms change. At this stage, vacuum attachment and cooling control become central to surface quality.
Longitudinal grooves and local dents often point to contact-surface problems. Wear, burrs, or degraded polymer deposits on the sizing sleeve or mold surface can mark the still-soft pipe wall.
Uneven water flow inside the sizing system can also create local cooling differences that later appear as irregular depressions or groove-like defects.
Periodic ring marks, often described as chatter marks, usually indicate dynamic instability rather than a fixed surface flaw. They may be linked to haul-off vibration, traction fluctuation, mold movement instability, or vacuum pulsation between chambers.
Vacuum instability is especially important in DWC pipe because the surface must be pulled and held against the corrugated mold in a controlled way. If vacuum chambers do not remain stable relative to one another, the attachment state can fluctuate. The pipe then records that fluctuation as periodic or irregular surface marking.

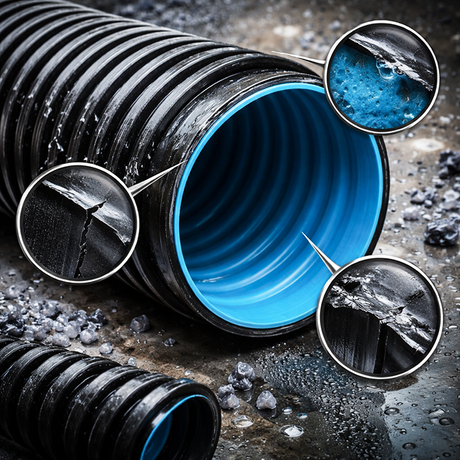

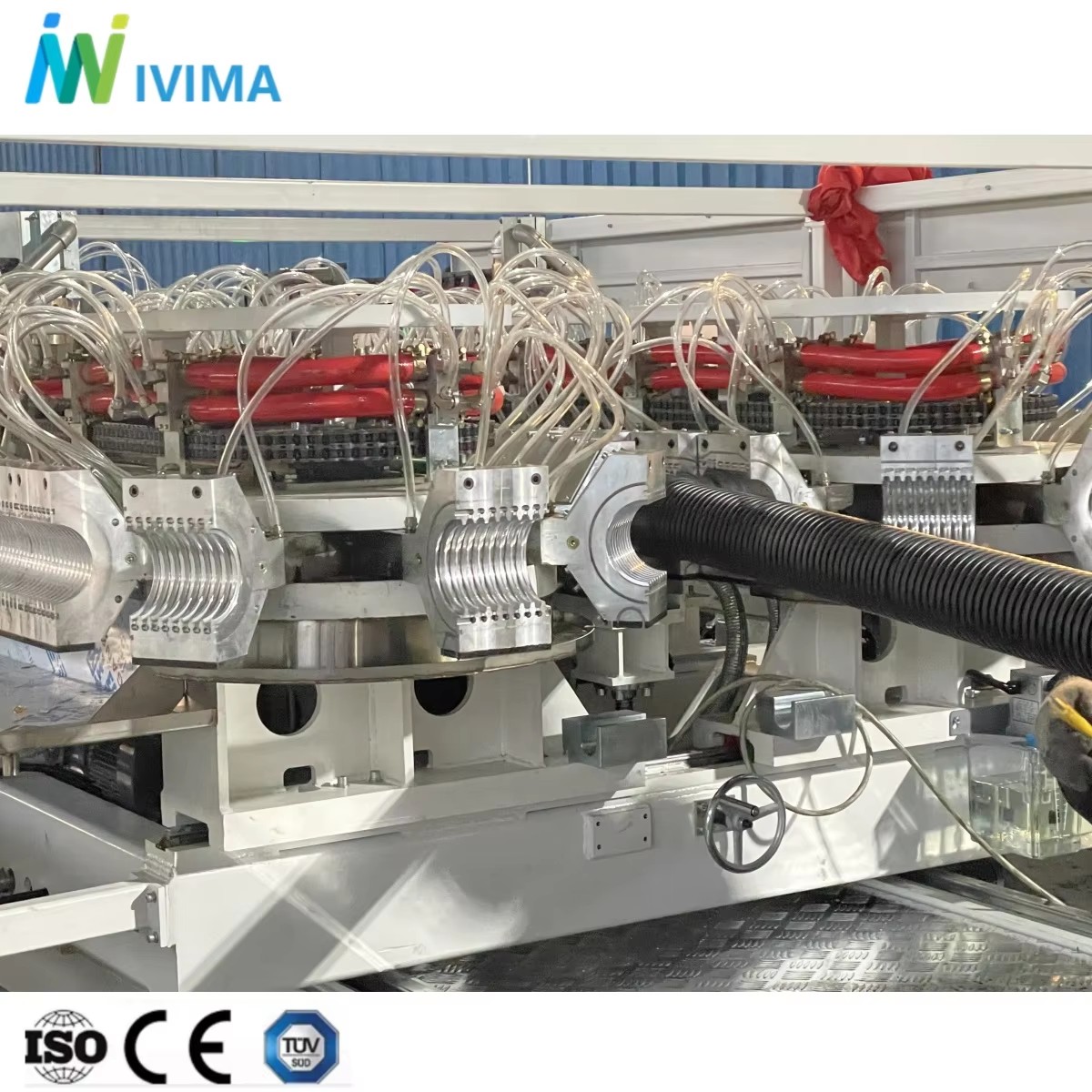

Cooling is tightly coupled with forming stability. The reference material treats cooling-water temperature around 20–25°C as an important control point. If cooling is too weak, too warm, or unevenly distributed, the surface may not be fixed firmly enough after contacting the mold. Roughness, attachment failure, and local geometry-related irregularity can then appear together.
Some surface defects point to a deeper structural problem rather than a purely external mark. Delamination is one of the most important examples. In DWC pipe, the inner and outer layers must join while temperature and pressure conditions still allow effective bonding. If the joining temperature is too low, if pressure is insufficient, or if the interface is disturbed by incompatible material, the bond can become weak.
Recycled material can increase this risk when it introduces foreign polymer, unstable residue, or contamination into the interface region. In that case, the visible surface symptom may be only the first sign of a more serious weakness inside the wall.
The reference material identifies an inner-to-outer wall thickness ratio of 1.3 to 1.8 as a more favorable structural range. Within that range, stress transfer across the corrugated section is more even and the risk of interface-related weakness is lower. Outside it, local stress at the crest or valley may become more severe.
Sagging belongs to the same structural family. In larger or less stable sections, the hot melt may move downward under gravity before the wall is fully fixed. This creates top-bottom wall variation and can later appear as geometry-related surface unevenness.
Moisture creates another direct defect route. If the raw material is not dried sufficiently, vapor can form bubbles in the melt. When those bubbles collapse during shaping or cooling, the surface may show pits, pores, or pockmarks. The available processing guidance identifies 70–90°C for at least 1.5 hours as a drying condition for this purpose.
Black specks usually point to a different mechanism. They often indicate local overheating, carbonized residue, or dead material trapped too long in the flow path. In filled systems, poor particle distribution or agglomeration can also leave visible local defects even when the general surface appears acceptable.
Small defects are not always superficial. Micro-cracks, pits, scratches, weak interface zones, and embedded contamination can all serve as local stress concentrators. Under long-term loading, they may raise the risk of slow crack growth and related durability failure. The reference material also treats OIT as a useful indicator of retained oxidative stability after processing.
Troubleshooting becomes more efficient when the visible defect is linked directly to its likely mechanism and first control priority.
Surface symptom | Likely mechanism | First control priority |
|---|---|---|
Outer-wall roughness | Weak cooling or unstable die-exit flow | Lower cooling-water temperature toward 20–25°C and check die-zone balance |
Longitudinal groove | Worn, fouled, or burred contact surface | Clean the sizing or mold surface and remove deposits or burrs |
Ring-like chatter mark | Haul-off instability or vacuum fluctuation | Rebalance vacuum chambers and inspect traction stability |
Bubbles or pits | Insufficient drying | Dry raw material at 70–90°C for at least 1.5 hours |
Black specks | Local overheating or degraded residue | Inspect for dead spots, carbon buildup, and excessive local heat |
Interlayer separation | Low joining temperature or weak joining pressure | Correct inner-outer layer balance and restore joining conditions |
This matrix is useful because many production errors come from partial diagnosis. Roughness may be blamed only on temperature when filler dispersion and cooling are both involved. Ring marks may be treated only as a traction problem when vacuum balance is also unstable.
For DWC pipe, surface quality is best treated as process evidence rather than as a final cosmetic checkpoint. A stable surface usually reflects a stable process state: balanced melt flow at the die exit, clean contact surfaces, coordinated vacuum and cooling, controlled material moisture, and sound inner-outer wall distribution.
That is also why the most effective corrections are usually systemic rather than isolated. Cleaning a worn surface helps, but not if vacuum remains unstable. Lowering cooling-water temperature helps, but not if die-exit stress is already outside a stable range. Raising temperature may smooth the surface, but not if it reduces long-term material stability. In practice, better surface quality comes from keeping these control points aligned, not from over-correcting a single parameter.
