In large-diameter PE pipe extrusion, low output is often explained as a simple cooling problem. That explanation is incomplete. In thick-wall HDPE pipe, the real production ceiling is created by a linked set of constraints: slow heat transfer through a thick section, crystallization-related shrinkage inside the wall, and melt deformation before the pipe becomes fully self-supporting.
These limits do not appear one by one. They develop through the same shaping window and reinforce each other. A pipe may look acceptable on the surface while internal stress, wall-thickness drift, or hidden void risk is already building in the core. That is why longer tanks and higher haul-off speed do not automatically translate into stable output. In practice, productivity improves only when the real physical bottleneck is identified and controlled.

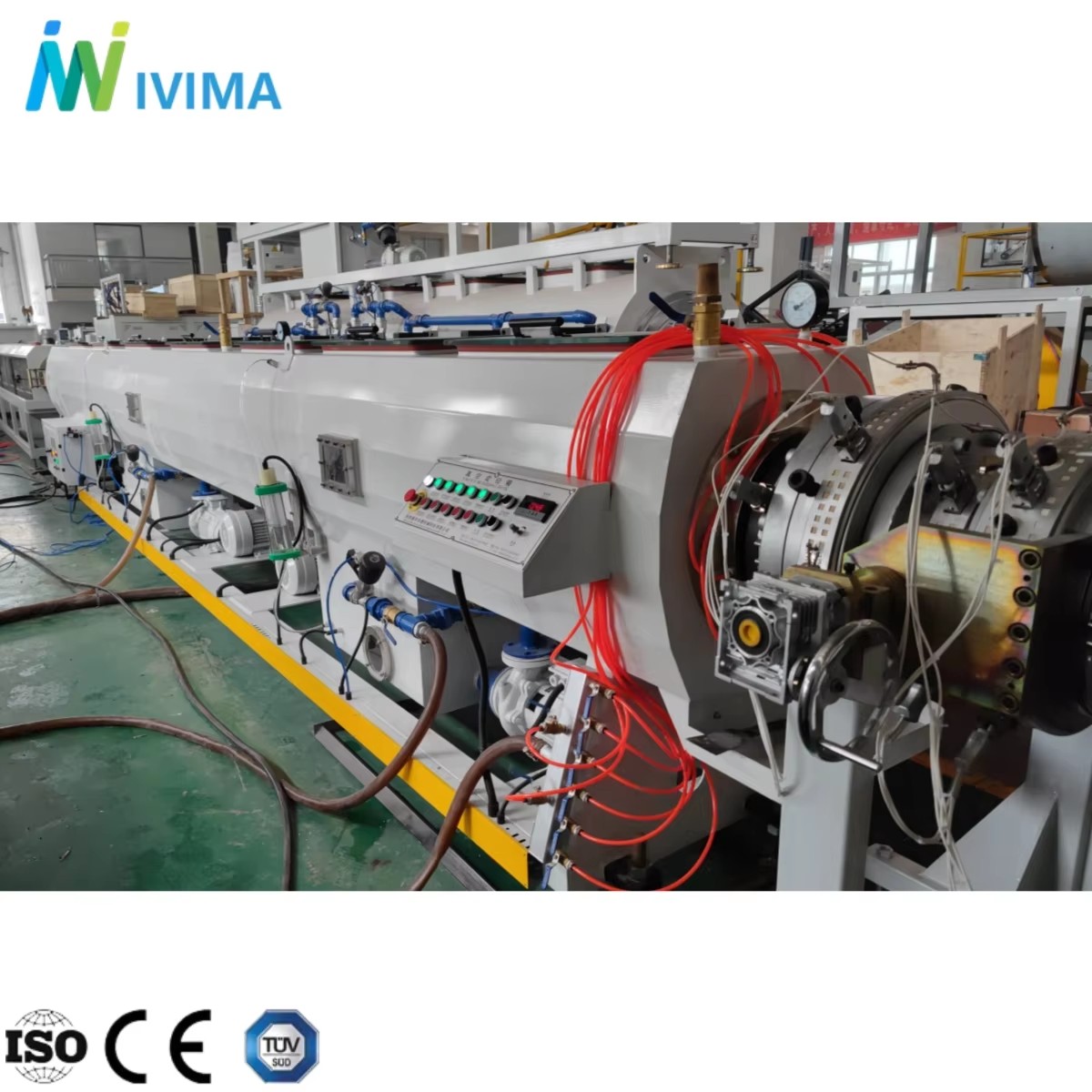

The main restriction is not just how quickly the outer surface can be cooled. The deeper issue is that a thick PE wall cools very unevenly across its section. After the melt exits the die, the outer layer reaches calibration and cooling media first, so it begins to stiffen earlier.
The inner region remains hotter for much longer.
This creates a structural mismatch inside the wall. The outer shell is already being shaped and constrained, while the hotter core is still undergoing thermal contraction and crystallization-driven volume change. As the inner region continues to cool, it keeps shrinking. If the outer layer has already become too rigid to follow that movement, the strain cannot be released uniformly through the section.

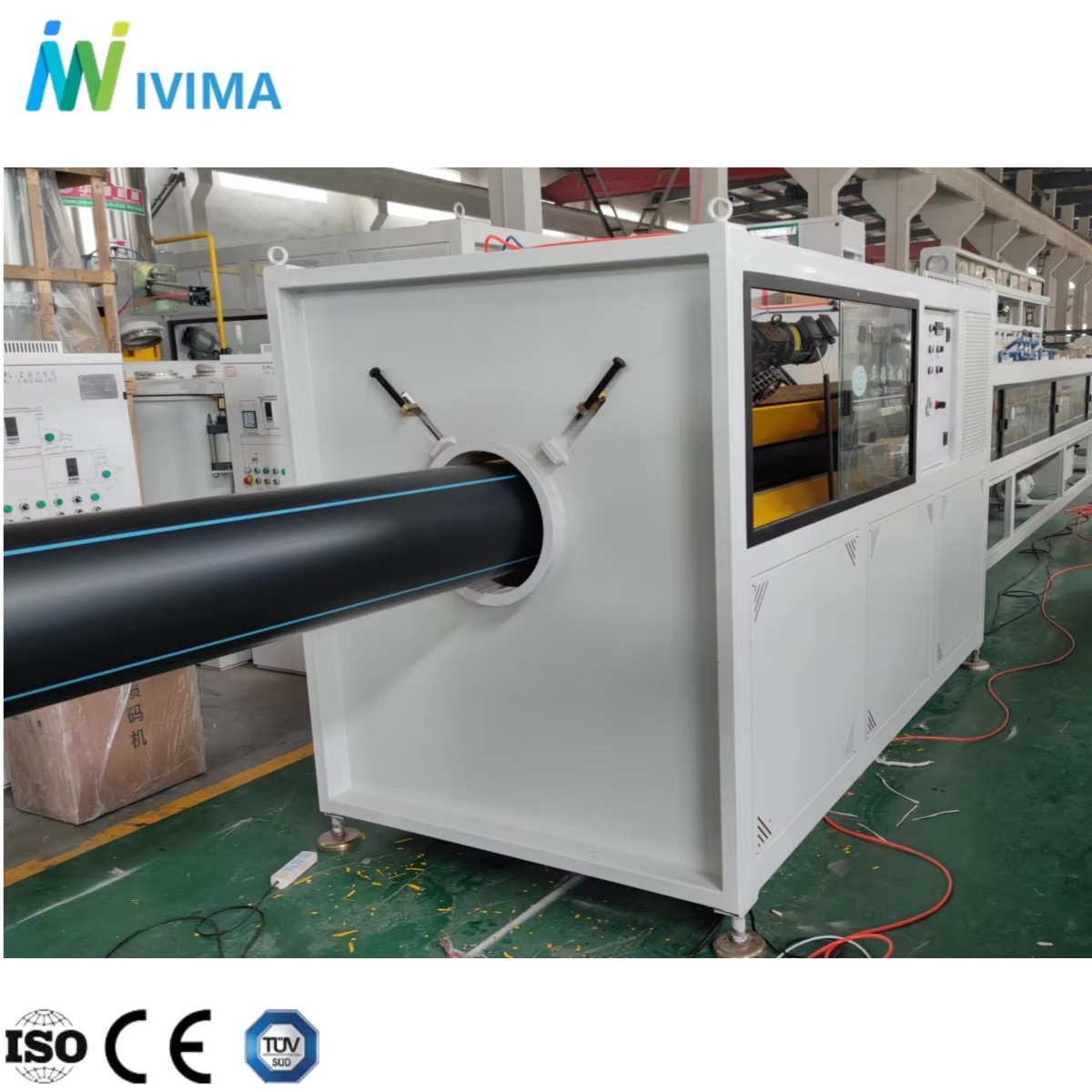

That is why higher line speed is not simply a matter of pulling harder. If haul-off speed rises before the wall has enough structural stability, dimensional control weakens instead of improving.
Wall-thickness variation, ovality, internal stress, and long-term quality instability become more likely because the pipe is being forced downstream before the thermal transition in the wall is complete.
A common assumption is that colder external water or a longer cooling tank will always solve the problem. In thick-wall PE pipe, that approach can help, but it can also intensify the temperature gradient between the already stiff outer shell and the still-hot inner core.
When the outside cools too quickly, it forms a rigid boundary around a section that is still shrinking internally. In PE, cooling is closely tied to crystallization, and crystallization reduces specific volume. If that internal volume change continues inside a wall that has already lost much of its ability to deform, shrinkage becomes concentrated instead of being distributed smoothly. Under severe conditions, that can contribute to internal vacuum voids or structural weakness near the middle of the wall.
The thermal behavior of common plastics helps explain why PE presents this challenge so clearly:
Material | Thermal Conductivity (W/m·K) | Specific Heat (kJ/kg·K) | Crystallization character |
|---|---|---|---|
HDPE | ~0.49 | ~2.25 | High (60–80%) |
PVC | ~0.20 | ~1.00 | Mainly amorphous |
LLDPE | ~0.33 | ~2.30 | Moderate |
HDPE is not difficult only because it cools slowly. It is difficult because a thick HDPE wall cools unevenly while the material is still undergoing significant internal shrinkage. In other words, the bottleneck is not just external cooling capacity. It is the combination of heat removal, crystallization behavior, and structural restraint inside the pipe wall.
Cooling is only one part of the production limit. Another major bottleneck appears in the short interval after die exit, when the pipe is still hot and not fully supported. During that stage, gravity acts continuously on a soft melt structure. If the material cannot resist deformation under very low shear conditions, the lower side of the pipe tends to thicken while the upper side becomes thinner.
This is why sagging should be treated as a rheology issue rather than only a geometry issue. Inside the extruder and die, PE benefits from shear thinning. Lower viscosity under high shear helps the melt move and distribute. After die exit, that advantage is no longer enough. What matters then is melt strength under near-zero-shear conditions, because the pipe must hold shape before the wall becomes self-supporting.
Low-sag PE grades are valuable for exactly this reason. Their molecular structure, especially when higher molecular weight fractions are used effectively, improves resistance to gravity-driven deformation. This gives the pipe more time to maintain geometry before calibration and cooling take over.
Even so, resin selection alone does not solve sagging. If melt temperature remains too high, or if the process window is too aggressive, deformation can still become severe. Stable geometry depends on the combined effect of material design, melt temperature, die balance, and downstream support rather than on resin choice alone.
Several process adjustments can improve stability, but their value comes from coordination rather than from any single change.
One of the most effective measures is lowering the melt temperature at die entry. In PE extrusion, even a moderate temperature reduction can raise viscosity enough to improve sag resistance noticeably. A reduction of around 10°C can already make a meaningful difference, especially in large-diameter pipe where the unsupported melt has only limited time to stabilize.
Die design and flow distribution also matter.

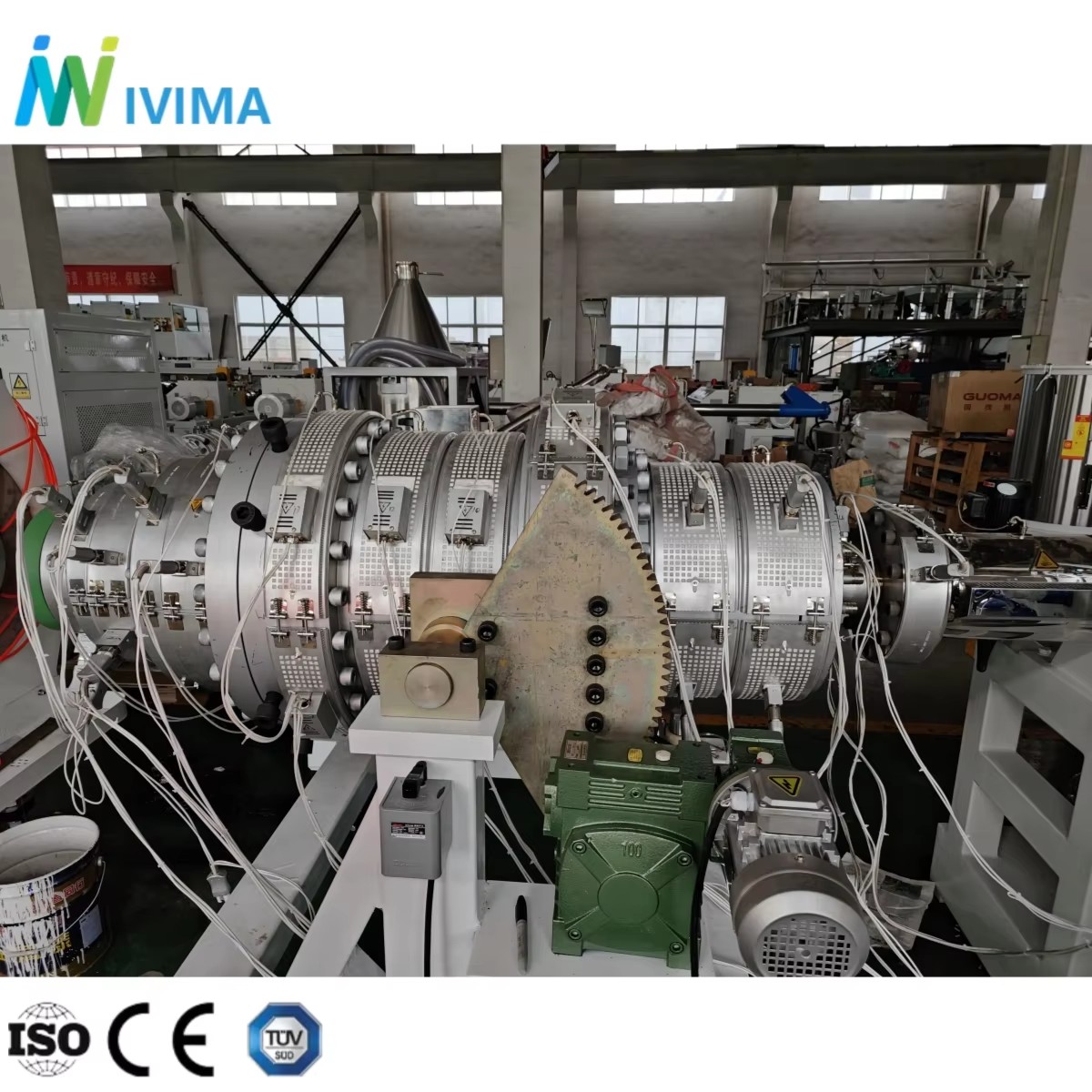

A balanced spiral mandrel structure helps reduce local hot spots, uneven flow history, and asymmetric melt behavior. These problems may appear limited inside the die, but they become much more visible after die exit, where even minor imbalance can develop into measurable wall-thickness deviation.
A more advanced correction method is Thermal Centering. Instead of relying only on permanent mechanical offset, this method adjusts local melt temperature in different die sectors. Because local temperature influences viscosity and flow, thermal centering can improve wall-thickness balance with finer control and less waste. Its limitation is response speed: thermal correction is more gradual because the die body itself has significant thermal inertia.
Method | Main Control Object | Principle | Typical Character |
|---|---|---|---|
Mechanical Offset | Physical die gap | Geometric retention | Direct and simple, but less precise |
Thermal Centering | Local melt temperature | Viscosity-based flow control | More refined, but slower to respond |
In production, these methods are often complementary. Mechanical offset remains useful for rough alignment and start-up adjustment, while thermal centering is better suited to finer correction once the line is running steadily.
If the main restriction is the long heat path through a thick wall, then the most effective improvement is not always stronger external cooling. It is often a shorter heat-removal path. That is the importance of Internal Pipe Cooling (IPC).
By introducing forced convection inside the pipe, IPC creates an additional heat-transfer surface on the inner wall. Heat no longer has to travel only outward. This changes the thermal balance of the section and helps the inner region reach a more stable temperature sooner. For thick-wall pipe, that can reduce the mismatch between the outer shell and the hotter core, which directly supports better dimensional stability.
Under suitable conditions, IPC can reduce the required physical cooling-zone length by roughly 30% to 40%, and it may support higher haul-off speed when the rest of the line is properly matched. However, IPC is not a universal shortcut. Its effectiveness depends strongly on inlet air condition, especially humidity. If the air is too humid, cooling efficiency may fall and condensation-related surface problems may appear. More advanced internal cooling concepts can also increase equipment complexity, sealing difficulty, and cost.
Large-diameter PE pipe extrusion is not controlled by one variable. Heat transfer, crystallization shrinkage, melt strength, gravity, die balance, and control response all interact. That is why production problems often return when one parameter is pushed too far, even if another part of the line has already been improved.
The most effective optimization strategy is therefore not “cool faster” or “pull faster.” It is to identify the actual limiting mechanism on a specific line, then match resin behavior, melt-temperature control, die design, wall-thickness compensation, and internal cooling strategy to that real condition.
When those elements are aligned, higher output becomes more realistic without sacrificing the dimensional stability and internal quality that large-diameter PE pipe production requires. For manufacturers working with thick-wall PE pipe, the practical goal is not maximum speed at any cost. It is stable, repeatable throughput built on sound thermal control, reliable melt behavior, and balanced downstream support.
