Picture a massive pile of discarded agricultural greenhouse film. It is caked in dried mud. Recent rains have left it completely soaked. Abrasive silica sand is deeply embedded in the plastic matrix. Processing this post-consumer material presents a brutal operational challenge. LDPE stretch wrap and PP woven bags share the exact same fate. Used predominantly outdoors or in heavy-duty packaging, they arrive at recycling facilities covered in stubborn dirt, oils, and organic waste.
If you fail to eradicate these harsh contaminants and excess moisture, disaster strikes. They act as a grinding paste. Expensive downstream extrusion machinery gets severely damaged. The structural integrity of the final recycled plastic pellets degrades permanently. So, how do modern facility managers transform filthy, waterlogged waste into highly profitable, near-virgin quality resin? The answer lies in precise, multi-stage engineering. This guide breaks down the exact mechanical processes. You will see firsthand how industrial equipment neutralizes dirt, sand, and moisture.
Targeted Contaminant Removal: Mechanical agitation, fluid dynamics, and density separation combine to strip away up to 99% of abrasive debris.
High-Speed Friction: Centrifugal friction washers act as the mechanical core. They aggressively scour stubborn dirt from high-surface-area flexible films.
Density Separation Mechanics: Sink-float tanks leverage the natural specific gravity of polymers. Heavy rocks sink while lightweight PE and PP films float effortlessly.
Advanced Drying Technology: Centrifugal dewatering followed by immense mechanical squeezing reduces moisture to a strict sub-3% threshold.
Asset Protection: Superior washing technology safeguards pelletizing extruders. It prevents severe mechanical wear and boosts the market value of reclaimed resins.
Looking at recent developments across the global waste management sector, a pronounced shift toward strict circular economy mandates is undeniable. Regulatory bodies and major consumer brands now demand significantly higher percentages of post-consumer recycled content in new packaging and agricultural products. Consequently, this trend forces recycling facilities to rapidly upgrade their processing capabilities.
Modern plants are abandoning rudimentary, manual washing setups. Instead, they opt for highly automated, precision-engineered washing lines capable of handling heavily soiled municipal and agricultural films without bottlenecking. The market consensus is unequivocally clear. A facility's profitability now hinges entirely on its ability to produce near-virgin quality resins. Advanced decontamination and moisture removal technology is no longer just an operational upgrade. It is a critical business necessity to meet the stringent purity standards demanded by premium end-buyers.
Unlike rigid plastics such as PET bottles or HDPE jugs, thin flexible films present a notoriously difficult processing profile. They tangle easily. They fold over themselves. They act as massive sponges for ambient water. Worse still, they create microscopic pockets that trap fine sand. To combat these physical traits systematically, an advanced plastic recycling machine designed for films operates as an interconnected, continuous processing loop.

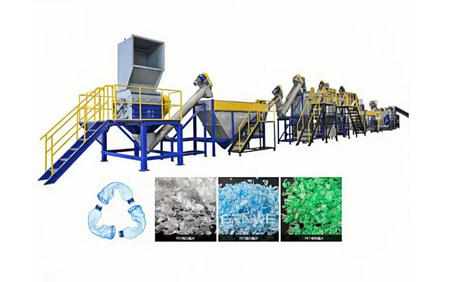

This comprehensive industrial setup relies on a sequence of highly specialized modules. Wet granulators, high-speed friction washers, hydrostatic separation tanks, and mechanical squeezers work in unison. Each individual piece of equipment is meticulously calibrated to target a specific phase of decontamination. Moving the polymeric material through this continuous loop ensures absolute precision in untangling and cleaning.
Before microscopic sand particles and embedded organic matter can be neutralized, the incoming baled plastic must undergo rigorous size reduction. Washing a tightly compacted bale or a massive, continuous sheet of agricultural film is mechanically impossible. The material must be broken down into uniform fractions. This exposes the maximum surface area to the washing medium.
The decontamination sequence initiates when the soiled material feeds via a heavy-duty conveyor into an industrial wet granulator. Amidst the deafening roar of the dynamically balanced rotor, hardened steel knives shear the flexible film against stationary bed knives.
Specifically, a high-volume water injection system continuously floods the primary cutting chamber. This wet crushing methodology serves multiple critical engineering functions. Primarily, it acts as an immediate pre-wash. The kinetic energy of the rotating blades, combined with the flushing action of the water, rapidly dislodges large, coagulated clumps of mud. Furthermore, the continuous flow of water acts as a vital coolant. It prevents immense frictional heat from melting the thin PE films and causing catastrophic equipment jams. The material is sheared continuously until it passes through a precise bottom screen. The result is uniform 0.15–0.5 mm flakes perfectly sized for downstream processing.
Once the bulk film is reduced to uniform flakes and loose mud is flushed away, the material moves to the most rigorous decontamination stage. The flakes transport into the high-speed friction washer. This highly engineered equipment is designed to exploit kinetic energy and fluid dynamics.
The friction washer serves as the primary defense against fine, abrasive silica sand and sticky organic residues. Inside the cylindrical chamber, a robust central rotor operates at extreme rotational velocities. Speeds frequently exceed 1,000 RPM. As the wet film flakes enter, strategically angled steel paddles immediately strike them.
This creates an environment of intense mechanical friction. The angled paddles propel the material forward. Simultaneously, immense centrifugal force pushes the plastic flakes outward against a stainless-steel mesh screen. The flakes rub aggressively against the steel, the abrasive screen, and each other. This continuous, high-energy physical scouring shatters the molecular adhesion between the polymer surface and the stubborn contaminants. Consequently, a continuous spray of clean water flushes the newly dislodged micro-contaminants outward through the microscopic perforations of the mesh. The dirty slurry separates completely from the clean plastic stream.
In stark contrast to the violent agitation of the friction washer, the next phase relies on serene fluid mechanics. Even after intense scrubbing, the material stream may still contain discrete, heavy impurities. Think of larger grains of quartz sand, small pebbles, shards of glass, or heavier, incompatible plastics like PVC or PET. To isolate the desired polyolefins, the system utilizes a Sink-Float Separation Tank.
The Sink-Float Tank operates on the fundamental physical principles of buoyancy and specific gravity. Pure water serves as the baseline with a specific gravity of exactly 1.0 g/cm³. Because the target materials, polyethylene and polypropylene, naturally possess a specific gravity of less than 1.0, they boast positive buoyancy. They will effortlessly float to the surface.
Conversely, contaminants that threaten downstream machinery possess a specific gravity significantly higher than 1.0. When the mixed material stream enters the calm, laminar-flow pool of the tank, gravity dictates the separation. Heavy sand, rocks, and metals immediately break the surface tension and sink. Along the surface, a series of slowly rotating paddle drums gently push the clean, floating plastic forward. Simultaneously, a heavy-duty screw auger at the V-shaped bottom of the tank continuously collects and extracts the sunken sludge. This ensures uninterrupted, automated production.
At this juncture, the plastic film is exceptionally clean, yet it remains entirely saturated. Flexible films possess a massive surface-area-to-volume ratio and fold upon themselves, acting like industrial sponges. Feeding this wet film directly into a thermal extruder is a guaranteed engineering failure. It leads to severe foaming, pressure spikes, and commercially worthless, porous pellets. Therefore, integrating an industrial plastic film washing line with multi-stage drying capabilities is non-negotiable.
The initial drying phase utilizes mechanical centrifugal force. The saturated flakes are conveyed into a vertical or horizontal dewatering machine. Similar in concept to the spin cycle of a commercial washing machine, a central rotor spins the wet plastic at incredibly high speeds. The generated G-force physically strips the surface water away, throwing it outward through a perforated screen. While highly efficient for removing bulk water and reducing moisture to roughly 10% to 15%, centrifugal force alone cannot break the microscopic surface tension trapped within the tightest folds of the film.
To achieve the stringent moisture requirements needed for stable extrusion, the partially dried film enters the ultimate drying module. This is the mechanical squeezer. Abandoning centrifugal force, this machine relies on immense physical pressure. A heavy-duty, variable-pitch screw aggressively drives the wet material into a continuously narrowing compaction chamber.
This action literally wrings the remaining water out of the plastic matrix. It functions much like a heavy-duty industrial wringer. As the pressure reaches its peak near the discharge die, the intense mechanical friction generates significant autogenous heat. This self-generated heat carefully semi-plasticizes the film, instantly vaporizing residual moisture into steam. The resulting material discharges as dense, exceptionally dry chunks. With a moisture level between 1% and 3%, it is perfectly conditioned for immediate pelletization.
To truly understand the value of modern engineering, we must compare legacy methods with current industrial standards. Below is a direct operational comparison.
Processing Metric | Traditional Washing Line | Advanced Ivimaplas System Standard |
|---|---|---|
Moisture Content | 10% to 15% via centrifugal force only | Below 3% via mechanical squeezer |
Friction Washer Speed | 500 to 800 RPM | Over 1,000 RPM for deep scouring |
Contaminant Removal | Struggles with embedded silica sand | Up to 99% removal rate |
Extruder Wear Rate | High due to residual sand and moisture | Minimal to extend screw and barrel lifespan |
Final Output Quality | Porous, low-value pellets | Dense, near-virgin quality resin |
Choosing the correct machinery is not a guessing game. It requires matching specific engineering parameters to your raw material profile. If you are processing heavy agricultural films, your setup needs maximum abrasive resistance. For post-commercial stretch wrap, capacity and moisture control take precedence. Here is a practical selection framework based on proven industrial configurations.
1. Assess Your Contamination Levels:
If your material consists of heavily soiled agricultural greenhouse films, standard friction is insufficient. You must configure the line with a heavy-duty dry trommel screen upfront to remove loose rocks and soil. Follow this with double high-speed friction washers connected in series. This ensures deeply embedded dirt is completely eradicated.
2. Determine Required Throughput Capacity:
Industrial setups vary widely. A standard complete plastic recycling machine setup typically offers capacities ranging from 500 kg/h up to 2,000 kg/h. If you aim for 1,000 kg/h, ensure your sink-float tank has a sufficient length to allow proper dwell time for density separation. A shorter tank will result in heavy contaminants carrying over into the clean stream.
3. Verify the Drying Module Specifications:
Never compromise on the squeezer. Ensure the mechanical squeezer is equipped with a robust motor. A high-capacity line processing 1,000 kg/h requires a squeezer motor power of at least 90kW to 132kW to generate the necessary compaction pressure. Verify that the final output guarantees a moisture content strictly below 3%.
For industrial recycling plant operators, meticulous contamination removal goes far beyond aesthetic cleanliness. It is the bedrock of operational viability. Investing in a highly engineered setup directly correlates to the longevity of downstream assets and overall profitability.
Silica sand and agricultural dirt rank high on the Mohs scale of mineral hardness. If these abrasive particulates bypass the washing phase, they act as a destructive grinding paste against the internal metallurgy of the pelletizing extruder. This causes accelerated wear on the nitrided screw and barrel. Furthermore, residual moisture causes hydrolytic degradation of the polymer chains, permanently reducing the plastic's tensile strength. By ensuring the material is thoroughly scrubbed and dried to below 3% moisture, the washing line guarantees the continuous production of solid, uniform, and structurally sound pellets that command premium commodity prices.
Transforming heavily contaminated, waterlogged plastic waste into valuable, market-ready raw material is an undeniably complex engineering challenge. However, a well-engineered plastic film washing line provides the ultimate solution. By strategically combining wet crushing, high-speed friction scouring, hydrostatic density separation, and autogenous mechanical squeezing, these systems systematically eradicate dirt, sand, and moisture.
Ultimately, investing in high-performance washing technology is the most reliable strategy to protect your extrusion machinery, elevate your pellet quality, and secure long-term profitability. Are you ready to upgrade your facility's processing capabilities and maximize your resin value? Evaluate your specific material profile and throughput needs today. Explore the advanced, precision-engineered solutions available from Ivimaplas to find the perfect washing line configuration tailored to your operational demands.
While these systems require significant water volume to flush away heavy dirt and abrasive sand, modern industrial setups operate utilizing a closed-loop water design. The dirty wastewater is continuously pumped into a treatment system where mud is filtered out, and the purified water is recirculated back into the machines. Consequently, actual fresh water consumption is kept surprisingly low, primarily only requiring top-offs for water lost to natural evaporation and residual moisture.
Yes, standard systems are highly versatile and adaptable. They can efficiently process LLDPE stretch wrap, heavily soiled LDPE agricultural greenhouse films, HDPE grocery bags, and woven PP jumbo FIBC bags. Because both polyethylene and polypropylene possess a specific gravity below 1.0, the critical density separation process works perfectly for both, allowing heavy contaminants to sink while the target plastics float.
Achieving exceptionally low moisture is paramount for the downstream pelletizing extruder. While the initial centrifugal dewatering reduces moisture to roughly 15%, the advanced mechanical squeezer takes over for the final phase. By applying immense physical pressure and autogenous frictional heat to wring out the water, the final moisture content is reliably reduced to an impressive 1% to 3%, which is the optimal range for direct thermal extrusion.
Agricultural films require specialized, aggressive processing due to extreme soil contamination. Facilities handling this material often integrate heavy-duty dry trommel screens at the very beginning of the line to tumble the film and shake off loose, dry sand before shredding begins. Furthermore, the system will utilize multiple high-speed friction washers connected in series, alongside extended sink-float tanks, providing the necessary mechanical force and settling time to ensure deeply embedded dirt is completely eradicated.
Absolutely. Modern industrial-grade systems are designed for fully automated, continuous operation. They are governed by a centralized PLC panel that meticulously manages motor speeds, water flow rates, and material transfer across interconnected conveyor belts. This intelligent automation not only minimizes the need for manual floor labor but also ensures consistent throughput and actively protects the machinery from potential material overloads.
The capital investment varies drastically based on capacity, automation level, and the specific contamination profile of your raw material. A basic 500 kg/h system might start at a lower tier, but a high-capacity 2,000 kg/h line equipped with double friction washers, advanced PLC controls, and heavy-duty mechanical squeezers requires a larger investment. However, operators typically see a rapid return on investment due to the premium price commanded by high-purity, sub-3% moisture recycled pellets.
Routine maintenance is critical for maintaining throughput and cleaning efficiency. For friction washers, operators must regularly inspect the internal stainless-steel mesh screens for blinding or wear from abrasive sand. The angled rotor paddles also require periodic hard-facing or replacement. For mechanical squeezers, the heavy-duty screw and compaction chamber experience extreme pressure and friction. Monitoring the wear tolerance on the screw flights is essential to maintain optimal moisture squeezing performance.
