Home » Products » Plastic Pipe Machine » 16-32mm Four Cavity PVC Conduit Pipe Extrusion Line
PVC One Die Four Out Pipe Extrusion Line
PVC One Die Four Out Pipe Extrusion Line PVC One Die Four Out Pipe Extrusion Line

loading

16-32mm Four Cavity PVC Conduit Pipe Extrusion Line

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
The IVIMA PVC 4-Outlet Pipe Extrusion Line is a high-efficiency solution engineered to dramatically increase your production capacity and reduce operational costs.
Powered by a robust SJZ65/132 conical twin-screw extruder, this line simultaneously produces four high-quality PVC pipes (typically Ø16-32mm). Each of the four strands features independent vacuum and haul-off units, ensuring precise dimensional control for every pipe.
This "one-machine, four-lines" concept saves up to 50% in factory space and significantly lowers labor costs, delivering an unparalleled return on investment.


Availability:
Quantity:
Inquire Add to Basket

PVC Four Outlet Pipe Extrusion Line One Die Four Out Pipe Making Machine Four Cavity PVC Pipe Production Line PVC Electrical Conduit Pipe Machine High Speed PVC Pipe Extrusion Machine Automatic PVC Four Strand Pipe Machinery
Product Description

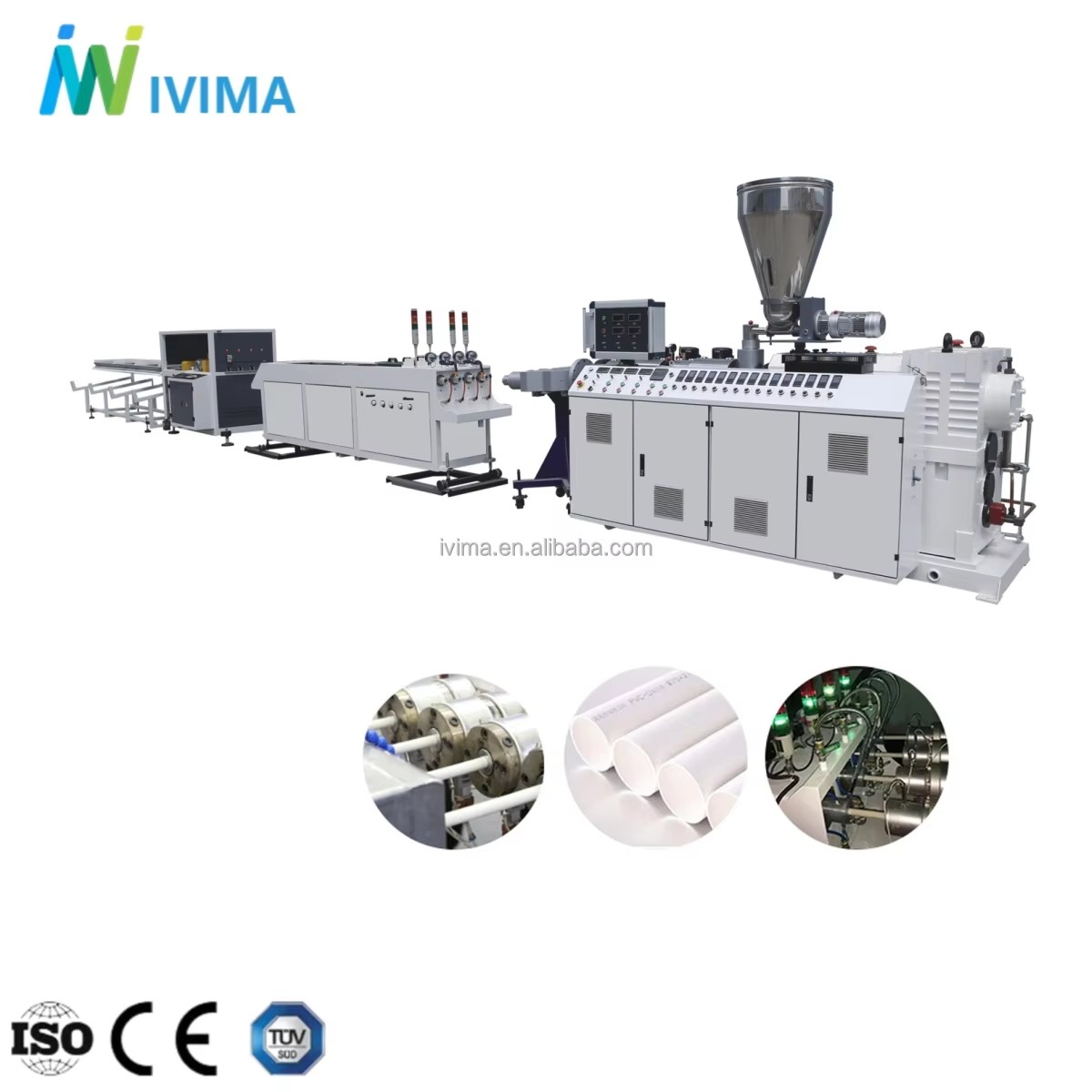

PVC One Die Four Out Pipe Extrusion Line

The IVIMA PVC 4-Outlet Pipe Extrusion Line represents a revolutionary leap in production efficiency for manufacturers of small-diameter PVC pipes. This integrated system is engineered to solve the core challenges of space, labor, and energy consumption by replacing four standard production lines with a single, high-output, "one-out-of-four" solution.

At its heart is a powerful conical twin-screw extruder, optimized for PVC processing, which feeds a masterfully designed four-outlet die head. The line then separates into four parallel downstream paths, each with its own independent control, guaranteeing that every pipe produced meets the highest quality standards. This solution is ideal for mass-producing products like electrical conduits and small-diameter water supply pipes.



Features

  • High-Output Twin-Screw Extruder: Utilizes a proven SJZ65/132 conical twin-screw extruder, powered by a world-class SIEMENS motor for unmatched reliability.

  • Precision 4-Outlet Die Head: Engineered with advanced flow simulation to ensure the PVC melt is perfectly and evenly distributed to all four outlets, guaranteeing uniform wall thickness.

  • Independent Downstream Control: Each of the four strands is equipped with its own independent vacuum calibration tank, haul-off machine, and cutter for precise, individual quality control.

  • Significant Space & Energy Savings: Can reduce factory floor space occupation by up to 50% and lower overall energy consumption compared to four separate lines.

  • Reduced Labor Costs: A single operator can manage the entire line, leading to a potential labor cost reduction of up to 75%.

  • High-Precision, Synchronized Cutting: Each line features a dedicated cutter, synchronized to produce pipes of a consistent, exact length.

Product Details
Introduction

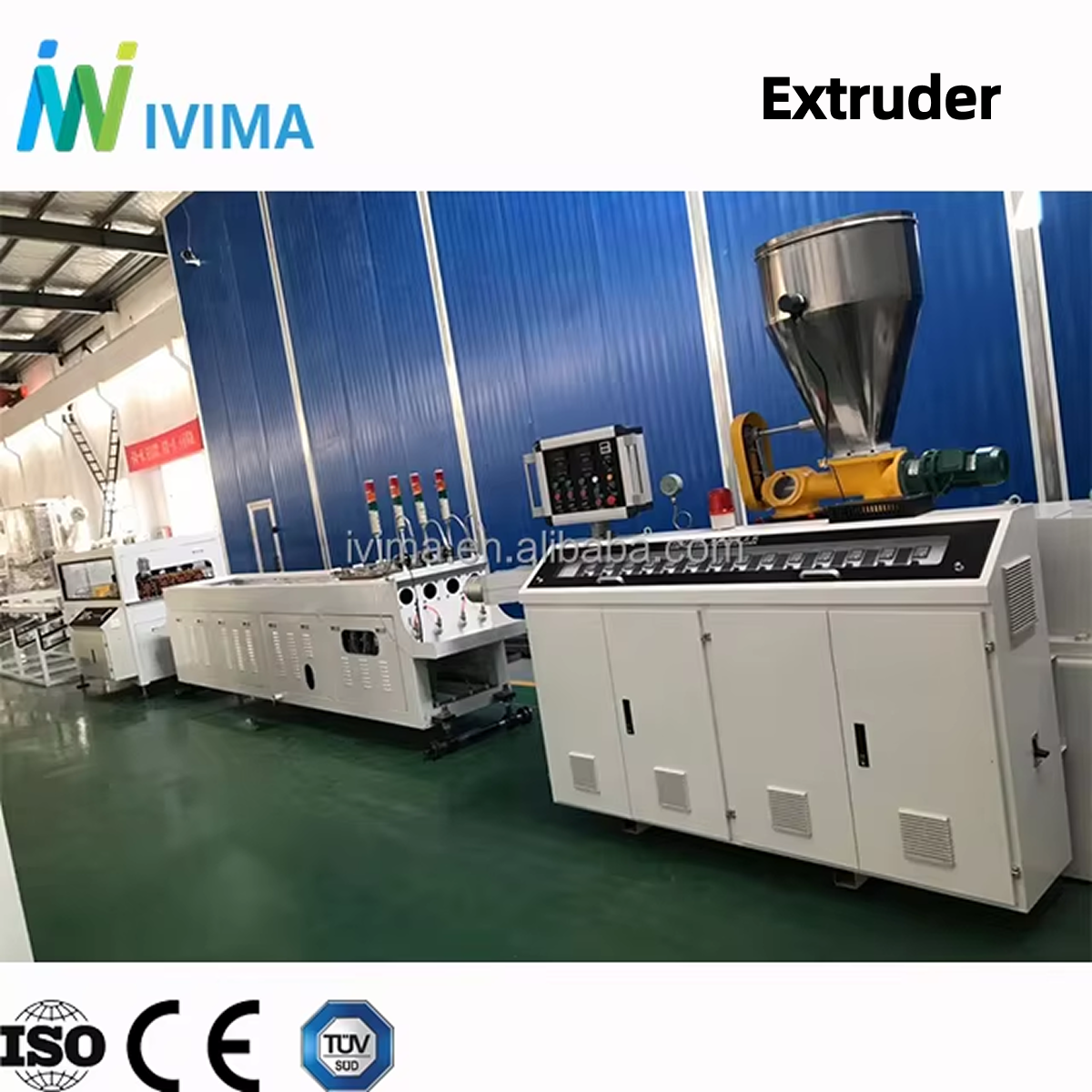

  • <strong>Extruder</strong>

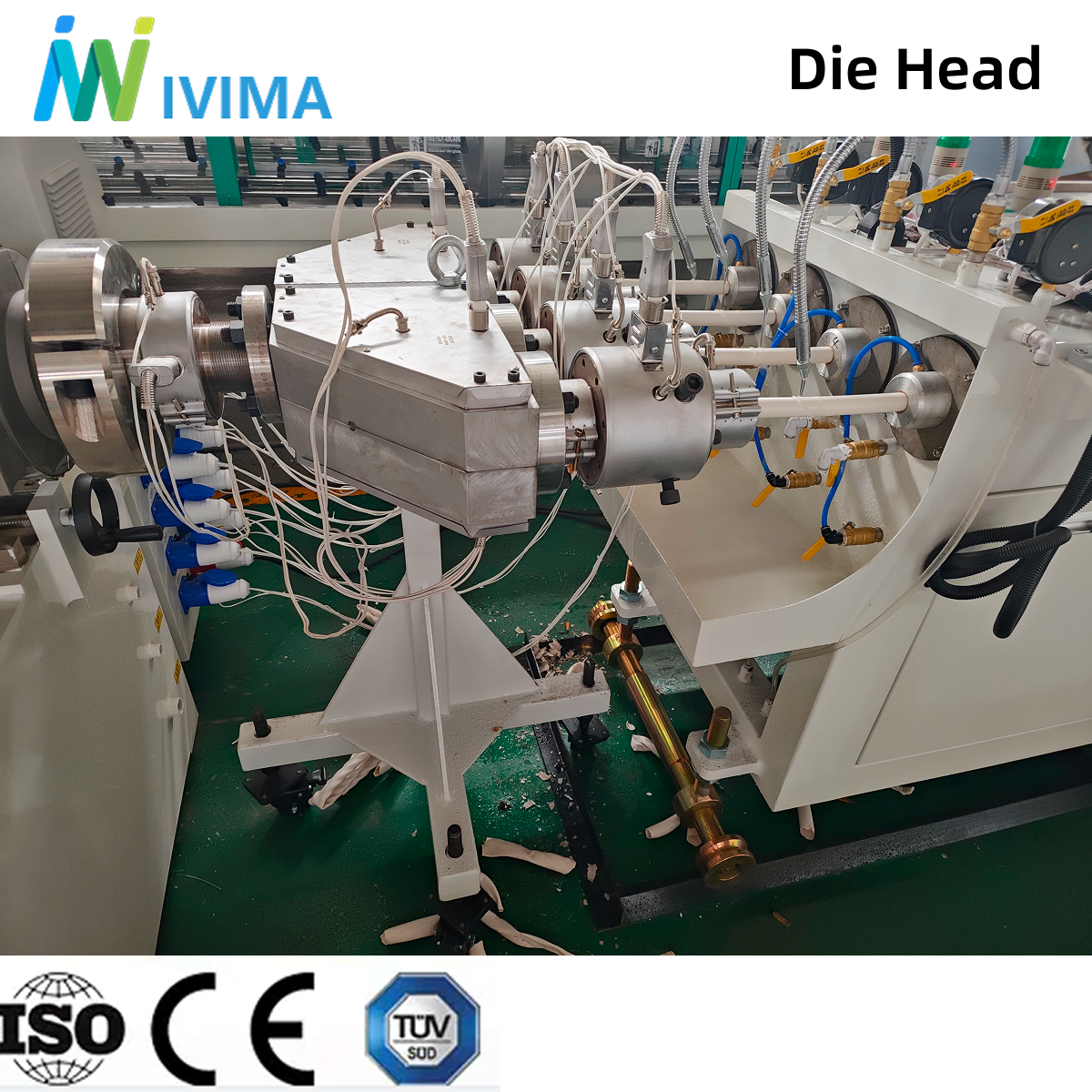

  • <strong>Die Head</strong>

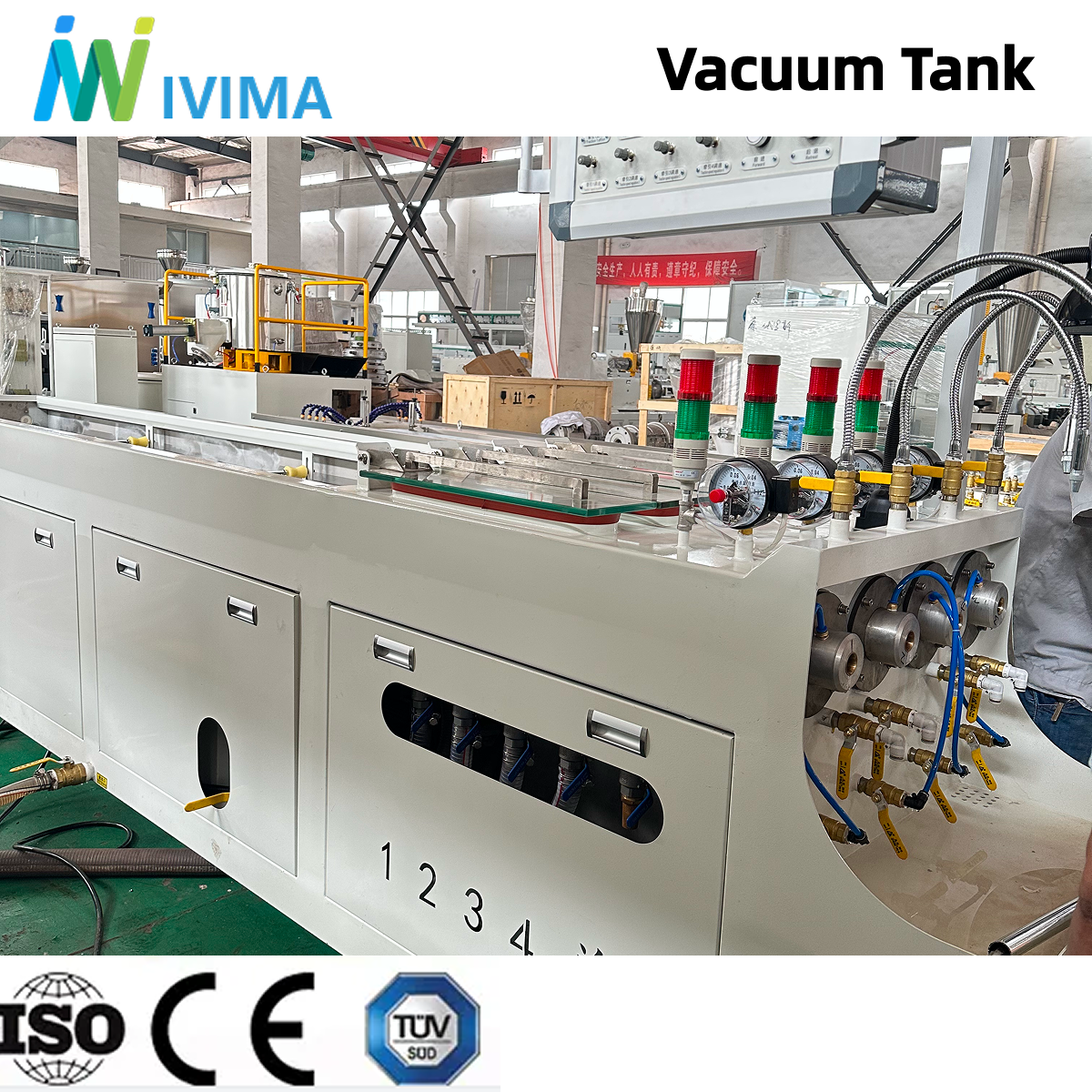

  • <strong>Vacuum Tank</strong>

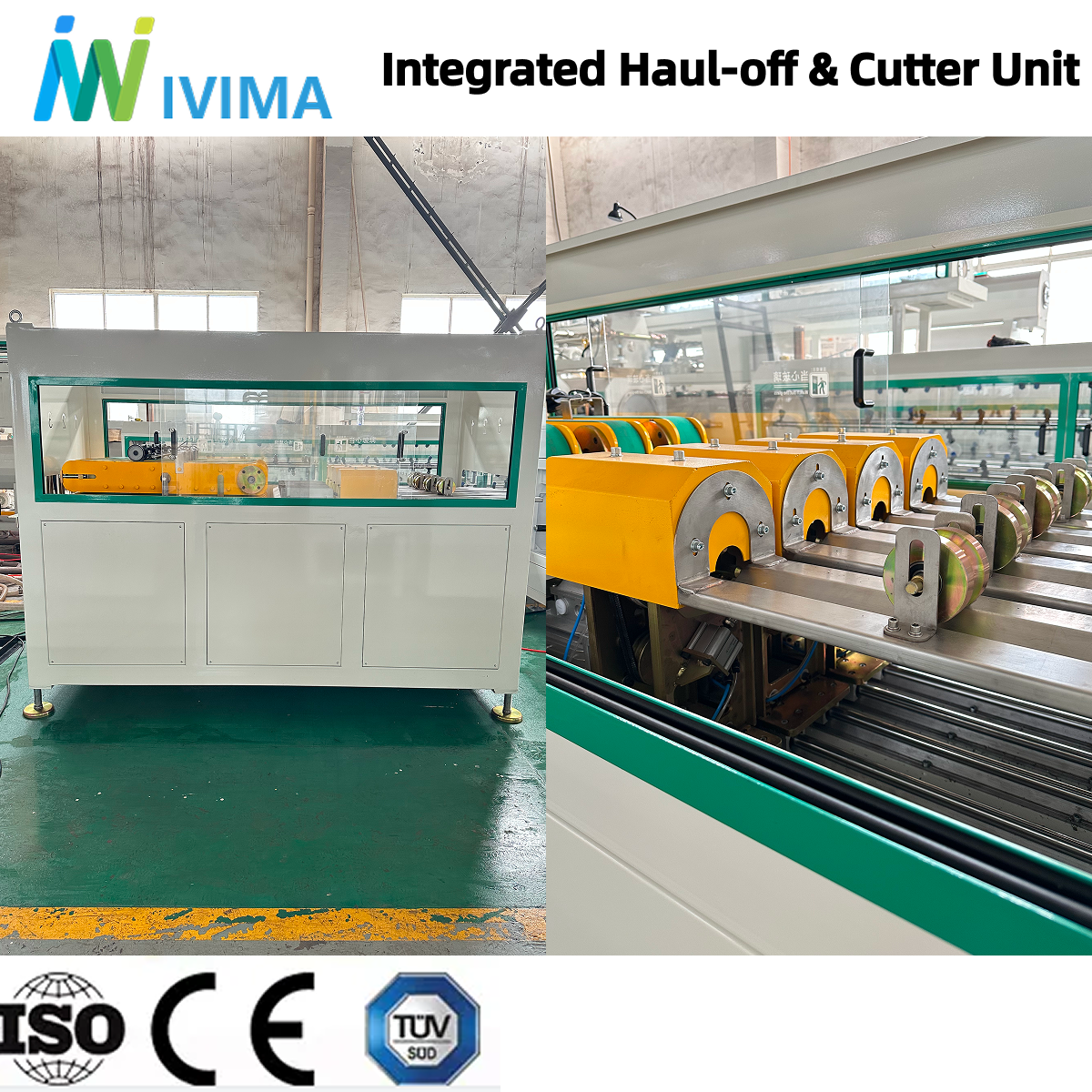

  • <strong>Integrated Haul-off &amp; Cutter Unit</strong>

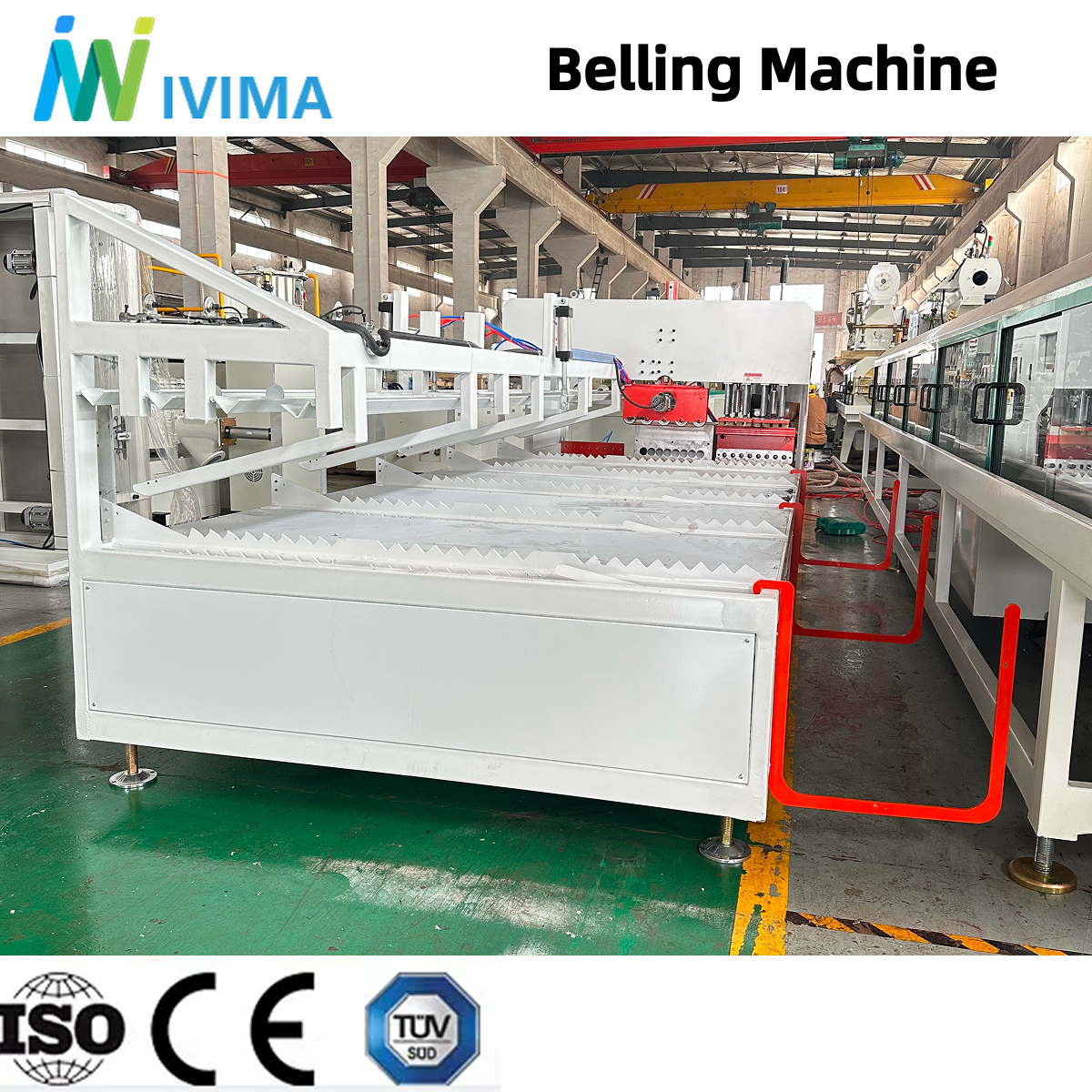

  • <strong>Belling Machine</strong>
Technical Parameters

Parameter

Specification

Extruder Model

SJZ65/132 Conical Twin-Screw

Pipe Diameter Range（mm）

Ø16mm - Ø32mm

Total Power（kw）

85kw

Die Head

Four cavity

(Note: Parameters can be customized. Contact us for a tailored solution.)

Application & Shipping

Applications

The most cost-effective solution for high-volume production of:

  • Electrical Conduit Pipes

  • Small-Diameter Water Supply Pipes

  • Communication Cable Ducting

Packing & Shipping

  • Packaging: Securely wrapped and packed in fumigation-free wooden cases for major components and electrical parts.

  • Shipping: We provide global FCL (Full Container Load) shipping solutions.
