Walking the production floor of any polymer manufacturing facility, you quickly realize that Polyvinyl Chloride is notoriously unforgiving regarding heat. Unlike more thermally stable plastics, this material possesses an exceptionally narrow processing window. Improper heating does not just result in a slightly flawed product. It completely ruins pipe strength. It warps the shape. It can even cause catastrophic equipment damage. Temperature control remains the single most critical production factor in the extrusion process.
In this comprehensive guide, we drill down into the exact settings required to transform raw resin into a durable product. We cover the nuanced adjustments of barrel zones and the critical nature of die configurations. By mastering your thermal profiles today, you can drastically reduce scrap rates and ensure consistent dimensional accuracy across every production run.
Optimal melt temperatures generally fall between 170°C and 200°C. This depends heavily on the specific formulation being processed.
Managing extruder barrel settings requires a precise, staggered thermal profile across the feed, compression, and metering zones to melt the compound gradually.
Accurate die temperature settings are non-negotiable for maintaining uniform wall thickness and ensuring a glossy surface finish.
Internal friction generates massive shear heat. This must be continuously balanced with external barrel heaters and active cooling fans.
Strict material stability requires rigorous process control to prevent polymer degradation and the dangerous release of corrosive hydrochloric acid gas.
Polyvinyl Chloride possesses unique chemical properties that distinguish it from common thermoplastic materials like Polyethylene. The biggest differentiator is inherent thermal instability. If the processing temperature dips too low, the material fails to plasticize properly. You get severe mechanical weaknesses and brittle pipes. If the temperature creeps too high, the polymer chains break down almost immediately.
Raw resin requires a highly engineered blend of additives. Calcium-zinc or organotin compounds act as thermal stabilizers. These chemical shields absorb heat energy and protect the polymer backbone during the intense extrusion process. However, these protectors only function up to a specific temperature threshold and for a limited residence time inside the barrel.
Exceed this critical limit, and the thermal stabilizers deplete rapidly. Once consumed, the material undergoes a violent chemical breakdown known as dehydrochlorination. Chlorine atoms shear away from the polymer chain, combining with hydrogen to form corrosive hydrochloric acid gas. This reaction is autocatalytic. The newly generated acid accelerates further degradation, rapidly destroying the mechanical integrity of the compound.
On an active production line, the physical manifestations of thermal degradation are unmistakable. A faint yellowing along the pipe surface is an immediate red flag. Left unchecked, this yellowing deepens into brown streaks. Eventually, solid black specks of carbonized material embed themselves in the pipe wall.
Allowing resin to burn inside the extruder carries severe financial and safety penalties. Beyond the immediate generation of scrap, carbonized material aggressively adheres to the screw flights and barrel walls. Anyone who has had to pull a screw to mechanically chisel away burnt resin knows the grueling downtime involved. Furthermore, the released gas poses serious respiratory hazards to floor workers and causes irreversible pitting to expensive steel machinery components.
To navigate these thermal challenges, the extruder barrel features multiple distinct heating zones. This design transitions the solid powder into a homogenous, flowable melt. The ideal temperature profile typically follows a gradual curve. It starts lower at the feed throat, peaks near the compression zone, and stabilizes as the melt approaches the die.
The primary function of the initial feed zone is conveying the raw compound forward while initiating a gentle pre-heating process. Temperatures here must be strictly controlled, generally hovering between 20°C and 60°C. Set the feed zone too high, and the material melts prematurely. It sticks to the feed throat or the root of the screw. This creates a physical blockage known as bridging, which starves the extruder of material and abruptly halts production.
Moving deeper into the barrel, the depth of the screw flights decreases. This forces the material into an increasingly tighter space. Mechanical compression squeezes out trapped air and kicks off the intense plasticization phase. While external heaters are typically set between 170°C and 185°C here, the dynamic changes entirely due to friction.
The mechanical energy of the screw churning the highly viscous melt generates massive internal friction. Often, this shear heat becomes so intense that the external barrel heaters shut off entirely. Automated cooling blowers must kick into high gear to extract excess thermal energy, preventing the compound from breaching its degradation threshold.
Serving as the final section of the barrel, the metering zone ensures the melt is completely homogenous in both temperature and viscosity before it is pumped outward. Ideal setpoints usually range from 175°C to 195°C. A stable temperature in this final stretch guarantees consistent melt pressure. Utilizing a well-engineered advanced PVC pipe extrusion machine with optimized screw geometry ensures this homogenization occurs smoothly, providing tight dimensional tolerances.
Once the molten plastic exits the barrel, it enters the die tooling. Because the die involves complex flow channels designed to shape a solid mass into a hollow tube, it requires precise, independent thermal management.
The adapter must closely match the temperature of the exiting melt, typically around 185°C to 190°C. If this massive piece of steel is too cold, the outer layer of the melt chills. Viscosity spikes drastically. This disruption causes a dangerous surge in head pressure and alters the flow dynamics.
In contrast, the die head itself is usually programmed slightly hotter than the metering zone, generally between 190°C and 195°C. Elevated die lip temperatures reduce friction between the molten plastic and the metal walls. This specific micro-adjustment is the secret to achieving that smooth, glossy surface finish on the exterior of the finished pipe.
Uneven wall thickness is a persistent quality control failure on the factory floor. While mechanical centering bolts handle macro-adjustments, temperature plays a vital micro-adjustment role. Hot melt flows faster. Cold melt drags. It is that simple.
Should a heating band on the die fail, the material flows sluggishly on the cooler side and rapidly on the hotter side. The result is a pipe that is structurally compromised. It will be thick on one side and thin on the other. Operators must obsessively ensure die zone temperatures remain uniform circumferentially.
The physical dimensions and long-term structural integrity of a finished pipe are inextricably linked to the thermal history it experiences. The temperature profile dictates how polymer chains align and how they react during the critical cooling phase.
Pushing material at temperatures that are too low is a deceptive practice. The pipe might look perfectly fine to the naked eye as it rolls off the line. However, a low extrusion temperature means the polymer chains remain stiff. Forcing this under-plasticized melt through the die stretches the molecules into unnatural alignments.
This process locks high levels of invisible residual stress directly into the pipe wall. When installed in the field and subjected to hydrostatic water pressure or sudden impacts, these internal stresses release violently. The pipe shatters. Proper plasticization temperatures ensure the polymer chains relax, yielding a tough, impact-resistant product.
Furthermore, heat profiles dictate behavior the moment the pipe enters the downstream vacuum sizing and water cooling tanks. An overheated melt results in material with very low melt strength. As it enters the vacuum calibrator, this excessively soft tube collapses under its own weight. Severe ovality issues occur.
An optimal melt temperature guarantees the pipe possesses just enough structural integrity to hold its shape against the sizing sleeve. This allows the chilling water to rapidly extract the heat, freezing the dimensions into a permanent, perfectly round state.
Looking at broader manufacturing trends, the extrusion industry is rapidly shifting away from manual PID tuning and reactive adjustments. Recent market analyses highlight a massive shift toward closed-loop thermal management. Modern facilities are increasingly integrating smart sensors and AI-driven thermal profiling algorithms. These advanced systems predict temperature drift before it results in defective pipes. This technological evolution drastically reduces material waste and minimizes reliance on operator intuition.

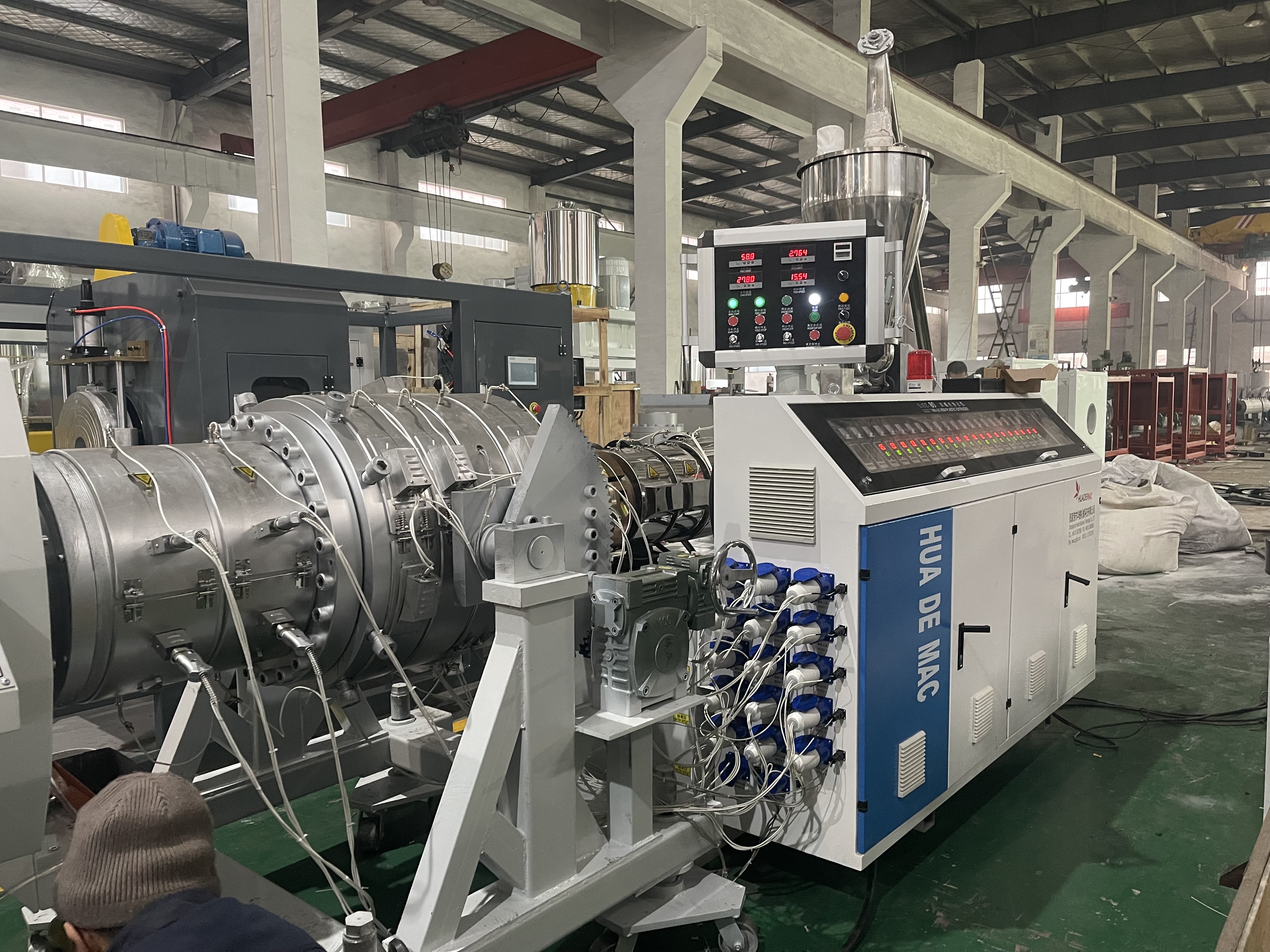

Dialing in the digital controllers on the panel is merely the baseline. The architectural design of your machinery fundamentally alters how heat is managed. Facilities processing dry blend powder rely heavily on conical twin-screw extruders. These designs operate at lower RPMs, physically pumping the material forward with minimal shear. This gentle thermal environment is crucial for heat-sensitive powder.
When selecting a high-performance plastic pipe manufacturing equipment, standard specifications dictate process stability. Look for SJSZ series conical twin-screws capable of handling pipe diameters ranging from 16mm up to 630mm. Ensure the system features premium PLC temperature control algorithms. The tolerance should be strictly maintained within ±1°C. Output capacities should reliably hit the 150 to 800 kg/h range, depending on the specific model and screw diameter.
Processing Parameter | Standard Unplasticized Formulation | High-Heat Chlorinated Formulation |
|---|---|---|
Target Melt Temperature | 180°C - 200°C | 200°C - 225°C |
Screw Design Requirement | Standard Conical Twin-Screw | Low-Shear, High Chrome Plated tooling |
Shear Heat Generation | Moderate to High | Extremely High (Requires aggressive cooling) |
Die Head Temperature | 190°C - 195°C | 215°C - 225°C |
Even with optimized settings, environmental shifts and equipment wear inevitably cause thermal fluctuations. Operators must be trained to visually diagnose defects on the fly to minimize scrap.
When the temperature breaches the safe processing window, the visual cues are immediate. You will notice yellow, brown, or burnt orange stripes running longitudinally along the pipe. A rough, pitted, or blistered inner surface points to localized boiling of the polymer. Thick, acrid smoke billowing from the die exit indicates active chemical degradation.
Operating below the ideal range produces a distinctly different set of failures. Visible bumps of raw resin appear on the surface, commonly referred to as fish eyes. A dull, hazy exterior means the die lips were too cold to iron out the surface. Because cold material is stiff, the extruder motor strains to push it. This causes alarming amperage spikes on the control panel.
Achieving a perfect temperature profile once is a minor victory. Maintaining it consistently across thousands of hours of continuous operation is the true hallmark of a professional manufacturing facility.
A frequent operational pitfall is confusing the barrel temperature with the actual melt temperature. The digital readouts primarily display the temperature of the steel barrel. Due to the intense shear heating discussed earlier, the flowing plastic inside can easily be 10°C to 20°C hotter than the surrounding metal.
To achieve true process control, facilities must utilize melt thermocouples. These specialized sensors penetrate through the adapter wall directly into the flow of the molten plastic. By monitoring the actual melt temperature, operators can make precise adjustments to screw RPMs and cooling fans rather than flying blind based solely on external heater data.
Hardware maintenance is equally critical. Heater bands must be inspected weekly for tight contact. Loose bands create air gaps that ruin heat transfer. Cooling fins frequently become choked with ambient dust, crippling the machine's ability to fight shear heat. Upgrading to a modern conical twin-screw pipe extrusion line equipped with automated maintenance alerts is a proven strategy to guarantee long-term production stability.
Mastering the thermal profile is a delicate, continuous balancing act. It requires operators to expertly manage staggered barrel zones, compensate for dynamic internal shear heat, and meticulously calibrate die settings. Strict temperature control is the only way to guarantee material stability, prevent corrosive degradation, and ensure uniform wall thickness.
By understanding unique thermal behaviors and implementing rigorous monitoring practices, manufacturers can virtually eliminate heat-related defects. Ready to upgrade your production floor? Exploring options like a reliable plastic pipe machinery tailored to your specific formulation is the definitive formula for producing superior piping systems. Reach out to the industry experts at Ivimaplas today to configure the exact extrusion line your facility needs to maximize yield and minimize scrap.
While it varies based on the specific chemical formulation, standard unplasticized material typically requires a melt temperature between 180°C and 200°C. The extruder barrel zones are designed to progressively heat the material from around 160°C at the feed zone up to 195°C at the die head. This ensures gradual, even plasticization without inducing thermal shock.
If the die temperature is uneven circumferentially, the melt flows faster through the hotter sections of the tooling and noticeably slower through the cooler sections. This flow imbalance causes more material to deposit on one side of the pipe. Precise, uniform die temperature control ensures symmetrical polymer flow.
Shear heat is the internal thermal energy generated by the intense physical friction of the extruder screw turning and compressing the highly viscous raw material against the stationary barrel walls. This shear heat often provides the vast majority of the melting energy required. It necessitates the use of active barrel cooling fans to prevent overheating.
Discoloration is the primary physical symptom of thermal degradation. It indicates that the extrusion temperature is too high, the material is stagnating in the barrel for too long, or the chemical formulation lacks sufficient thermal stabilizers to withstand the current processing conditions.
Absolutely not. Chlorinated formulations possess a significantly higher heat resistance and a much higher melt viscosity. They require entirely different, elevated temperature profiles, specialized low-shear screw designs, and highly corrosion-resistant tooling to process successfully without causing severe material degradation.
Temperature sensors, specifically melt thermocouples, should be calibrated using a certified portable dry-block calibrator. Maintenance teams insert the thermocouple into the calibrator at known setpoints matching the typical processing range. Any deviation between the PLC readout and the calibrator must be corrected in the software offsets to ensure accurate thermal data.
Melt fracture presents as a rough, shark-skin texture on the pipe exterior. It occurs when the extrusion speed exceeds the critical shear rate of the polymer, or when the die lip temperature is too cold. Increasing the die head temperature slightly or adding processing aids to the formulation usually resolves this surface defect.
