Choosing the right windows for a building isn't just about aesthetics; it's about engineering. PVC window extrusion stands as the backbone of modern construction, offering a blend of durability and thermal efficiency that traditional materials struggle to match. If you are a manufacturer looking to optimize production or a contractor seeking to understand why some profiles warp while others last decades, you are in the right place.
This guide breaks down the complex mechanics of the Industrial PVC window extrusion process. We will explore everything from raw material blending to the final cooling phase, ensuring you understand how to achieve high-performance results every time.
The heart of modern window manufacturing lies in the PVC window extrusion process. At its simplest, it involves forcing a heated, molten plastic compound through a precision-engineered die to create a continuous profile. However, "simple" is a misnomer. To create a high-quality window, the material must be Rigid PVC, often referred to as uPVC (unplasticized), which provides the structural integrity needed to hold heavy glass panes.
During Industrial production, the consistency of the "melt" is everything. If the temperature fluctuates even by a few degrees, the molecular structure changes, leading to brittle profiles or surface imperfections. Manufacturers rely on this process because it allows for high-volume production with incredible dimensional accuracy. We see this technology used globally because it effectively replaces wood and aluminum, offering better insulation and lower maintenance.
In the world of PVC window extrusion, the machinery you choose dictates your success. While single-screw machines work for some plastics, Industrial PVC processing almost exclusively utilizes the Twin screw extruder. Why? Because PVC is heat-sensitive and has a high viscosity.
A Twin screw setup provides superior mixing and degassing. It ensures that the heat is distributed evenly throughout the compound, preventing localized burning. These machines offer:
High Torque: Necessary for processing Rigid compounds.
Self-Wiping Action: Prevents material from sticking to the screws and degrading.
Precise Pressure Control: Essential for pushing material through complex, Multi-chamber dies.
Without the mechanical shearing and consistent pressure provided by a Twin screw system, achieving a smooth, professional finish on a window profile is nearly impossible.
You cannot produce a premium PVC window extrusion without a premium "recipe." The base resin is just the beginning. To make a profile that survives decades of sun and storm, we must incorporate specific additives.
Sunlight is the enemy of plastic. To combat yellowing and cracking, the compound must be UV resistant. This is achieved by adding Titanium Dioxide ($TiO_2$), which acts as a sunscreen for the window. In regions with high solar intensity, increasing the $TiO_2$ content is a non-negotiable step for long-term durability.
Rigid PVC is naturally brittle. To prevent the frames from cracking during installation or in cold weather, we add impact modifiers. Furthermore, heat stabilizers (often calcium-zinc based in modern eco-friendly setups) prevent the polymer from breaking down during the high-heat Industrial extrusion process.
| Ingredient | Purpose | Key Characteristic |
| PVC Resin | Base Structure | High K-value for strength |
| $TiO_2$ | Sun Protection | Makes it UV resistant |
| Fillers ($CaCO_3$) | Cost/Rigidity | Controls expansion |
| Lubricants | Processing | Prevents sticking in the Twin screw |
Modern energy codes demand high insulation values. This is where the Multi-chamber design of a PVC window extrusion becomes critical. If you look at a cross-section of a high-end window frame, it looks like a honeycomb. These internal walls aren't just for show.
The air trapped within a Multi-chamber profile acts as a natural insulator. Heat struggles to move through these multiple layers of plastic and dead air. This design allows PVC windows to achieve much lower U-factors than solid wood or standard aluminum frames.
While the Rigid PVC provides the shape, the largest central chamber in a Multi-chamber design is often reserved for galvanized steel reinforcement. This "skeleton" allows the window to withstand high wind loads in skyscrapers and coastal homes.
Once the Twin screw extruder has melted the material, it enters the die. This is the most critical tool in PVC window extrusion. The die shapes the molten "dough" into the complex Multi-chamber geometry we discussed earlier.

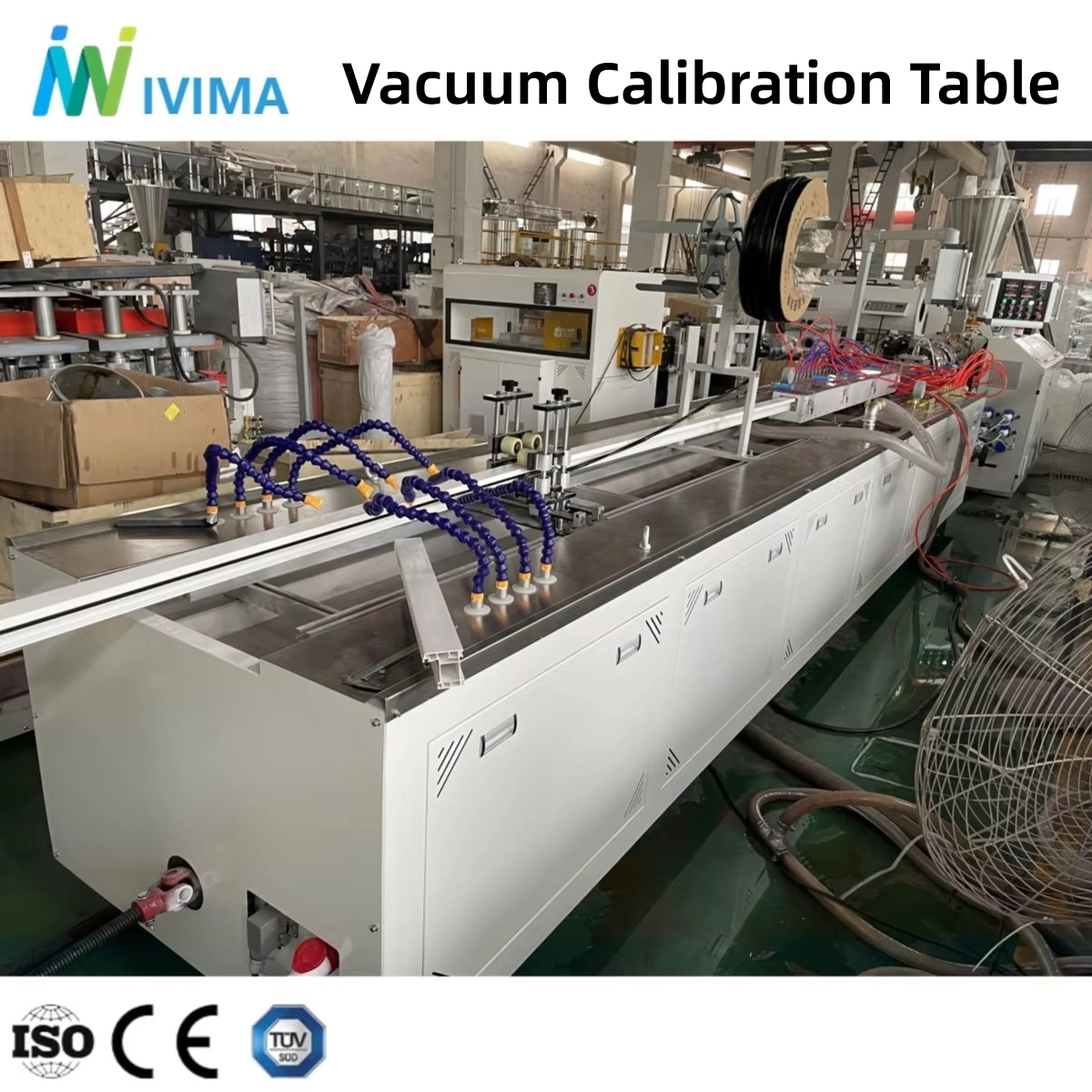

As the hot profile exits the die, it is soft and prone to collapsing. It immediately enters a vacuum calibration table. Here, the profile is pulled against precisely machined metal molds using vacuum pressure while being sprayed with cold water. This "freezes" the Rigid structure into its final shape.
Plastic shrinks as it cools. Experienced Industrial operators must calculate this shrinkage rate perfectly. If the cooling is uneven, the profile will "bow" or twist, making it useless for window assembly. Consistent water temperature and vacuum pressure are the keys to a straight, usable product.
The PVC window extrusion line doesn't end once the profile is hard. Several high-tech "add-ons" can enhance the final product.
Co-Extrusion (Co-Ex): Some machines use a secondary extruder to apply a thin layer of colored or extra UV resistant material over the main Rigid body. This saves money by using recycled material in the core while keeping the outside pristine.
Lamination: For a wood-grain look, a decorative foil is heat-bonded to the profile immediately after it leaves the cooling bath.
Automatic Sawing: A "flying saw" tracks the speed of the moving profile and cuts it to exact lengths (typically 6 meters) without stopping the line.
This continuous flow is what makes Industrial extrusion so efficient. A single line can produce thousands of meters of profile in a single shift with minimal waste.
Even with the best Twin screw equipment, things can go wrong in PVC window extrusion. Knowing how to troubleshoot is what separates experts from amateurs.
If the melt temperature is too low or the die is dirty, the surface of the Rigid profile will look rough. This is often solved by increasing the heat at the die head or checking the lubricant balance in the raw material mix.
If the wall thickness of the Multi-chamber profile varies, the window won't weld properly later. This is usually a sign of inconsistent "pull" speed from the caterpillar haul-off or fluctuating pressure in the Twin screw extruder. Regular maintenance of the feeding system is the best preventative measure.
Mastering PVC window extrusion is a balance of chemistry, mechanical engineering, and meticulous process control. By utilizing Twin screw technology and focusing on Multi-chamber designs, manufacturers can produce Rigid, UV resistant profiles that meet the world's strictest energy standards. Whether you are scaling an Industrial operation or simply vetting suppliers, understanding these technical nuances ensures a superior final product.
