The global demand for durable infrastructure has pushed the HDPE Pipe Extrusion Line to the forefront of industrial manufacturing. High-Density Polyethylene (HDPE) pipes are the backbone of modern water supply, gas transmission, and cable protection systems. However, choosing the right machinery—specifically understanding why a Single-screw HDPE pipe extrusion line is the industry standard—can be a daunting task for investors and factory managers alike.
In this guide, we dive deep into the mechanics, the critical components, and the operational logic that make these systems efficient. Whether you are looking for a High capacity setup or a specialized Large diameter solution, understanding the synergy between the screw design and the downstream equipment is essential for producing high-quality pipes that meet international standards.
An HDPE Pipe Extrusion Line is a complex assembly of synchronized machinery designed to transform raw polyethylene pellets into continuous, high-strength piping. At its heart, the process relies on thermal energy and mechanical shear. The raw material enters through a hopper, is melted by a Single screw extruder, and forced through a precision die head.
Unlike other polymers, HDPE requires specific temperature profiles to maintain its molecular integrity. A High speed extrusion system must balance output volume with melt homogeneity. If the melt isn't uniform, the pipe will have weak spots or inconsistent wall thickness. Modern lines utilize advanced PLC control systems to monitor these variables in real-time, ensuring that the Automatic adjustments keep the production within tight tolerances.
HDPE has a high viscosity when melted. This means the HDPE Pipe Extrusion Line must exert significant pressure to move the material through the die. The friction generated by the Single screw rotation contributes to the melting process, but it must be carefully managed to prevent overheating the polymer.
Every HDPE Pipe Extrusion Line consists of several critical stages, each playing a vital role in the final product's quality. If one component fails or is poorly calibrated, the entire batch can become scrap.
The Feeding System: Often utilizing a gravimetric dosing unit to ensure the exact ratio of raw material and masterbatch (color).
Single-Screw Extruder: The engine of the line, responsible for melting and pumping the material.
Die Head and Mold: Defines the diameter and wall thickness. For a Large diameter pipe, the die head design is massive and requires internal cooling.
Vacuum Calibration Tank: Where the "magic" happens—the molten tube is pulled into a vacuum sleeve to fix its outer diameter.
Cooling Troughs: Long spray tanks that use chilled water to solidify the HDPE.

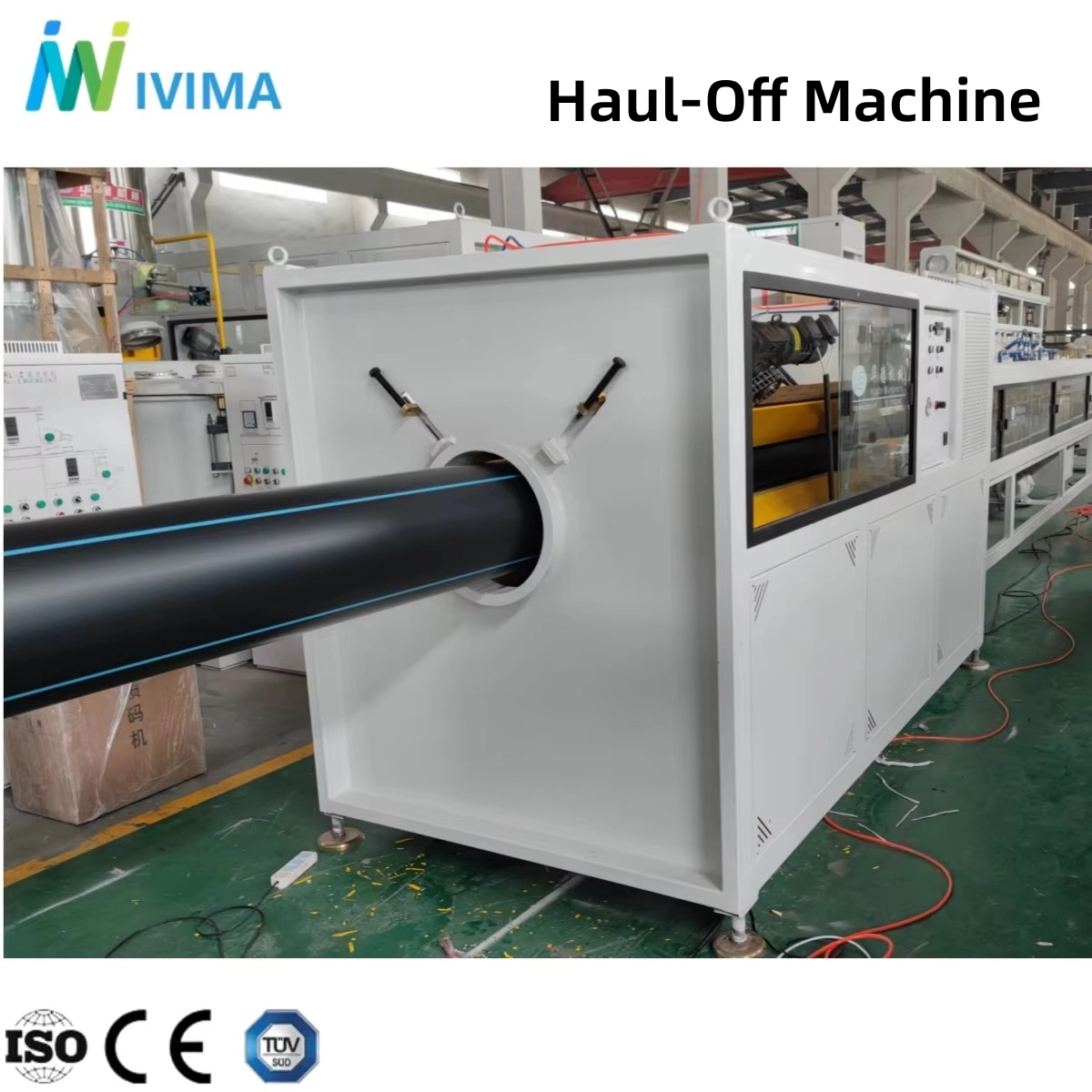

Haul-off Unit: Pulls the pipe at a constant speed, synchronized perfectly with the extruder's output.

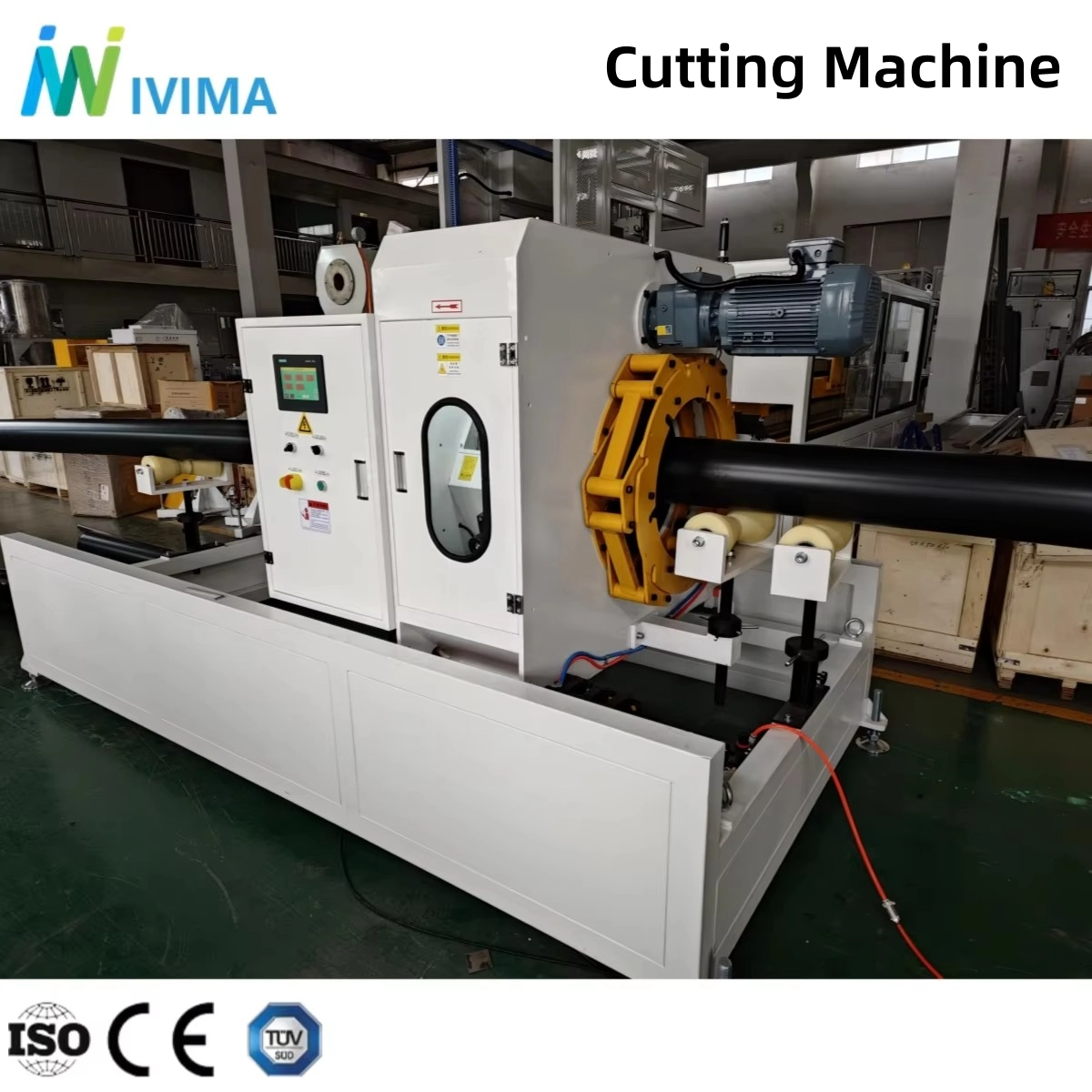

Cutting Unit: A High speed planetary cutter or chipless cutter that ensures clean edges.
| Component | Function | Key Feature |
| Extruder | Melting & Pressurizing | Single screw high-efficiency design |
| Vacuum Tank | Sizing & Initial Cooling | Automatic water level control |
| Haul-off | Maintaining Tension | Multi-caterpillar tracks for stability |
| Cutter | Final Sizing | Chipless cutting for Large diameter |
When discussing an HDPE Pipe Extrusion Line, the debate often surfaces: single-screw or twin-screw? For HDPE, the Single screw design is the undisputed winner. This is primarily due to the material's shear sensitivity and the need for high pressure.
A Single screw extruder is simpler, more robust, and easier to maintain. It provides a stable output which is crucial for the long cooling times required by HDPE. Because HDPE is relatively stable compared to PVC, it doesn't need the intensive mixing of a twin-screw system. Instead, it benefits from the consistent, linear pressure that a Single screw provides.
Lower Maintenance Costs: Fewer moving parts mean less downtime.
Higher Pressure Capability: Better for pushing melt through long, complex dies.
Longevity: These screws often last longer when processing non-abrasive polyolefins.
Scalability: Easier to design for High capacity throughputs exceeding 1000kg/h.
The journey of an HDPE Pipe Extrusion Line starts with the raw material and ends with a finished coil or length of pipe. Understanding this flow helps operators troubleshoot quality issues like "shark skin" or wall thinning.
The Single screw pulls the pellets through three zones: feed, compression, and metering. In a High speed line, the screw L/D (length to diameter) ratio is typically 33:1 or 38:1. This extra length ensures the plastic is perfectly melted before reaching the die.
As the melt leaves the HDPE Pipe Extrusion Line die head, it is extremely soft. It enters the vacuum tank. Here, atmospheric pressure pushes the pipe walls against a sizing sleeve while water sprays cool the surface. This is the most sensitive part of the Automatic process; any fluctuation in vacuum pressure will result in diameter variations.
HDPE retains heat. A Large diameter pipe might stay in cooling tanks for over 30 meters. The haul-off must pull with enough force to overcome the friction of the sizing sleeve but not so much that it stretches the pipe.
As infrastructure projects grow, the need for a Large diameter HDPE Pipe Extrusion Line has skyrocketed. Producing a 1200mm or 1600mm pipe isn't just about making things "bigger"—it requires a total rethink of cooling and sag management.
In a Vertical cooling setup or a standard horizontal line, "sagging" is a major problem. Gravity pulls the molten HDPE to the bottom of the pipe, making the bottom wall thicker than the top. To combat this, High capacity lines use internal pipe cooling and rotating die heads to distribute the melt evenly.
High capacity extruders can reach outputs of 1500kg/h.
Automatic ultrasonic thickness gauges measure the pipe in real-time, feeding data back to the extruder to adjust the screw speed.
Large diameter systems require reinforced haul-offs with up to 8 or 10 caterpillars to prevent slippage.
The "green" movement has forced the HDPE Pipe Extrusion Line to become more efficient. Energy is the second-highest cost in pipe production after raw materials.
Modern Automatic systems now feature:
Permanent Magnet Motors: These save 10-15% energy compared to traditional DC or AC motors.
Infrared Heating: Provides faster startup times and more targeted heating of the barrel.
Integrated Waste Management: Most High speed lines can now incorporate a percentage of recycled HDPE "regrind" without sacrificing structural integrity.
By choosing a Single screw system with optimized heating, manufacturers reduce their carbon footprint while increasing their profit margins. The High capacity nature of these machines means fewer machines are needed to meet the same market demand, further saving on factory floor space and utility costs.
Investing in a premium HDPE Pipe Extrusion Line offers long-term ROI that budget setups cannot match.
Consistency: A High speed line produces the same quality pipe on Monday as it does on Friday.
Versatility: With a simple die change, the same Single screw extruder can produce water pipes, gas pipes, or conduit.
Reduced Labor: Because the system is largely Automatic, a single operator can often manage two or even three production lines simultaneously.
Durability: High-quality nitrided screws and barrels resist wear, ensuring the HDPE Pipe Extrusion Line remains operational for decades.
The HDPE Pipe Extrusion Line is a masterpiece of industrial engineering. By focusing on a Single screw system, manufacturers gain a reliable, High capacity solution that balances cost with performance. From the initial melting phase to the final Automatic cut of a Large diameter pipe, every stage must be optimized for precision. As the world continues to build, these extrusion lines will remain the primary tool for creating the durable, leak-proof piping our society depends on.
Q: Why is a single-screw extruder preferred over a twin-screw for HDPE?
A: A Single screw extruder provides the high pressure and thermal stability required for HDPE's high melt viscosity. It is also more cost-effective and easier to maintain for polyolefin processing.
Q: How does a High speed line maintain pipe quality?
A: It uses advanced Automatic feedback loops, where ultrasonic sensors measure wall thickness and adjust the haul-off or extruder speed instantly to keep the pipe within spec.
Q: Can one HDPE Pipe Extrusion Line produce different pipe sizes?
A: Yes. By changing the die head and the sizing sleeves in the vacuum tank, the same line can produce a range of diameters, though Large diameter pipes usually require a dedicated, heavy-duty line.
Q: What is the average lifespan of a Single screw in these lines?
A: With proper maintenance and the use of high-quality raw materials, a nitrided Single screw can last 5 to 10 years before requiring refurbishment or replacement.
