Shift the evaluation mindset in your recycling facility. Melt filtration is not a peripheral accessory. It is the primary mechanical barrier determining your end product. This barrier decides whether post-consumer resin (PCR) achieves virgin-like properties or gets downgraded. Unfiltered microscopic contaminants create stress concentrators in recycled plastics. These impurities include aluminum, paper, and foreign polymers. They directly impact Melt Flow Index (MFI), tensile strength, and visual clarity.
You cannot ignore this reality if you want to compete in premium markets. Modern processors must focus heavily on contamination removal. We will define the physical mechanisms of melt filtration in this article. We outline configuration variables for different polymer types. We also provide a strict evaluation framework. You will learn how to select filtration systems on a commercial scale. This knowledge helps you maximize output quality while maintaining steady line speeds.
Continuous melt filtration prevents pressure fluctuations, ensuring consistent pellet density and uniform MFI.
Matching screen micron ratings to the specific contaminant profile of the input material dictates the trade-off between throughput and consumable costs.

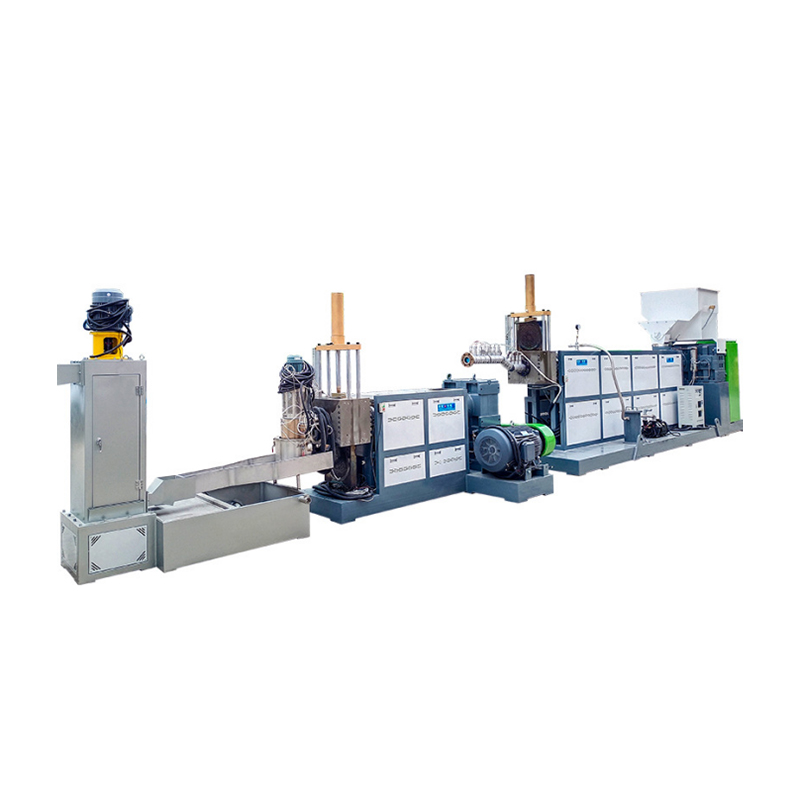

The integration of filtration technology within a Plastic Pelletizing Machine must account for material-specific behaviors, such as the high shear sensitivity of PET versus the high volume of volatiles in PP/PE films.
You might invest heavily in front-end sorting and washing. However, the yield-to-quality gap always persists. High-quality sorting cannot eliminate 100% of contaminants. Residual adhesives, microscopic paper labels, and cross-polymer contamination routinely survive the washing phase. They slip into the extruder barrel. A robust mechanical barrier becomes your final defense. Without it, you pass these hidden defects directly to your customers.
Unmelted particles cause severe mechanical degradation in recycled resins. They act as rigid inclusions within the polymer matrix. These inclusions create stress concentrators. Stress concentrators lead to melt fracture during downstream processing. You will see surface defects in injection-molded parts. You will experience mechanical failure in blow molding applications. Film extrusion lines suffer the most. A single un-melted particle can cause bubble instability. It tears the film, stopping production completely.
Consider the common downstream defects caused by poor filtration:
Melt fracture: Rough, shark-skin textures on the surface of extruded pipes.
Bubble tearing: Sudden blow-outs in blown film lines due to rigid particles.
Poor optical clarity: Haze and specking in transparent packaging.
Inconsistent MFI: Viscosity variations causing short shots in molding.
This directly affects your ROI and market positioning. Fine-micron filtration capabilities correlate to market price premiums. Buyers gladly pay more for A-grade recycled pellets. They need reliable drop-in replacements for virgin resins. Lower-tier applications offer tighter profit margins. They also expose you to volatile market demands. By upgrading your filtration, you elevate your product tier. You move from low-value structural lumber to high-value consumer packaging.
Common Mistake: Many processors rely solely on optical sorters. They assume clean-looking flakes equal clean melt. Always assume residual contamination exists. Plan your filtration strategy around the worst-case scenario for your feed stream.
Melt filtration fundamentally dictates how well your line performs. You must choose between continuous and discontinuous systems. Continuous screen changers are mandatory for modern, high-throughput lines. They prevent flow interruptions. Discontinuous systems force you to stop the line during screen swaps. This creates stagnant melt in the barrel. Stagnant melt degrades rapidly. It turns yellow or brown, ruining an entire batch of pellets.
Pressure management is a critical mechanism. Screen blinding happens when impurities block the filter mesh. This creates immediate backpressure spikes. High backpressure forces the extruder motor to work harder. It increases the risk of polymer shear heating. Overheated polymers degrade thermally. You lose physical properties like tensile strength. Maintaining stable pressure ensures a uniform melt temperature. It guarantees consistent pellet density.
Backflushing technology provides a modern solution for high-contamination streams. Automated self-cleaning systems extend screen life significantly. They reduce operator intervention. The system uses a piston to push clean melt backward through the screen. This dislodges the contamination cake. It purges the dirt out of the system. You do sacrifice a calculated percentage of melt yield. However, the operational continuity easily outweighs the small material loss.
Filtration System Type | Flow Interruption | Pressure Stability | Best Application Scenario |
|---|---|---|---|
Discontinuous Screen Changer | Line stops during change | Fluctuates wildly before change | Extremely clean post-industrial scrap |
Continuous Dual-Piston | None | Highly stable | Standard post-consumer rigid plastics |
Continuous Scrape/Laser | None | Perfectly constant | Highly contaminated agricultural films |
Different recycling lines face vastly different challenges. You cannot use a one-size-fits-all approach. The integration of filtration technology must account for material-specific behaviors. The machine architecture heavily influences how you handle impurities.

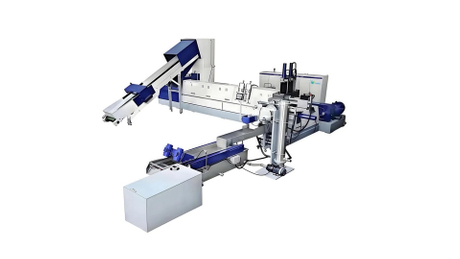

Consider the filtration dynamics in a Side Force Feeding PP PE Pelletizer. This equipment typically processes post-consumer films. The primary challenge involves high levels of organic contaminants. You will encounter paper labels, wood splinters, and heavy moisture. Film scrap also carries a high volume of volatiles. A standard screen changer blinds within minutes here. The solution requires large-area laser filters. Alternatively, you can use heavy-duty continuous scrape filters. These systems manage massive contamination loads. They rotate a blade against a stationary screen. They wipe the dirt away continuously. They accomplish this without causing excessive pressure drops.
The situation changes entirely in a PET Flake Pelletizing Line. PET demonstrates extreme sensitivity to residence time. It suffers from rapid hydrolytic degradation if held too long at melt temperatures. The end-market often demands ultra-fine filtration. You usually need sub-50 micron screens for fiber or bottle-to-bottle grades. You cannot use scrape filters here. They introduce too much shear. The solution involves piston-type continuous screen changers. These units feature streamlined flow channels. They eliminate dead spots. They minimize melt residence time. They keep the PET flowing fast and straight.
Complex compounding requires even tighter control. Integration with a Dose-Feeding Plastic Pelletizer demands absolute precision. The primary requirement is maintaining absolute pressure stability. If the filter blinds and pressure surges, the extruder output fluctuates. The dosing system will then compound additives inaccurately. You might end up with too much colorant or too little UV stabilizer. A pressure-constant filtration system ensures the dosing gravimetric feeders synchronize perfectly with the melt flow.
Best Practice: Always match the rheological behavior of your polymer to the filter design. Shear-sensitive materials like PET require smooth, short flow paths. Viscous materials like HDPE can tolerate longer, more complex filtration channels.
Sourcing the right system requires a strict evaluation framework. You must calculate the required screen surface area based on the percentage of solid impurities. If you underestimate contaminant volume, you invite rapid screen blinding. Small screen areas force the melt through at high velocities. This pushes soft contaminants, like un-melted rubber or gels, right through the mesh. You need a large enough surface area to maintain a gentle melt velocity.
You must also assess micron rating trade-offs. Finer is not always better. You should determine the absolute minimum filtration fineness required by the end-buyer. Compare this against operational costs. Finer meshes cause an exponential increase in consumable expenses. You will replace screens more frequently. You will also experience higher yield loss during backflushing. A 100-micron screen might run for hours. A 50-micron screen on the same material might blind in twenty minutes.
End-Use Application | Recommended Micron Range | Impact of Over-Filtration (Too Fine) |
|---|---|---|
Injection Molding (Thick Walled) | 150 - 250 microns | Unnecessary OPEX, frequent screen changes |
Blown Film (Standard) | 80 - 120 microns | High yield loss, extruder bottlenecking |
PET Bottle-to-Bottle | 40 - 60 microns | Polymer shear degradation, yellowing |
Melt flow channel design is another critical metric. You must evaluate the system for "dead zones." Dead zones are corners or gaps inside the metal housing where polymer stops moving. Stagnant melt degrades rapidly under high heat. It carbons and turns into hard black specs. Eventually, this carbon breaks off. It flows downstream, causing severe black speck contamination in the final pellet. Request rheological flow simulations from the manufacturer. Look for perfectly streamlined channels.
Follow these steps when evaluating a new system:
Determine the average percentage of solid dirt in your unwashed feed stream.
Identify the strict micron requirement of your most demanding customer.
Request flow simulations to verify the absence of dead zones in the filter block.
Calculate the estimated screen replacement frequency based on the manufacturer's data.
Theory often clashes with floor realities. You must model the true consumable operating expenses (OPEX). Do not just look at the capital cost of the machine. Model the cost of filter screens over a 12-month production cycle. Some proprietary laser screens cost thousands of dollars. Standard mesh packs cost a few cents. You must also calculate the energy consumption required to maintain filter block temperatures. Large filtration units draw substantial electrical power.
You need to audit the actual yield loss in backflush systems. Manufacturers often claim a melt-loss percentage of 1-2%. However, this remains highly variable based on input dirt levels. If you run heavily contaminated agricultural film, your backflush frequency skyrockets. Your yield loss might jump to 5% or more. This directly cuts into your profit margin.
To accurately audit your yield loss, implement this daily protocol:
Weigh the total bulk input of flakes or scrap entering the line.
Weigh the total output of high-quality finished pellets.
Collect and weigh the purged material discharged by the backflush or scrape filter.
Compare the purged weight against the theoretical dirt percentage to find your true polymer loss.
Operator safety and ergonomics present serious operational risks. Manual screen changes expose workers to high melt pressures. They work around extreme temperatures often exceeding 250°C. Changing screens on a poorly designed manual system invites burn injuries. Assess the risks associated with human intervention. Automated systems protect your workforce. They use hydraulic actuators to move screens safely. They keep operators away from the danger zone. Investing in automation reduces liability and lowers worker fatigue.
Melt filtration is the defining variable in producing high-value recycled plastics. It guarantees consistent quality. It prevents pressure fluctuations and stops downstream defects. A sophisticated filtration unit ensures your pellets meet strict industry specifications.
Base your procurement decisions logically. Do not shortlist machines based solely on the extruder's capacity. An extruder can only run as fast as its filter allows. Base your decision on the filtration system's ability to handle your specific contamination profile. It must do this without bottlenecking the entire line.
Take concrete next steps. Request rheological data from equipment vendors. Ask for detailed flow path diagrams. Most importantly, conduct physical material trials using your dirtiest feed stream before finalizing system specifications. This proves the technology works in reality, not just on paper.
A: It depends entirely on the end-use. Generally, you need 100–150 microns for standard injection molding. However, you must drop to 50–80 microns for blown film applications to prevent bubble instability and tearing.
A: Inadequate screen area increases backpressure quickly. High backpressure forces the operator to slow the extruder RPM to prevent motor overload or polymer degradation. This directly reduces throughput. Proper sizing prevents this bottleneck.
A: Yes, you can retrofit them. However, you must ensure the existing extruder drive and barrel can handle the increased backpressure generated by modern, finer filtration screens. Weak gearboxes may fail under the new load.
