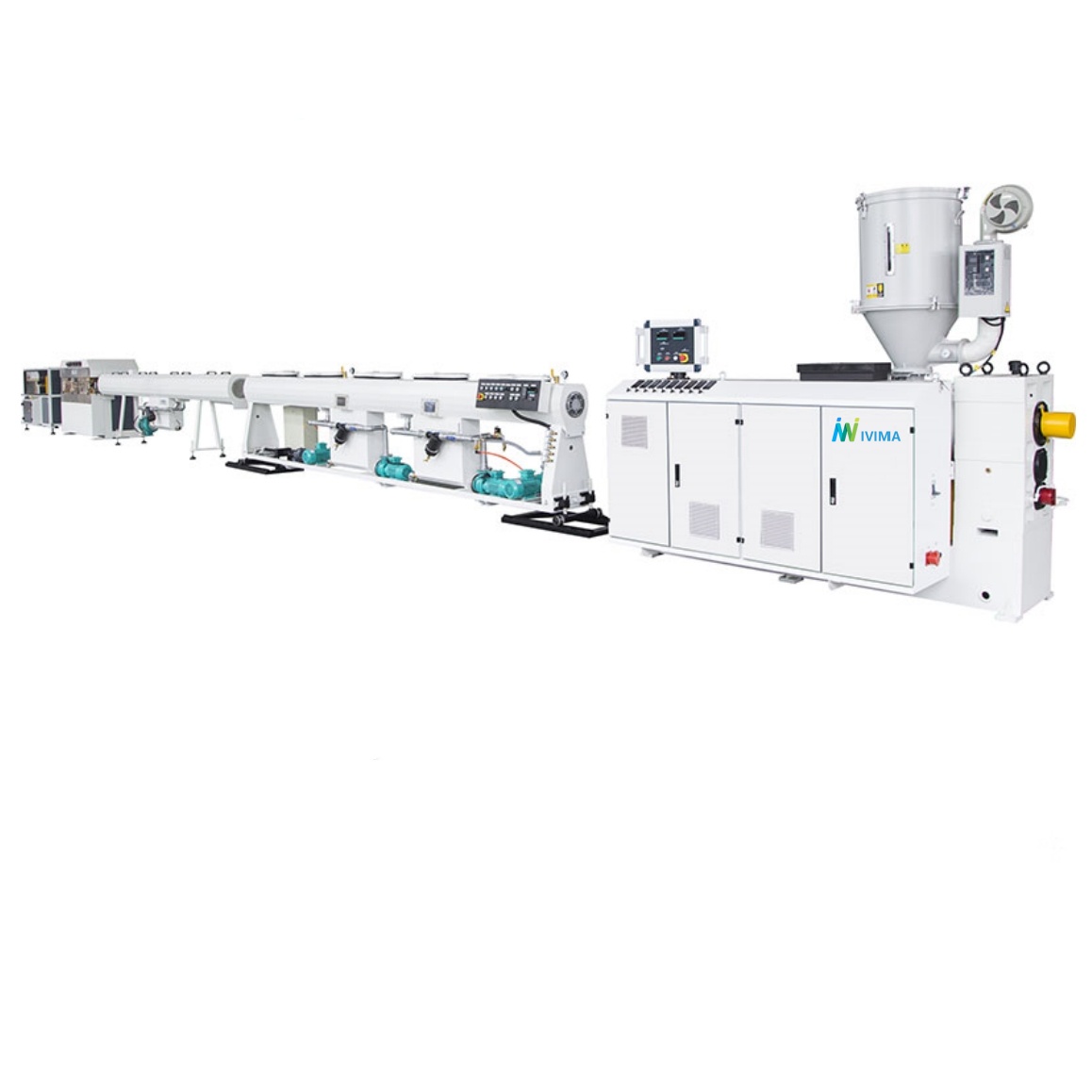

Precision determines success in modern plastic manufacturing. Finding the exact haul-off speed is never an isolated guessing game. Rather, it remains the critical variable synchronizing melt output with downstream cooling. A mismatch of even a few percentages between extruder throughput and puller speed disrupts the entire process. It quickly causes out-of-spec wall thickness, spikes scrap rates, and severely compromises final mechanical properties. Operators face constant struggles balancing these competing forces during long production runs.
We will examine the underlying technical variables dictating pull speeds in a standard setup. You will discover how downstream equipment fundamentally limits your operational thresholds. You will also learn the necessary criteria for evaluating haul-off technology when planning to upgrade your facility. Understanding these principles prevents costly downtime. It empowers your team to optimize line speed safely. Mastering this balance ensures every produced batch meets strict international quality standards.
Haul-off speed must be mathematically synchronized with the extruder’s volumetric output and the pipe's cross-sectional area.
Cooling capacity dictates maximum theoretical speed; pushing beyond this induces residual stress and ovality.
End-use applications dictate tolerance margins, altering acceptable speed thresholds.
Modern haul-off machines require closed-loop PLC integration and servo-driven motors to prevent micro-fluctuations in pull stability.
The relationship between screw RPM and haul-off velocity follows strict mass balance rules. You calculate melt volume by tracking screw rotations and melt density. The puller must clear this exact volume constantly. If the extruder pushes out 500 kilograms per hour, the puller must extract 500 kilograms per hour. Any deviation from this mathematical equilibrium instantly alters the pipe geometry. Process engineers rely on this fundamental mass balance equation daily. It forms the baseline for all line speed calculations.
We use the Draw Down Ratio (DDR) to understand material stretching. This ratio compares the die annulus area to the final pipe dimensions. A high DDR requires a faster pull speed. We use it to stretch the melt cone properly before it enters the sizing sleeve. Correct DDR application prevents internal stress buildup. It aligns the polymer chains longitudinally. This alignment gives the final product its required tensile strength. Miscalculating the DDR often leads to immediate structural failures during burst testing.
You will quickly notice the symptoms of asynchrony on the factory floor. Pulling too fast causes sudden wall thinning. It creates excessive longitudinal orientation and increases the risk of brittle failure. Pulling too slow forces dangerous melt accumulation at the die lip. You see rapid wall thickening and a complete loss of dimensional calibration. Over time, slow pulling also leads to material degradation inside the die head.
Operators used manual potentiometers for decades to match these speeds. Today, closed-loop gravimetric control systems dominate the floor. They automatically adjust the pull speed based on real-time extruder output. These systems measure the exact weight of resin entering the feed throat. They communicate instantly with the haul-off PLC. This seamless communication eliminates human error. It guarantees perfect synchronization regardless of minor voltage drops or resin density shifts.
Pipe dimensions directly impact maximum speed limits on any HDPE pipe extrusion line. We look specifically at the Standard Dimension Ratio (SDR) and overall diameter. Thick-walled pipes require exponentially slower speeds. The extra polymer mass needs much more time for proper heat dissipation. The outer skin cools quickly, but the inner core remains molten. Thin-walled profiles cool much faster. They allow higher line velocities without risking deformation.
Melt temperature and viscosity also play massive roles. High melt flow index (MFI) resins flow easily inside the barrel. However, they behave quite differently under downstream tension. High temperatures lower the overall melt strength. They demand highly specific cooling requirements to prevent sagging before calibration. Operators must carefully balance melt temperature against pull speed. If the melt runs too hot, the pipe collapses inside the sizing sleeve before vacuum pressure catches it.
You cannot ignore ambient environmental factors during production. Chilled water temperature directly sets your baseline cooling rate. Factory ambient conditions play a massive role during peak summer months. High ambient heat severely caps the maximum line speed your equipment can achieve safely. Many facilities experience a ten percent drop in optimal pull speed during summer. To combat this, modern plants invest heavily in oversized industrial chillers. They maintain consistent water temperatures regardless of the season.
Resin formulations introduce another layer of complexity. Reprocessed materials often exhibit inconsistent flow rates. They require highly responsive pullers to accommodate sudden viscosity changes. Prime virgin resins behave predictably. They allow operators to push the speed limits closer to the theoretical maximum. Understanding your specific material blend remains crucial for setting baseline pull targets.
The absolute limiting factor for haul-off speed is cooling residence time. How long must the polymer remain inside the pipe calibration tank? The pipe must reach full dimensional stability before exiting the vacuum chamber. If you pull too quickly, the core remains excessively hot. The pipe will warp or flatten as it travels across the downstream rollers. We measure residence time in seconds. It dictates your maximum production capacity.
You must constantly balance vacuum pressure against haul-off tension. High vacuum levels create intense friction against the sizing sleeve. The puller must overcome this drag force smoothly. If the puller lacks sufficient torque, you experience friction lock. Industry veterans call this the stick-slip phenomenon. It causes severe surface defects and horizontal chatter marks. Upgrading your vacuum sleeve design often reduces this friction. It allows for faster, smoother pulling.
Physical line space often bottlenecks production directly. You must evaluate if your tank length is the actual factor capping production speeds. A short tank forces you to run slowly to achieve the required cooling. Adding a secondary cooling bath often unlocks faster pull rates. This expansion requires more floor space but yields significant output gains. Let us review the primary cooling stages:
Primary Sizing Stage: Intense vacuum application combined with high-volume water spray to freeze the outer skin immediately.
Secondary Cooling Stage: Full immersion or heavy spray without vacuum to extract deep core heat.
Final Conditioning Stage: Gentle ambient or slightly chilled spray to stabilize the pipe before it hits the puller belts.
Failing to optimize these three stages forces operators to artificially throttle the pull speed. Maximizing tank efficiency is always cheaper than buying a larger extruder.
Different applications demand entirely different tolerance profiles. High-pressure applications demand absolute manufacturing precision. Producing an HDPE water supply pipe requires strict adherence to Minimum Required Strength (MRS) standards. Wall thickness must remain exact across the entire circumference. You must use slower, highly controlled speeds to prevent internal stress points. Any speed fluctuation compromises the burst rating. Municipalities reject shipments failing these strict pressure tests.
Agricultural manufacturing needs differ greatly. Making an HDPE irrigation pipe allows for significantly higher haul-off speeds. These agricultural pipes feature lower pressure requirements and much thinner walls. Drip tapes and micro-irrigation lines run at blazing speeds. Throughput volume often takes priority over strict structural rigidity. The flexibility of irrigation lines tolerates minor dimensional variances perfectly well.
Target pull speeds must always align with standard compliance testing. ISO 4427 and ASTM D3035 mandate specific testing protocols for municipal pipes. If you pull too fast, you introduce residual stresses. The pipe will fail long-term hydrostatic pressure tests. You must lock your speed parameters securely once passing these certifications. Let us compare the typical speed thresholds between these applications.
Application Speed Threshold Comparison
Application Type | Typical SDR Range | Relative Speed Limit | Primary Quality Focus |
|---|---|---|---|
Municipal Water Supply | SDR 7.4 - SDR 11 | Slow to Moderate | Burst strength, exact wall thickness, zero internal stress. |
Gas Distribution Mains | SDR 9 - SDR 11 | Very Slow | Absolute structural integrity, stringent ISO compliance. |
General Irrigation | SDR 17 - SDR 26 | Fast | Throughput volume, flexibility, cost efficiency. |
Micro Drip Tape | Thin-wall custom | Extremely Fast | Maximum continuous output, low material weight. |
This comparison shows why a single factory cannot apply a universal speed setting. Every product category demands a unique synchronization profile. Operators must adjust their mindset when switching between utility and agricultural orders.
Modern extrusion operations demand incredible precision. When selecting a new plastic pipe machine, you must mandate AC servo motors. They deliver precise torque control at extremely low RPMs. Reject older DC drives or basic AC vector setups. They simply cannot maintain the required micro-stability. Servo motors eliminate the subtle surging that ruins pipe geometry. They provide instant feedback to the main controller.
Evaluate your contact area and track configuration carefully. Small pipes run perfectly on 2-track caterpillar pullers. You need 4, 6, or 8-track configurations for large diameter heavy-wall pipes. More tracks distribute the pulling force evenly. This prevents the belts from crushing the hot pipe. You must ensure your equipment matches your heaviest expected product. Do not under-spec the track count to save initial costs.
Pneumatic pressure regulation on the tracks remains absolutely essential. It prevents pipe deformation while maintaining adequate grip. Operators adjust the air pressure based on the pipe's cooling state. A soft pipe requires lower pressure. A fully hardened pipe tolerates higher clamping force. Advanced machines feature proportional valves. They allow operators to adjust track pressure digitally from the HMI screen.
Integration capabilities define modern manufacturing success. Your haul-off unit's PLC must seamlessly hand-shake with the main extruder controller. It must integrate fully with your gravimetric dosers. Base your procurement decisions on maximum pulling force in Newtons. Calculate your required speed range in meters per minute. Ensure full compatibility with existing factory automation protocols like OPC UA. This connectivity future-proofs your investment.
Track slippage ruins pipe geometry instantly. The puller loses grip, causing a momentary halt. The extruder keeps pumping, creating a massive lump at the die head. Common causes include insufficient pneumatic pressure or worn rubber belts. Excessive cooling water carryover also lubricates the tracks dangerously. Apply rapid solutions immediately to fix this issue.
Follow these steps to isolate and eliminate track slippage:
Install high-pressure air wipes directly before the haul-off entrance to dry the pipe surface completely.
Inspect the rubber belt cleats for glazing or excessive wear. Replace them if they appear hardened.
Increase the pneumatic clamping pressure gradually until the slippage stops, monitoring for any signs of pipe crushing.
Check the belt tensioning cylinders for hidden air leaks or pressure drops.
You must differentiate between extruder-induced surging and haul-off speed fluctuations. Isolate the variable by checking the gravimetric data log. If the melt pressure remains perfectly stable, the puller drive is likely fluctuating. A failing encoder often causes these drive fluctuations. Replace the encoder before tearing down the mechanical gearbox.
Ovality and deformation point to severe cooling deficits. Sometimes the puller tracks physically crush the pipe. This identifies a major bottleneck in the calibration stage. The pipe core remains too soft when it reaches the haul-off belts. You must decrease the line speed or lower the chilled water temperature. You cannot fix ovality by simply reducing track pressure if the pipe lacks structural integrity.
Always establish a baseline empirical chart when commissioning new equipment. Map the gravimetric output to haul-off RPM meticulously. Do this for every specific resin and pipe size combination you run. Post this chart on the factory floor. It gives operators a reliable starting point during startup. It eliminates guesswork and reduces setup scrap significantly.
Finding the right haul-off speed remains a continuous, dynamic calculation. It depends entirely on extruder volumetric output, available cooling capacity, and strict dimensional tolerances. You cannot isolate the puller from the rest of the line. It serves as the mechanical bridge connecting melt generation to final product sizing.
Investing in advanced, synchronized haul-off technology minimizes scrap and maximizes raw material yield. Closed-loop servo systems eliminate human error. They maintain the delicate mass balance required for premium pipe manufacturing. They pay for themselves quickly by reducing out-of-spec waste.
We recommend conducting a full technical audit of your current line before buying a new extruder. Check your cooling tank capacities first. Verify your haul-off drive stability under maximum load. Upgrading your puller and cooling baths often unlocks trapped capacity. Optimize your downstream equipment to achieve true manufacturing efficiency.
A: You calculate it using a standard mass balance formula. Divide the extruder output (kg/hr) by the pipe weight per meter (kg/m). Multiply that result by 60 to convert hours to minutes. This gives you the precise target line speed in meters per minute (m/min).
A: Uneven thickness stems from upstream issues. Check for a non-concentric die adjustment or a partially clogged flow channel. Fluctuating melt temperatures also cause uneven swelling. Additionally, ensure the puller tracks apply even pneumatic pressure; lopsided pressure can stretch one side excessively.
A: Upgrading a haul-off machine cannot increase absolute output if your extruder or cooling tanks operate at maximum capacity. However, a highly stable, servo-driven puller reduces scrap rates dramatically. It allows operators to confidently run the line closer to its theoretical maximum speed without risking failure.
